Description

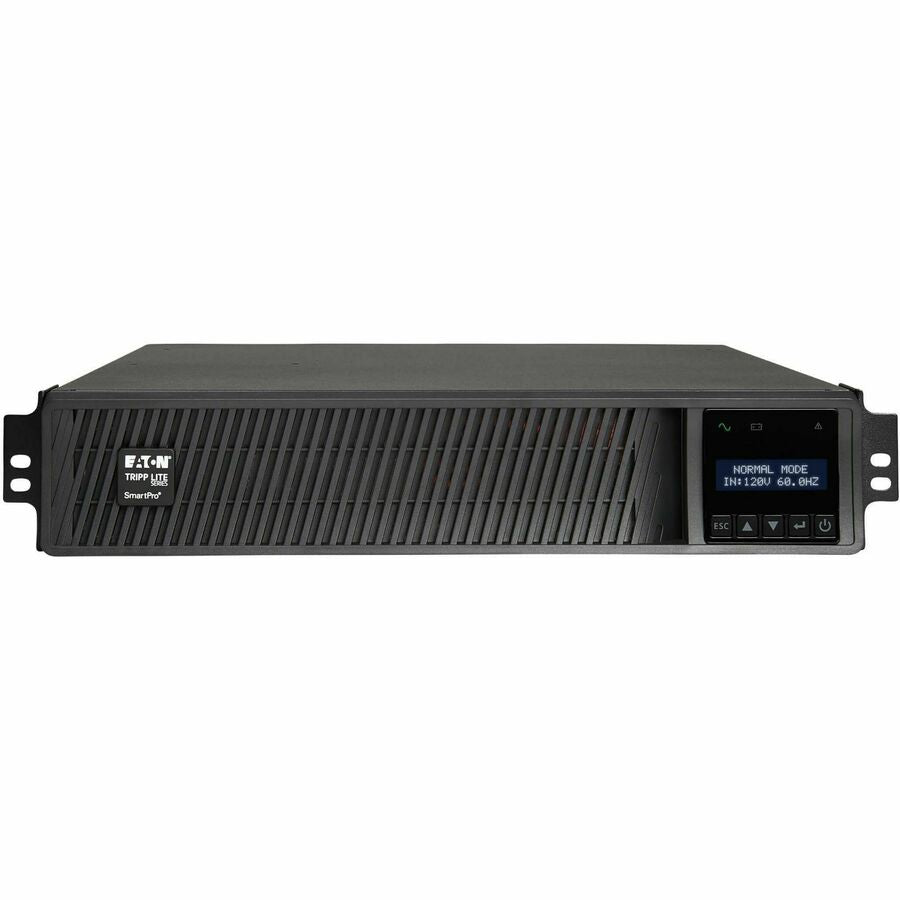

The Eaton Tripp Lite SmartPro SMART3000RMXL2U is a high-performance 3000VA/3000W 120V line-interactive UPS system with pure sine wave output, ideal for enterprise servers, PoE switches, and network infrastructure. Designed for 2U rack or tower installation, this ENERGY STAR® 2.0-certified UPS offers extended runtime capabilities with optional BP72VRM2U battery packs and remote network management via an optional WEBCARDLXE (sold separately). Features include AVR, front-panel LCD, USB/DB9 ports, and 7 total outlets (6x 5-20R and 1x L5-30R), including two load banks for controlled load shedding.
| Specification | Details |
|---|---|
| Model | SMART3000RMXL2U |
| UPS Type | Line-Interactive, Pure Sine Wave |

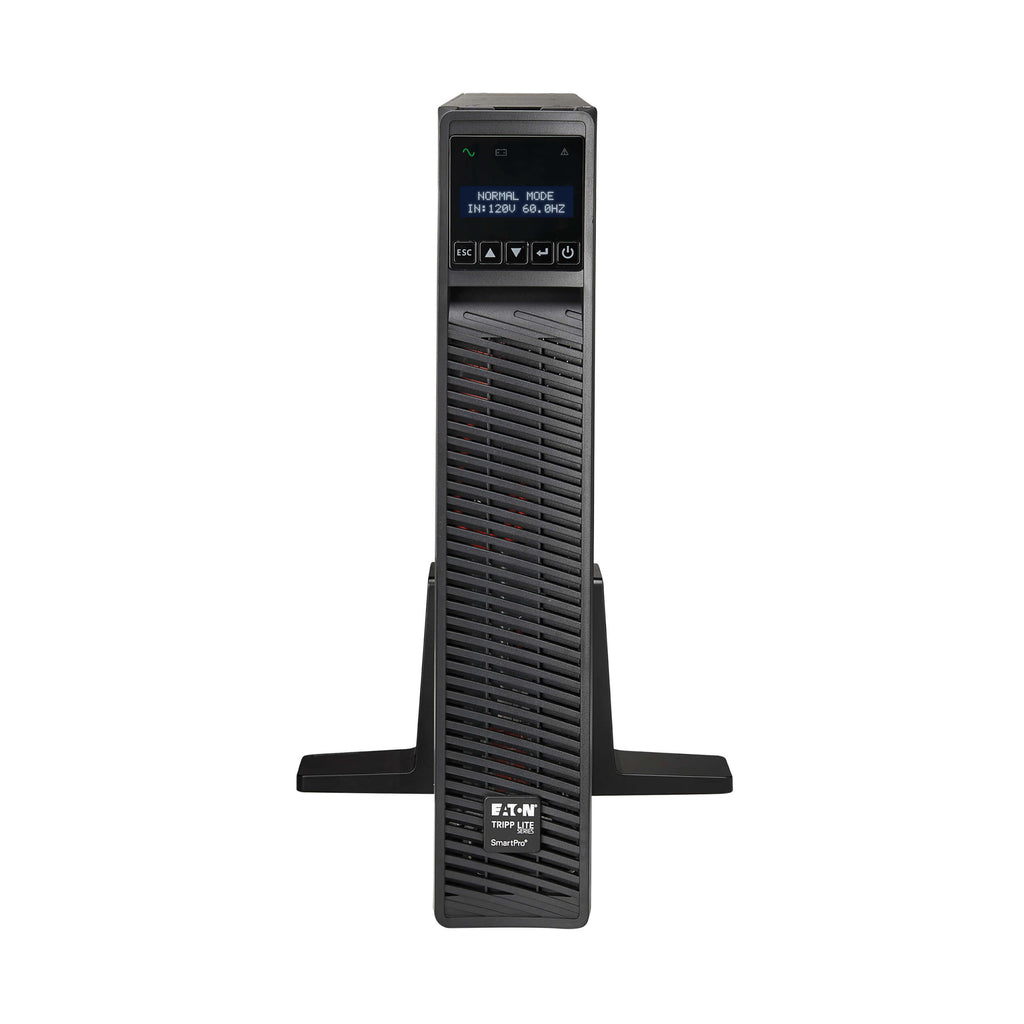

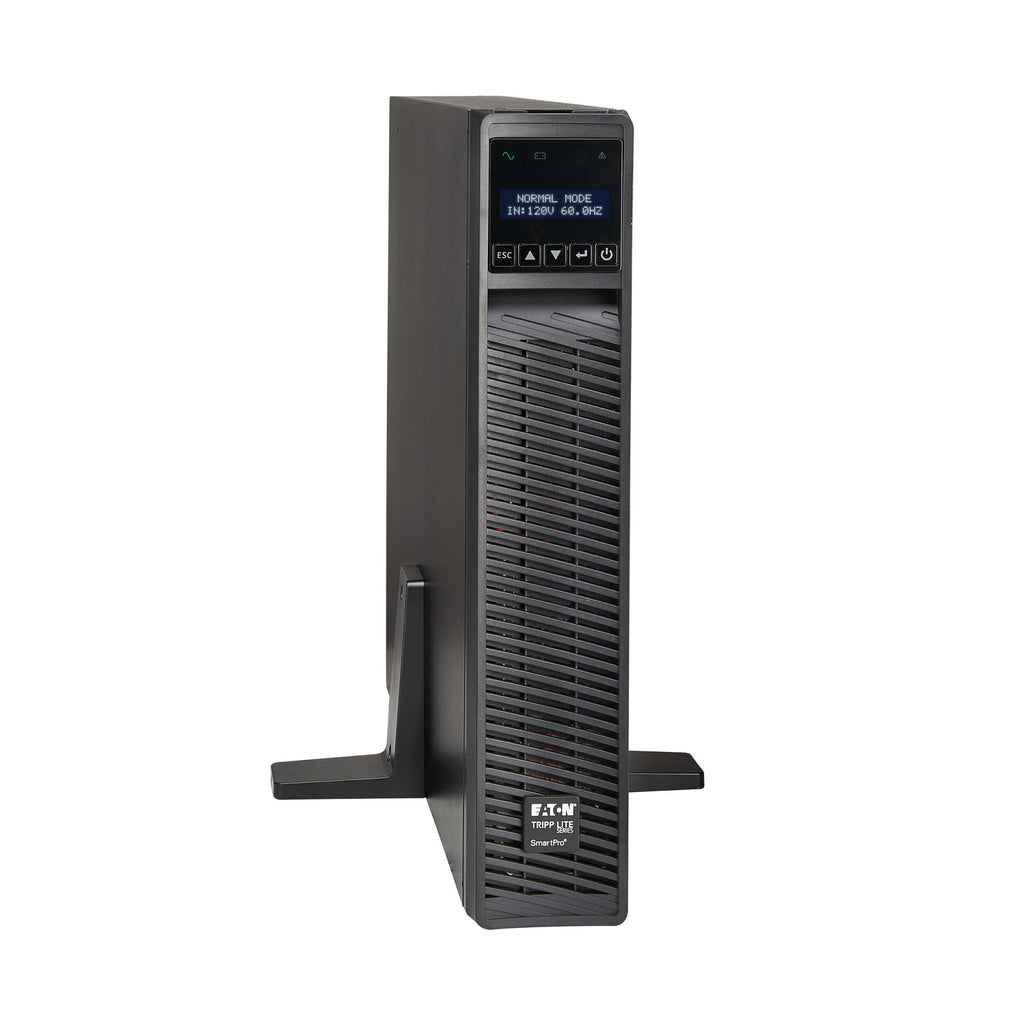

| Form Factor | 2U Rackmount / Tower |
| Input Voltage | 120V AC (80–151V AVR range) |
| Input Connection | NEMA L5-30P plug, 10 ft. cord |
| Output Capacity | 3000VA / 3000W (Unity Power Factor) |
| Output Voltage | 100V / 110V / 120V / 125V (adjustable) |
| Outlets | (6) NEMA 5-20R, (1) NEMA L5-30R |
| Load Banks | 2 individually controllable 5-20R outlets |
| Waveform | Pure Sine Wave (AC & Battery mode) |
| Runtime (Full Load) | 3 minutes (3000W) |
| Runtime (Half Load) | 9 minutes (1500W) |
| Expandable Runtime | Yes, up to 4× BP72VRM2U battery packs |
| Hot-Swappable Batteries | Yes |
| Battery Type | Valve-Regulated Lead Acid (VRLA), 72VDC |
| Recharge Time | < 5 hours from 10% to 90% |
| Voltage Regulation | AVR corrects under/over voltages from 70–153V |

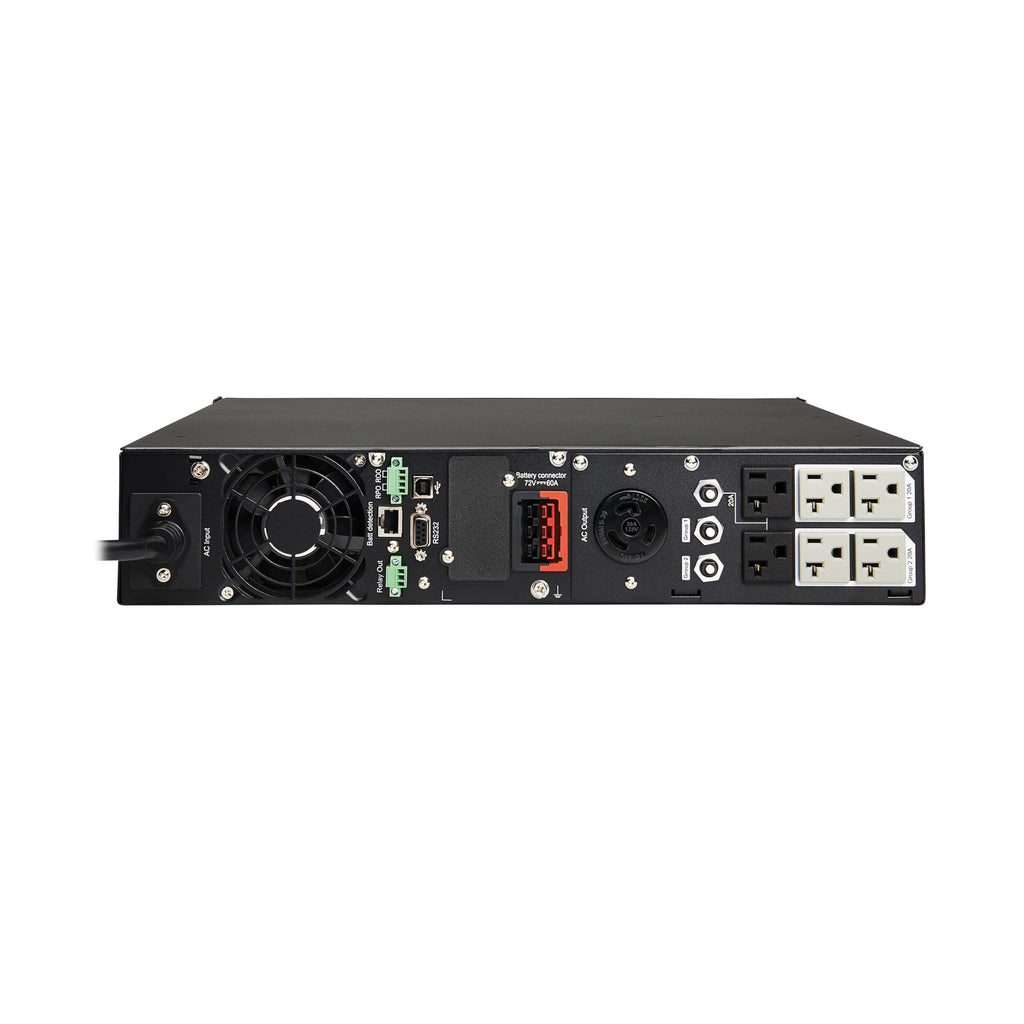

| Communications Ports | USB, DB9 Serial, EPO, ROO, Contact Closure |
| Network Management | Optional WEBCARDLXE (Not compatible with WEBCARDLX) |
| LCD Panel | 2-line display with 10 status/configuration screens |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, CE, RoHS, FCC Part 15 Class B |
| Noise Suppression | EMI/RFI filtering, 380 joules surge protection |
| Cooling | Front and rear fans |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 3.4 x 17.2 x 23.7 in (86 x 437 x 602 mm) |
| Weight | 74.5 lbs (33.79 kg) |
| Warranty | 2-Year (3-Year with registration) |
| Insurance | $250,000 Ultimate Lifetime Insurance (US, CA, PR) |
