Description
The Eaton Tripp Lite series SMART3000RXLTAA is a TAA-compliant, line-interactive sine wave UPS system designed for high-end IT, telecom, and enterprise applications. Delivering 3000VA/3000W capacity, this ENERGY STAR-certified UPS ensures uninterrupted power during outages and stabilizes input voltage with automatic voltage regulation (AVR). Its pure sine wave output and unity power factor maximize compatibility with sensitive equipment like servers, storage, and switches.

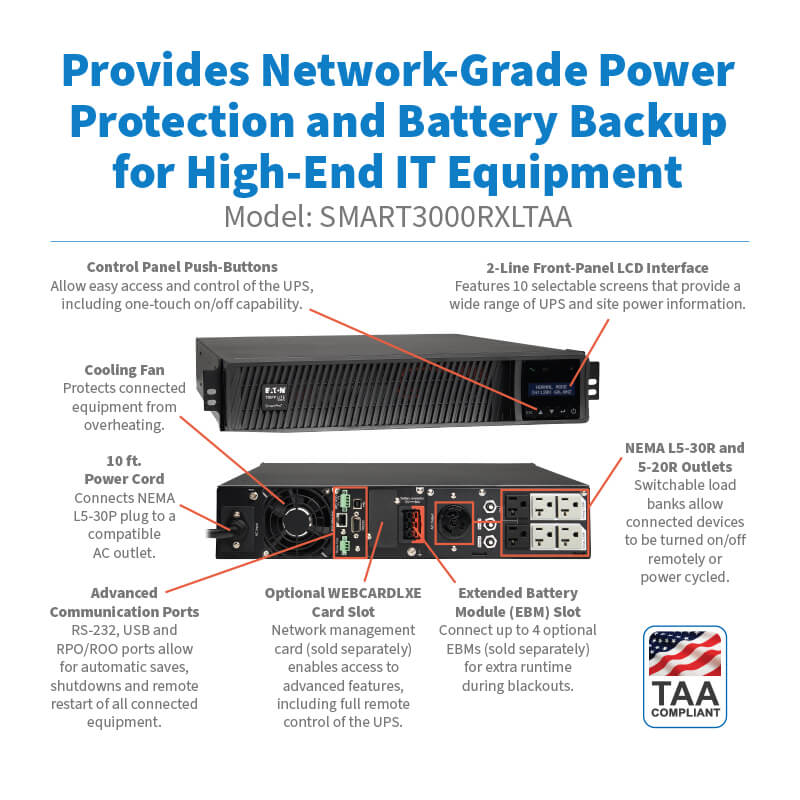

Equipped with 7 outlets (6x 5-20R, 1x L5-30R), the SMART3000RXLTAA includes two programmable load banks for runtime optimization. The system supports extended runtime with optional BP72VRXLTAA battery packs (up to 4), and features front-panel LCD, USB, DB9, and optional WEBCARDLXE network management. Designed for 2U rackmount or tower configurations with hot-swappable VRLA batteries, this UPS provides complete power protection and management for mission-critical environments.
| Specification | Details |
|---|---|
| Model | SMART3000RXLTAA |
| UPS Type | Line-Interactive |
| Form Factor | 2U Rack/Tower |
| Power Capacity | 3000VA / 3000W |
| Power Factor | 1.0 (Unity) |
| Input Voltage Range | 80V to 151V (adjustable 70–153V) |

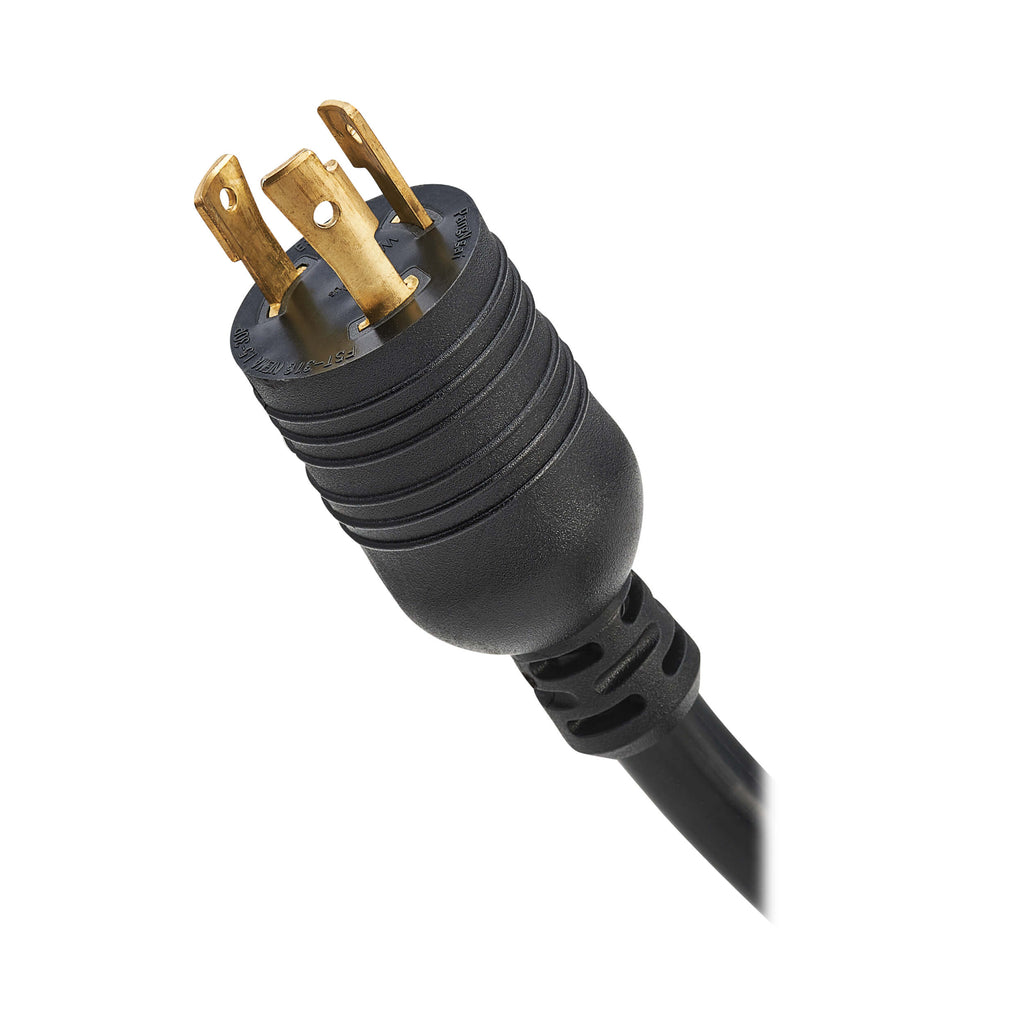

| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 120V nominal |

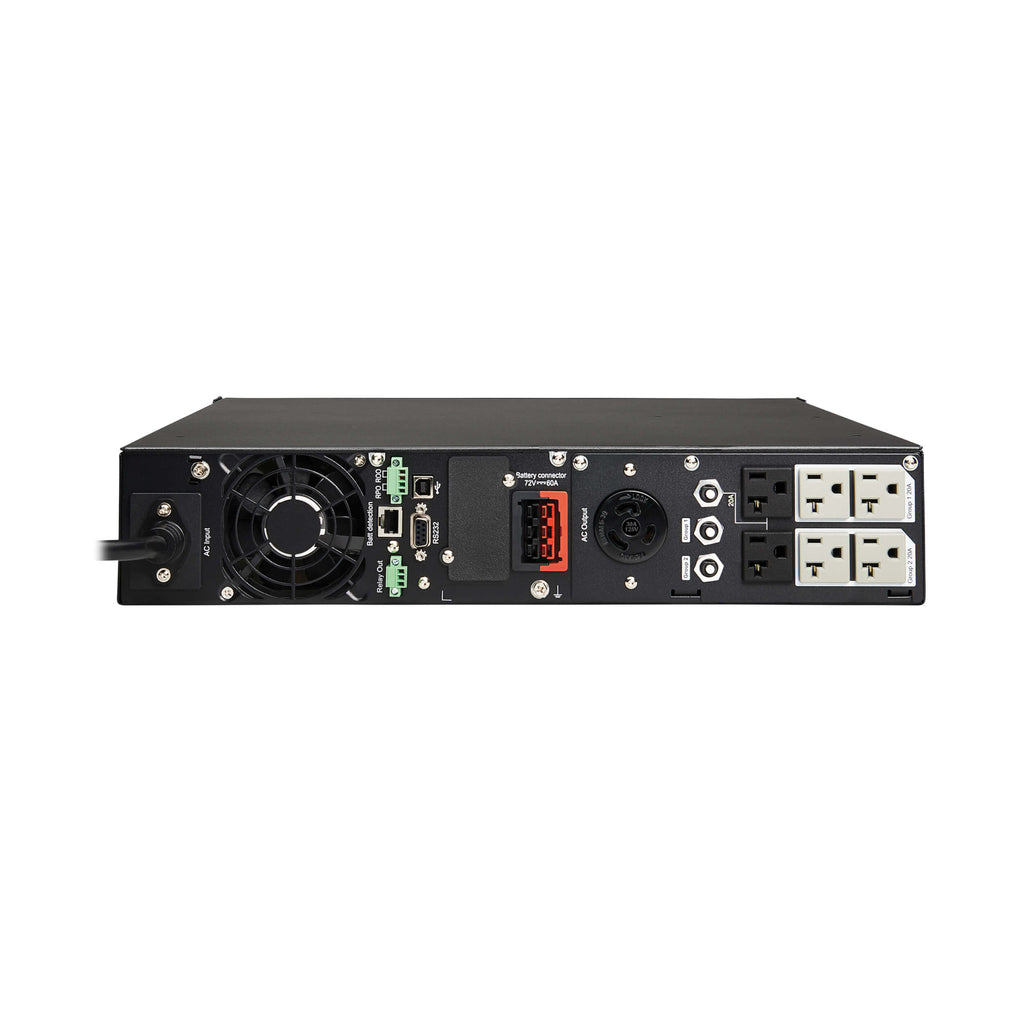

| Output Receptacles | (6) 5-20R, (1) L5-30R |
| Waveform Output | Pure Sine Wave |
| Load Banks | 2 programmable (2 outlets each) |
| Runtime (Full/Half Load) | 3 min @ 3000W / 9 min @ 1500W |
| Expandable Runtime | Yes (up to 4x BP72VRXLTAA) |
| Battery Type | Hot-swappable VRLA |
| Recharge Time | < 5 hours (10% to 90%) |
| Display | LCD with 10 selectable screens |
| Communications | USB, DB9, Dry Contact, EPO/ROO |
| Network Card Option | WEBCARDLXE (sold separately) |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, FCC, RoHS, TAA |
| Cooling | Dual fans (front/rear) |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Unit Dimensions (HxWxD) | 3.4 x 17.2 x 23.7 in (86 x 437 x 602 mm) |
| Unit Weight | 74.5 lbs (33.79 kg) |
| Warranty | 2-year standard, 3-year with registration |
| Connected Equipment Insurance | $250,000 (U.S./Canada/Puerto Rico) |
