Description

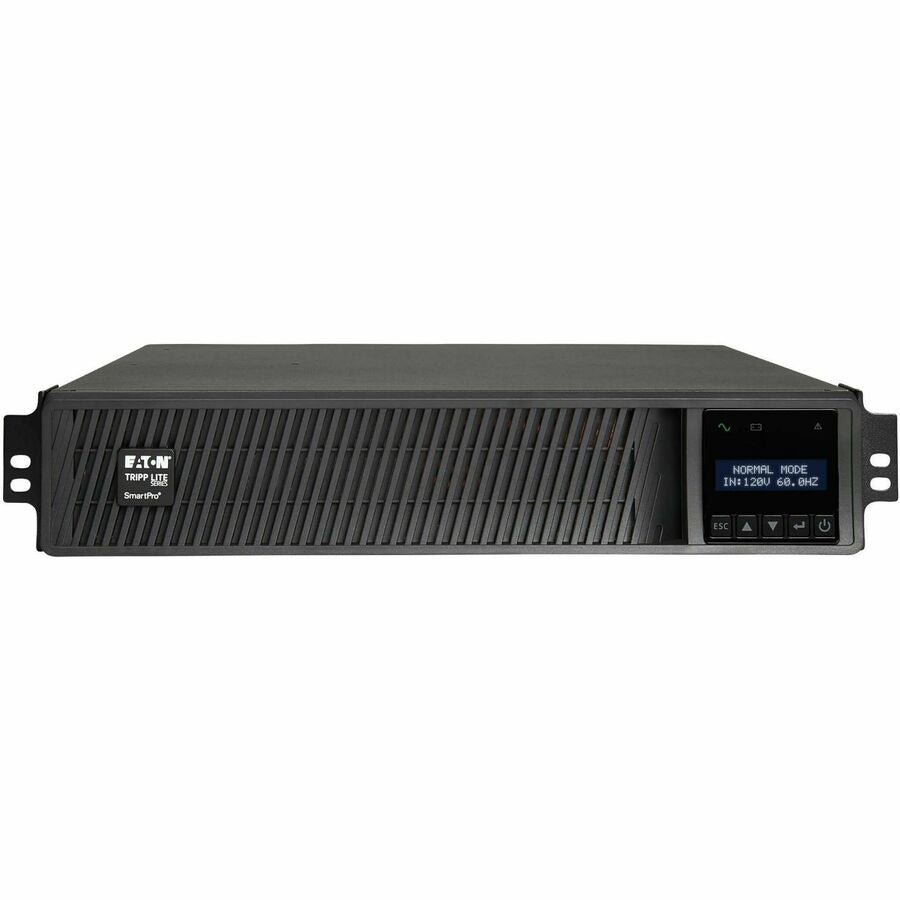

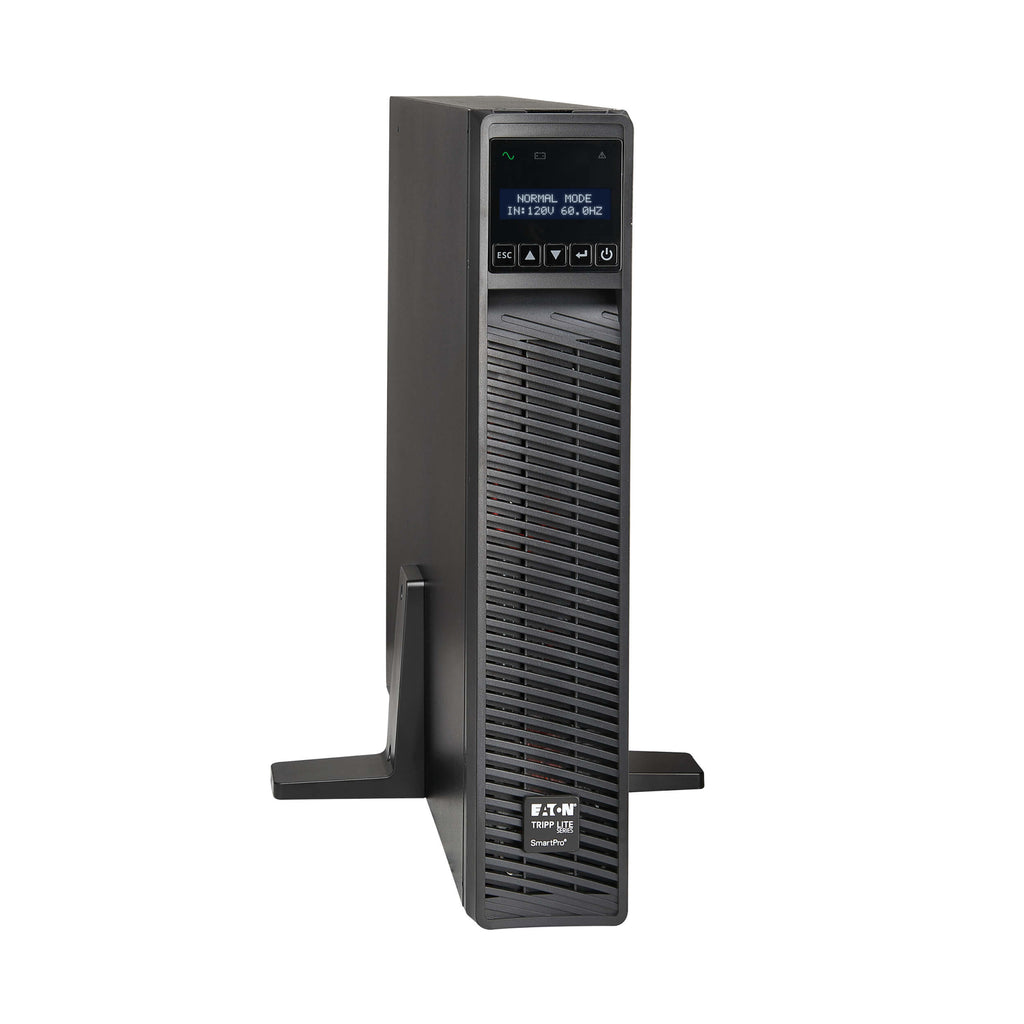

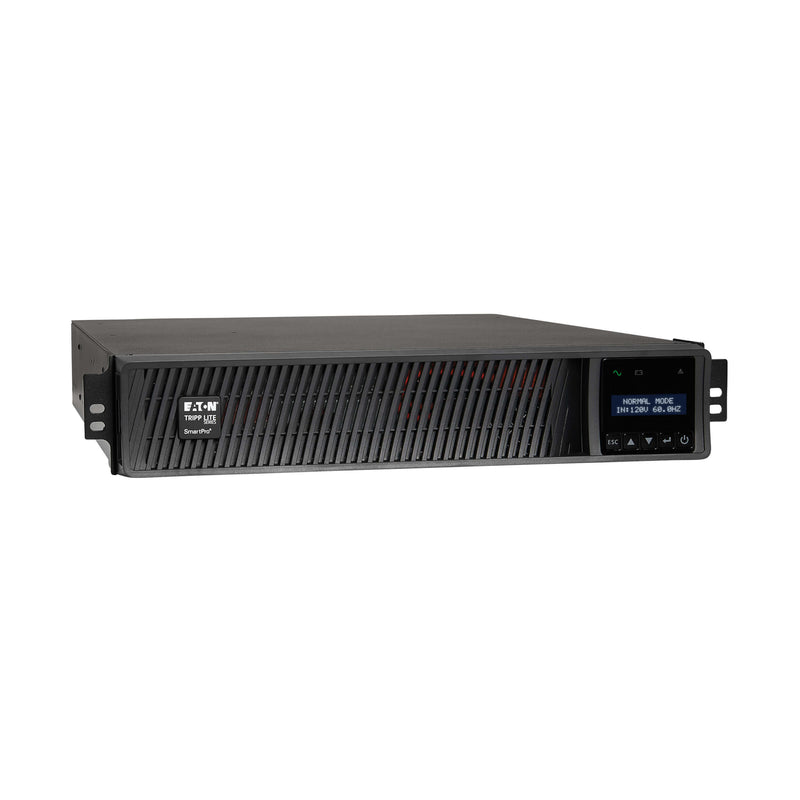

The Eaton Tripp Lite SmartPro SMART3000RM2UN is a high-performance, 2U rack/tower convertible UPS designed for enterprise-level IT, telecom, and networking applications. Delivering 3000VA/3000W of pure sine wave output, it features line-interactive power protection with automatic voltage regulation (AVR) to correct brownouts and overvoltages without draining battery.
This model includes a pre-installed WEBCARDLXE for 24/7 remote monitoring and control, making it ideal for distributed IT environments. Seven managed NEMA outlets, including a L5-30R and six 5-20Rs, support load shedding for extended runtime. With hot-swappable VRLA batteries, intuitive LCD interface, and energy-saving features, the SMART3000RM2UN ensures reliable uptime and advanced power visibility in demanding setups.
| Category | Details |
|---|---|
| Model Number | SMART3000RM2UN |
| UPS Type | Line-Interactive, Sine Wave |
| Power Capacity | 3000VA / 3000W |
| Input Voltage | 120V AC (Nominal), Range: 80–151V |

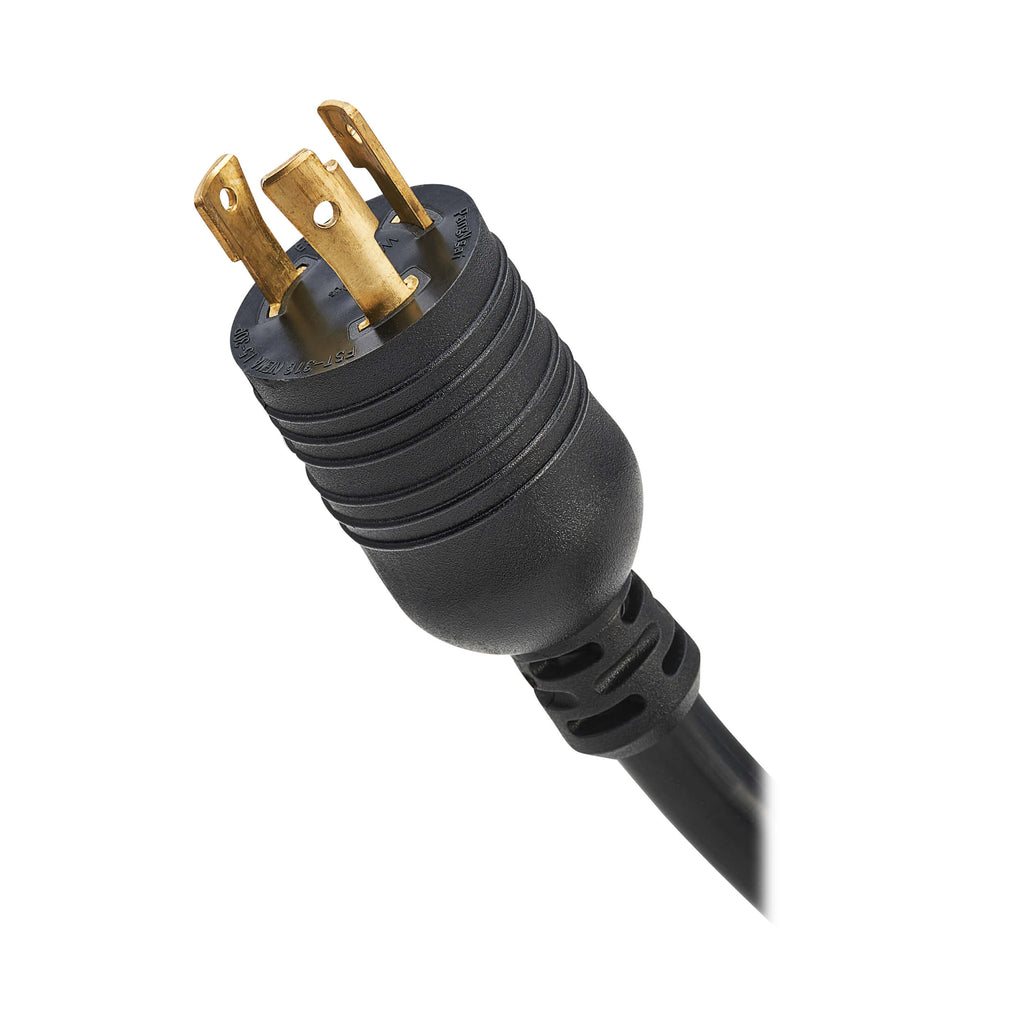

| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 10 ft (3.1 m) |

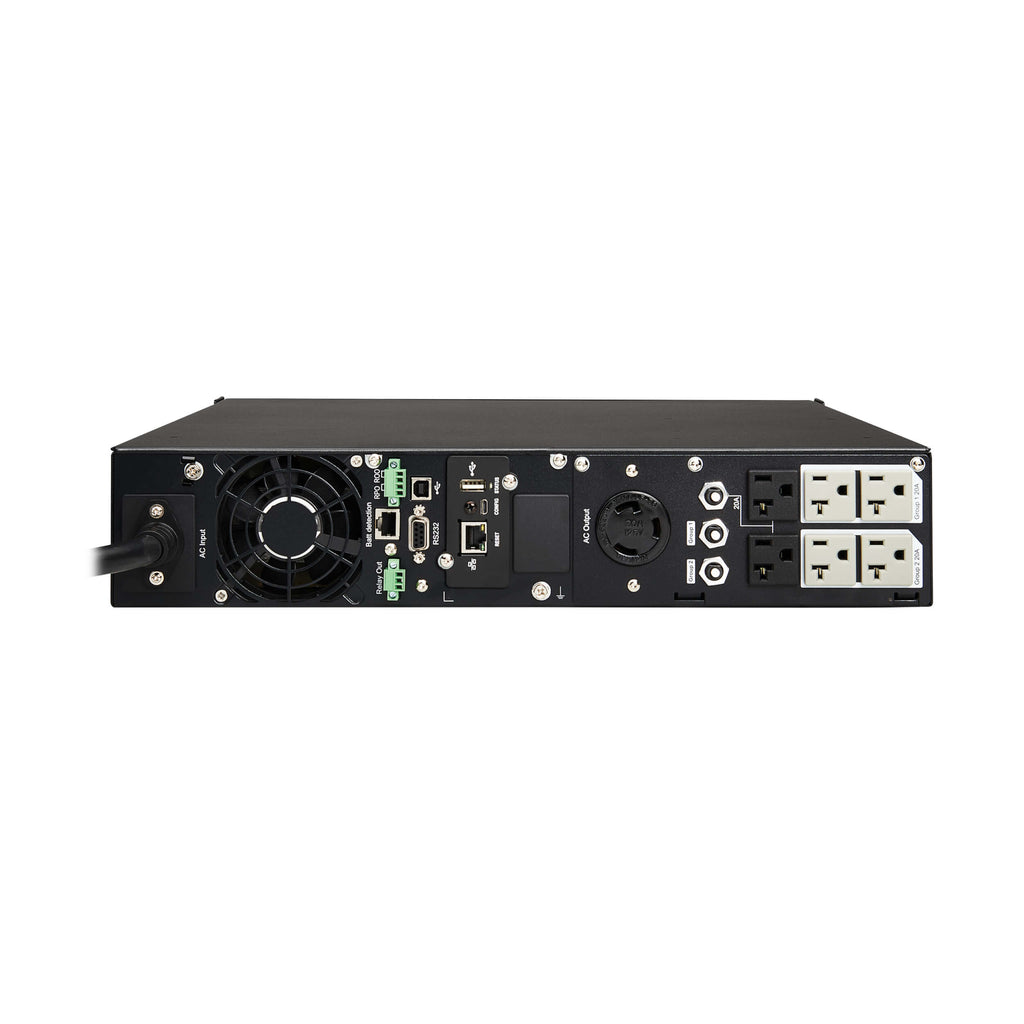

| Output Receptacles | 6x 5-20R, 1x L5-30R (2 switched load banks) |
| Output Voltage | 120V nominal |
| Power Factor | 1.0 (Unity) |
| Waveform (AC/Battery) | Pure Sine Wave |
| Runtime at Full Load | 3 minutes (3000W) |
| Runtime at Half Load | 9 minutes (1500W) |
| Battery Type | Hot-swappable, VRLA, internal 72V |
| Recharge Time | <5 hours (to 90%) |
| Form Factor | 2U Rackmount / Tower convertible |
| Dimensions (H x W x D) | 3.4 x 17.2 x 23.7 in (8.64 x 43.69 x 60.2 cm) |
| Weight | 74.5 lbs (33.8 kg) |
| Cooling | Dual fans (front & rear) |
| Display | 2-line LCD with 10 selectable screens |
| Network Management | WEBCARDLXE (pre-installed); USB, DB9, Micro-USB, RJ45 |
| Environmental | 0–40°C, 0–95% RH non-condensing |
| Certifications | ENERGY STAR, UL 1778, CSA, NOM, RoHS, FCC Class A |
| Warranty | 2 years standard (3 years with registration); $250,000 equipment protection |
