Description

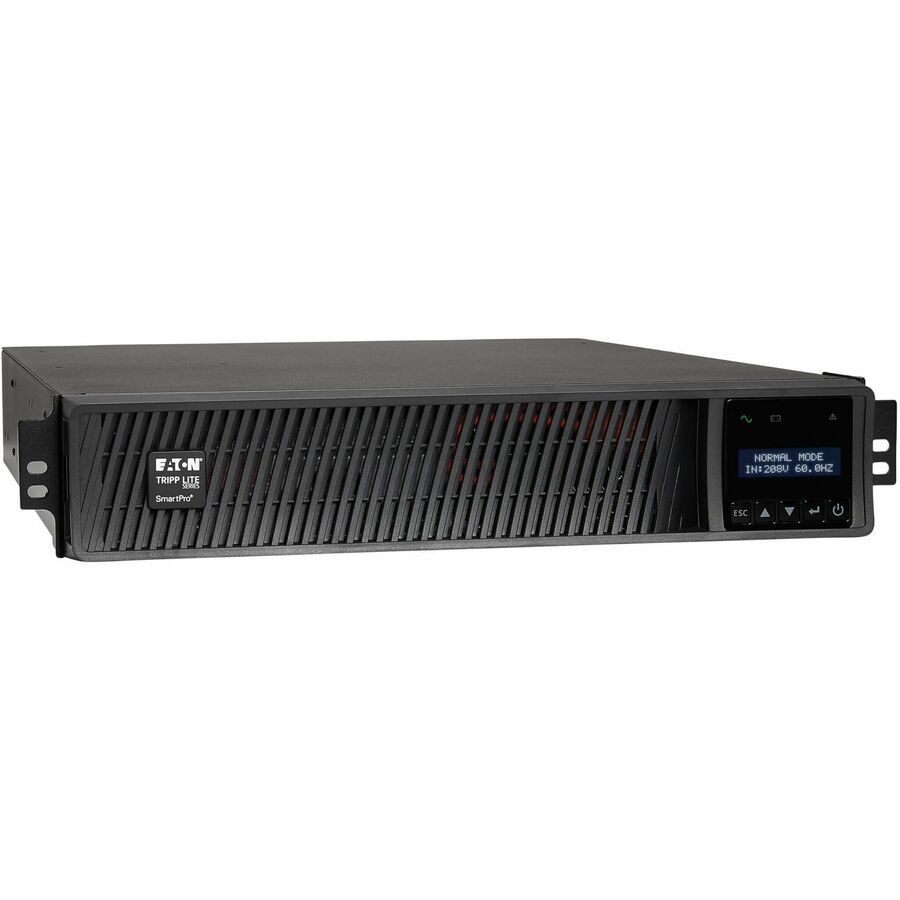

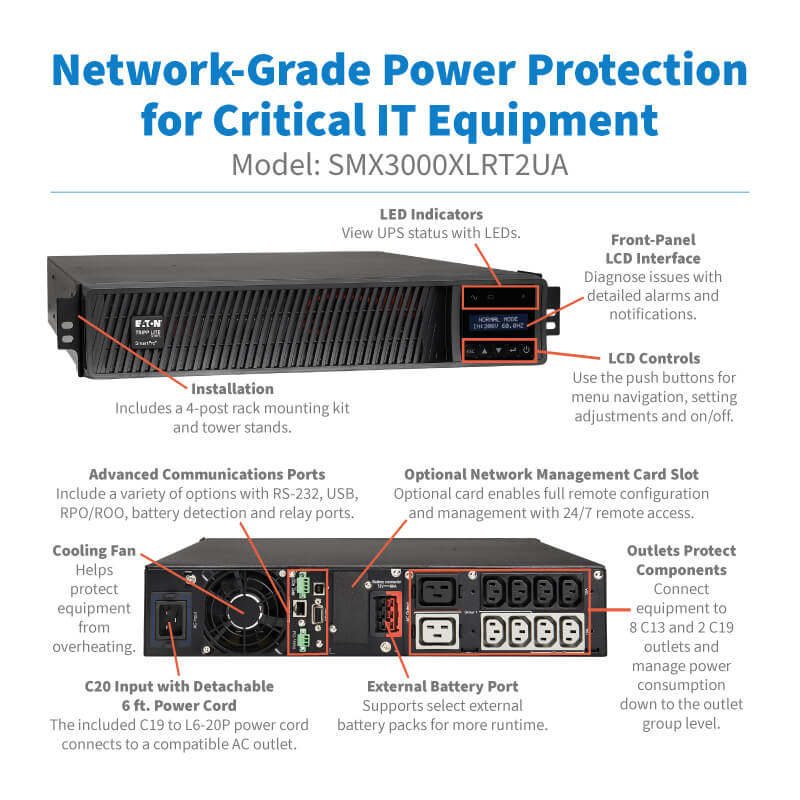

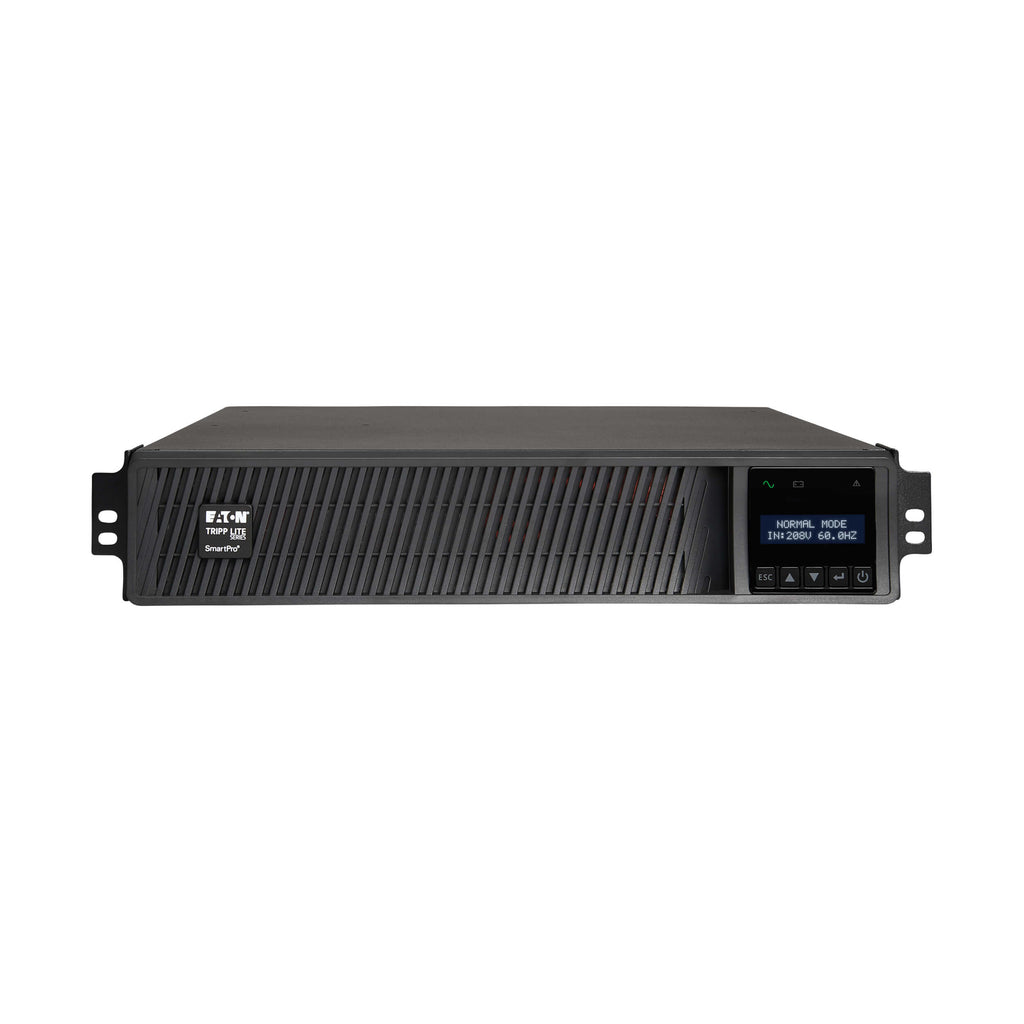

The Eaton Tripp Lite SmartPro SMX3000XLRT2UA is a versatile, line-interactive UPS system designed to provide stable and reliable sine wave power to high-performance IT equipment in SMBs, edge networks, and enterprise environments. With a true 3000W output, it features automatic voltage regulation, extended runtime capability, and advanced communication options. Ideal for rack or tower installation, it offers 10 outlets, hot-swappable batteries, and optional network management for 24/7 remote control.
Ensure business continuity through blackouts and brownouts with premium power conditioning, efficient power factor (1.0), and pure sine wave output—even while on battery.
| Specification | Details |
|---|---|
| Model Number | SMX3000XLRT2UA |

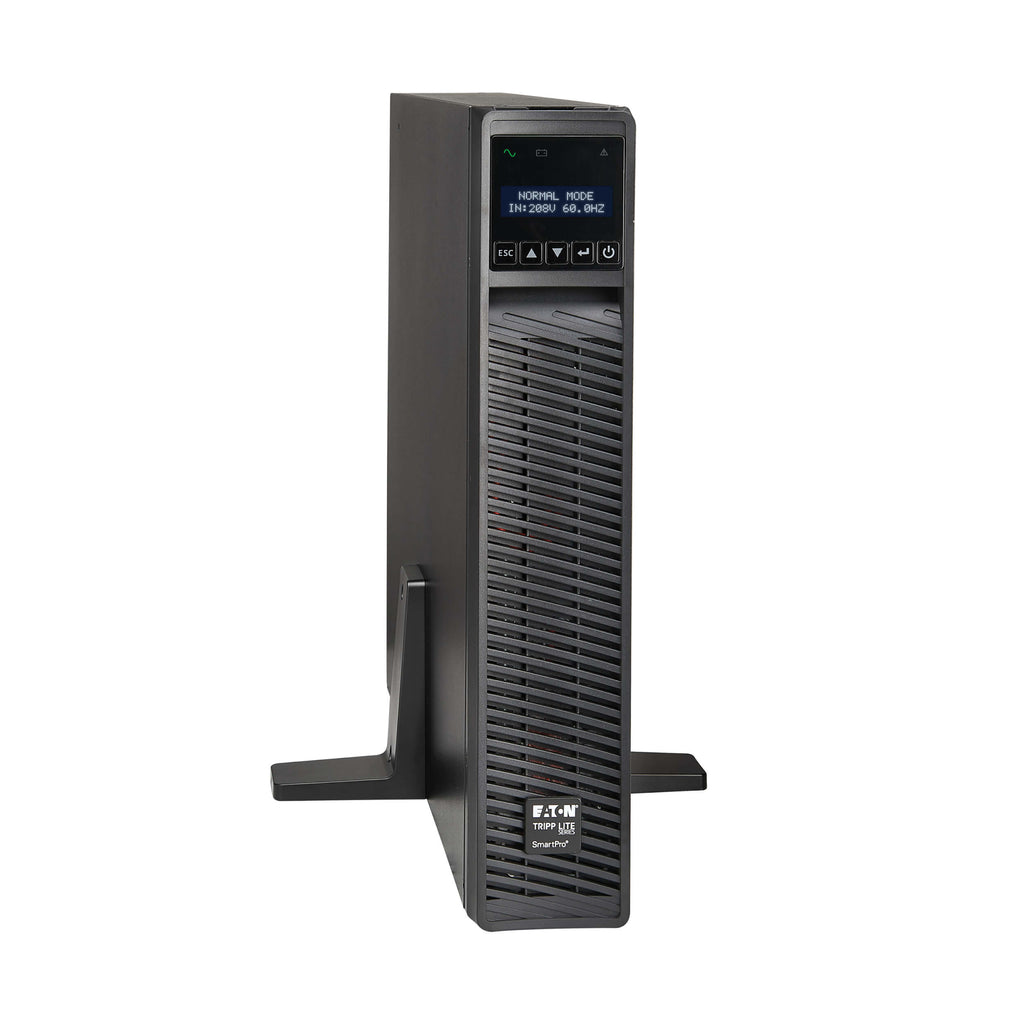

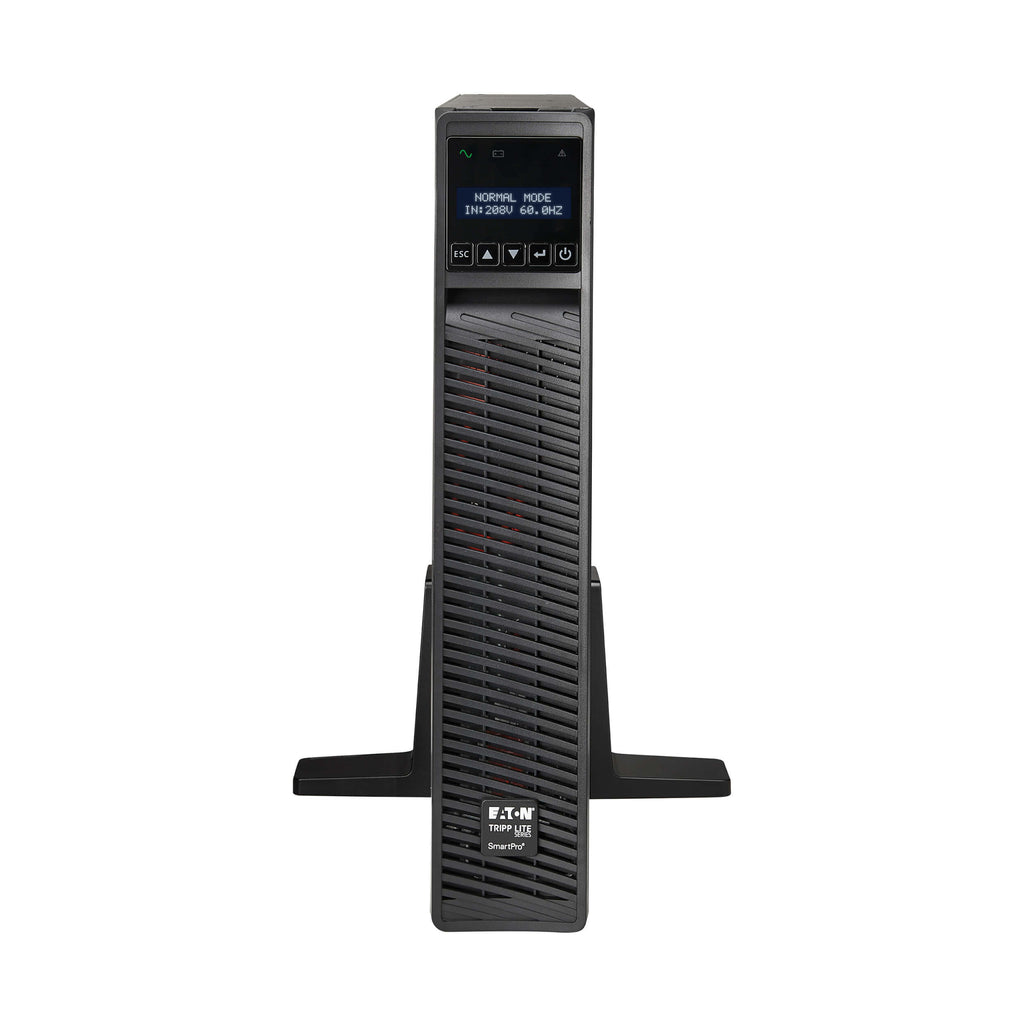

| Form Factor | Rack/Tower Convertible (2U) |
| Output Capacity | 3000VA / 3000W |
| Power Factor | 1.0 (Unity) |
| Output Voltage (Nominal) | 208V (supports 200V to 240V) |
| Waveform | Pure Sine Wave (AC and Battery Mode) |
| Runtime (Full / Half Load) | 3 min (3000W) / 9 min (1500W) |
| Battery Type | Hot-swappable VRLA |
| Expandable Runtime | Yes (Supports up to 4 × BP72VRM2U battery packs) |
| Input Voltage Range | 150V to 294V (AVR support) |
| Input Plug Type | Detachable C19 to NEMA L6-20P Power Cord |

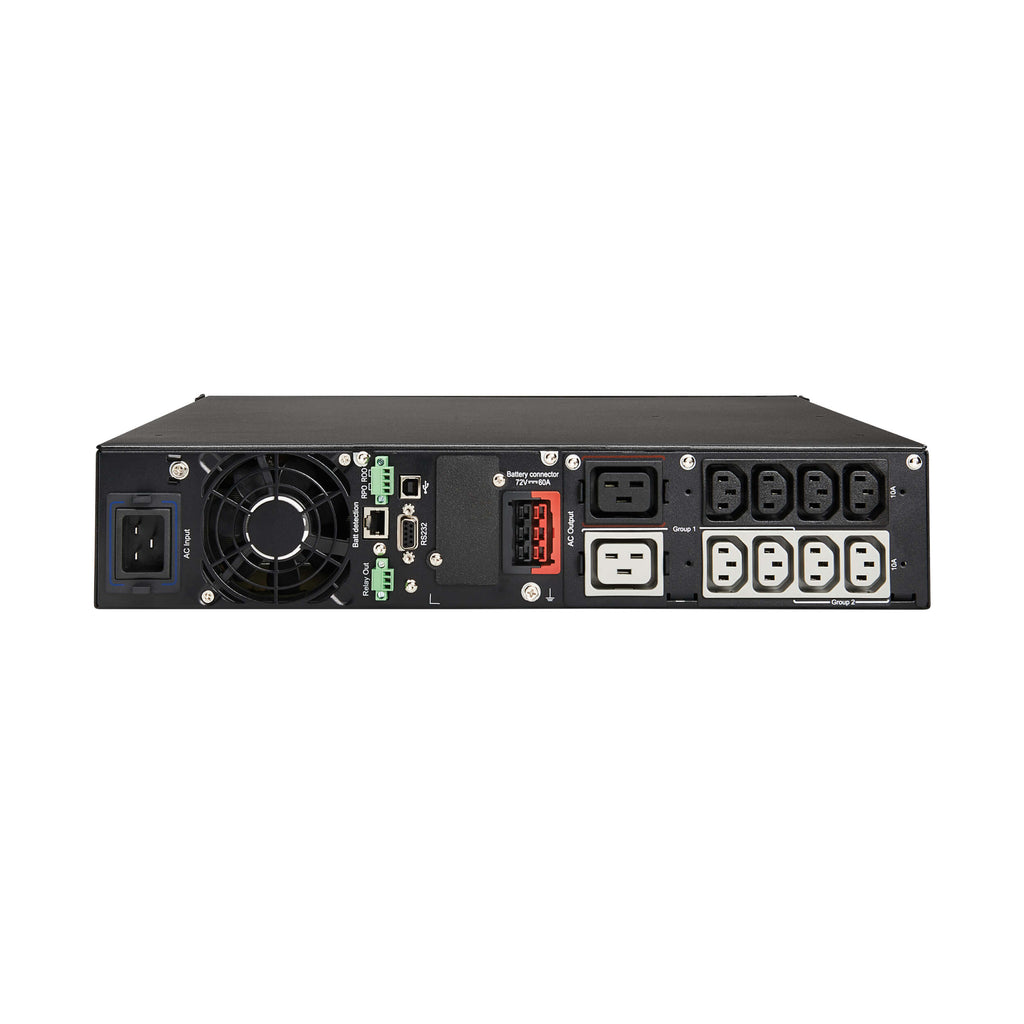

| Output Receptacles | (8) C13, (2) C19 |
| Load Banks | 2 Individually Controllable Load Banks |
| Network Management | Optional WEBCARDLXE (sold separately) |
| Communication Ports | USB, DB9, Contact Closure, ROO/EPO |
| Display | 2-Line LCD with 10 status screens |
| Cooling | Front and Rear Fan Cooling |
| EMI/RFI Filtering | Yes |
| Surge Suppression | 175 Joules |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H × W × D) | 3.4 in × 17.2 in × 23.7 in (86mm × 437mm × 602mm) |
| Rack Depth Requirement | 27 inches minimum |
| Shipping Weight | 84.9 lbs (38.5 kg) |
| Certifications | ENERGY STAR®, UL 1778, CE, RoHS, FCC Class A |
| Warranty | 2-Year Standard (3-Year with Registration) |
