Description

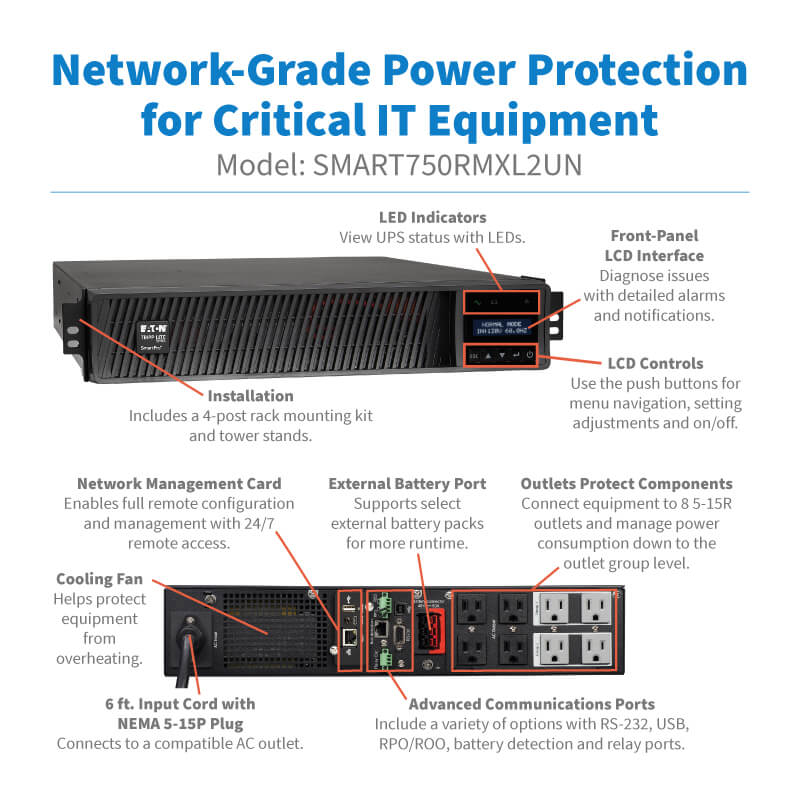

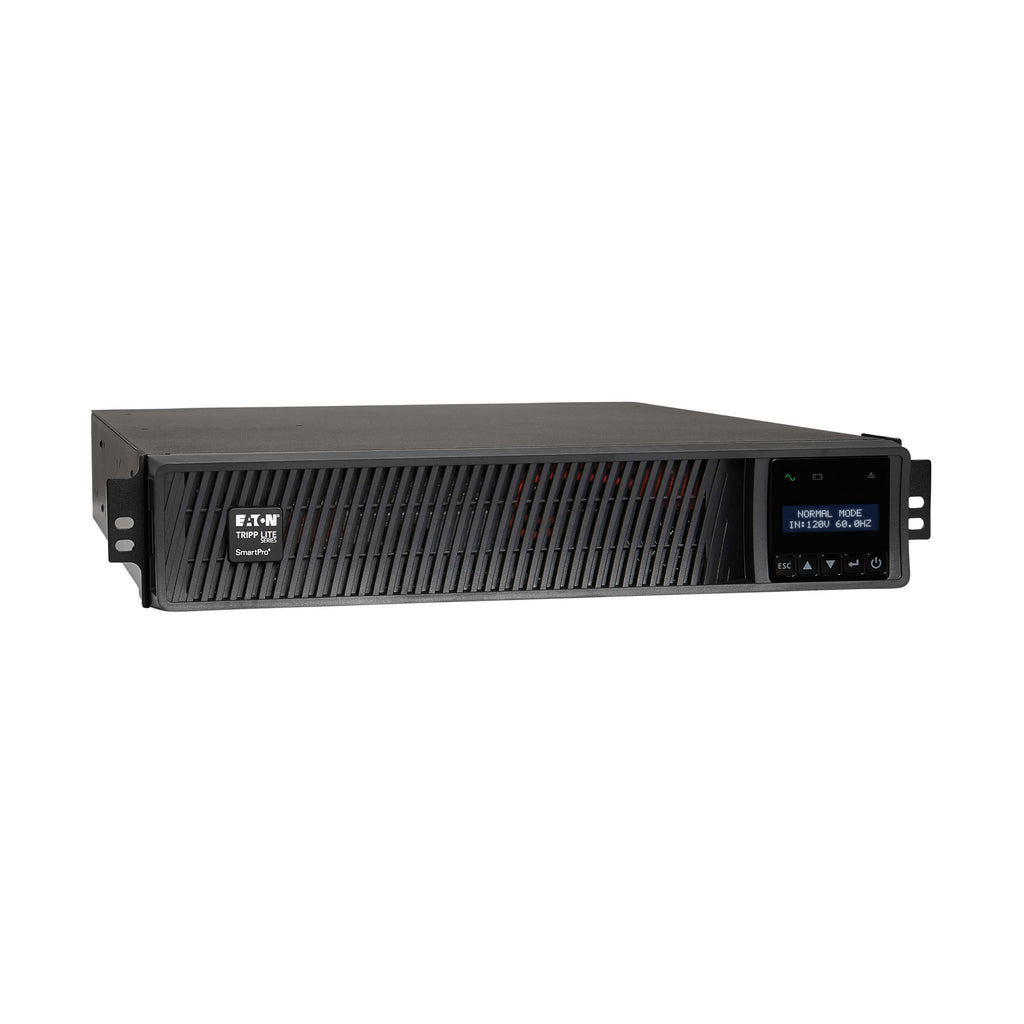

The Eaton Tripp Lite SmartPro SMART750RMXL2UN delivers reliable 750VA/750W pure sine wave backup power for sensitive IT, telecom, and enterprise equipment. Designed for rack or tower installations, it features Automatic Voltage Regulation (AVR) to protect against brownouts and overvoltages, ensuring continuous and stable 120V output.
This UPS includes a pre-installed WEBCARDLXE network management card for 24/7 remote monitoring, configuration, and automated reboot capabilities. With eight NEMA 5-15R outlets, two programmable load banks, and support for up to four extended battery modules (BP48VRM2U), it offers scalable runtime and intelligent load management.
Its two-line LCD display provides real-time status, load data, and alarms. The hot-swappable VRLA batteries, pure sine wave output, and unity power factor make it ideal for servers, VoIP systems, PoE switches, and critical edge network environments.
| Category | Specification |
|---|---|
| Model Number | SMART750RMXL2UN |
| Brand | Eaton (Tripp Lite Series) |
| UPS Type | Line-Interactive, Rack/Tower Convertible |
| Capacity | 750VA / 750W (Power Factor 1) |
| Input Voltage Range | 80V–151V (adjustable to 70–153V) |
| Input Connection | NEMA 5-15P plug, 6 ft (1.8 m) cord |
| Output Voltage | 120V nominal |
| Output Receptacles | (8) NEMA 5-15R outlets (2 programmable load banks) |
| Waveform | Pure Sine Wave (on battery) |
| Voltage Regulation | AVR corrects low/high voltages (81–150V to 120V) |
| Battery Type | Hot-swappable, Valve-Regulated Lead Acid (VRLA) |
| Runtime | 8.5 min (full load), 20.7 min (half load) |
| Expandable Runtime | Up to 4 external battery packs (BP48VRM2U) |
| Recharge Time | <4.5 hrs (10% to 90%) |
| Network Management | Pre-installed WEBCARDLXE (SNMP, HTTP, Auto Probe, remote reboot) |

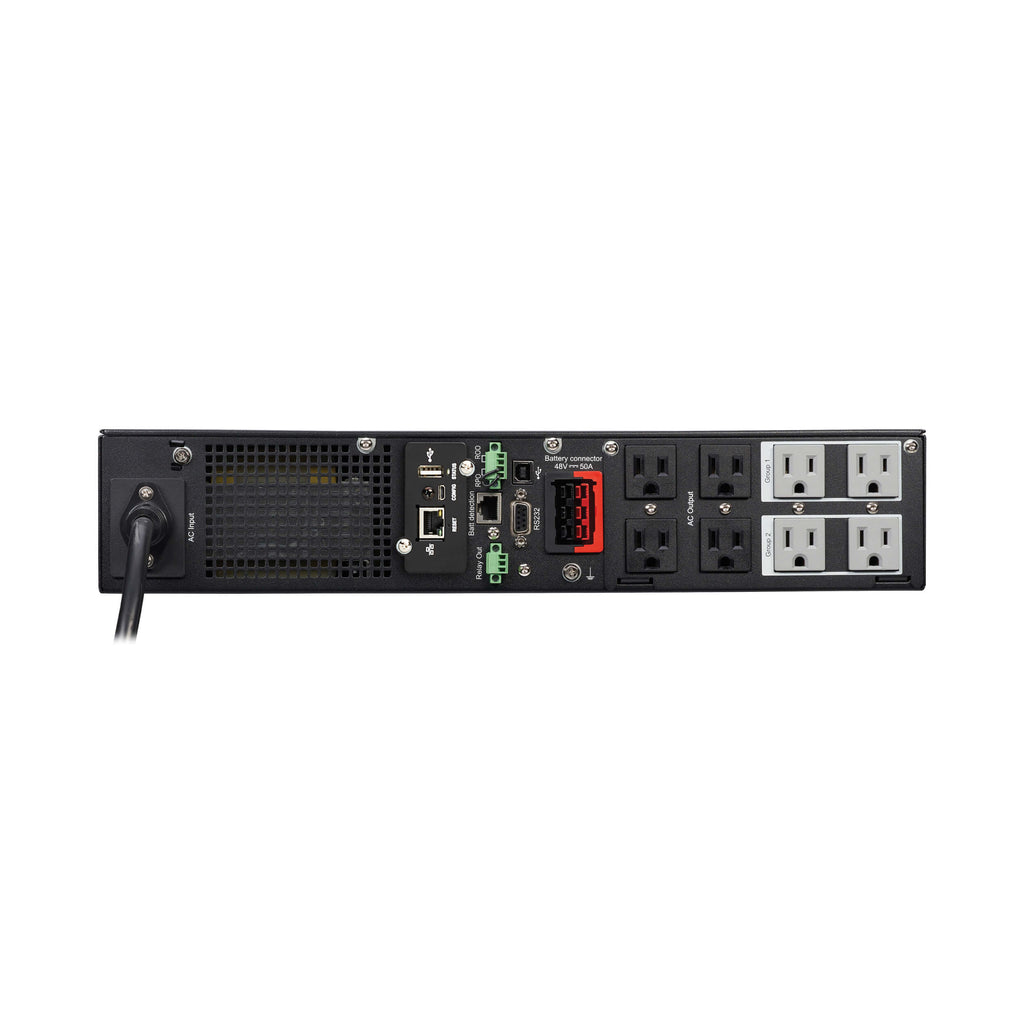

| Communications Ports | USB, DB9 Serial, RJ45, Dry-contact relay, RPO/ROO |
| Display | Two-line LCD with 10 selectable monitoring screens |

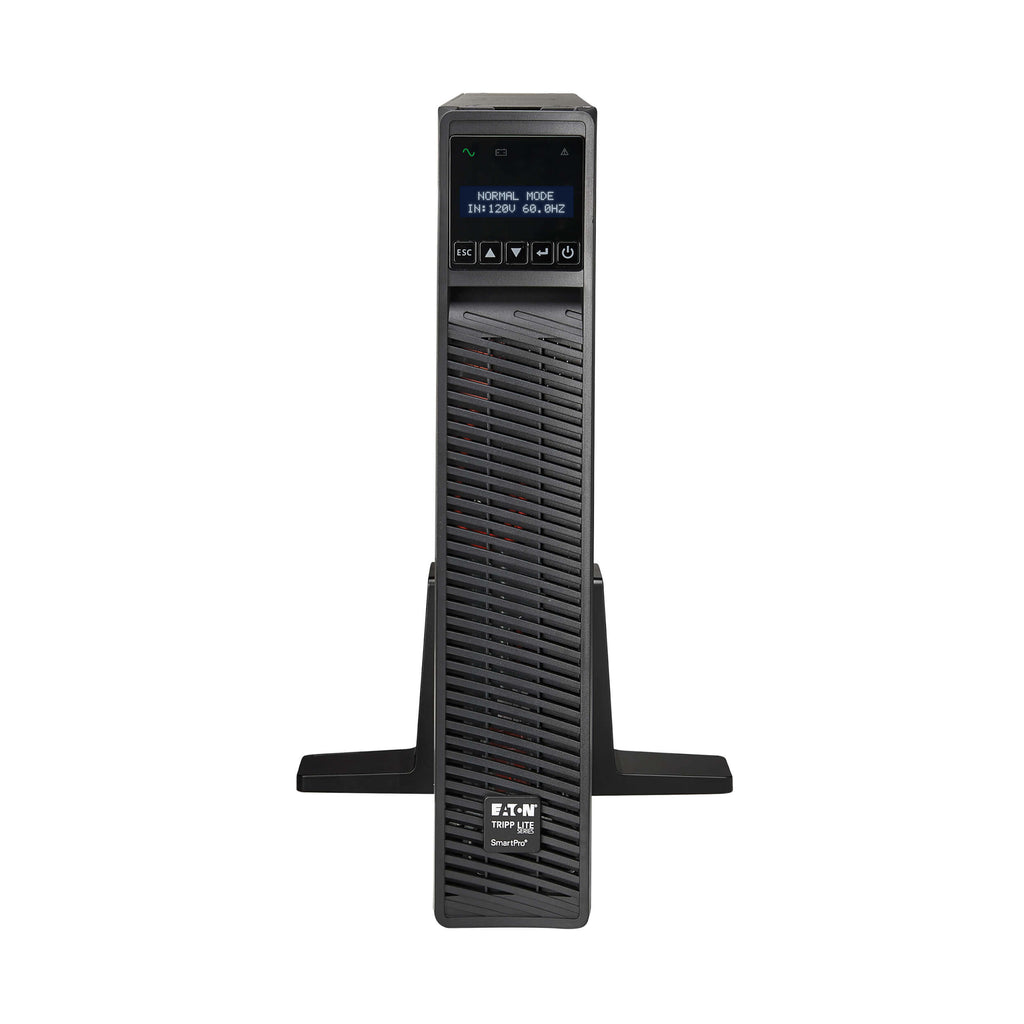

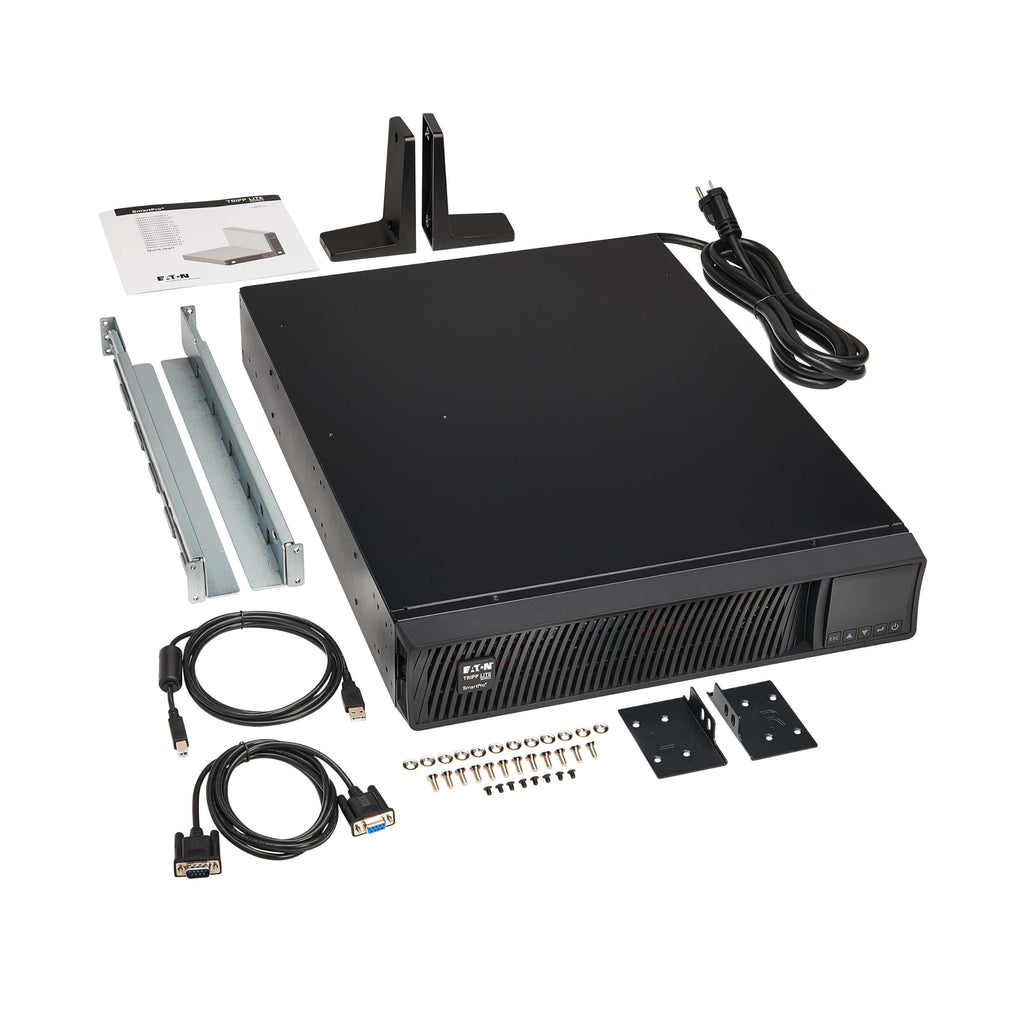

| Form Factor | 2U Rackmount / Tower (brackets & stands included) |
| Dimensions (H x W x D) | 3.45 x 17.2 x 17.6 in (87.6 x 437 x 447 mm) |
| Weight | 35.4 lbs (16.06 kg) |
| Noise Level | ≤45 dBA |
| Efficiency | 95% (AC mode, full load) |
| Certifications | UL 1778, CSA, NOM, CE, FCC Class A, RoHS |
| Warranty | 2-year (extendable to 3-year with registration) |
| Connected Equipment Insurance | $250,000 Ultimate Lifetime Insurance (U.S./Canada/Puerto Rico) |
