Description

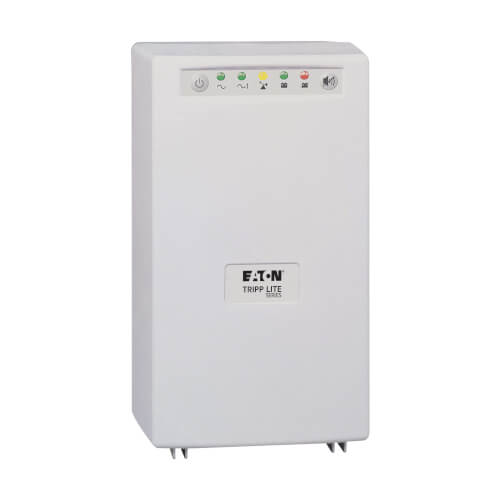

The Eaton Tripp Lite SmartPro SMX1200XLHGL is a medical-grade line-interactive UPS designed for hospital and clinical environments that require UL 60601-1 compliance and full isolation protection. With 1 kVA / 750 W power capacity and a long-life LiFePO₄ battery, this UPS safeguards critical medical devices during blackouts, brownouts, and voltage fluctuations.
Engineered for reliability in patient care areas, it features six IEC C13 hospital-grade outlets, a built-in isolation transformer, and automatic voltage regulation (AVR) to stabilize input power from 155 V to 274 V AC. The lithium battery delivers up to 10 000 charge cycles—30 × the lifespan of SLA batteries—and provides up to 27.5 minutes backup at half load.
Front-panel LEDs and audible alarms report line, battery, and fault status. The UPS supports USB and DB9 communication ports for use with Eaton’s PowerAlert® software, ensuring safe, unattended system shutdown. Compact and durable, the SmartPro SMX1200XLHGL fits seamlessly on nurse stations or medical carts, providing dependable power protection for sensitive hospital electronics.
| Category | Specification |
|---|---|
| Model | SMX1200XLHGL |
| UPS Type | Line-Interactive, Medical-Grade |
| Capacity | 1 kVA / 750 W |
| Input Voltage | 230 V AC (155 – 274 V range) |
| Input Connection | IEC C14 Inlet |
| Input Current (Max) | 5 A |
| Output Voltage | 230 V nominal (220/230/240 V supported) |
| Output Frequency | 50/60 Hz (auto-select) |
| Output Receptacles | 6 × IEC 320 C13 hospital-grade |
| Waveform (Battery Mode) | PWM sine wave |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Runtime @ Full Load | 11 minutes (750 W) |
| Runtime @ Half Load | 27.5 minutes (375 W) |
| Recharge Time | < 4.5 hours (10 → 90 %) |
| Battery Lifespan | 3 – 6 years / up to 10 000 cycles |
| Voltage Regulation | Brownout boost and overvoltage correction (155–274 V range) |
| Isolation Transformer | Built-in with Faraday shield (full isolation) |
| Surge Protection | 340 J / Instantaneous response |
| Communications | USB and DB9 serial ports (compatible with PowerAlert software) |
| Indicators / Alerts | 5 LED status indicators, audible alarm |
| Form Factor | Tower mount; optional wall-mount kit (UPSWM) |
| Dimensions (H × W × D) | 323 × 191 × 231 mm |
| Weight | 20.64 kg (45.5 lb) |
| Operating Temperature | 0 – 40 °C |
| Certifications | UL 60601-1, EN 60601-1-2 (4th Edition), RoHS, CE |
| Warranty | 2-year limited warranty |
