Description

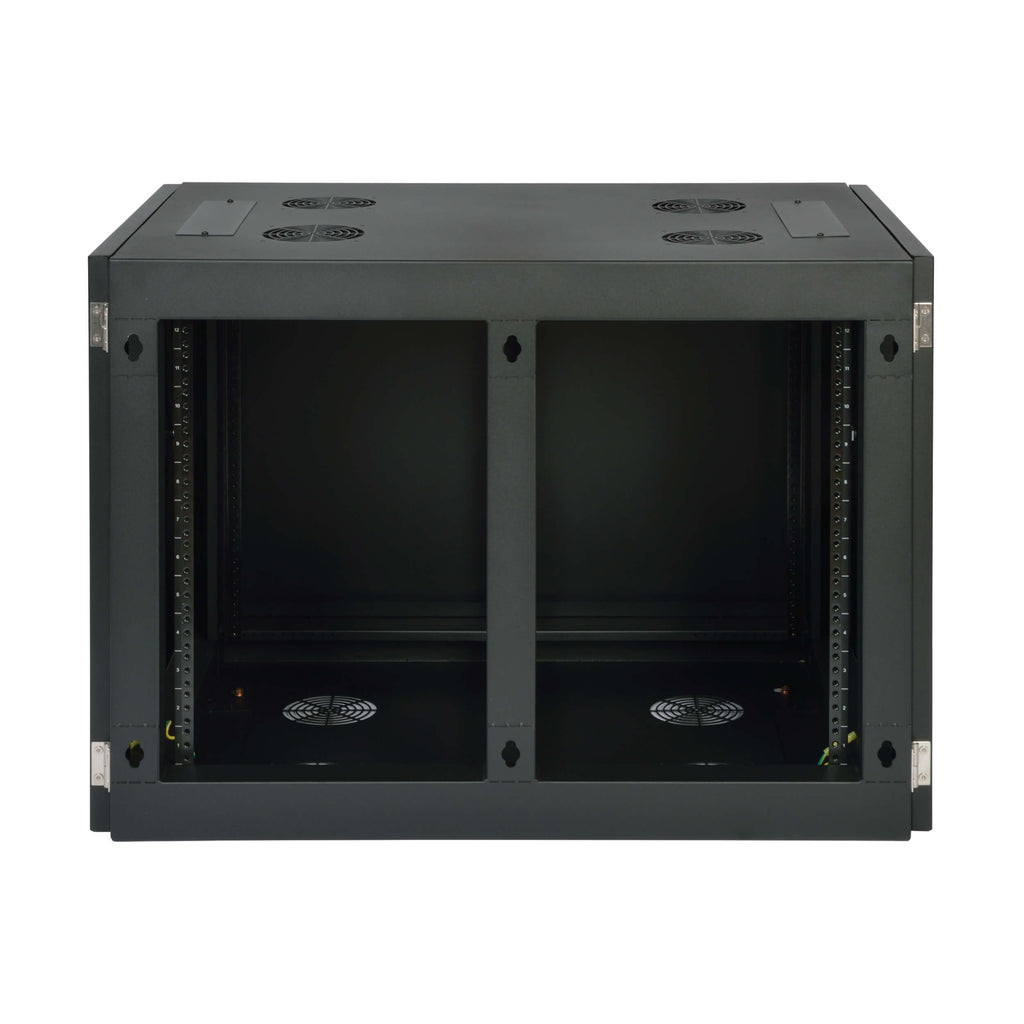

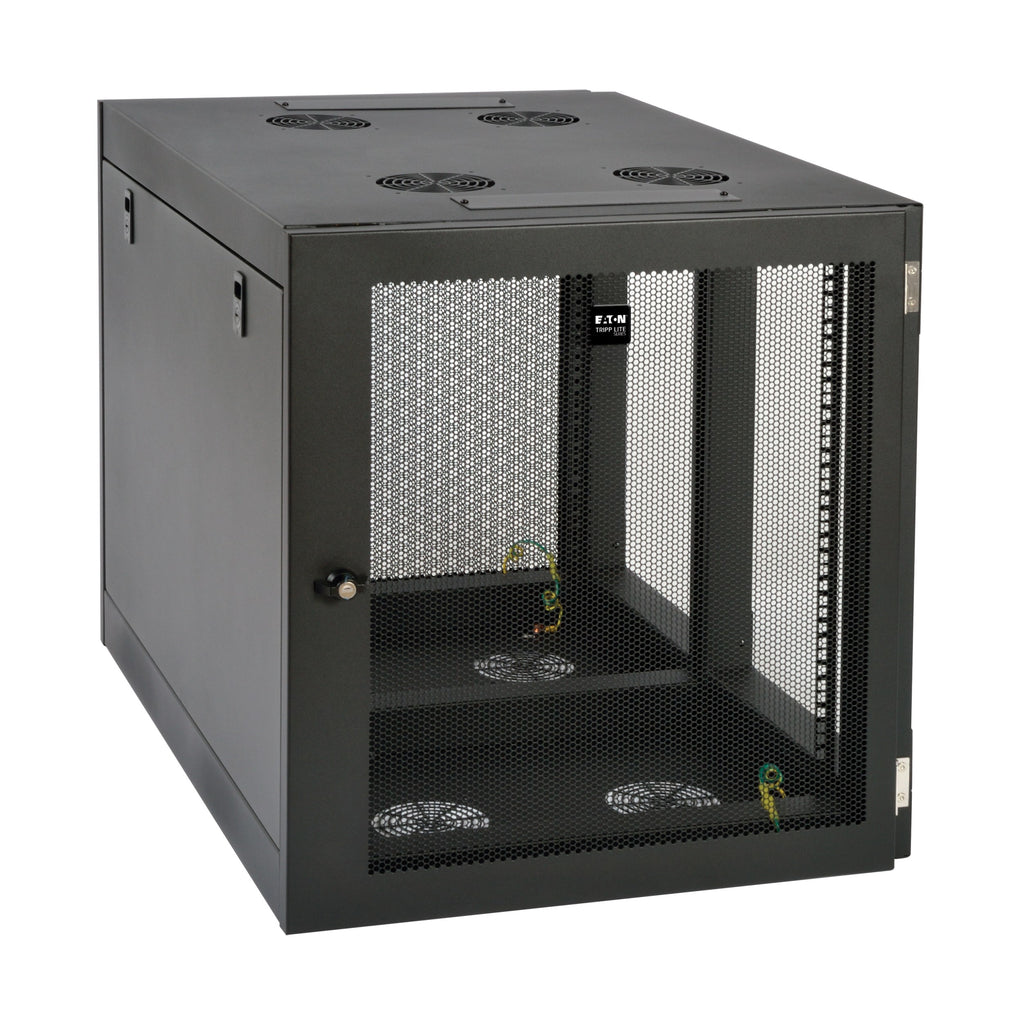

The Tripp Lite SRW12UHD is a heavy-duty 12U wall-mount rack enclosure designed for server-depth equipment in space-constrained environments. Its low-profile, side-mount design allows the cabinet to extend less than 25 inches from the wall while supporting equipment up to 32.5 inches deep, making it ideal for network wiring closets, retail locations, classrooms, and back offices.

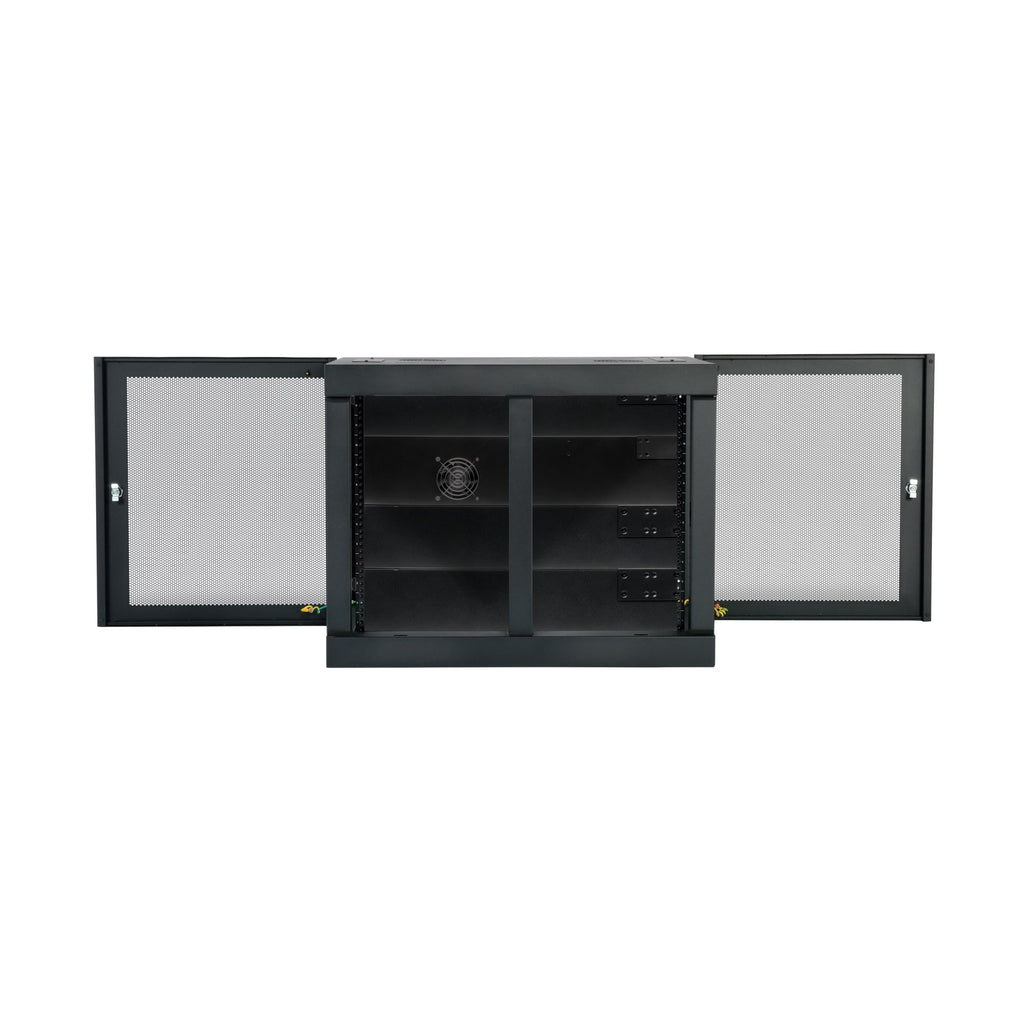

Constructed from rugged steel with a black powder-coated finish, this enclosure supports up to 500 lbs of equipment. Locking front and side panels help protect valuable hardware from tampering or theft, while vented panels on the top, bottom, and sides promote airflow for efficient cooling.
The cabinet ships fully assembled and includes adjustable vertical mounting rails with numbered rack spaces for easy installation. Top and bottom cable access ports simplify routing, making the SRW12UHD a secure, professional-grade solution for wall-mounted IT and network deployments.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model Number | SRW12UHD |
| Rack Height | 12U |
| Rack Width | 19 in (EIA-310 compliant) |
| Mount Type | Side-Mount Wall-Mount |
| Maximum Load Capacity | 500 lb (227 kg) |
| Maximum Equipment Depth | 32.5 in (826 mm) |
| Extension From Wall | Less than 25 in |
| Construction | Heavy-duty steel |
| Finish | Black powder coat |
| Mounting Rails | 4 adjustable vertical rails |
| Rail Hole Types | Square holes & 12-24 threaded |
| Rail Adjustment | 7/8 in increments |
| Ventilation | Vented top, bottom, and sides |
| Security | Locking front panel and side doors |
| Cable Access | Top and bottom cable ports |
| Assembly | Ships fully assembled |
| Compliance | EIA/ECA-310-E, RoHS |
| Use Case | Servers, UPS systems, switches, patch panels |
