Description
The Eaton Tripp Lite SmartRack SRWF12U38 is a 12U low-profile vertical wall-mount rack enclosure designed for secure, space-efficient installation of 19-inch rack equipment. Ideal for network closets, classrooms, retail back offices, and environments with limited floor space, this enclosure mounts vertically and extends only 16 inches from the wall while supporting equipment up to 35 inches deep.

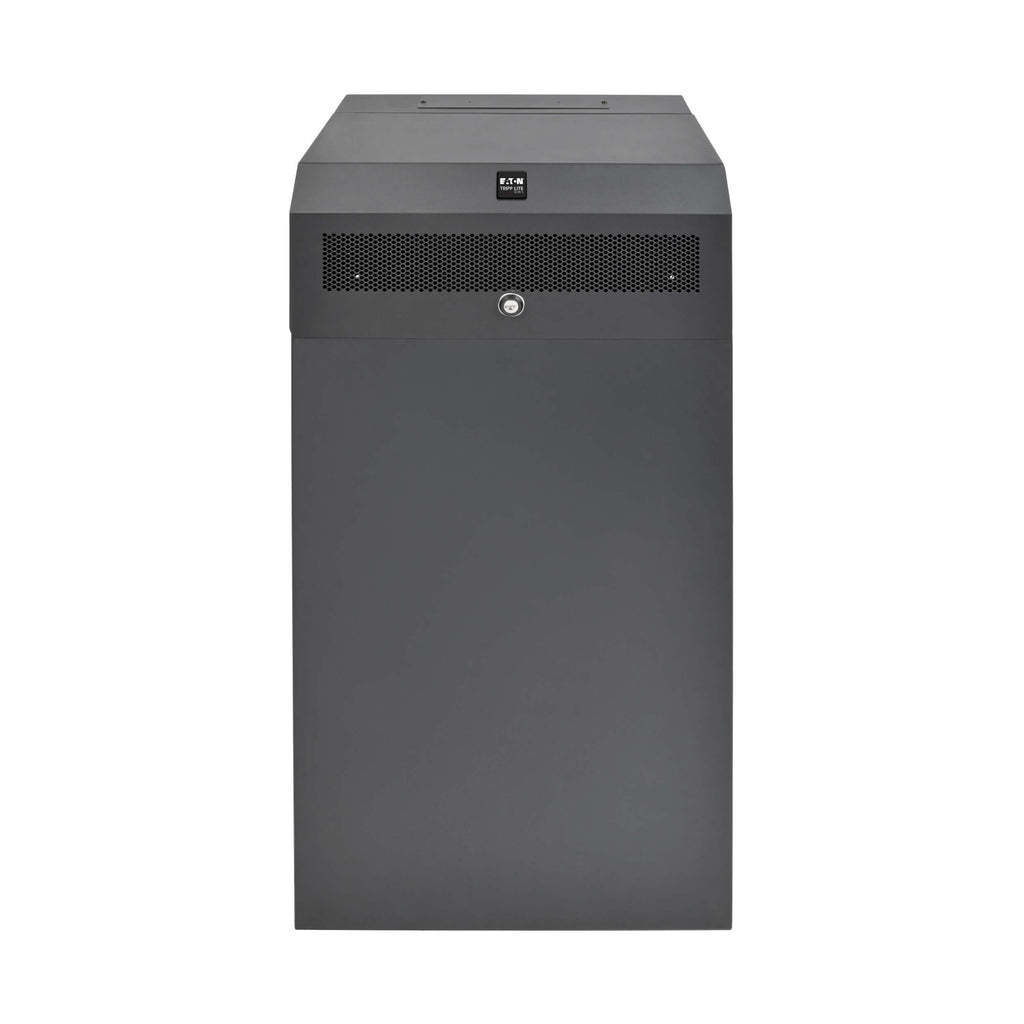

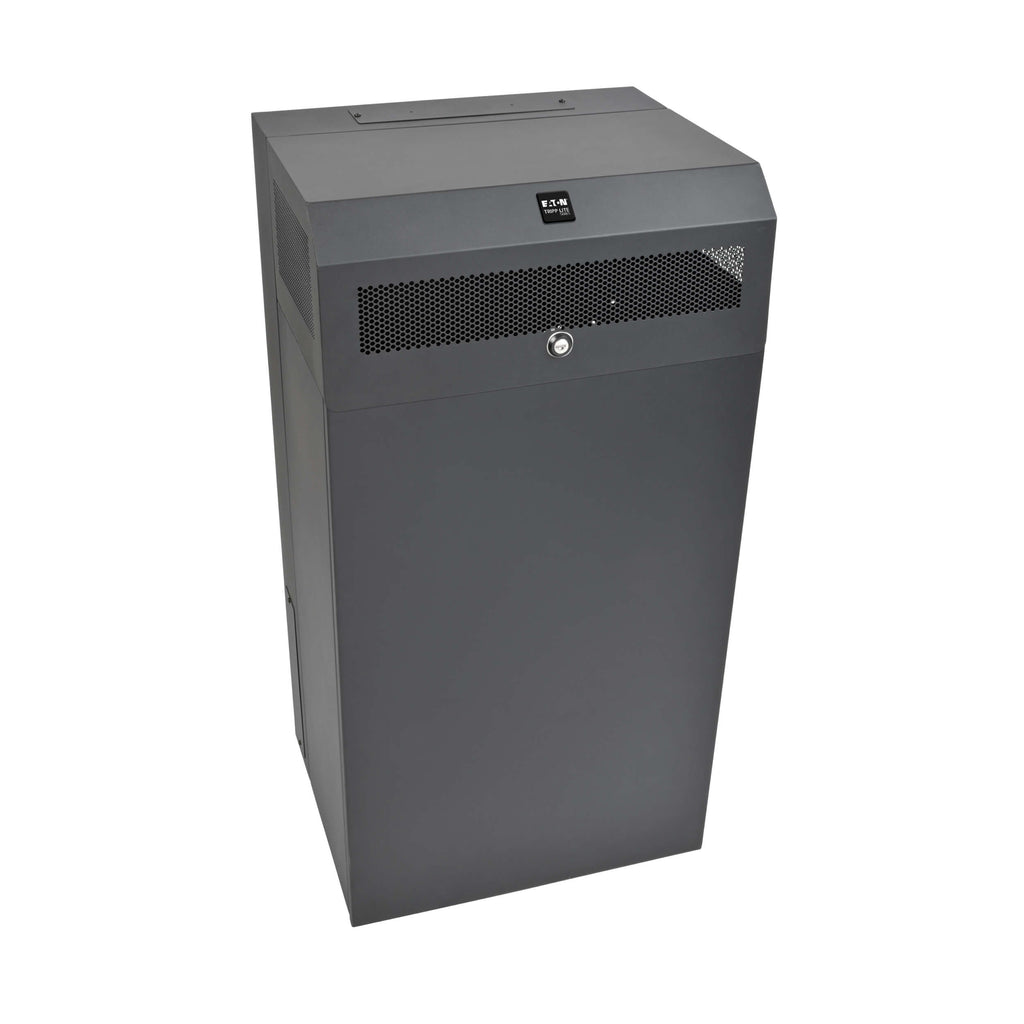

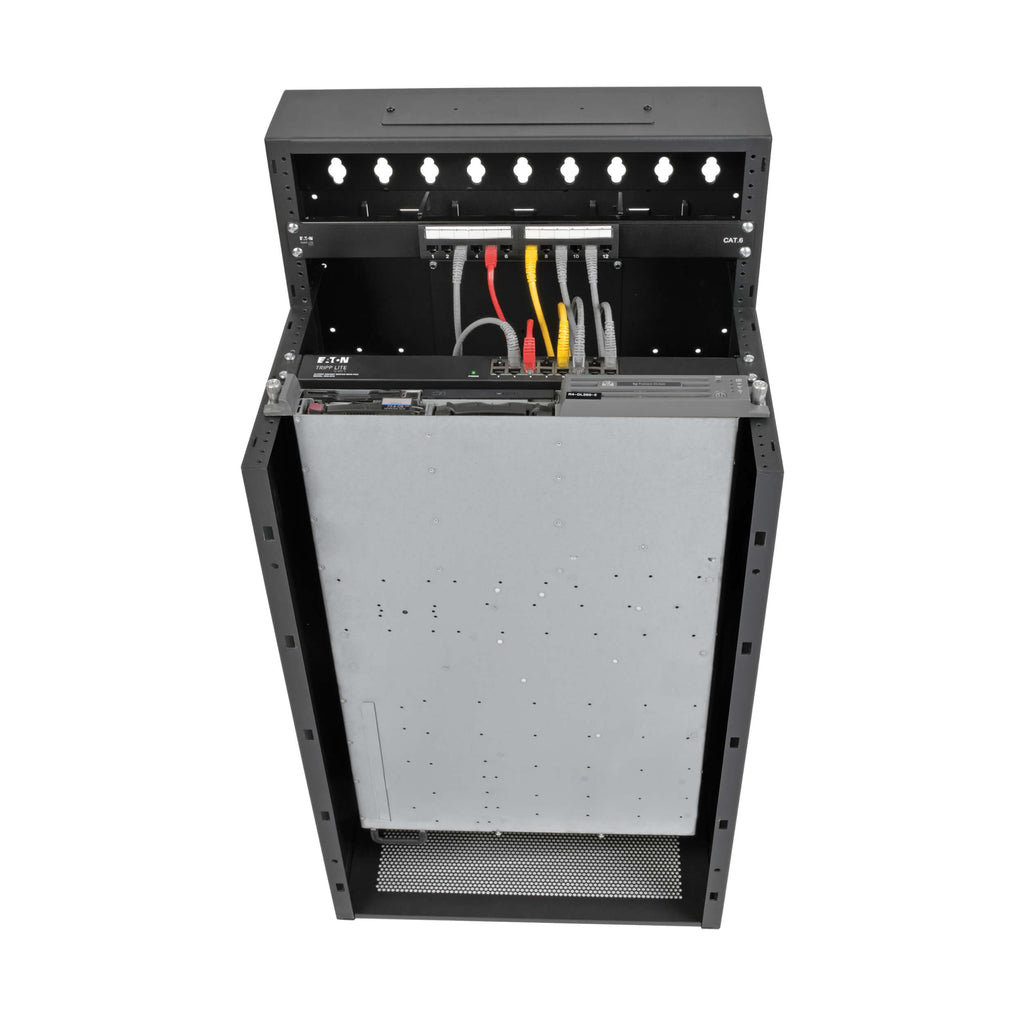

Constructed from heavy-duty steel with a black powder-coated finish, the cabinet supports up to 400 lb of equipment, including servers, switches, UPS systems, and battery packs. It provides 8U of primary mounting space plus an additional 4U at the top for patch panels. A locking, vented steel cover promotes airflow while protecting equipment from unauthorized access.

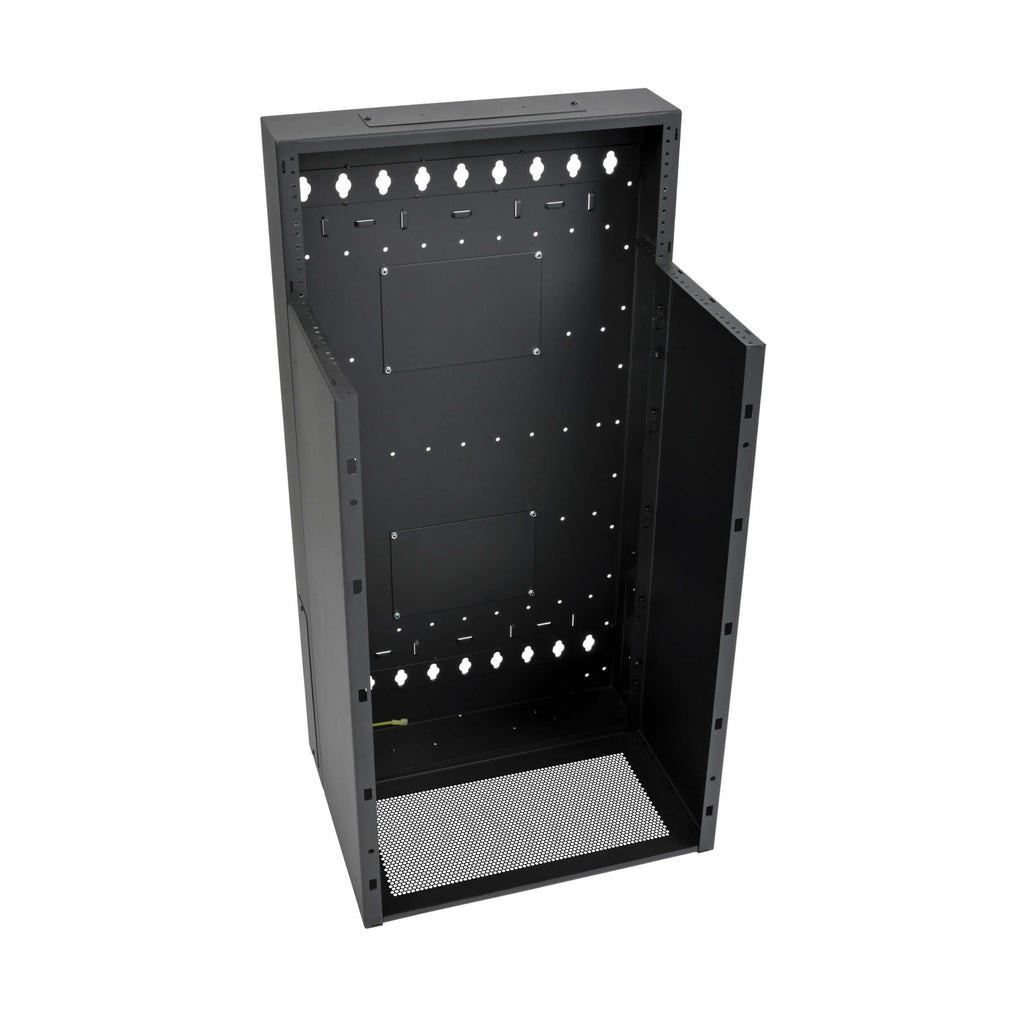

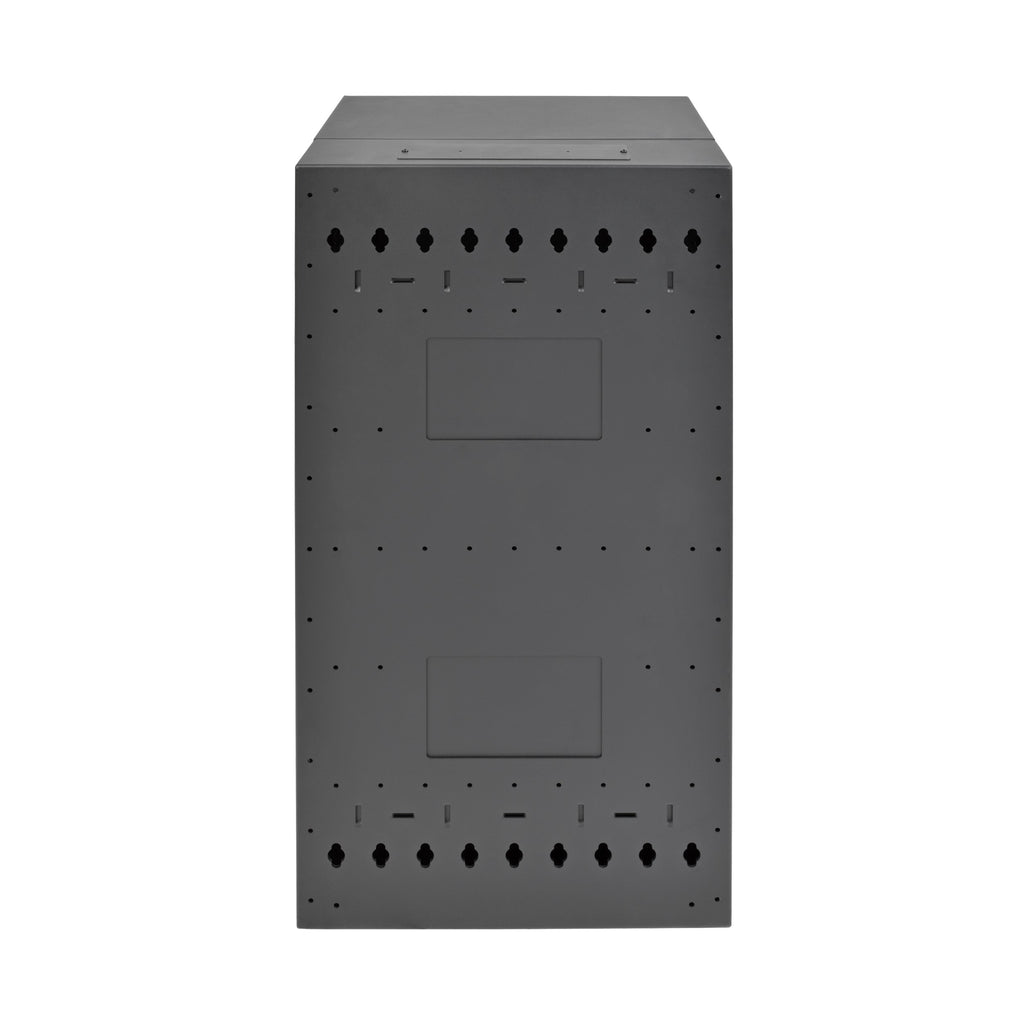

The modular design allows quick disassembly for wall mounting, with mounting holes spaced to align with standard wall studs. Multiple cable access ports on the top, bottom, and sides simplify routing, making the SRWF12U38 a reliable solution for secure vertical rack deployments.
| Specification | Details |
|---|---|
| Rack Height | 12U |
| Mount Type | Vertical wall-mount |
| Rack Width | 19 in (EIA-standard) |
| Maximum Equipment Depth | 35 in (889 mm) |
| Wall Extension | 16 in |
| Load Capacity | 400 lb (181 kg) |

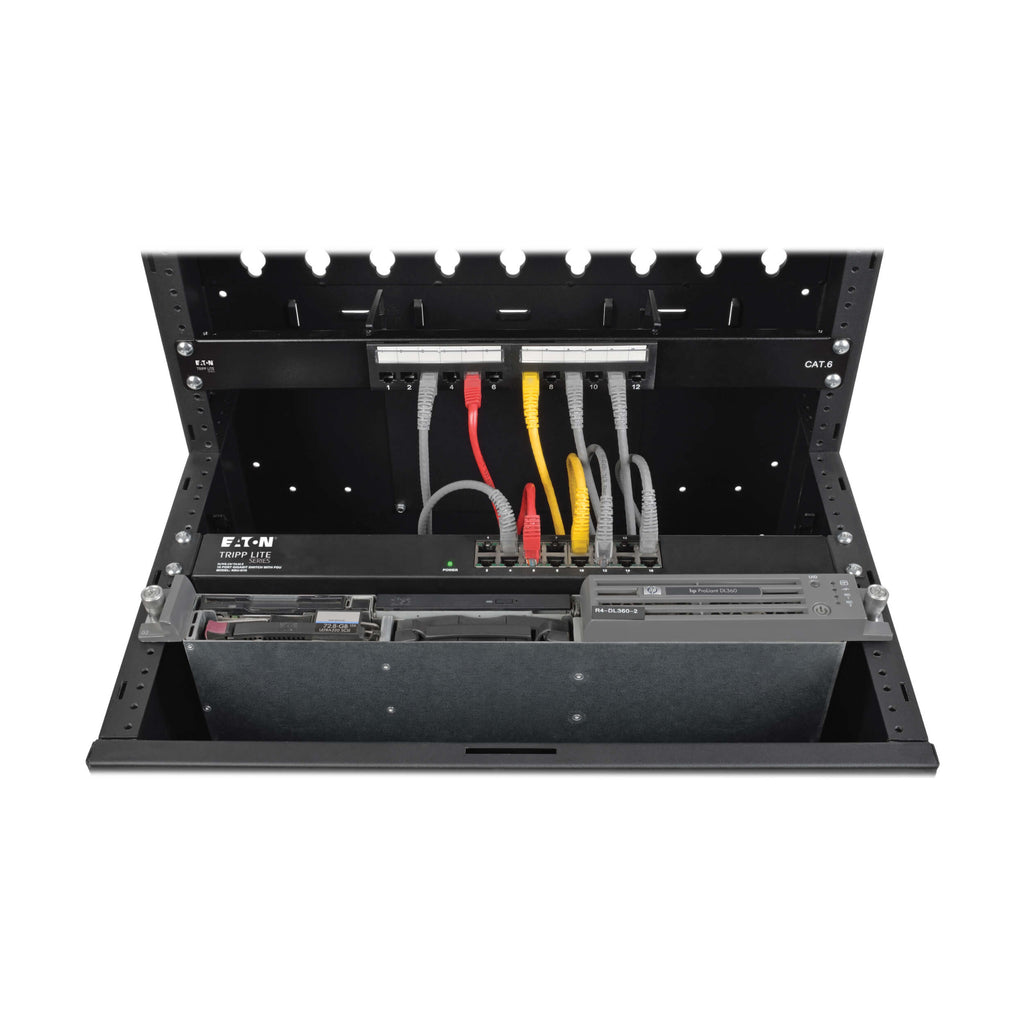

| Mounting Space | 8U main + 4U top (patch panels) |
| Material | Heavy-duty steel |
| Finish | Black powder-coat |
| Ventilation | Vented steel enclosure |
| Security | Locking cover with keys |
| Cable Access | Top, bottom, and side ports |
| Mounting Rails | 2 vertical rails |
| Assembly | Required (modular design) |
| Compliance | RoHS, EIA/ECA-310-E |
| Unit Dimensions (H × W × D) | 38.0 × 19.7 × 16.2 in |
| Unit Weight | 66.8 lb |
