Description
The Tripp Lite SmartRack SR12UBFFD is a 12U mid-depth rack enclosure engineered to protect sensitive IT and network equipment in harsh indoor environments. Designed for factories, warehouses, utility plants, and industrial workspaces, this enclosure shields equipment from dust, debris, drips, and accidental contact while maintaining proper airflow.

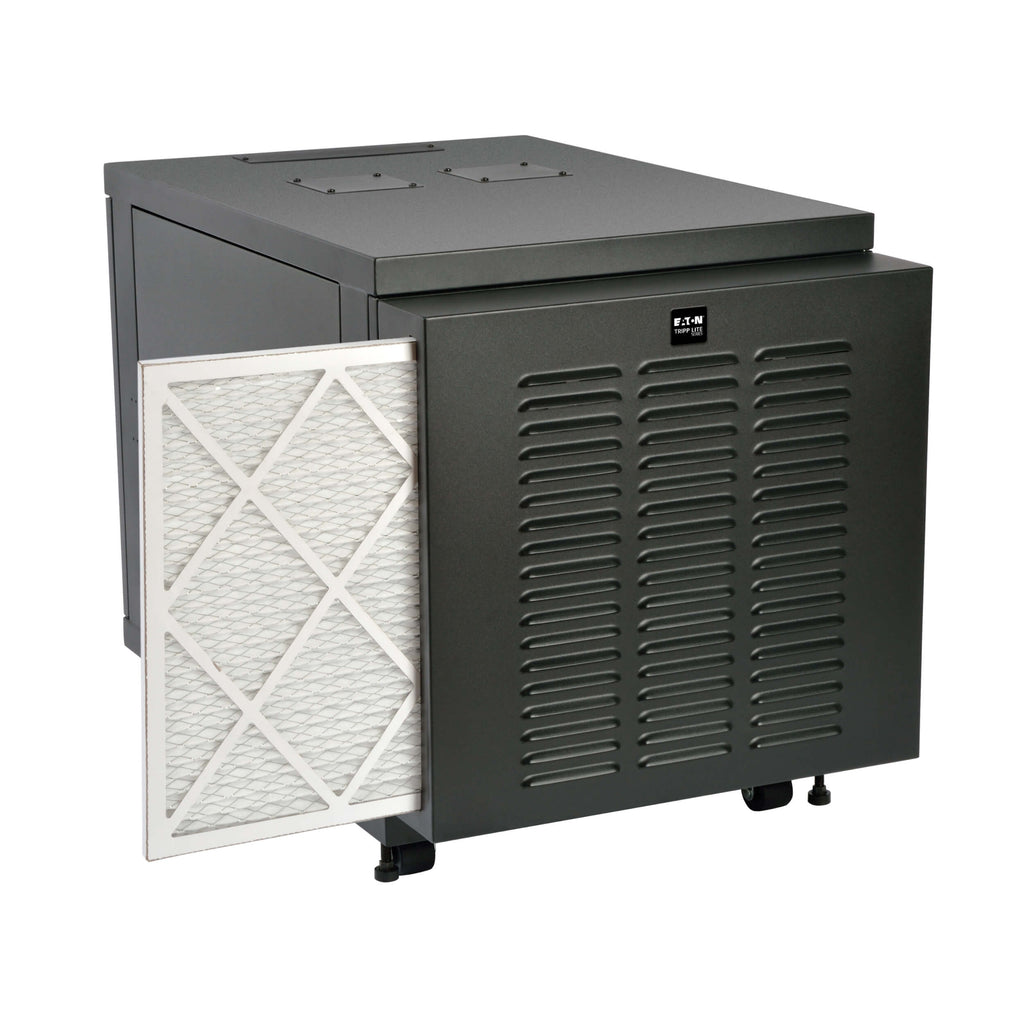

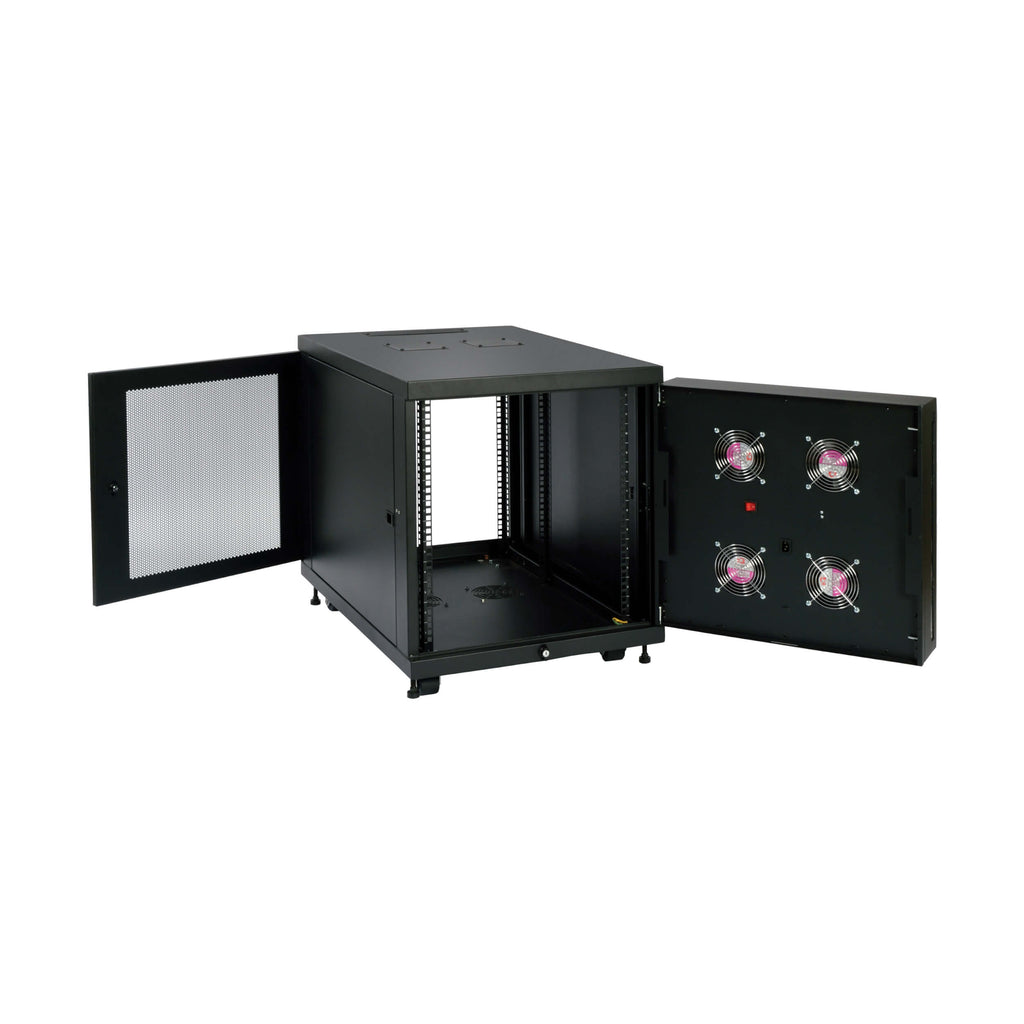

A built-in removable dust filter on the front door helps block airborne contaminants and can be easily replaced using standard furnace filters for cost-effective maintenance. Four high-performance intake fans actively draw air through the enclosure to keep equipment cool, even with filtration in place.

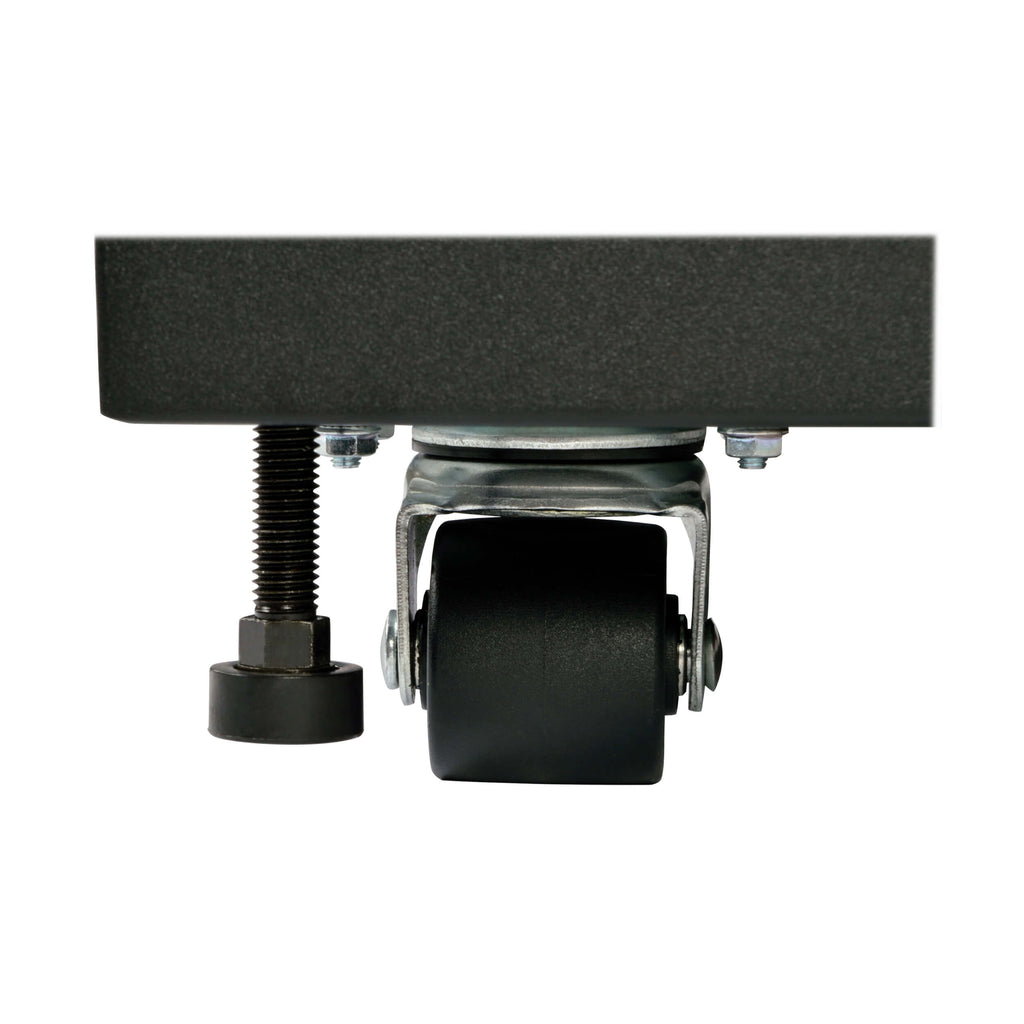

Adjustable square-hole rack rails support up to 12U of standard 19-inch rackmount equipment, with mounting depths ranging from 3 to 32.5 inches. Heavy-duty steel construction supports loads up to 1,000 lbs and includes locking doors, removable side panels, casters, and leveling feet for flexible deployment in demanding environments.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Series | SmartRack |
| Model | SR12UBFFD |
| Rack Height | 12U |
| Rack Type | Harsh-Environment Enclosure |
| Rack Depth | Mid-Depth |
| Mounting Width | 19 in Standard |
| Adjustable Mounting Depth | 3 to 32.5 in |
| Maximum Load Capacity | 1000 lbs (rolling or stationary) |
| Cooling | 4 high-performance front intake fans |
| Front Door | Locking, reversible, louvered with dust filter |
| Dust Filtration | Built-in removable filter (standard furnace filter compatible) |
| Side Panels | Locking, removable |
| Cable Access | Dual cable ports |
| Construction | Heavy-duty steel |
| Protection Rating | IP54 |
| Compliance | PCI DSS enclosure requirements, RoHS |
| Color | Black |
| Casters | Included |
| Leveling Feet | Included |
| Input Voltage | 120V AC, 50/60 Hz |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 10 ft |
| Assembly | Fully assembled |
| Warranty | 2-Year Limited Warranty |
