Description

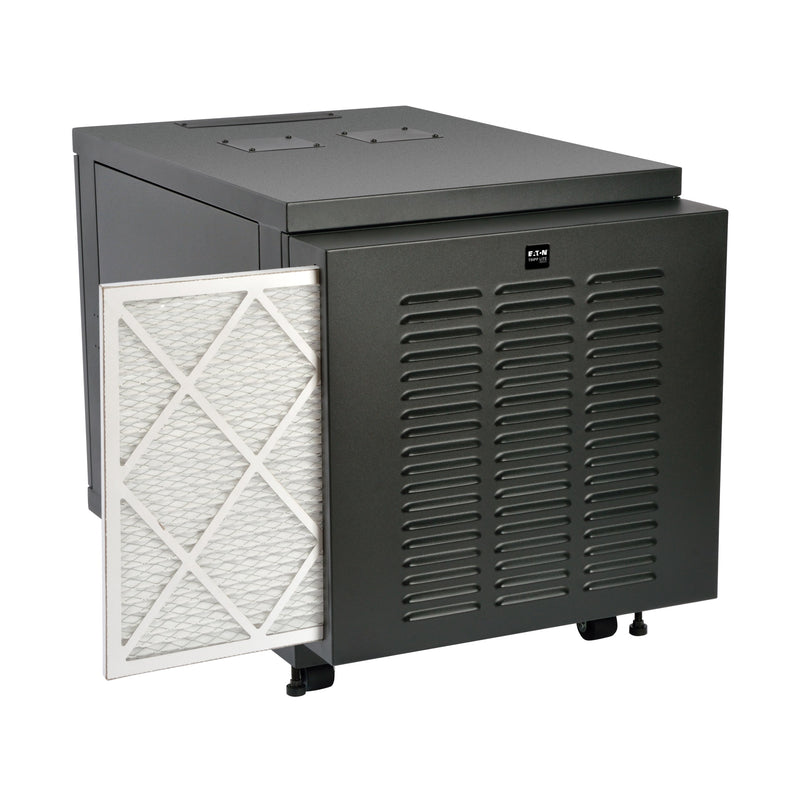

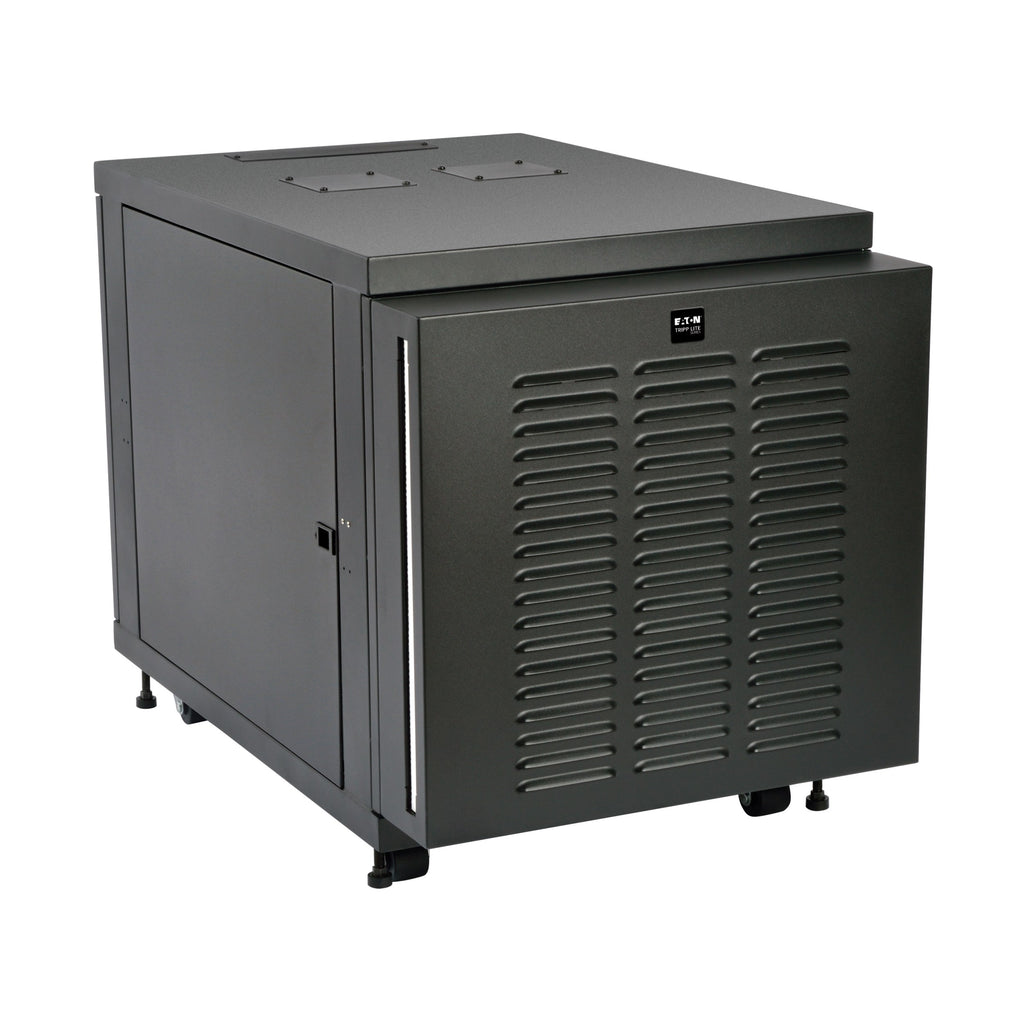

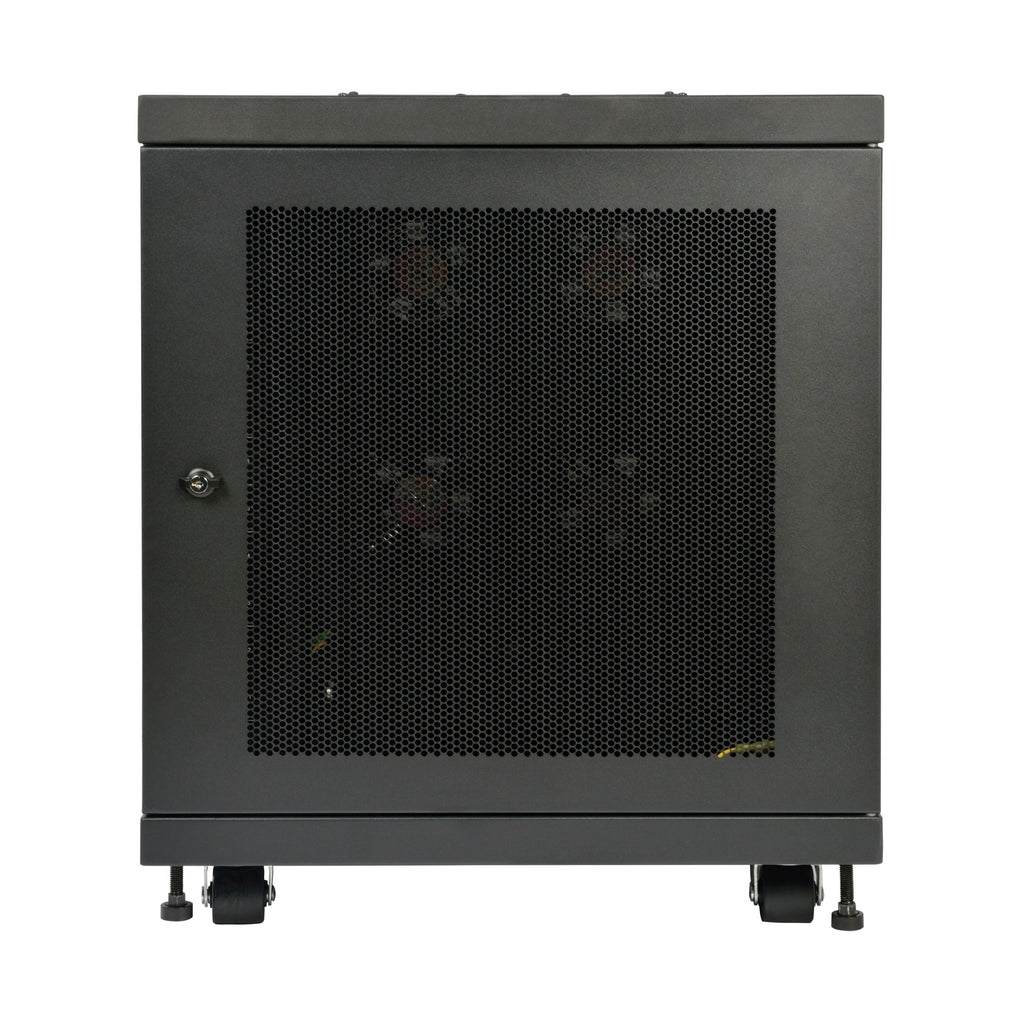

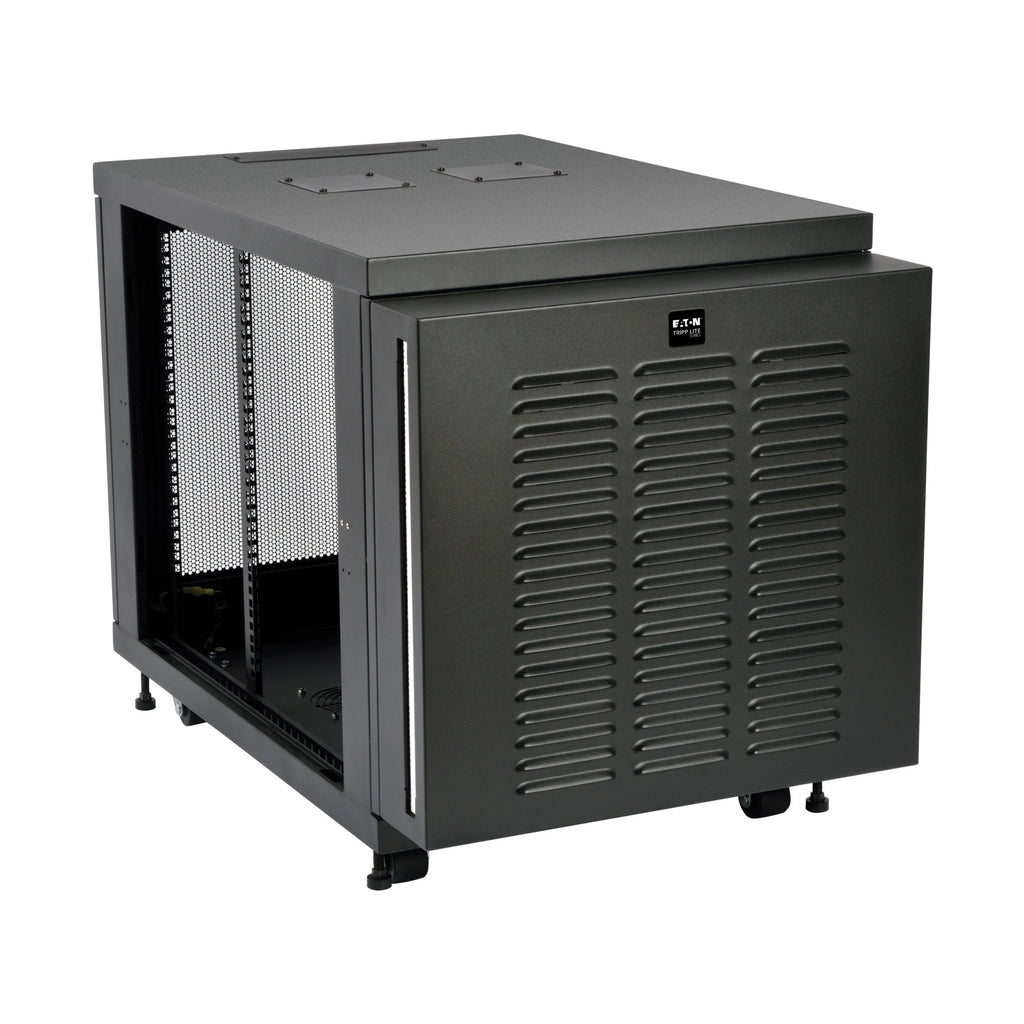

The Tripp Lite SRX12UBFFD SmartRack 12U Small Server Rack Enclosure provides robust protection and efficient cooling for critical IT equipment in harsh industrial environments. Designed for factories, construction sites, power stations, and warehouses, this rugged 12U cabinet secures standard 19-inch rack equipment up to 32.5 inches deep.

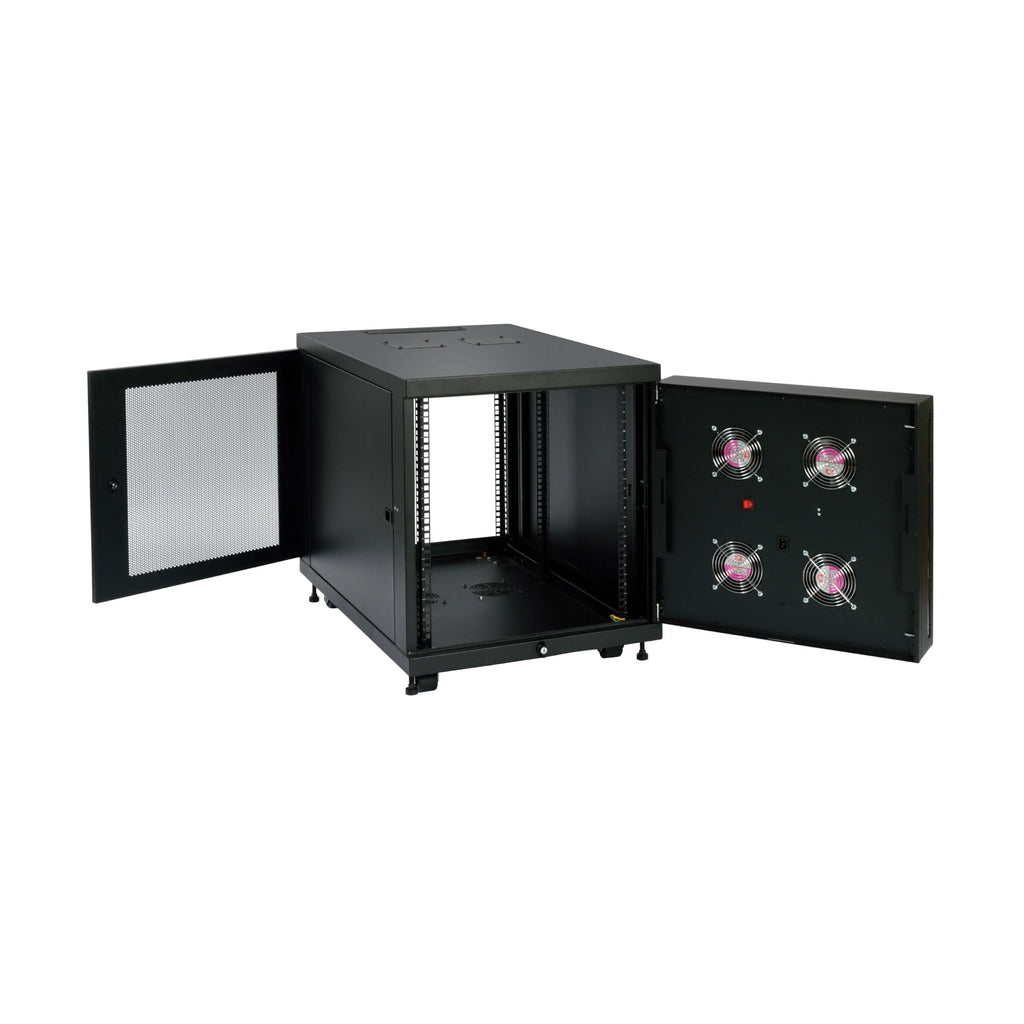

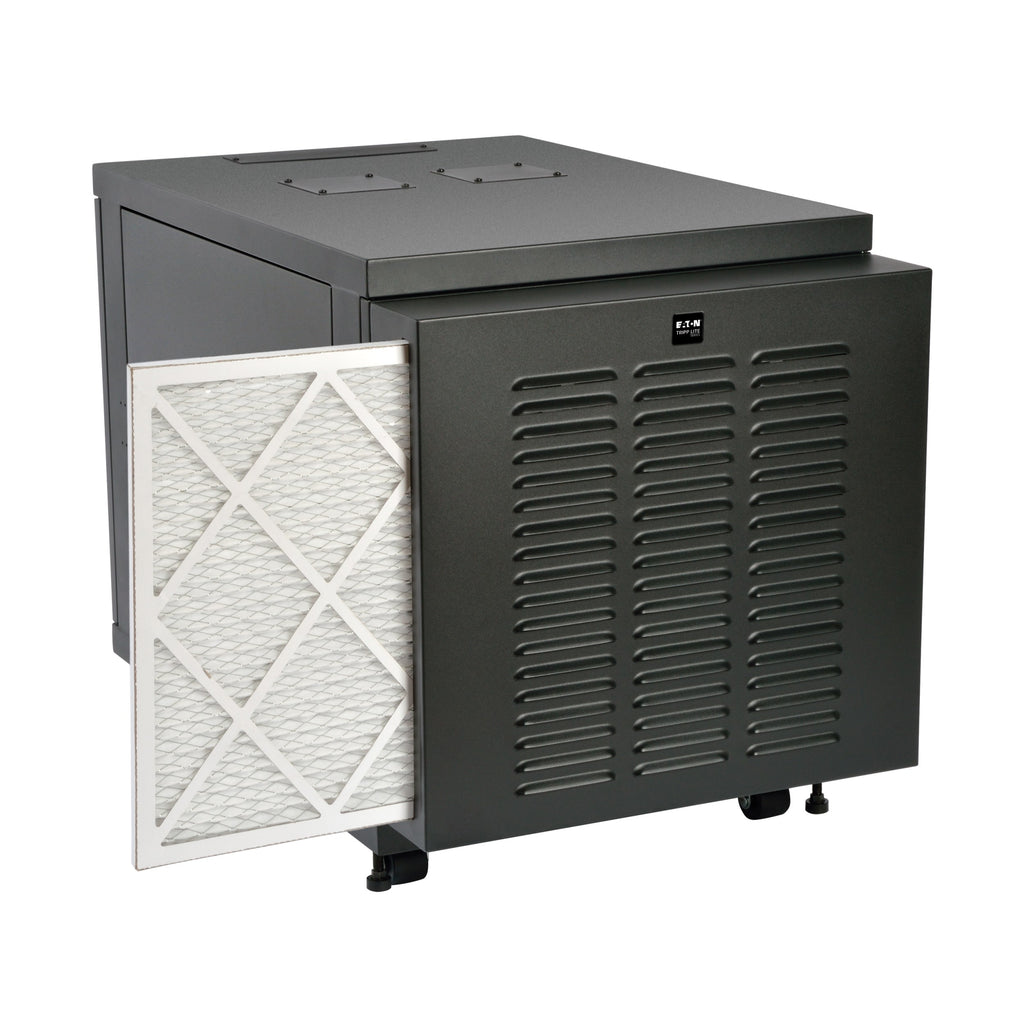

Built from heavy-duty steel with an IP54-rated, dust- and drip-resistant design, the SRX12UBFFD safeguards sensitive gear against contaminants such as dirt, lint, and oil. A pre-installed air filter and four high-performance intake fans ensure clean, cooled airflow, while locking steel doors and removable side panels provide reliable security against tampering or theft.
This unit ships fully assembled with casters and leveling feet for fast deployment and includes all mounting hardware. PCI DSS-compliant for physical equipment security, it’s ideal for hosting servers, UPS systems, and network switches where reliability and cleanliness are paramount.
| Category | Details |
|---|---|
| Model | SRX12UBFFD |
| Brand | Tripp Lite (by Eaton) |
| Rack Type | Small Server-Depth Enclosure |
| Rack Height | 12U |
| Rack Width | 19 in (48.3 cm) |
| Maximum Device Depth | 32.5 in (82.6 cm) |
| Minimum Device Depth | 3 in (7.6 cm) |
| Load Capacity | 1000 lbs (453.6 kg) |
| Construction Material | Heavy-duty steel |
| Protection Rating | IP54 (dust and drip-resistant) |

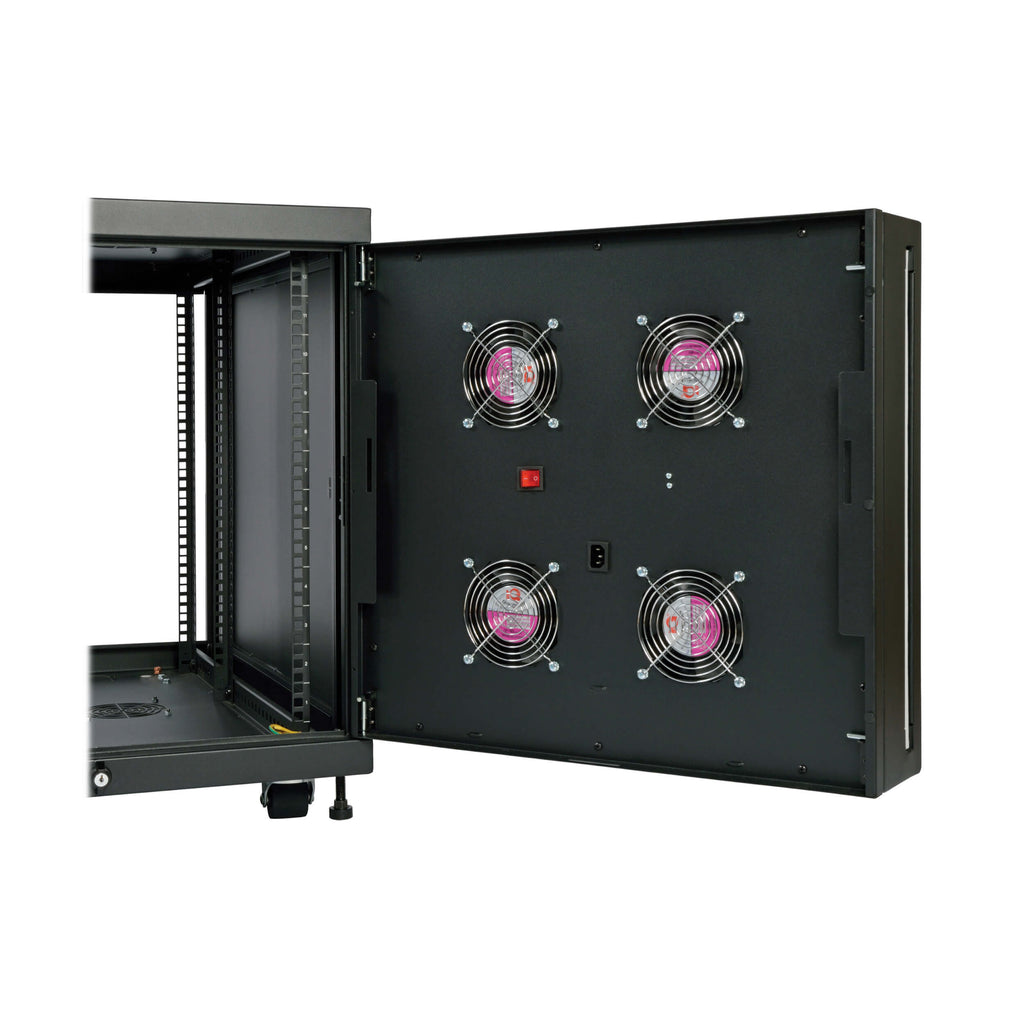

| Cooling System | Four front-door intake fans with replaceable air filter |
| Air Filter | Removable; compatible with standard furnace filters |
| Doors & Panels | Lockable front/rear doors, removable side panels |
| Cable Management | Sealed top and bottom ports for cable routing |
| Compliance | PCI DSS, RoHS, EIA/ECA-310-E |
| Color | Black |
| Nominal Input Voltage | 230V AC, 50/60 Hz |
| Input Plug Types | Schuko, BS1363, C14 |
| Included Cords | C13 to Schuko / BS1363 / C14 (6 ft / 1.8 m each) |
| Unit Dimensions (H x W x D) | 25.2 x 23.6 x 38.5 in (64 x 59.95 x 97.79 cm) |
| Unit Weight | 96 lbs (43.54 kg) |
| Shipping Weight | 136 lbs (61.69 kg) |
| Warranty | 2-year limited warranty |
| Included Accessories | M6 cage nuts, screws, washers, dust filters, casters, levelers, keys, cords, and manual |
