Description

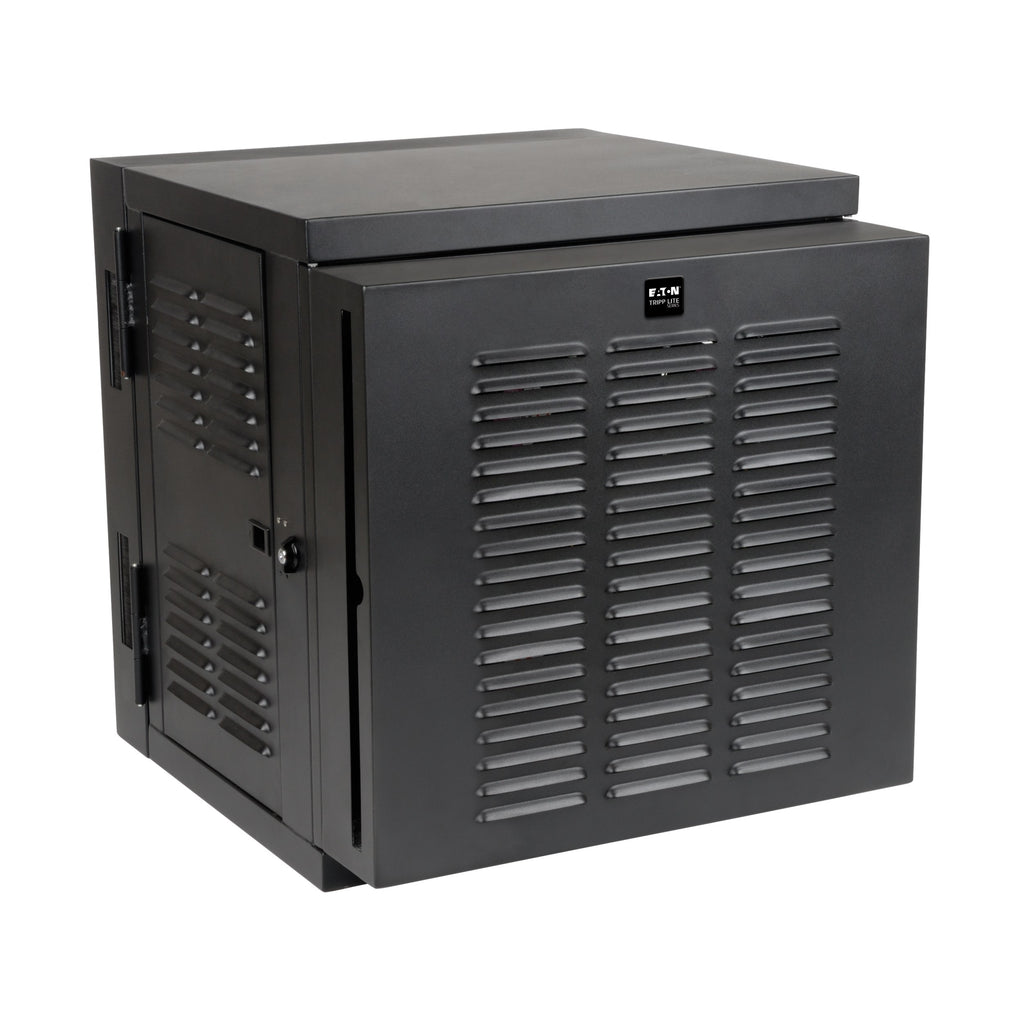

The Eaton Tripp Lite SmartRack SRWX12USNEMA is a rugged 12U wall-mount rack enclosure engineered for harsh and industrial environments where floor space is limited. Designed to protect critical IT and network equipment, this enclosure shields hardware from dust, dirt, oil, drips, and splashes while maintaining reliable airflow.
Constructed from heavy-duty steel with a black powder-coat finish, the cabinet supports up to 200 lbs of equipment and accommodates standard 19-inch rack-mount devices up to 20.5 inches deep. Integrated intake fans, replaceable air filtration, sealed gaskets, and brush-strip cable ports help maintain a clean internal environment while keeping equipment cool.

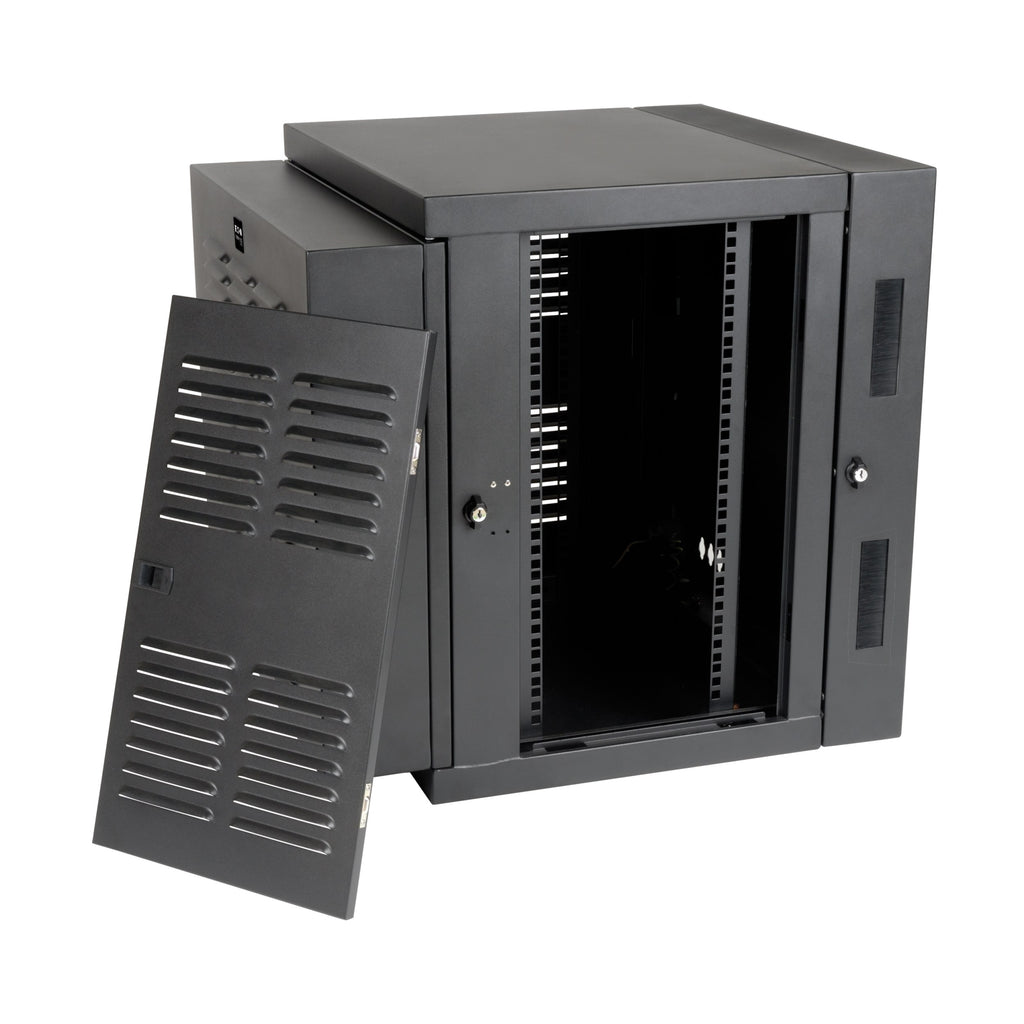

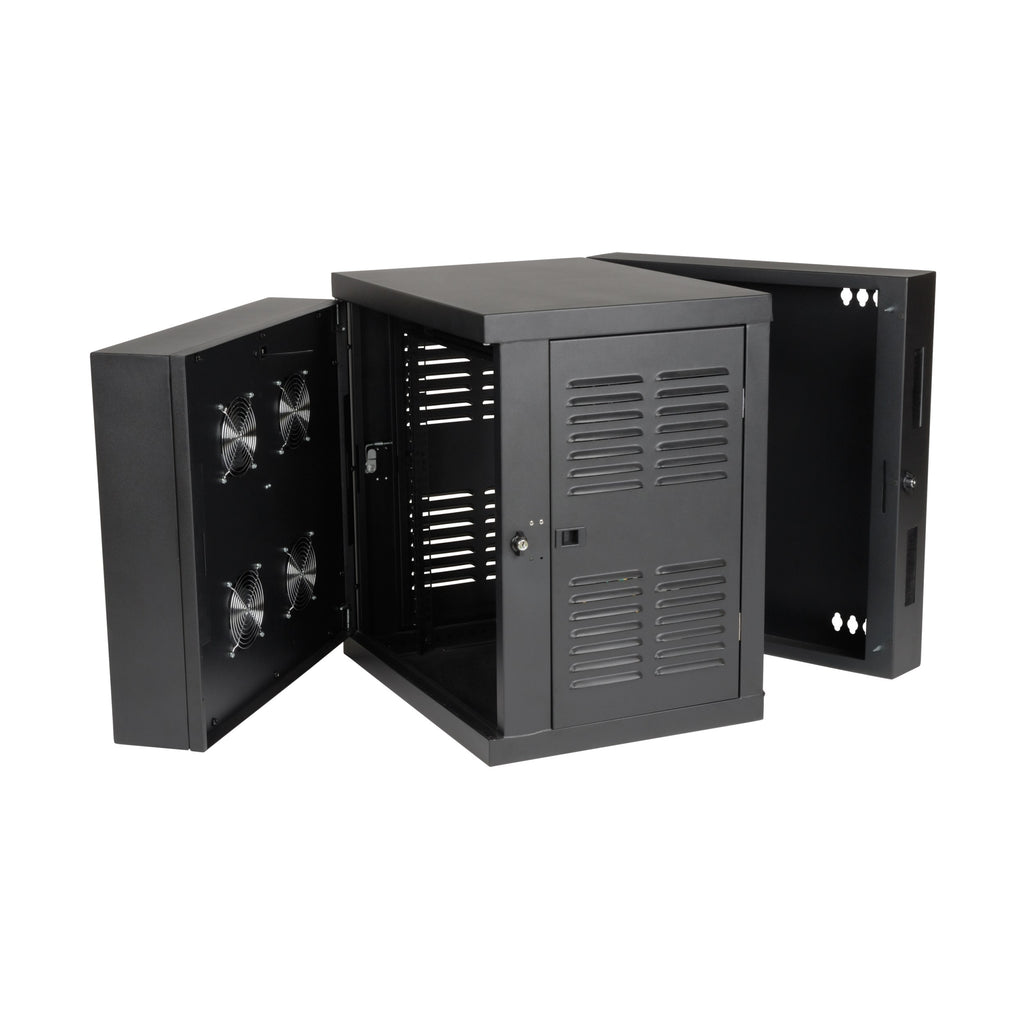

A hinged swing-out design provides convenient rear access for installation and maintenance, while reversible locking doors and side panels enhance security. The SRWX12USNEMA ships fully assembled and is ideal for factories, warehouses, utility plants, and other demanding applications requiring secure wall-mounted rack protection.
| Specification | Details |
|---|---|
| Rack Height | 12U |
| Rack Width | 19 in (EIA standard) |
| Maximum Load Capacity | 200 lbs (90.7 kg) |
| Maximum Device Depth | 20.5 in (52.1 cm) |
| Minimum Device Depth | 3 in (7.6 cm) |
| Enclosure Type | Wall-mount, switch-depth |
| Cabinet Construction | Heavy-duty steel |
| Finish | Black powder-coated |

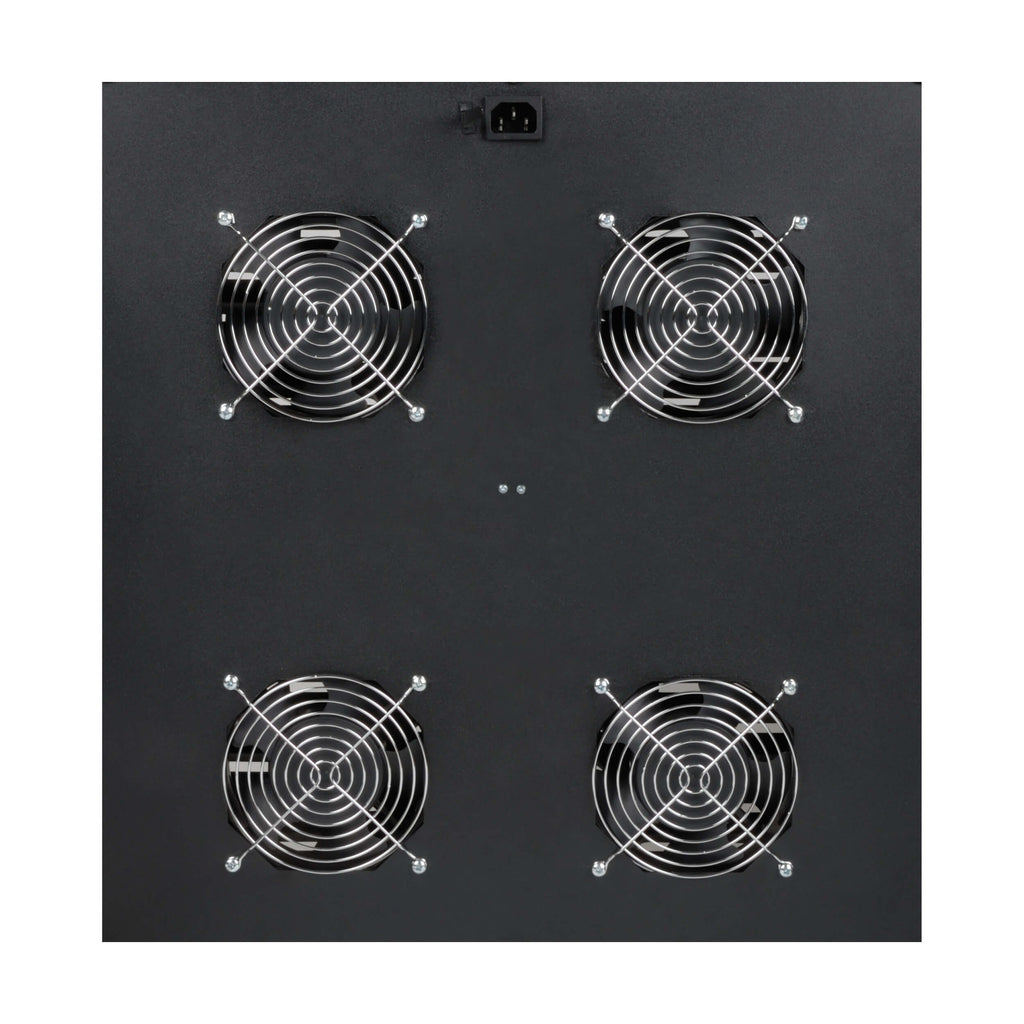

| Cooling | Built-in high-performance intake fans |
| Air Filtration | Replaceable air filter |
| Environmental Protection | Dust, dirt, oil, drips, and splashes |
| Door Design | Hinged swing-out, reversible |
| Security | Locking doors and side panels |
| Cable Access | Sealed ports with brush strips |
| Mounting Rails | Adjustable, square-hole |
| Numbered Rack Spaces | Yes |
| Input Voltage | 230V AC, 50/60 Hz |
| Included Power Cords | C13 to Schuko, BS1363, and C14 |
| Wall Mounting | 16-inch stud spacing |
| Unit Dimensions (H x W x D) | 25.08 x 23.62 x 26.42 in |
| Unit Weight | 81.2 lbs (36.8 kg) |
| Compliance | RoHS, PCI DSS physical security support |
| Warranty | 2-year limited warranty |
