Description

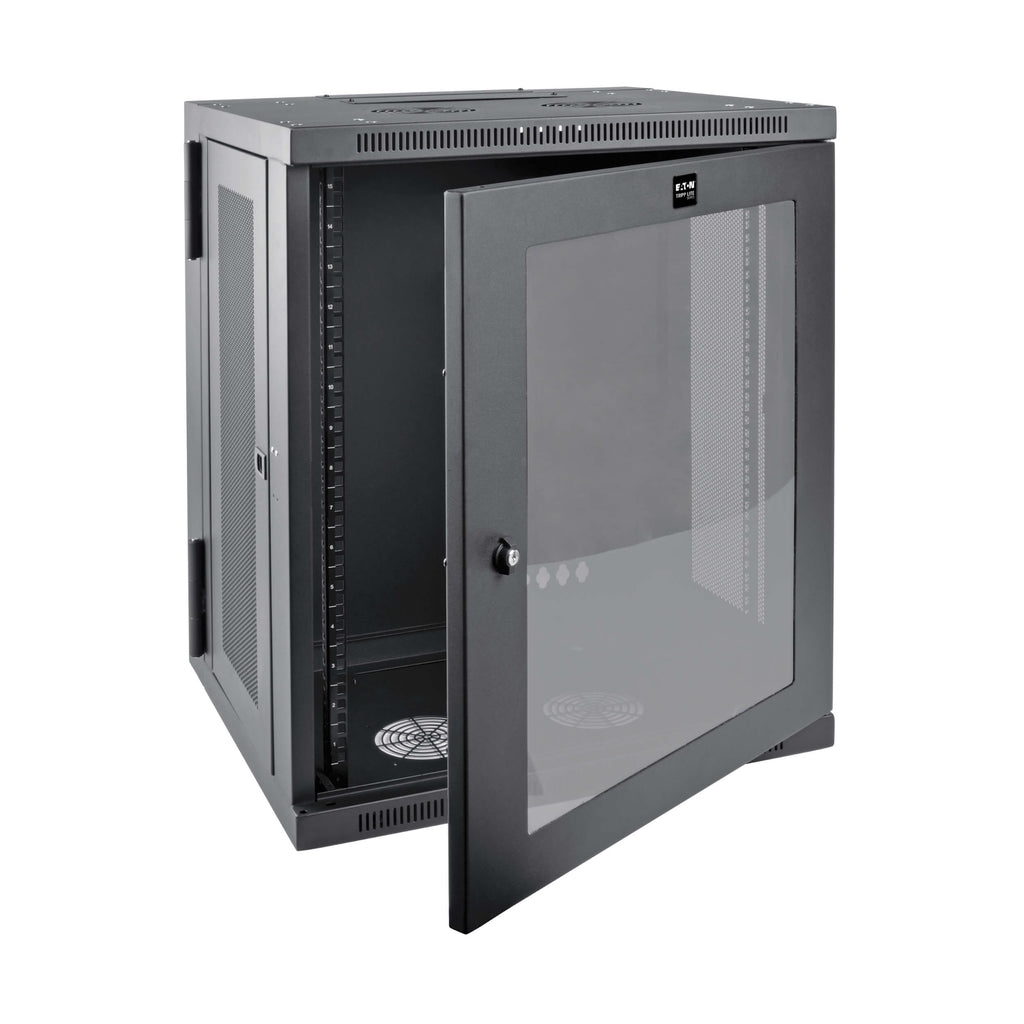

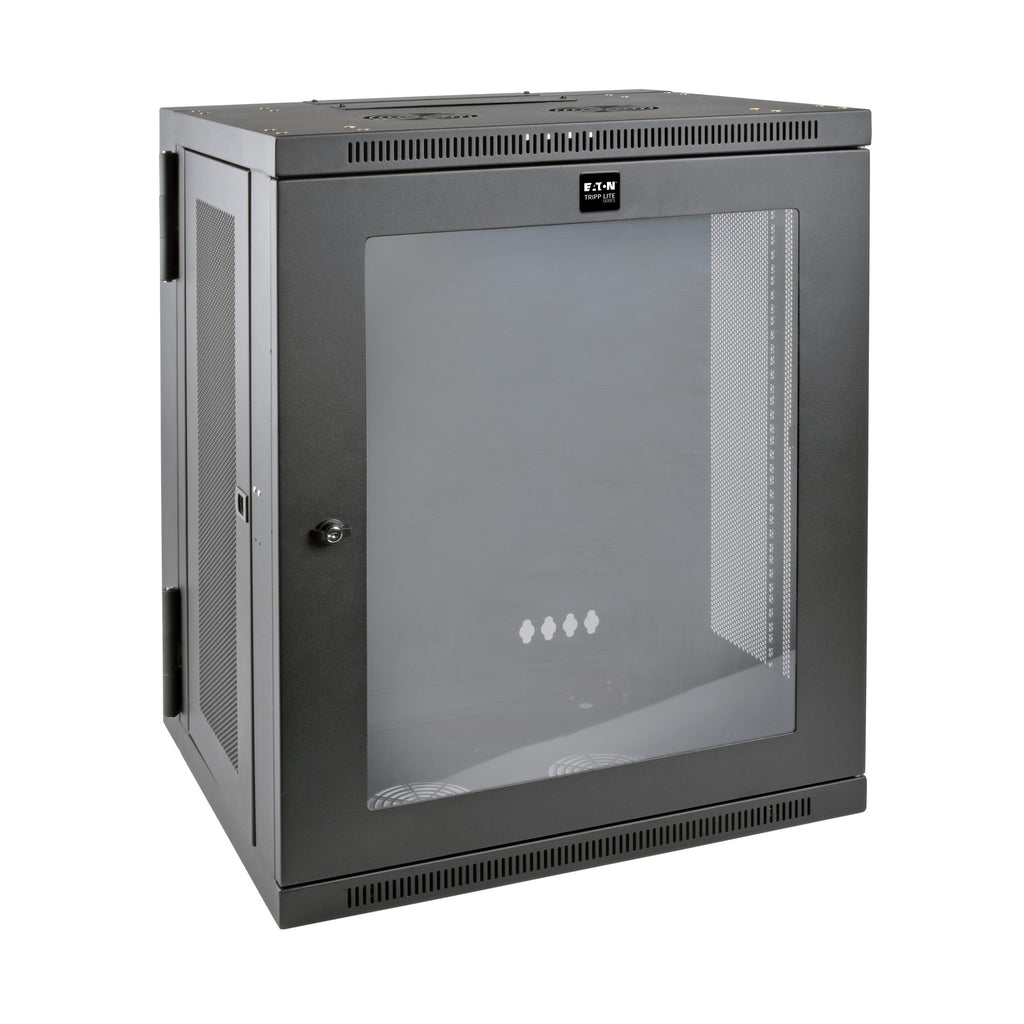

The SmartRack SRW15USG is a 15U low-profile wall-mount rack enclosure designed for secure, space-efficient installation of 19-inch rack equipment in network closets, classrooms, retail locations, and other areas with limited floor space. Its half-height, switch-depth design supports networking and AV hardware while keeping equipment organized, protected, and accessible.
Built from heavy-duty steel with a black powder-coated finish, the enclosure supports up to 200 lb of equipment. The hinged cabinet swings away from the wall for easy rear access during installation and maintenance. A shatter-resistant clear acrylic front window allows equipment monitoring without unlocking the door, helping reduce tampering and acoustic noise.
Vented top, bottom, and side panels promote proper airflow, while locking doors and side panels help safeguard valuable hardware. Adjustable vertical mounting rails accommodate equipment up to 20.5 inches deep, and reversible door orientation allows left- or right-hand opening to suit installation needs. The cabinet ships fully assembled for faster deployment.
| Specification | Details |
|---|---|
| Rack Height | 15U |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Width | 19 in (EIA-Standard) |
| Rack Depth Type | Low-Profile / Switch-Depth |
| Maximum Device Depth | 20.5 in (521 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Load Capacity | 200 lb (91 kg) |
| Enclosure Material | Heavy-Duty Steel |
| Finish | Black Powder Coat |
| Front Door | Locking, Clear Acrylic Window |
| Door Orientation | Reversible (Left or Right Opening) |
| Cabinet Access | Hinged Swing-Away Design |
| Ventilation | Vented Top, Bottom, and Side Panels |
| Mounting Rails | 4 Adjustable Vertical Rails |
| Rail Adjustment | 7/8 in Increments |

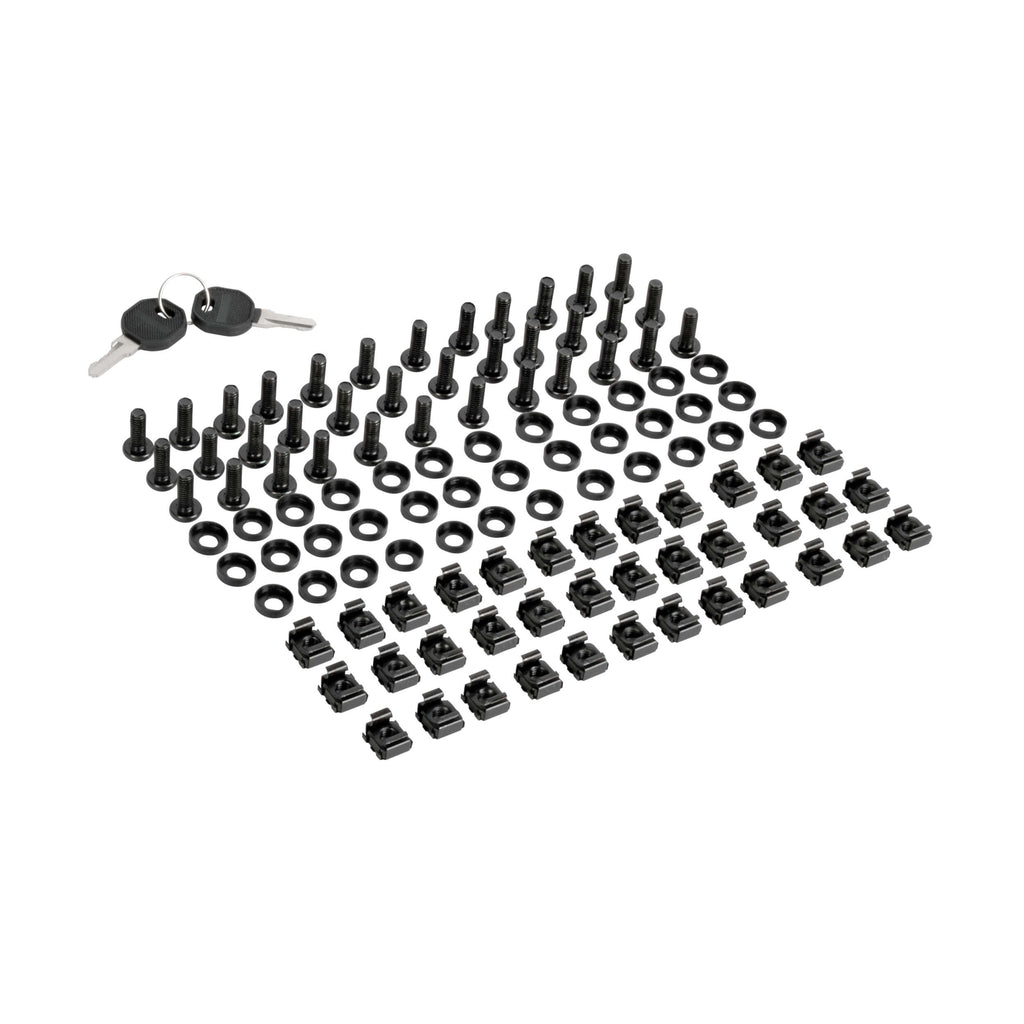

| Mounting Hardware | Square-Hole and 12-24 Threaded |
| Cable Access | Top and Bottom Cable Ports |
| Assembly | Fully Assembled |
| Security | Locking Door and Side Panels |
| Compliance | EIA/ECA-310-E, RoHS |
| Color | Black |
