Description

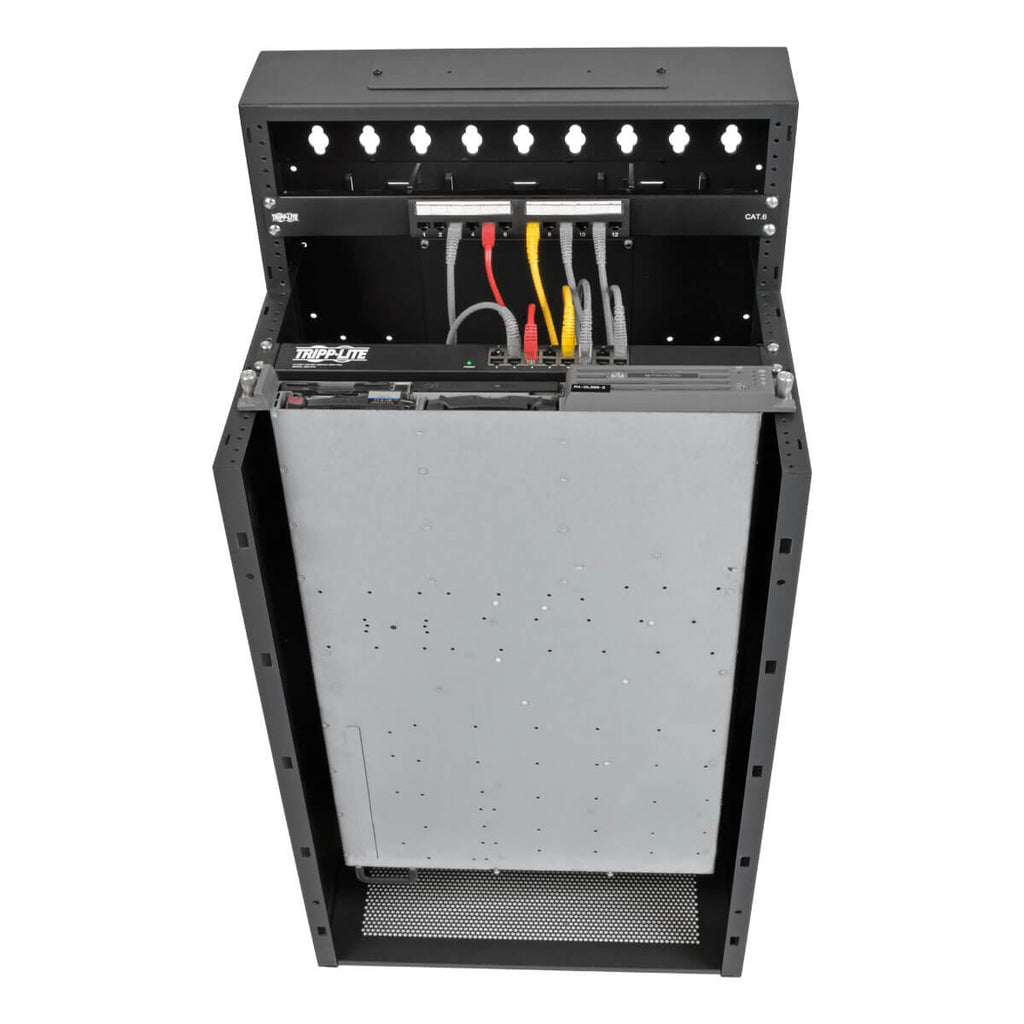

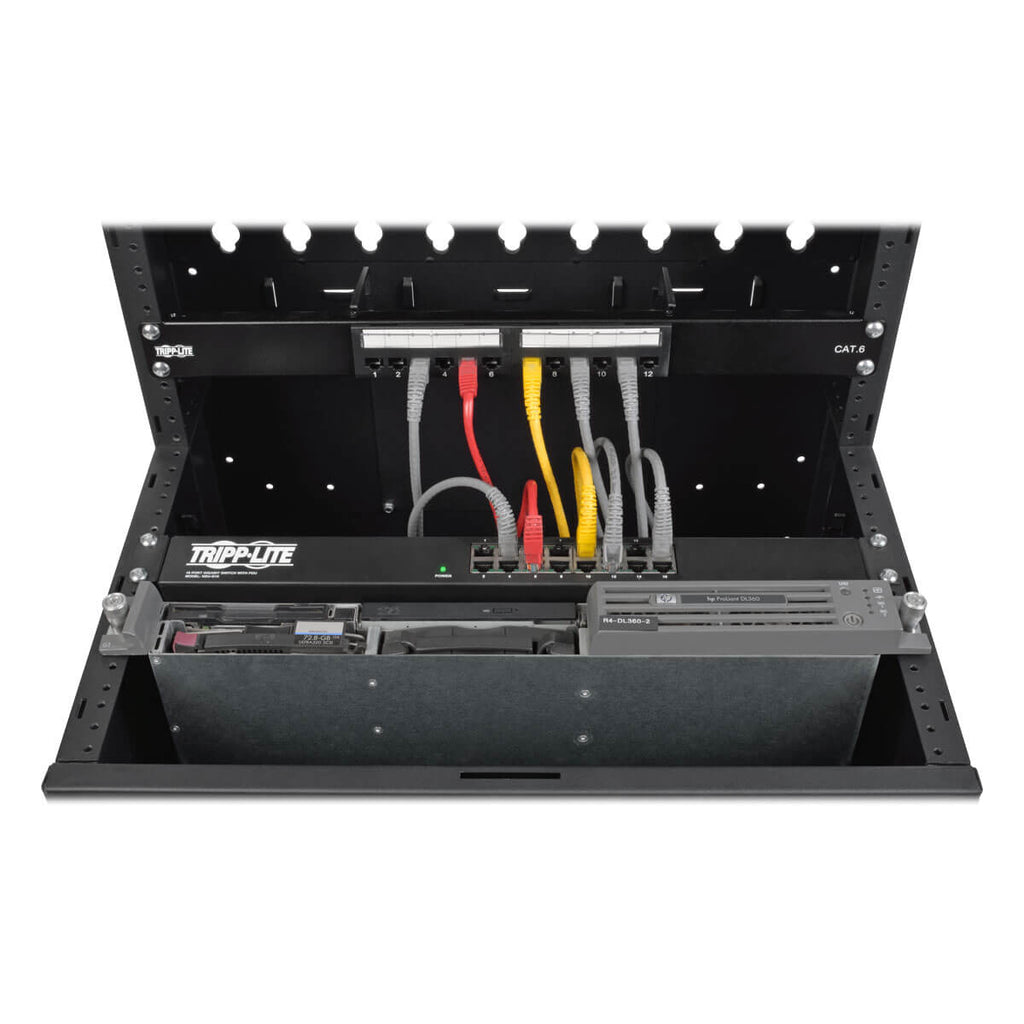

The Tripp Lite SmartRack SRWF16U38 is a 16U low-profile vertical wall-mount rack enclosure designed for secure installation of 19-inch rack equipment in environments with limited floor space. Ideal for network closets, classrooms, retail back offices, and IT rooms, this enclosure supports servers, switches, UPS systems, and patch panels while keeping equipment organized and protected.

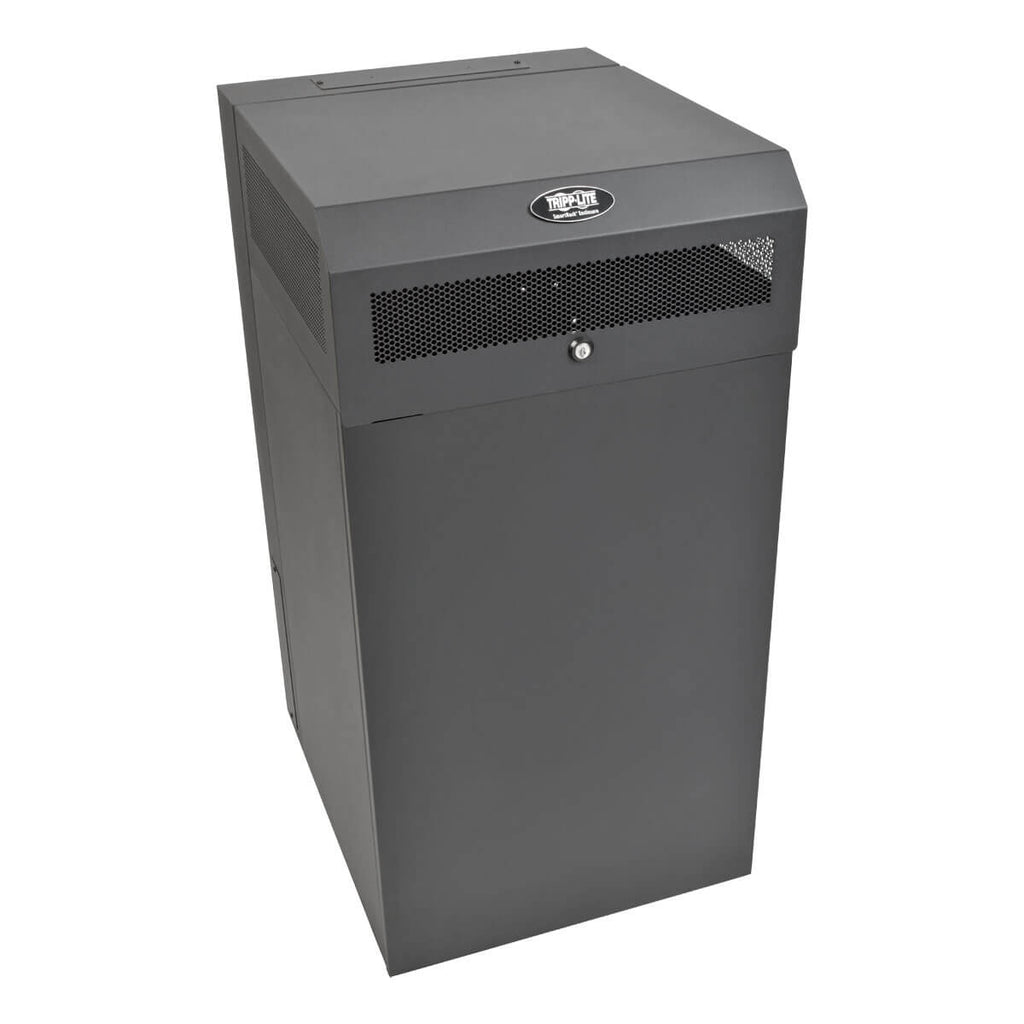

Its vertical, half-height design extends just 24 inches from the wall while accommodating equipment up to 35 inches deep. Constructed from heavy-duty steel with a black powder-coat finish, the enclosure supports up to 400 lbs of stationary equipment. A locking, vented steel cabinet promotes airflow while preventing unauthorized access.

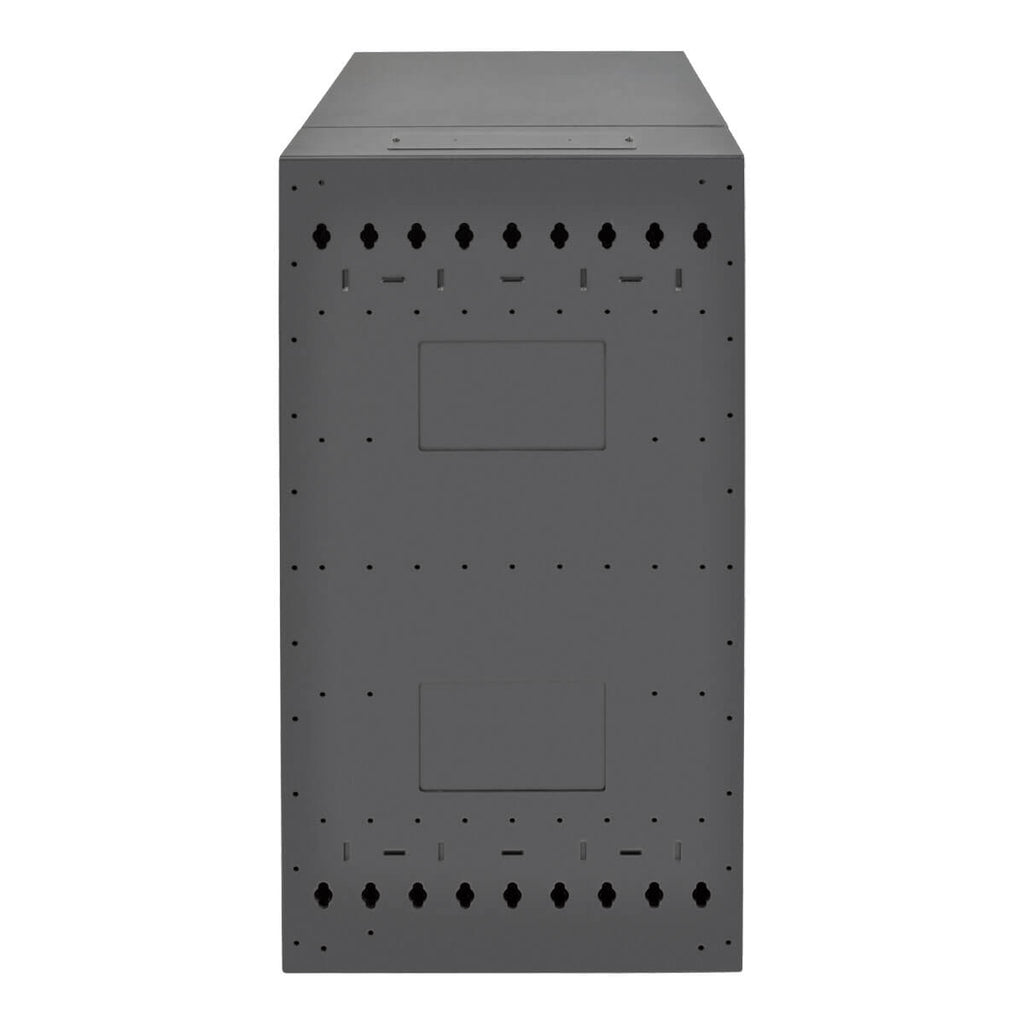

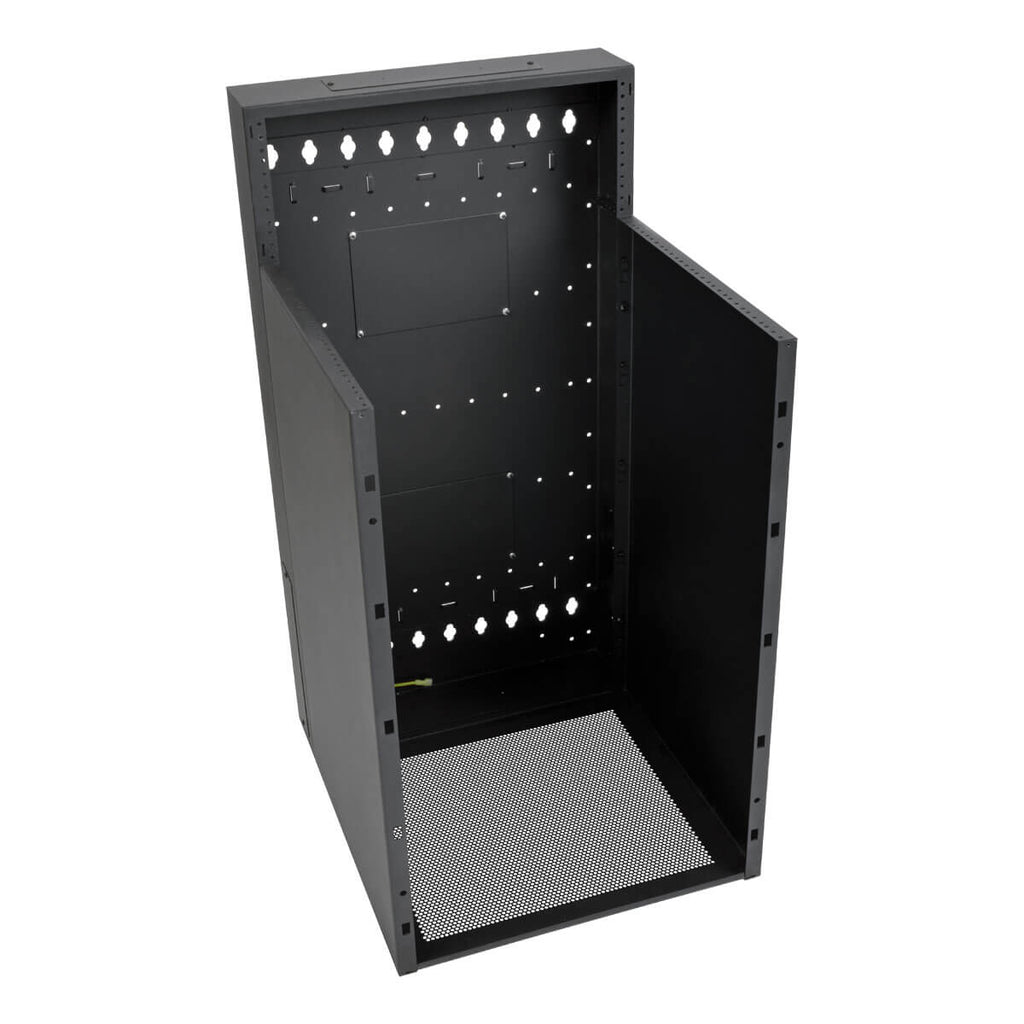

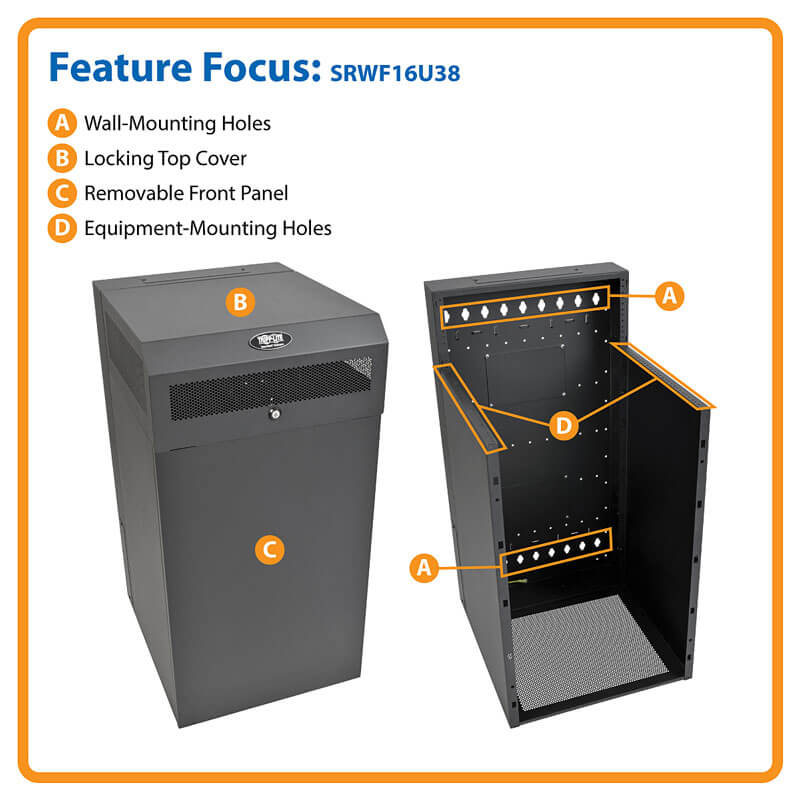

The modular design allows quick disassembly for easier wall installation, with mounting holes spaced to align with standard wall studs. Convenient cable access ports on the top, bottom, and sides simplify routing, making the SRWF16U38 a reliable solution for secure, space-efficient rack mounting.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Series | SmartRack |
| Rack Height | 16U |
| Rack Type | Vertical Wall-Mount, Half-Height Enclosure |
| Rack Width | 19 inches (EIA-Standard) |
| Maximum Device Depth | 35 inches |
| Extension from Wall | 24 inches |
| Weight Capacity | 400 lbs (stationary) |
| Mounting Rails | 2 vertical rails |
| Mounting Hardware | User-supplied |
| Enclosure Material | Heavy-duty steel |
| Finish | Black powder coat |
| Cooling | Vented cabinet |
| Locking | Yes (locking top cover) |
| Cable Access | Top, bottom, and side ports |
| Assembly Required | Yes |
| Compliance | RoHS, EIA/ECA-310-E |
| Typical Applications | Servers, switches, UPS systems, patch panels |
