Description
The Tripp Lite SmartRack SRW18USG is an 18U low-profile, switch-depth wall-mount rack enclosure designed for secure, space-efficient IT installations. Ideal for network closets, classrooms, retail spaces, and offices, this half-height cabinet organizes standard 19-inch rack equipment while keeping it protected and easily accessible.

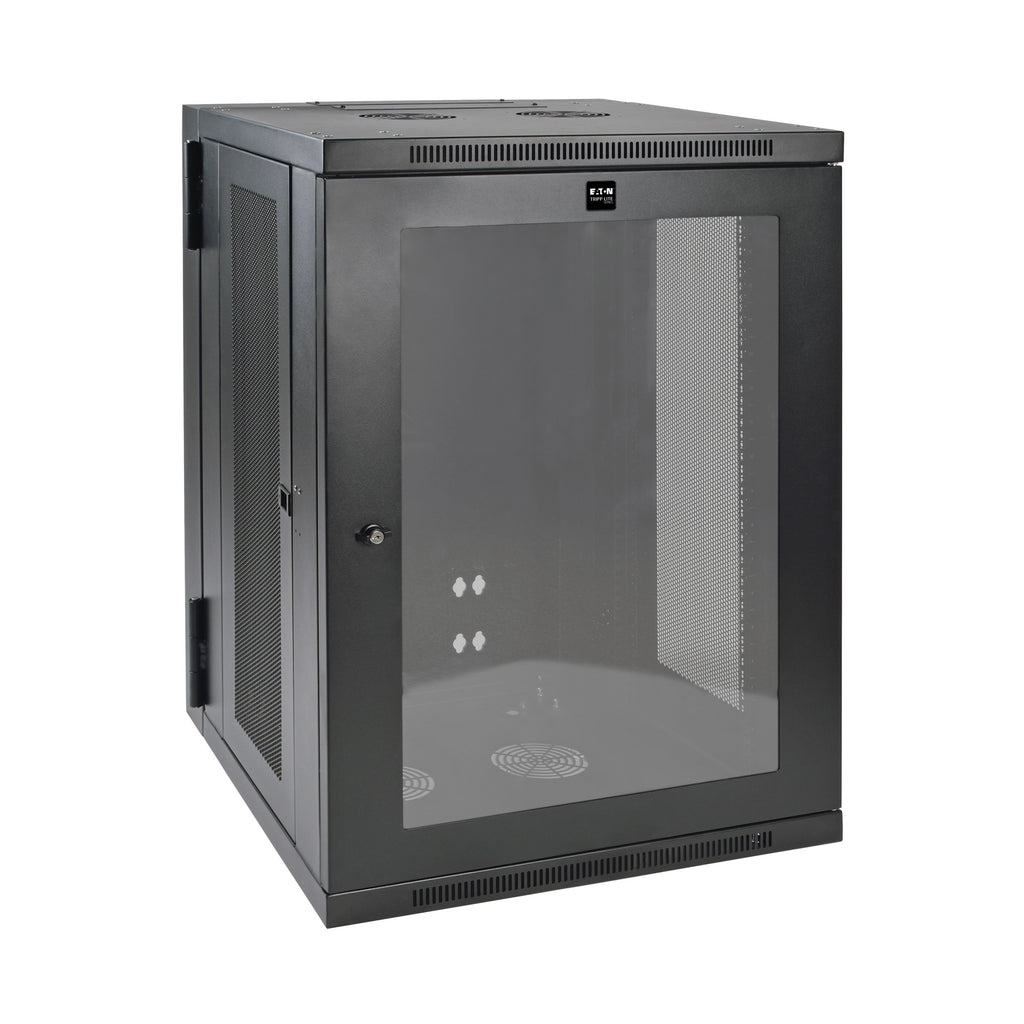

Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW18USG supports up to 250 lb of equipment. A shatter-resistant clear acrylic front window allows visual monitoring of devices without unlocking the cabinet, helping reduce tampering while maintaining a clean, professional appearance.

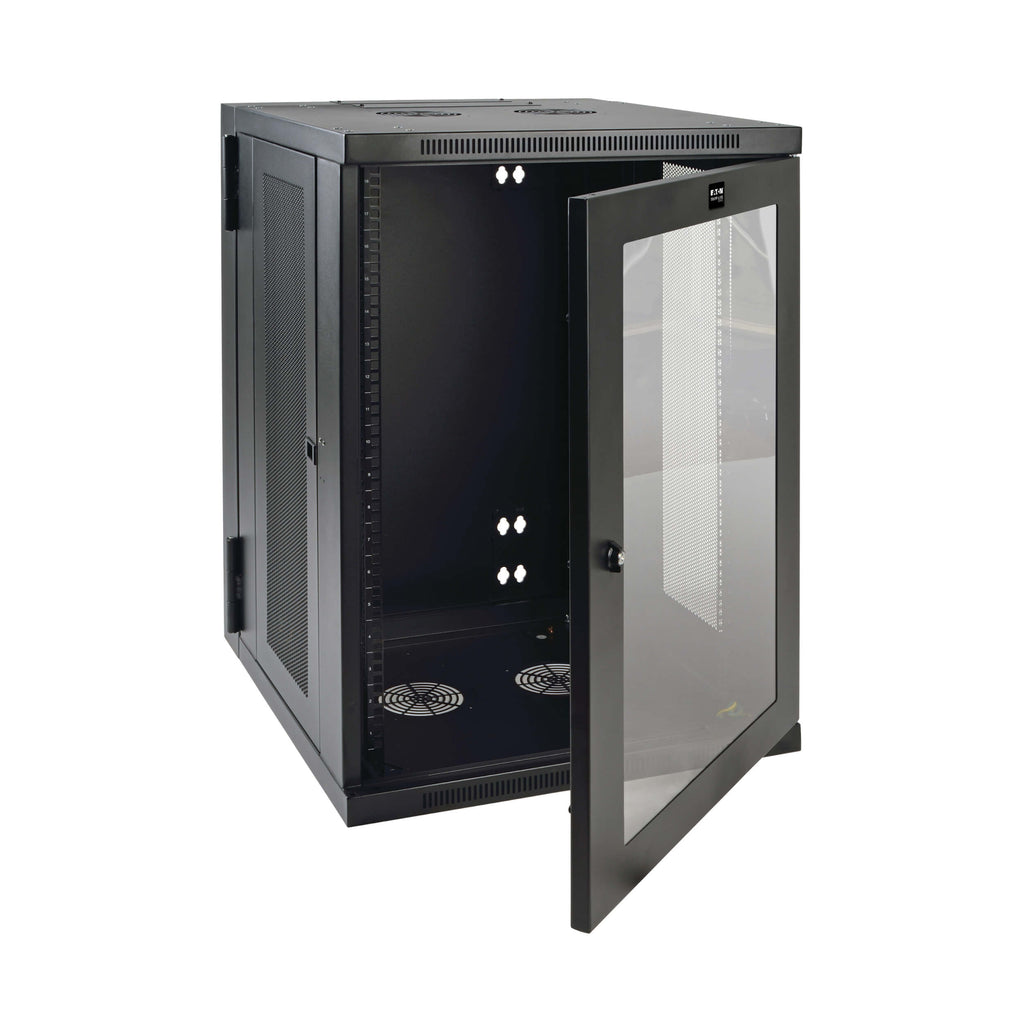

The cabinet features a hinged, swing-away design that provides full rear access for installation and maintenance. Locking front door and side panels enhance security, while vented panels on the top, bottom, and sides promote airflow for proper equipment cooling. Adjustable vertical rails accommodate equipment up to 20.5 inches deep, making this enclosure ideal for switches, patch panels, and network hardware.
| Specification | Details |
|---|---|
| Rack Height | 18U |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Depth | Low-Profile / Switch-Depth |
| Mounting Standard | EIA-Standard 19-inch |
| Maximum Load Capacity | 250 lb (113 kg) |
| Maximum Device Depth | 20.5 in (521 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Door Type | Locking, Clear Acrylic Window |
| Cabinet Access | Hinged Swing-Away Design |
| Ventilation | Vented Top, Bottom, and Side Panels |
| Mounting Rails | 4 Adjustable Vertical Rails |
| Rail Adjustment | 7/8-inch Increments |
| Finish | Black Powder-Coated Steel |
| Security | Locking Door and Side Panels |
| Cable Management | Top and Bottom Cable Access Ports |
| Compliance | EIA/ECA-310-E, RoHS |
| Warranty | 5-Year Limited Warranty |
