Description

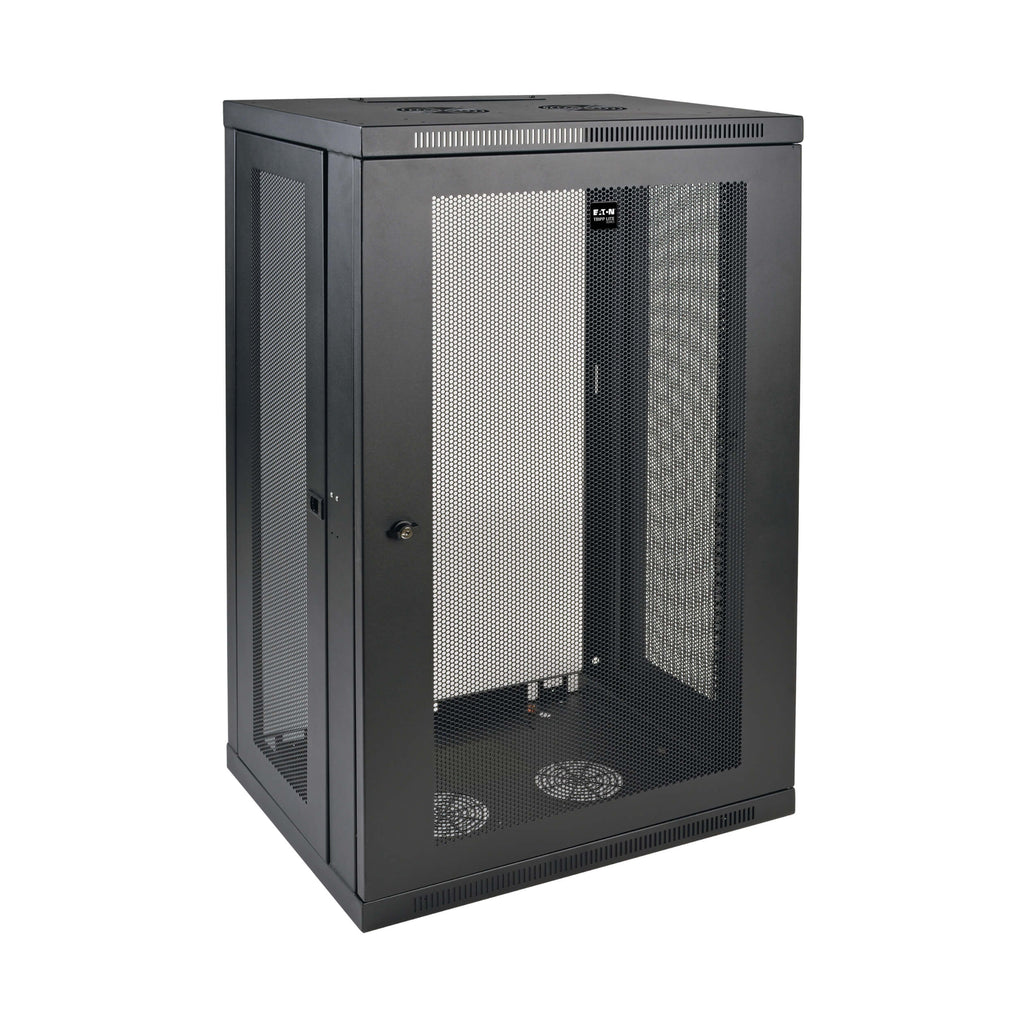

The Tripp Lite SmartRack SRW21U is a 21U low-profile wall-mount rack enclosure designed to securely house 19-inch network equipment in space-constrained environments. Ideal for network closets, classrooms, retail locations, and back offices, this cabinet provides professional-grade organization without consuming valuable floor space.
Constructed from heavy-duty steel with a durable black powder-coated finish, the SRW21U supports equipment loads up to 200 lbs. Locking front door and side panels help protect sensitive IT equipment from tampering or unauthorized access, while vented panels on all sides promote efficient airflow to maintain proper operating temperatures.

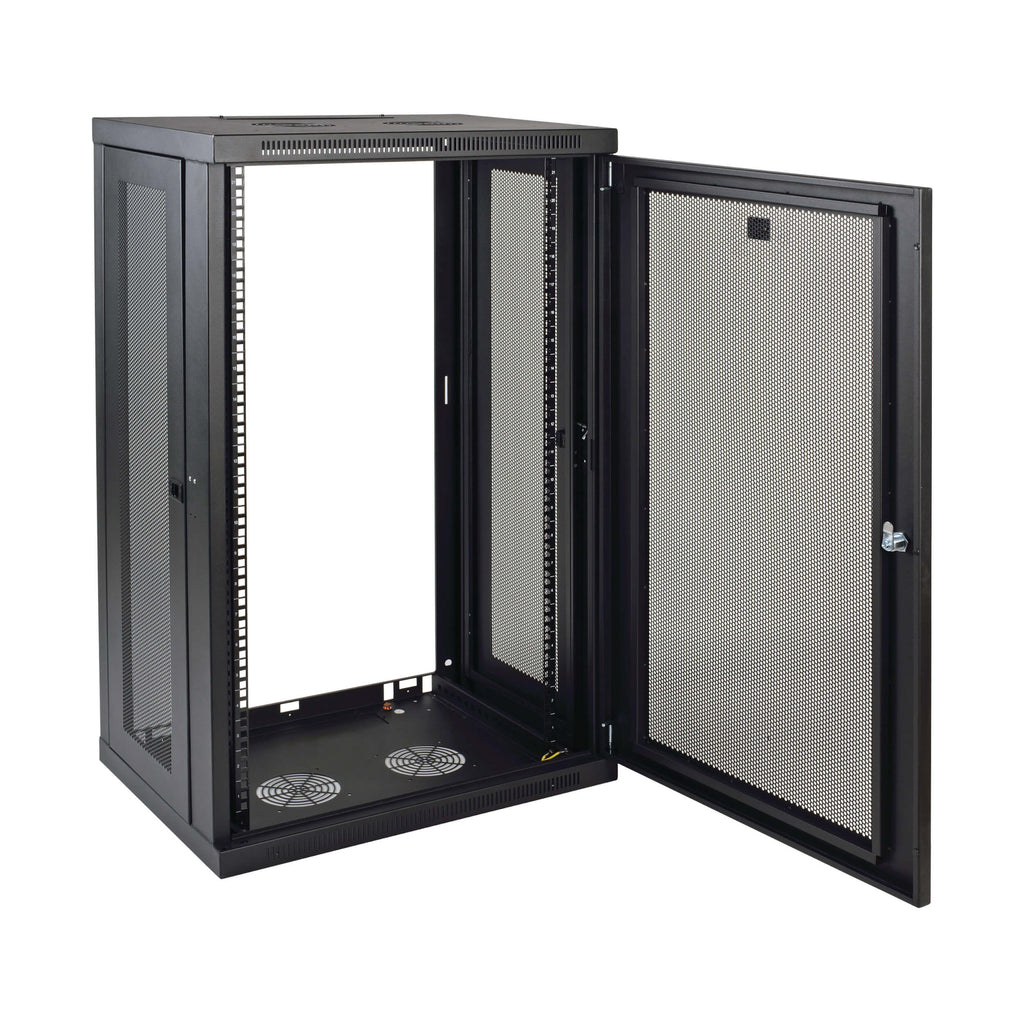

The enclosure accommodates network switches, patch panels, and other shallow-depth equipment up to 16.5 inches deep. Adjustable vertical mounting rails, numbered rack spaces, and multiple cable access ports simplify installation and ongoing maintenance. The reversible front door allows left- or right-hand opening for flexible wall placement, and the unit ships fully assembled for fast deployment.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Series | SmartRack |
| Model | SRW21U |
| Rack Height | 21U |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Width | 19 in (EIA-Standard) |
| Maximum Equipment Depth | 16.5 in (419 mm) |
| Minimum Equipment Depth | 3 in (76 mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Construction | Heavy-Duty Steel |
| Finish | Black Powder Coat |
| Ventilation | Vented front, sides, top, and bottom |
| Door Type | Locking, Reversible |
| Side Panels | Locking, Removable |
| Mounting Rails | Adjustable, Square & 12-24 Threaded |
| Cable Access | Top and Bottom Ports |
| Wall Stud Spacing | 16 in On-Center |
| Unit Dimensions (H x W x D) | 40.87 x 23.63 x 17.72 in |
| Unit Weight | 51 lbs |
| Compliance | EIA-310-E, RoHS |
| Typical Applications | Network switches, patch panels, shallow IT gear |
