Description

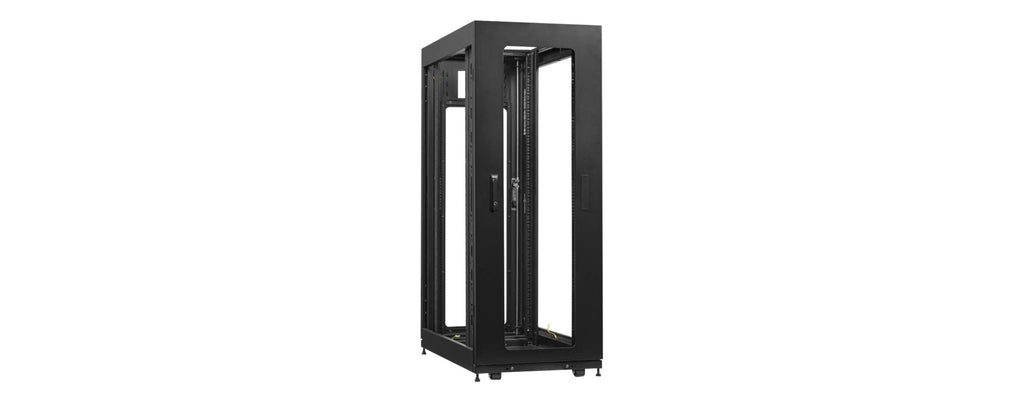

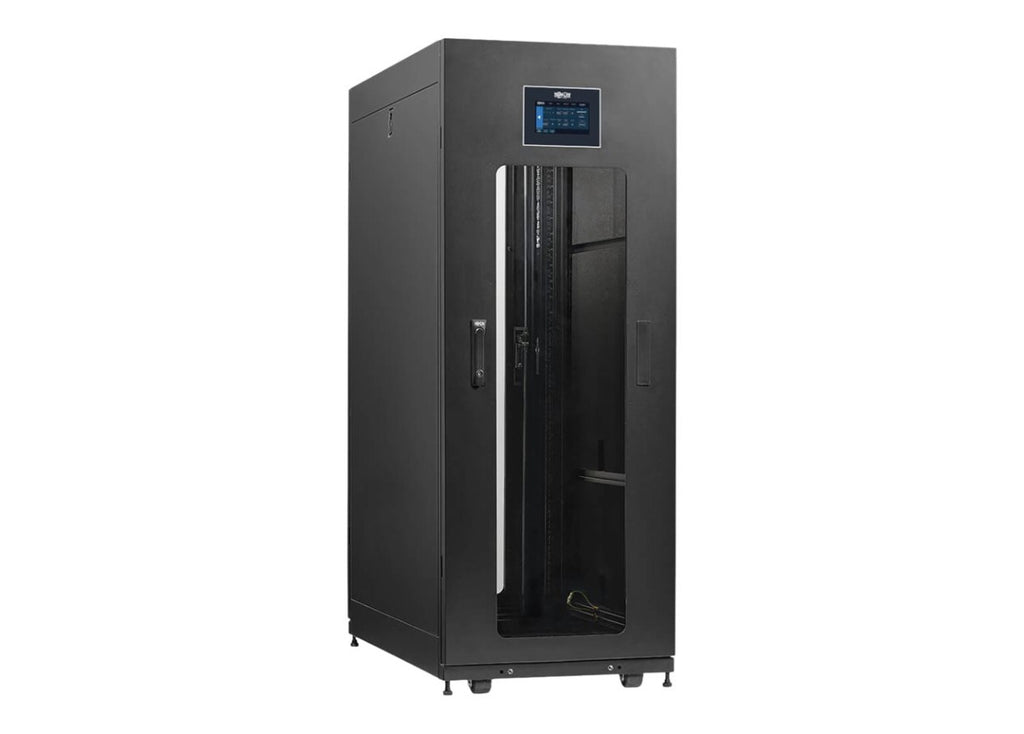

The Eaton Tripp Lite SmartRack SR25UBAC is a 25U standard-depth rack enclosure engineered for housing, organizing, and protecting 19-inch rack-mount IT equipment in micro data centers, edge computing sites, and server rooms. Constructed from durable steel with a black powder-coated finish, it supports up to 3000 lbs (1361 kg) stationary and 2250 lbs (1021 kg) rolling load capacity.

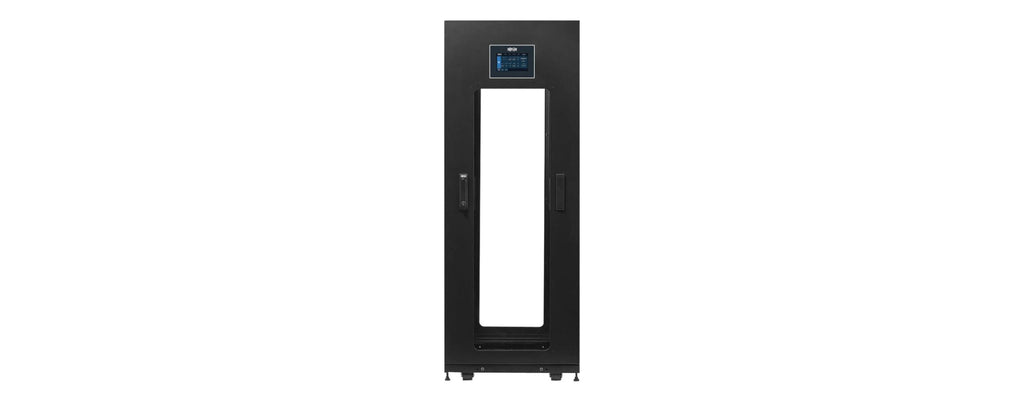

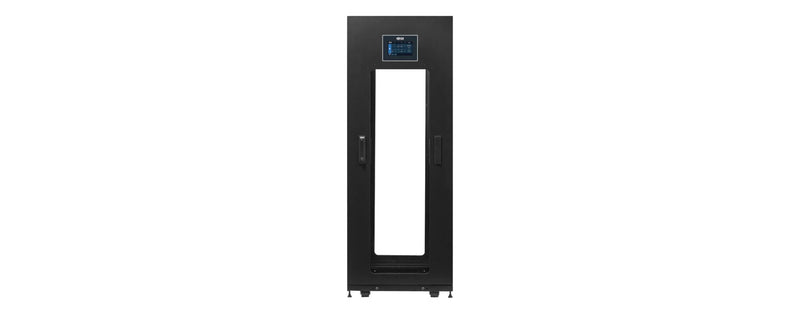

Specially designed for use with the SRCOOL3KTP Top-of-Rack Air Conditioner (sold separately), this rack features an open-top design and integrates a touchscreen display from the cooling unit into the front door for real-time temperature monitoring.

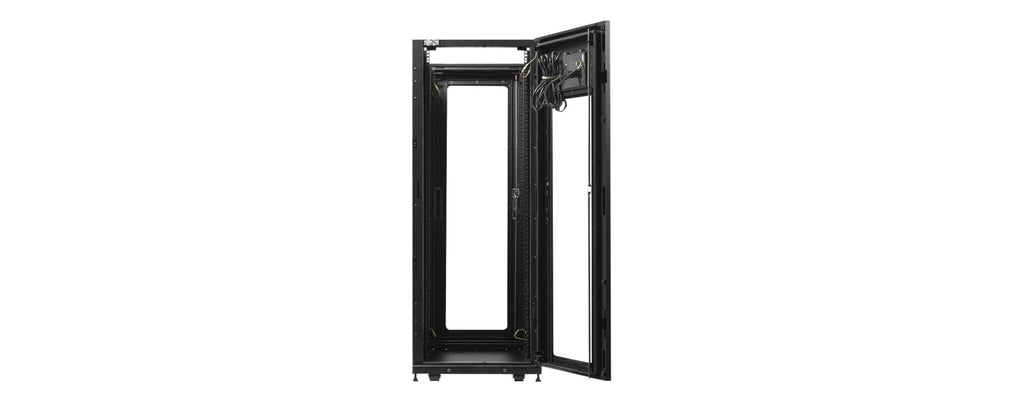

The SR25UBAC includes lockable front/rear doors and side panels, ensuring equipment security and PCI DSS compliance for environments handling sensitive data. Fully assembled upon delivery, it comes equipped with casters and leveling feet, enabling quick installation and stable deployment. The rack supports up to 37 inches (940 mm) maximum device depth and features toolless mounting rails, built-in baying brackets, and cable management for efficient system organization.
| Category | Specification |
|---|---|
| Model Number | SR25UBAC |
| Brand | Eaton Tripp Lite |
| Product Type | 25U Standard-Depth Rack Enclosure |
| Rack Compatibility | 19 in. standard equipment |
| Application | Server rooms, IT closets, micro data centers, edge computing |
| Material | Heavy-duty steel with black powder-coated finish |
| Cooling Compatibility | Designed for SRCOOL3KTP Top-of-Rack Air Conditioner |
| Load Capacity (Stationary) | 3000 lbs (1361 kg) |
| Load Capacity (Rolling) | 2250 lbs (1021 kg) |
| Rack Height | 25U |
| Maximum Device Depth | 37 in. (940 mm) |
| Minimum Device Depth | 4 in. (102 mm) |
| Factory Preset Rack Depth | 27.75 in. (705 mm) |
| Unit Dimensions (H × W × D) | 48.79 × 23.62 × 42.13 in. (123.9 × 60 × 107 cm) |
| Unit Weight | 220.3 lbs (99.9 kg) |
| Shipping Dimensions (H × W × D) | 54.06 × 25.75 × 45.50 in. |
| Shipping Weight | 115 kg |
| Vertical Mounting Rails | 4 |
| Cable Management | Built-in |
| Casters / Levelers | Pre-installed, removable |
| Security Features | Lockable front/rear doors and side panels |
| Compliance | PCI DSS, CE, EAC, EIA/ECA-310-E, REACH, RoHS |
| Certifications | UL 62368-1, IEC 62368-1, CAN/CSA-C22.2 No. 62368-1 |
| Warranty | 2-year limited warranty |
