Description

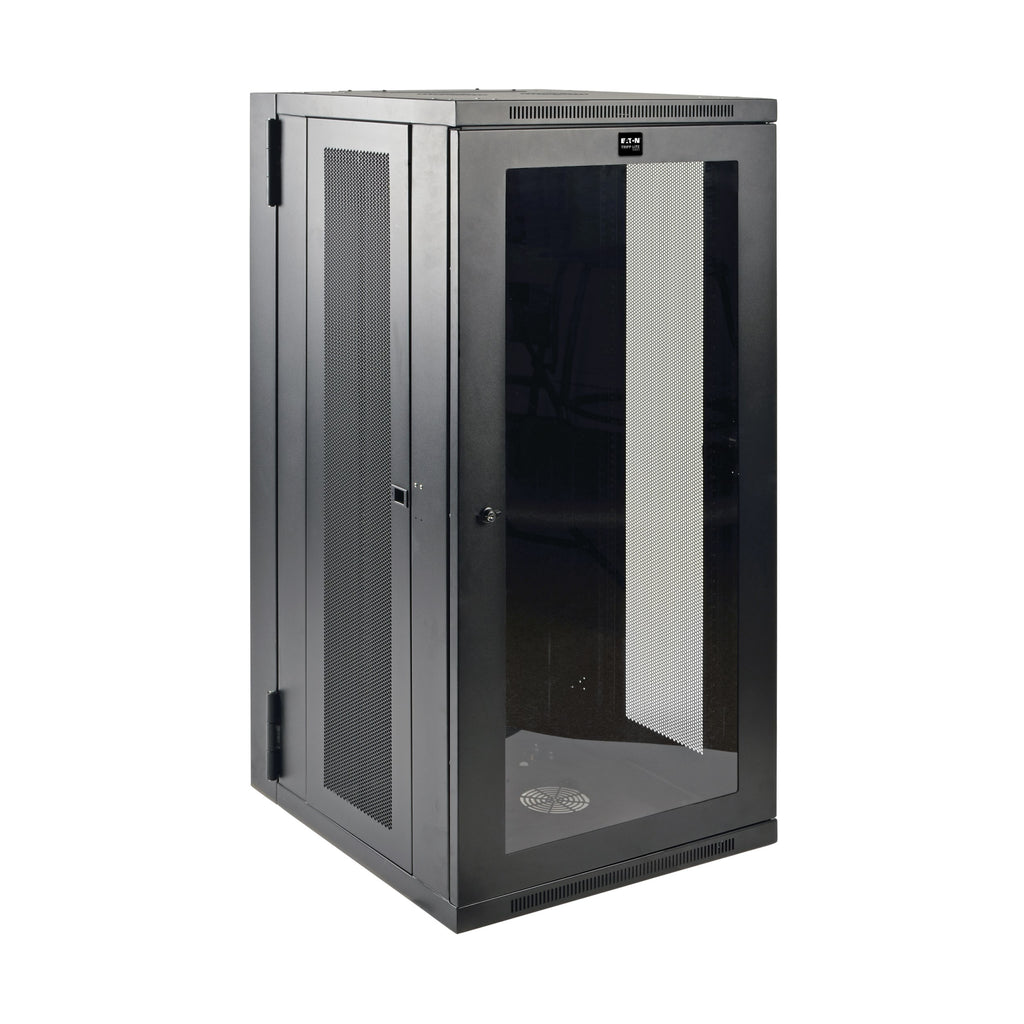

The Eaton Tripp Lite SRW26USG SmartRack 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure offers a secure, space-saving solution for organizing 19-inch rack equipment in areas with limited floor space such as network closets, classrooms, retail sites, and offices. Built from heavy-duty steel with a durable black powder-coated finish, this 26U enclosure supports up to 250 lbs (113 kg) of equipment.

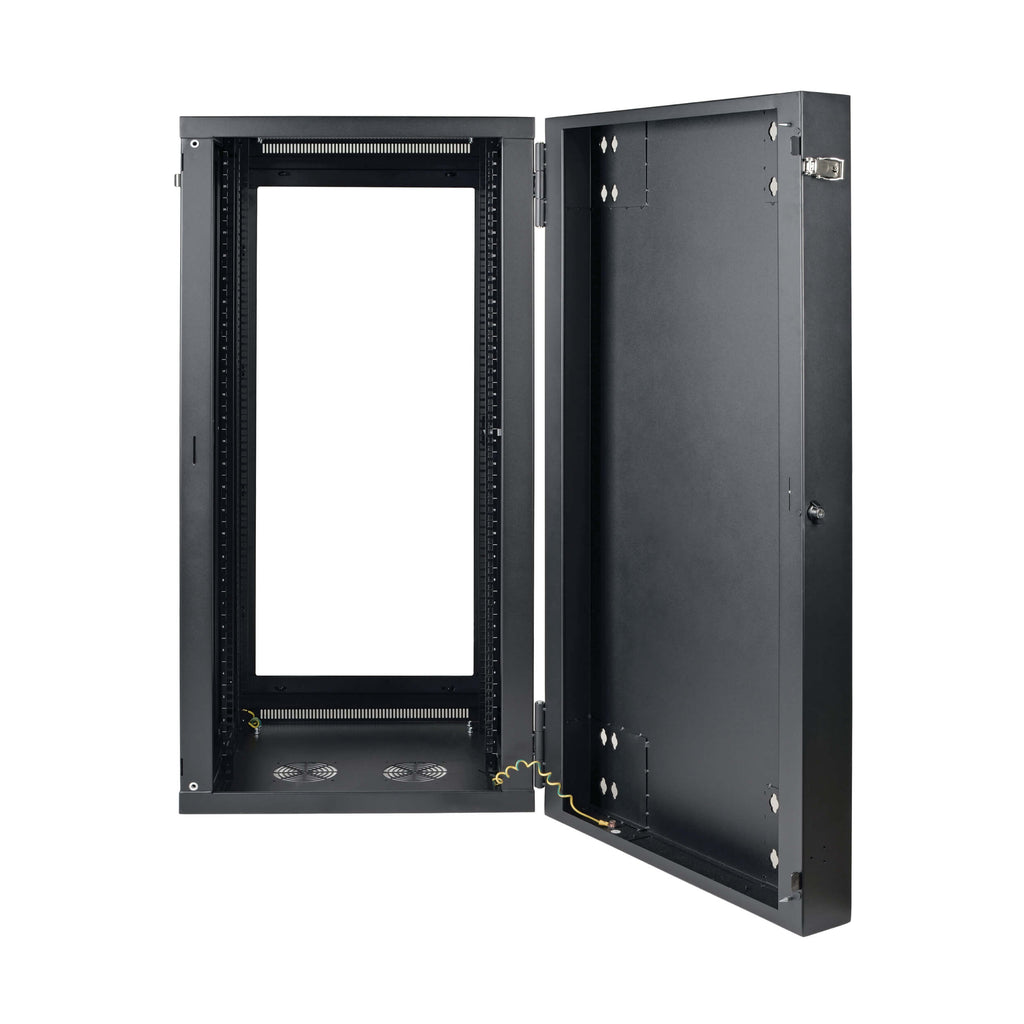

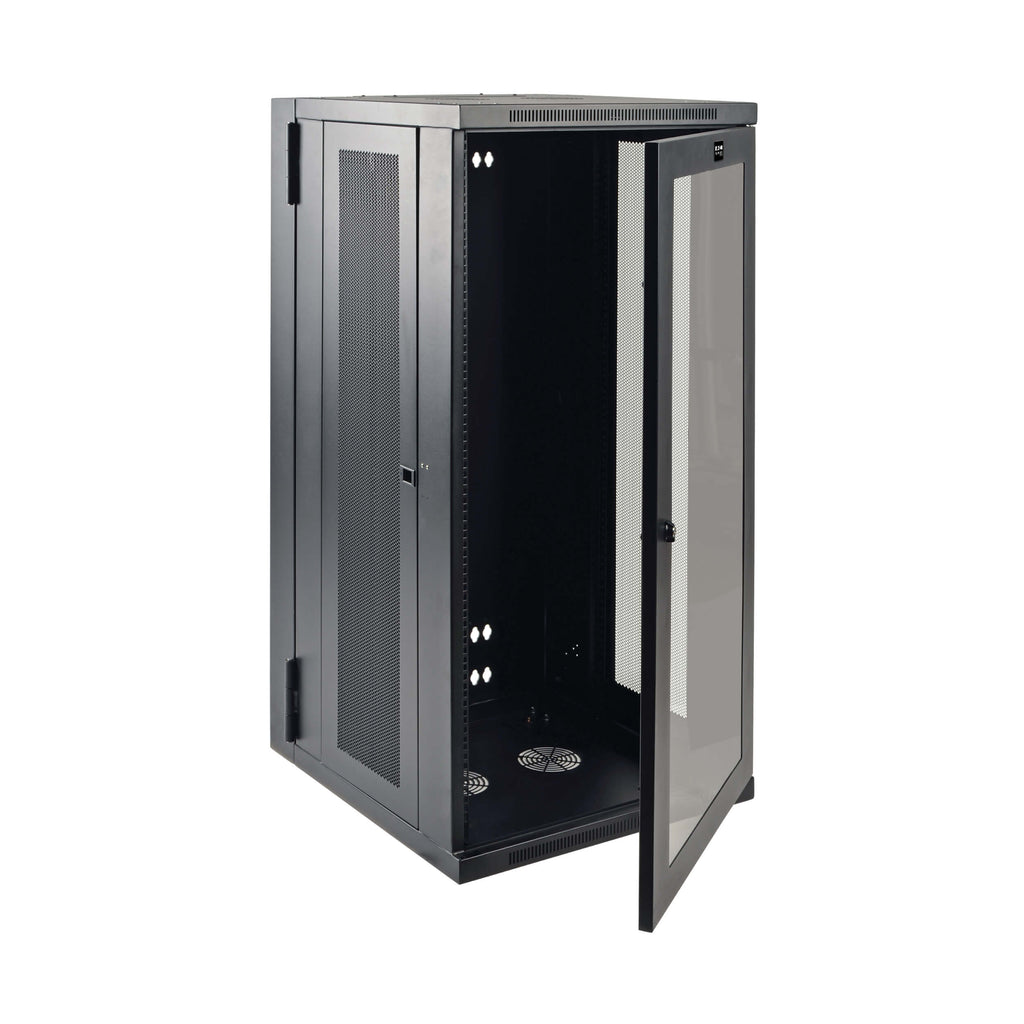

Its shatter-resistant clear acrylic front door provides visibility for monitoring without unlocking, reducing acoustic noise and adding a professional look. The hinged design swings away from the wall for easy rear access to cabling and components. Vented top, bottom, and side panels enhance airflow, while locking panels safeguard critical hardware.
The SRW26USG ships fully assembled, ready for wall installation, or can be made mobile with the optional SRCASTER kit. Adjustable vertical mounting rails support both square-hole and 12-24 threaded-hole equipment up to 20.5 inches deep, and rack spaces are clearly numbered for simplified configuration. This rack enclosure also meets PCI DSS physical security requirements for secure IT environments.
| Category | Details |
|---|---|
| Model Number | SRW26USG |
| Brand | Eaton Tripp Lite |
| Rack Type | Low-Profile Switch-Depth Wall-Mount Half-Height Enclosure |
| Rack Height | 26U |
| Rack Width | 19 in. EIA-standard |
| Maximum Device Depth | 20.5 in (52.07 cm) |
| Minimum Device Depth | 3 in (7.62 cm) |
| Weight Capacity (Stationary) | 250 lbs (113 kg) |
| Construction Material | Heavy-duty steel with black powder-coat finish |
| Front Door | Shatter-resistant clear acrylic window |
| Cabinet Access | Hinged back for swing-out wall access |
| Ventilation | Vented top, bottom, and sides |
| Locking Mechanism | Lockable doors and side panels |
| Cable Access | Top and bottom cable ports with removable covers |
| Mounting Rails | Adjustable in 7/8-inch increments; supports square and 12-24 threaded holes |
| Factory Preset Rack Depth | 11.42 in (29 cm) |
| Dimensions (H × W × D) | 49.7 × 23.6 × 21.6 in (126.24 × 60 × 54.86 cm) |
| Shipping Dimensions (H × W × D) | 55 × 22 × 24 in (139.7 × 55.88 × 60.96 cm) |
| Unit Weight | 125 lbs (56.7 kg) |
| Shipping Weight | 143 lbs (64.9 kg) |
| Device Compatibility | Network Switches, Patch Panels, UPS Systems |
| Grounding | Front and back door frames |
| Certifications | IEC 60297-3, CAN/CSA-C22.2 No. 60950-1, UL 60950-1 |
| Compliance | RoHS, EIA/ECA-310-E, PCI DSS |
| Warranty | 5-Year Limited Warranty |
