Description

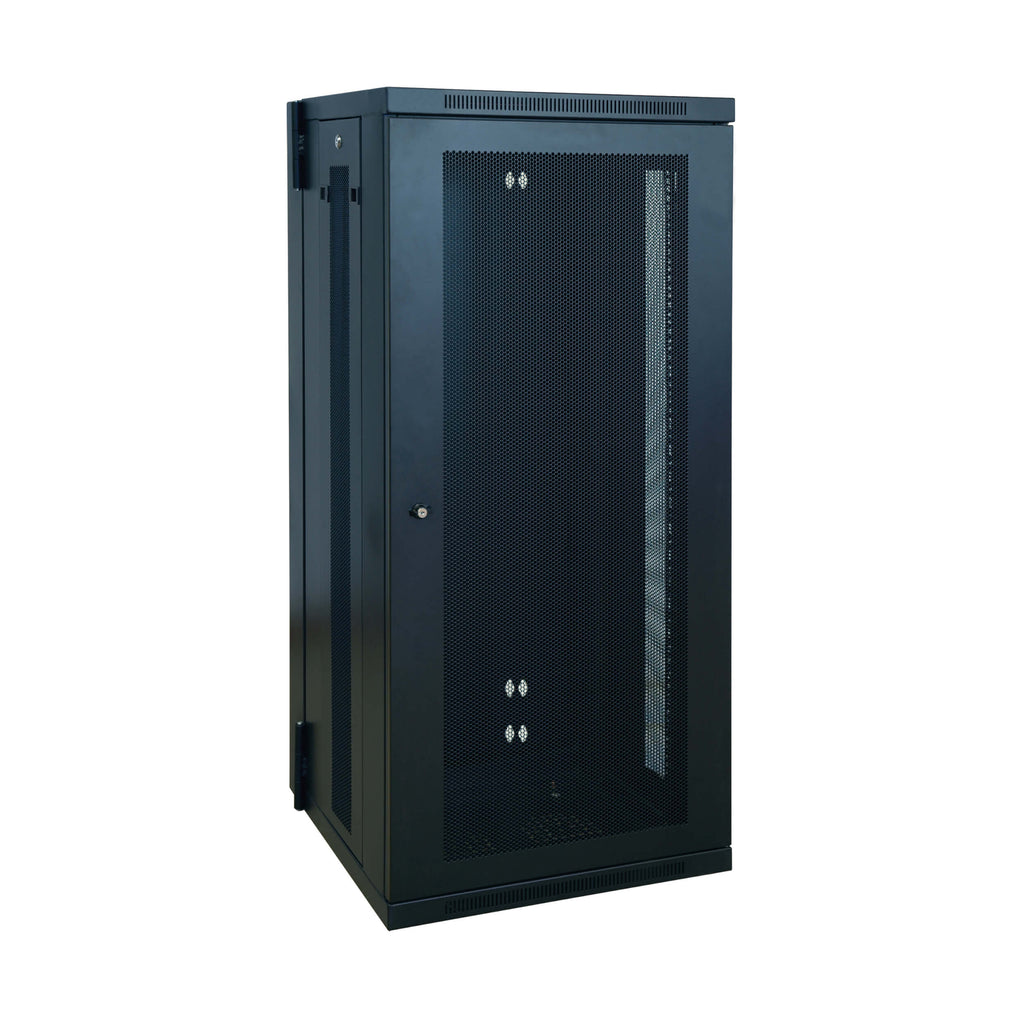

The Eaton Tripp Lite SRW26US SmartRack 26U Low-Profile Wall-Mount Rack Enclosure is a secure, space-saving solution designed for network closets, classrooms, retail environments, and offices with limited floor space. This hinged, wall-mount cabinet provides 26U of 19-inch rack space, accommodating switches, patch panels, and UPS systems up to 20.5 inches deep.

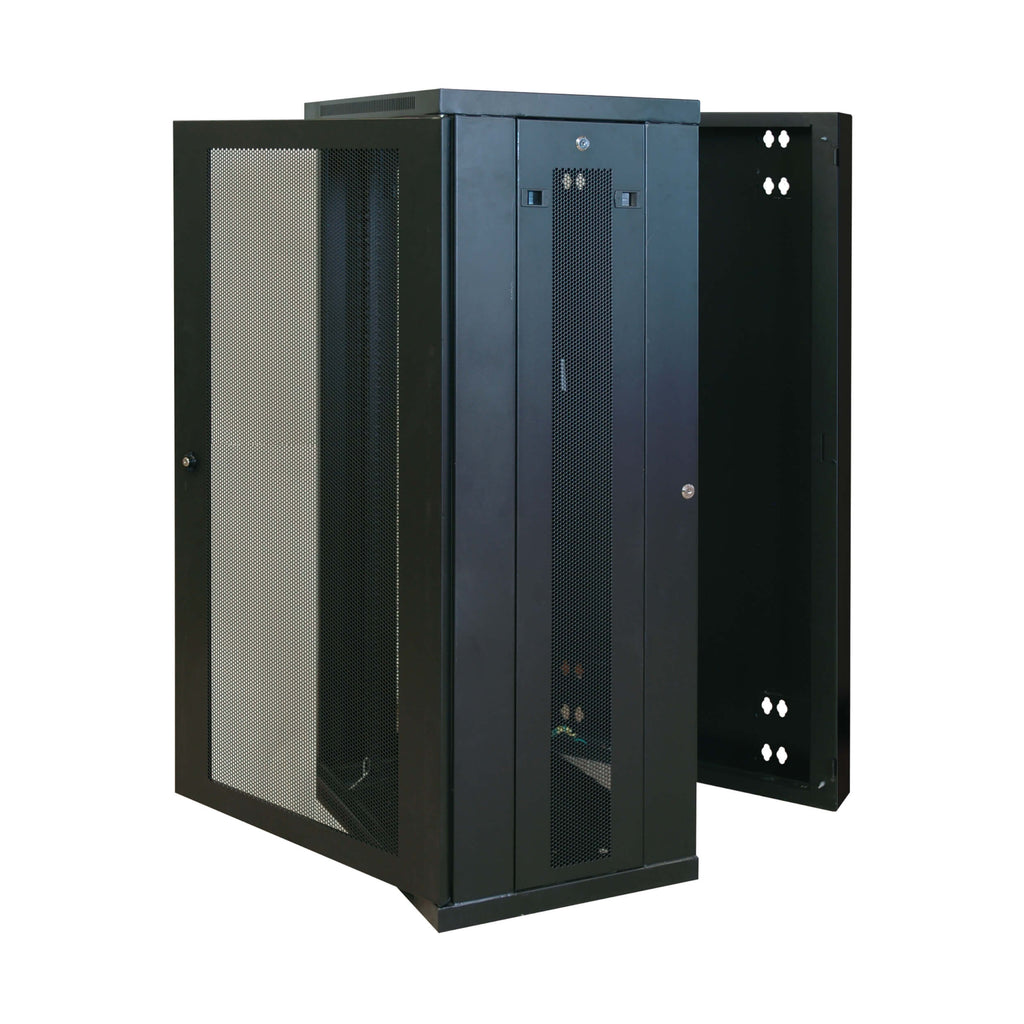

Constructed from heavy-duty steel with a black powder-coated finish, the SRW26US supports up to 250 lbs (113.4 kg) of equipment. The cabinet swings away from the wall on a sturdy hinge for quick rear access to devices and cabling, while lockable doors and side panels safeguard equipment from tampering or theft. Vented panels on all sides allow natural airflow to maintain optimal cooling.
Ready for installation, the SRW26US ships fully assembled and can also be made mobile with the optional SRCASTER kit. Adjustable mounting rails, numbered rack spaces, and PCI DSS compliance make this rack an efficient, secure, and professional enclosure for your IT infrastructure.
| Category | Details |
|---|---|
| Model Number | SRW26US |
| Brand | Eaton Tripp Lite |
| Rack Type | 26U Low-Profile Wall-Mount Enclosure |
| Rack Compatibility | EIA-Standard 19-inch Equipment |
| Rack Depth | Shallow |
| Maximum Device Depth | 20.5 in (52.07 cm) |
| Minimum Device Depth | 3 in (7.62 cm) |
| Load Capacity (Stationary) | 250 lbs (113.4 kg) |
| Material | Heavy-Duty Steel |
| Finish Color | Black Powder Coat |
| Mounting Options | Wall-Mount (16 in stud spacing) / Optional SRCASTER Floor Mobility |
| Ventilation | Vented Front, Side, Top, and Bottom Panels |
| Access Type | Hinged Back – Swings Away for Rear Access |
| Door Orientation | Reversible (Left or Right Opening) |
| Security | Lockable Doors and Side Panels |
| Cable Management | Top and Bottom Cable Ports with Removable Covers |
| Vertical Mounting Rails | 4 Rails, Adjustable in 7/8-inch Increments |
| Rack Space Numbering | Yes |
| Grounding Details | Front and Back Door Frames |
| Unit Dimensions (H x W x D) | 49.7 x 23.6 x 21.6 in (126.2 x 60 x 54.9 cm) |
| Unit Weight | 125 lbs (56.7 kg) |
| Shipping Dimensions (H x W x D) | 22 x 24 x 55 in (55.9 x 61 x 139.7 cm) |
| Shipping Weight | 142 lbs (64.4 kg) |
| Compliance Standards | RoHS, EIA/ECA-310-E, UKCA |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | (48) M6 Screws, (48) M6 Cage Nuts, (48) M6 Washers, (48) 12-24 Screws, (2) Keys, Owner’s Manual |
