Description

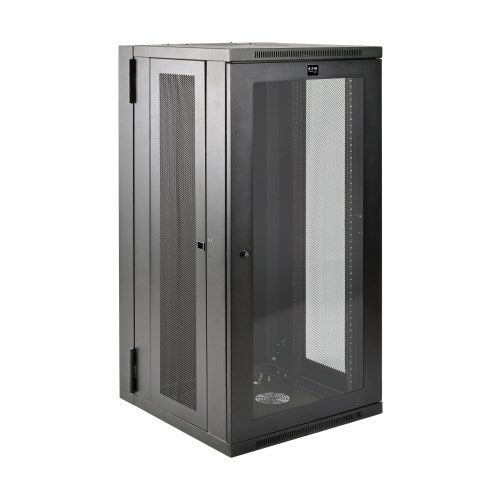

The Eaton Tripp Lite SRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure is a premium half-height cabinet designed to secure and organize up to 26U of 19-inch rack equipment in areas with limited floor space. Built from heavy-duty steel with a durable black powder-coated finish, it supports a maximum load capacity of 250 lbs (113.4 kg).

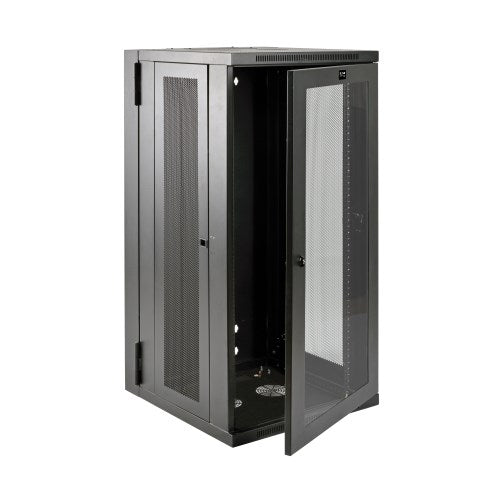

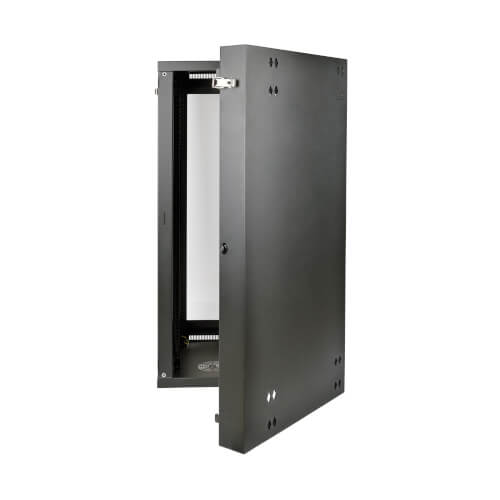

Its shatter-resistant clear acrylic front window lets users monitor equipment without unlocking the door, reducing noise and deterring tampering. The hinged design allows the cabinet to swing away from the wall, providing convenient rear access to cabling and components for installation and maintenance.
Vented top, bottom, and side panels enhance airflow to keep equipment cool, while the locking side panels and doors ensure maximum physical security. Adjustable vertical mounting rails support both square-hole and threaded-hole mounting and accommodate devices up to 24.5 inches deep, including UPS systems, network switches, and patch panels.
Fully assembled for rapid deployment, the SRW26USDPG can be wall-mounted or converted into a mobile rack with the optional SRCASTER kit. It meets EIA/ECA-310-E, RoHS, and PCI DSS physical security standards, making it ideal for network closets, retail, classrooms, or office environments that demand reliability, accessibility, and space efficiency.
| Category | Specification |
|---|---|
| Brand / Series | Eaton Tripp Lite SmartRack |
| Model Number | SRW26USDPG |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Height | 26U |
| Rack Depth | Shallow |
| Maximum Device Depth | 24.5 in (62.23 cm) |
| Minimum Device Depth | 3 in (7.62 cm) |
| Material / Finish | Heavy-Duty Steel, Black Powder Coat |
| Front Door | Shatter-Resistant Clear Acrylic Window |
| Access | Hinged Cabinet (Swings Away from Wall) |
| Ventilation | Vented Top, Bottom, and Sides |
| Locking Mechanism | Lockable Doors and Side Panels |
| Mounting Rails | Adjustable in 7/8 in increments, Numbered, 4 Rails |
| Mounting Hole Types | Square-Hole and 12-24 Threaded-Hole |
| Cable Access Ports | Top & Bottom, 9.812 × 2.35 in (L × W) |
| Load Capacity | 250 lbs (113.4 kg) |
| Unit Dimensions (H × W × D) | 49.63 × 23.62 × 25.51 in (126.06 × 59.99 × 64.8 cm) |
| Unit Weight | 123.7 lbs (56.11 kg) |
| Shipping Dimensions (H × W × D) | 55.12 × 27.95 × 29.92 in (140 × 70.99 × 76 cm) |
| Shipping Weight | 158 lbs (71.67 kg) |
| Color | Black |
| Certifications | IEC 60297-3, EIA/ECA-310-E, RoHS, UKCA |
| Compliance | PCI DSS Physical Security Compliant |
| Warranty | 5-Year Limited Warranty |
| Optional Accessories | SRCASTER Rolling Caster Kit (Sold Separately) |
