Description

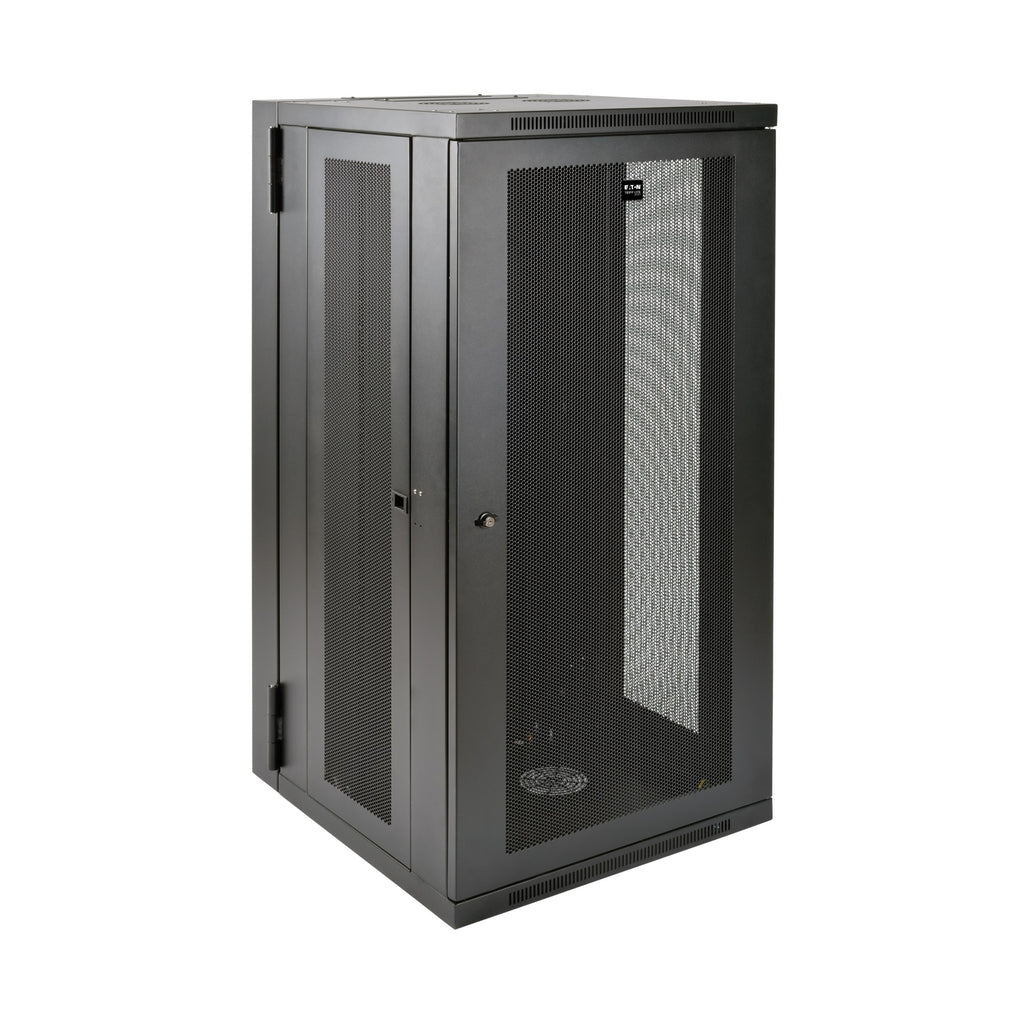

The Eaton Tripp Lite SRW26USDP SmartRack® 26U UPS-Depth Wall-Mount Rack Enclosure is engineered for secure, space-efficient installation of network, AV, and IT equipment in environments with limited floor space. Constructed from heavy-duty steel with a black powder-coated finish, this hinged cabinet supports up to 250 lbs (113.4 kg) of EIA-standard 19-inch rack equipment up to 24.5 inches deep.

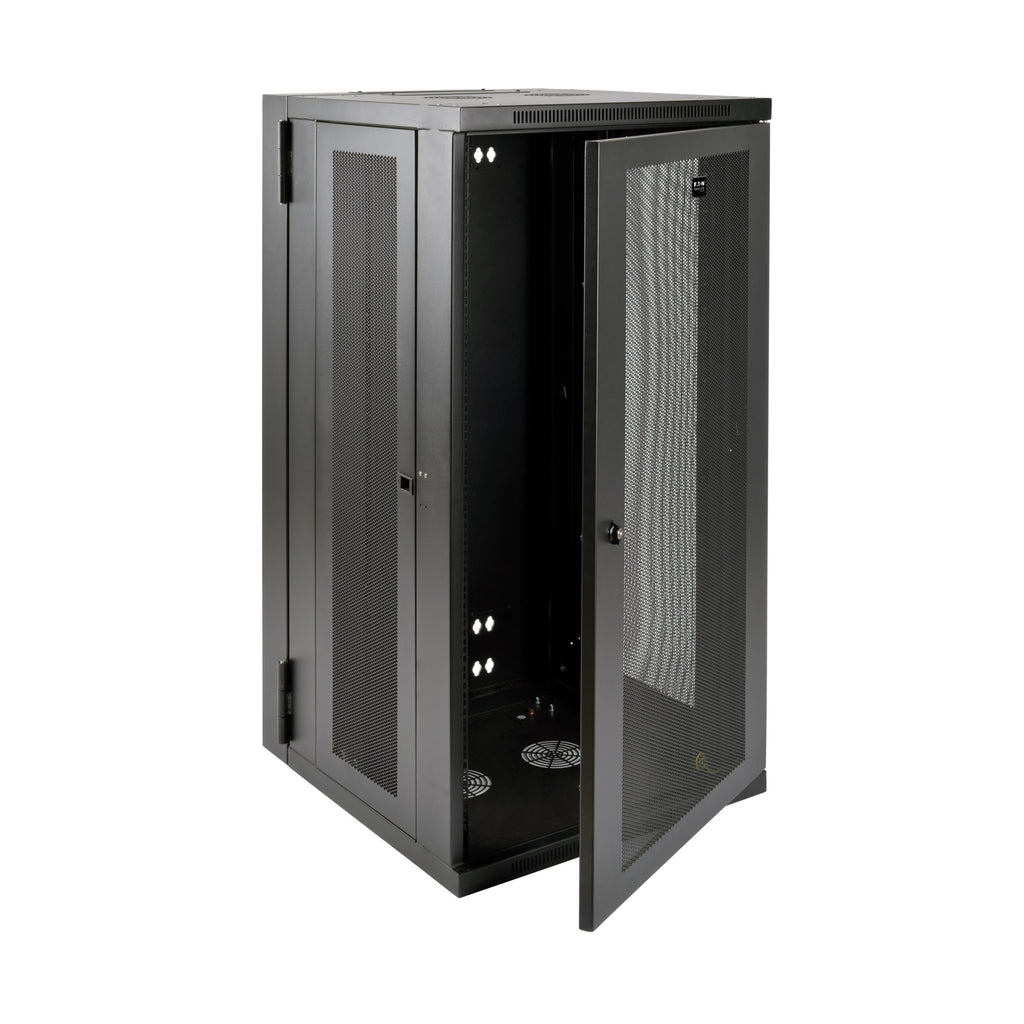

The enclosure features reversible, locking steel doors and vented panels on all sides for optimal airflow and equipment protection. Its hinged back design provides effortless rear access during installation and maintenance, while top and bottom cable ports streamline cable management. Fully assembled and PCI DSS–compliant, the SRW26USDP can be wall-mounted or made mobile using the optional SRCASTER kit, ensuring maximum flexibility in network closets, classrooms, retail, or office environments.
| Category | Specification |
|---|---|
| Model Number | SRW26USDP |
| Brand | Eaton Tripp Lite |
| Rack Type | Wall-Mount, Half-Height Enclosure |
| Rack Height | 26U |
| Rack Width | EIA 19-inch standard |
| Maximum Device Depth | 24.5 in (622 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Load Capacity (Stationary) | 250 lbs (113.4 kg) |
| Material | Heavy-duty steel |
| Finish | Black powder coat |
| Ventilation | Vented front, top, bottom, and side panels |

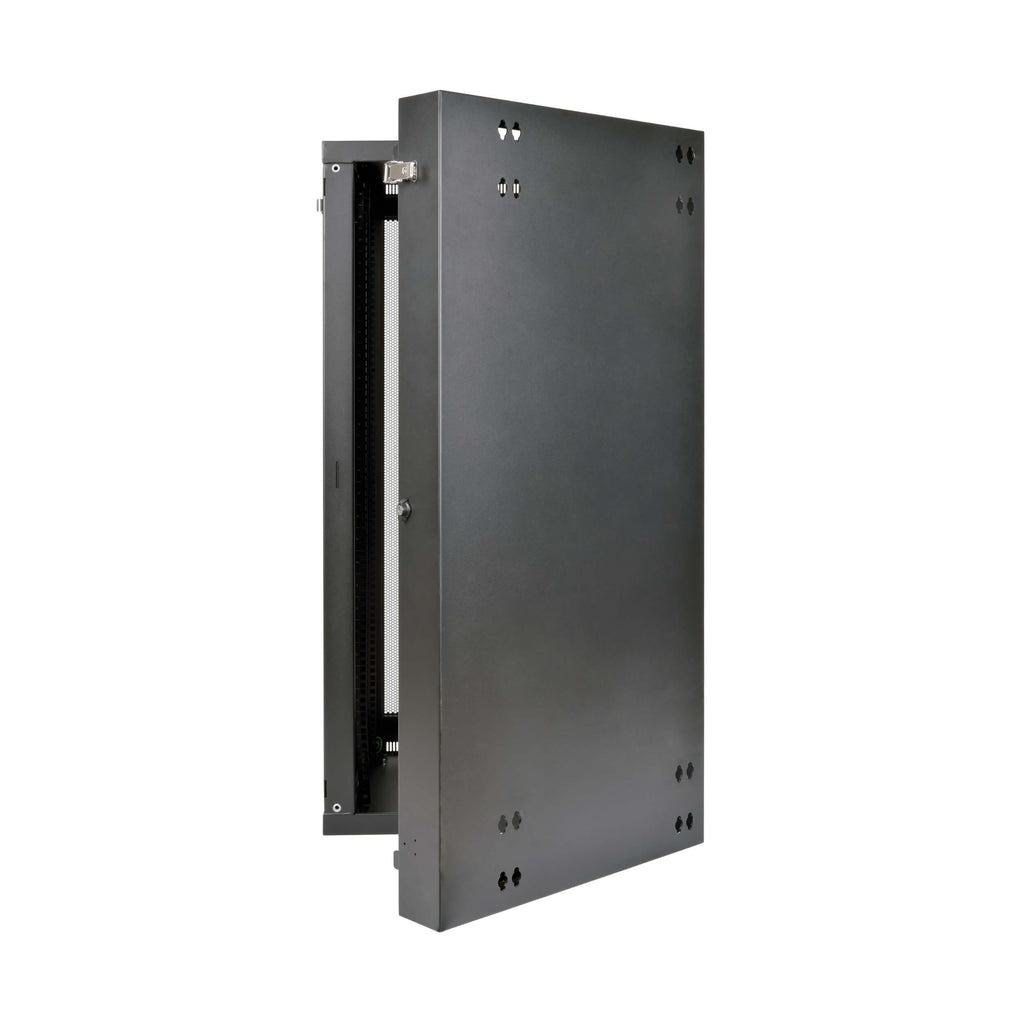

| Access | Hinged back for rear access; reversible door (left/right) |
| Cable Management | Top and bottom cable ports (9.812 x 2.35 in) |
| Mounting Options | Wall-mount; optional SRCASTER caster kit for mobility |
| Rails | Adjustable vertical mounting rails (square or 12-24 threaded holes) |
| Rack Space Marking | Numbered rack units |
| Dimensions (H x W x D) | 49.63 x 23.62 x 25.51 in (126.06 x 59.99 x 64.8 cm) |
| Weight | 124.9 lbs (56.65 kg) |
| Shipping Dimensions (H x W x D) | 55 x 28 x 30 in (139.7 x 71.12 x 76.2 cm) |
| Shipping Weight | 160 lbs (72.57 kg) |
| Device Compatibility | Patch Panels, Network Switches, UPS Systems |
| Grounding Details | Front and back door frames |
| Compliance | RoHS, EIA/ECA-310-E, UKCA, PCI DSS physical security standards |
| Warranty | 5-year limited warranty |
| Manufacturer | Eaton (Tripp Lite by Eaton) |
