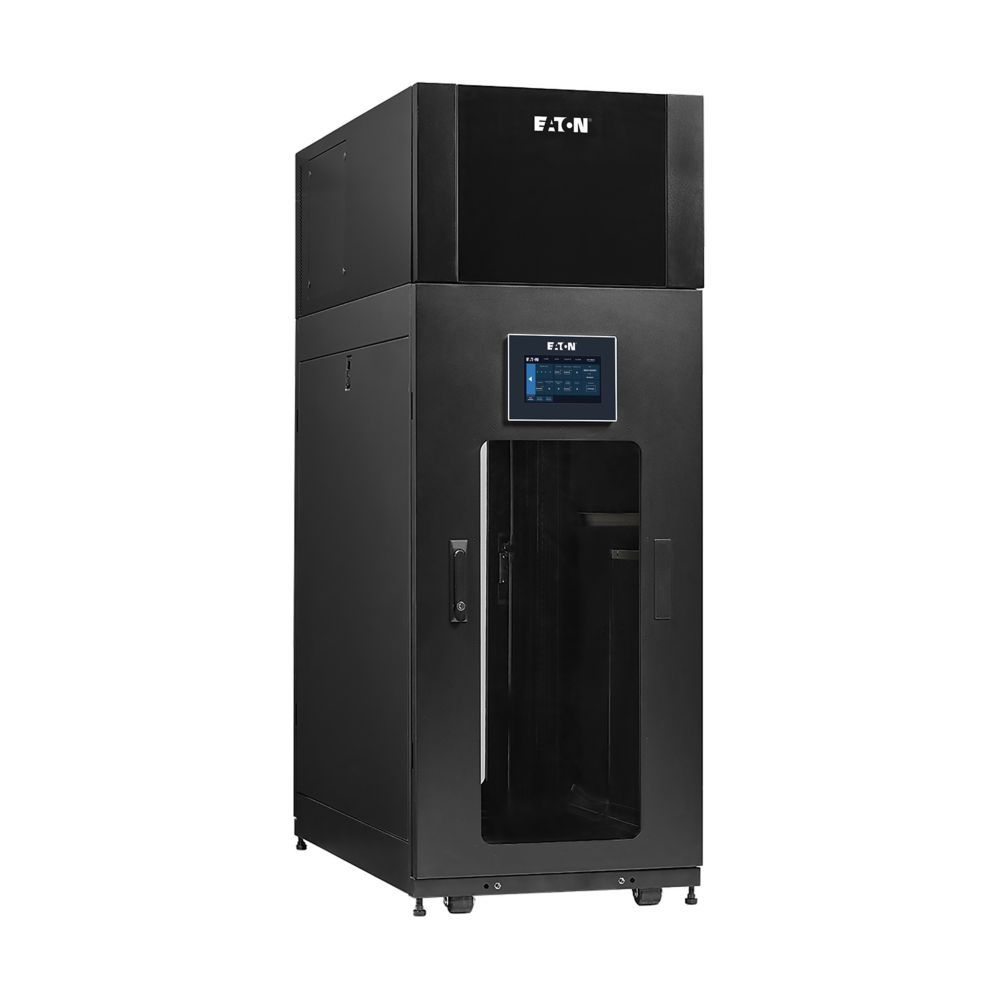

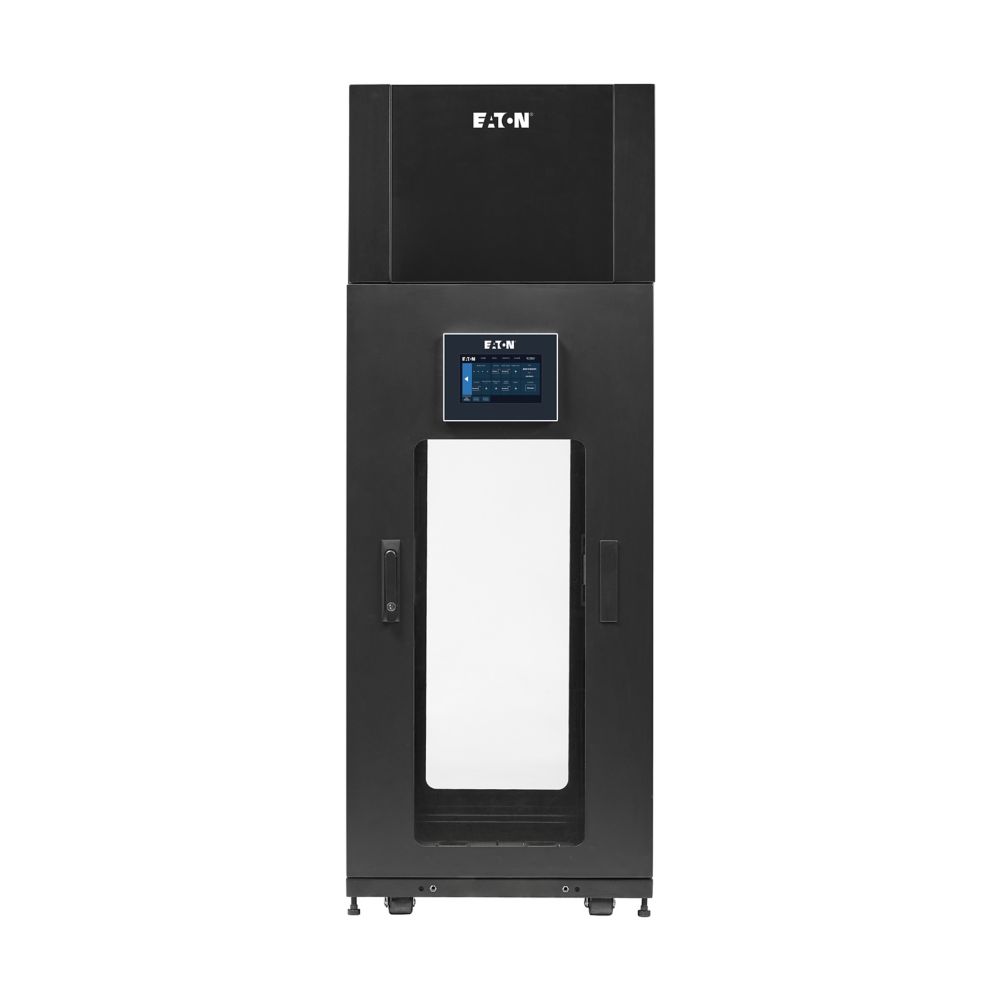

The Eaton SmartRack 33U Self-Cooling Rack Enclosure with integrated 3.5kW top-of-rack air conditioning delivers a complete, space-efficient solution for protecting mission-critical IT equipment in environments where traditional cooling is limited or unavailable. Designed for edge deployments, network closets, and small data centers, this self-contained enclosure combines robust rack infrastructure with precision cooling to maintain optimal operating temperatures and uptime.

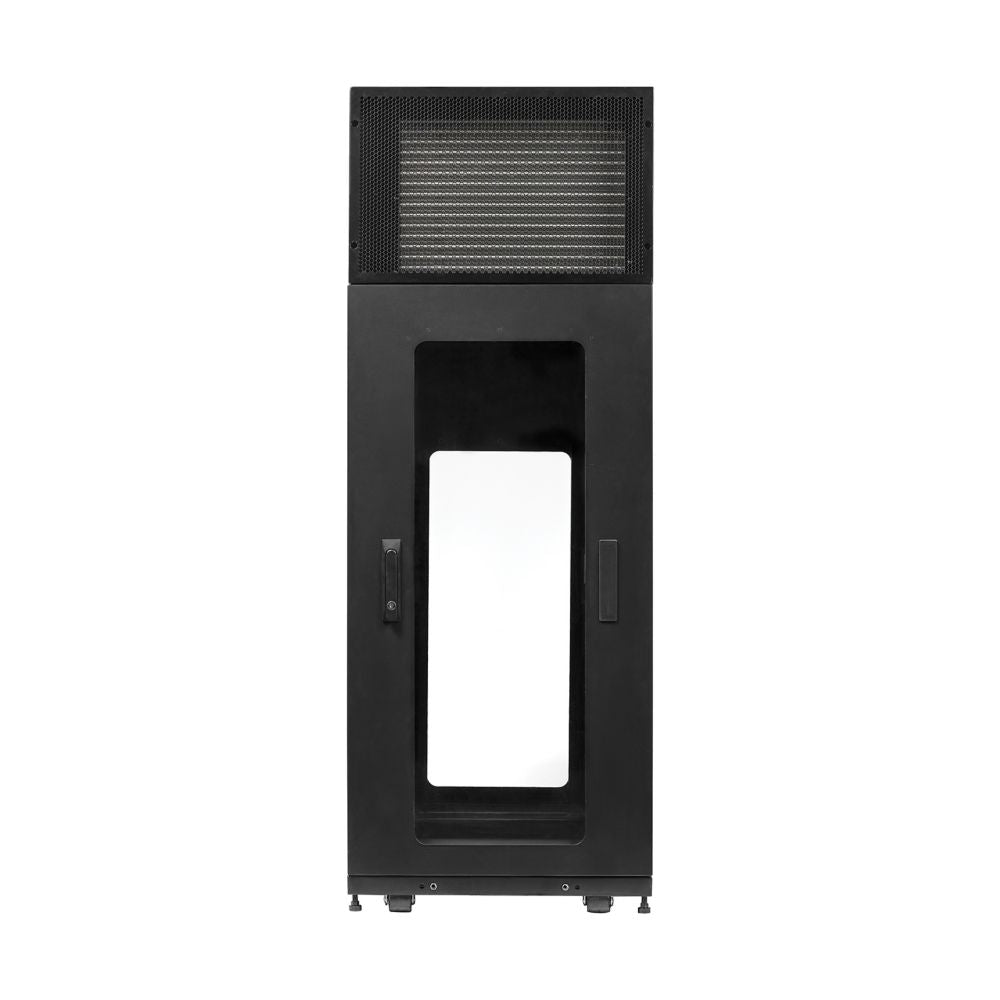

The top-mounted cooling unit leverages natural airflow dynamics by directing cold air downward through the rack while expelling hot air upward, maximizing thermal efficiency. With a 12,000 BTU (3.5 kW) cooling capacity, it supports high-density equipment such as servers, network switches, UPS systems, and PDUs. Integrated network management via SNMP enables 24/7 remote monitoring and control, ensuring proactive thermal management and system reliability.

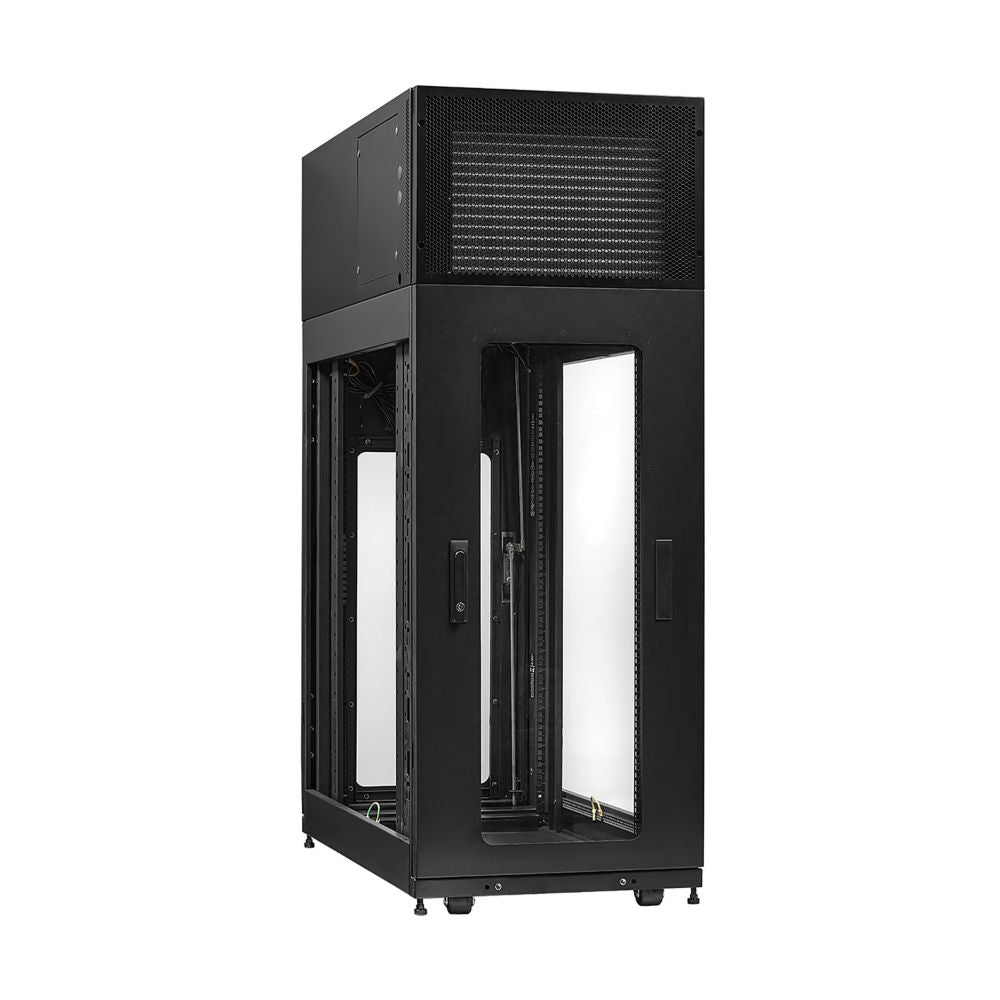

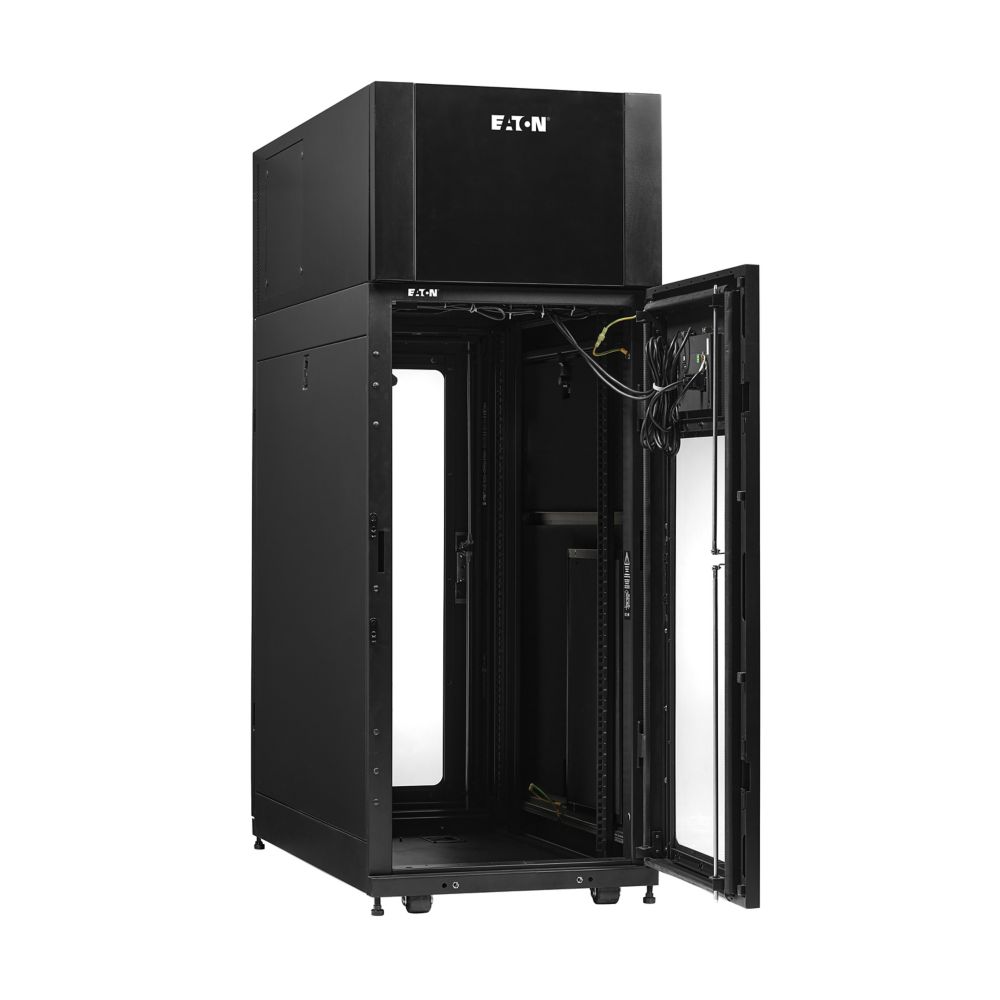

Built for security and durability, the enclosure includes lockable doors, side panels, and a high load capacity suitable for enterprise deployments. Its compact footprint and self-contained cooling system eliminate the need for complex HVAC modifications, making it ideal for rapid deployment in distributed IT environments.
| Specification | Details |
|---|---|
| Rack Height | 33U |
| Cooling Capacity | 12,000 BTU / 3.5 kW |
| Cooling Type | Self-contained top-of-rack air conditioner |
| Airflow | 350 CFM |
| System Type | Self-contained cooling system |
| Input Voltage | 200–240 VAC, 60 Hz (208V supported) |
| Nominal Current | 13.6 A |
| Power Consumption (Max) | 3536 Watts |
| Input Connection | Hardwire |
| Form Factor | Rackmount enclosure |
| Rack Depth | Standard depth |
| Dimensions (H x W x D) | 78.1 x 23.73 x 42.95 in |
| Weight | 438 lb |
| Load Capacity | 3000 lb stationary / 2250 lb rolling |
| Operating Temperature | 64°F to 104°F |
| Operating Elevation | Up to 1000 m (derated above) |
| Refrigerant Type | R410A |
| Air Exhaust Tube Diameter | 13.6 in |
| Air Exhaust Tube Length | Optional 16 ft |
| Condensate Management | Evaporation or gravity drain |
| Network Management | SNMP with built-in LX platform |
| Device Compatibility | Servers, switches, UPS, PDUs |
| Security Features | Locking doors and side panels |
| Mobility | Pre-installed casters |
| Color | Black |
| Certifications | UL 60335, CAN/CSA-C22.2 60335 |
| Compliance | FCC Class A, RoHS |
| Included Components | Rack enclosure, top-mounted cooling unit, mounting hardware, side panels, locking doors, touchscreen LCD, manuals |
