Description

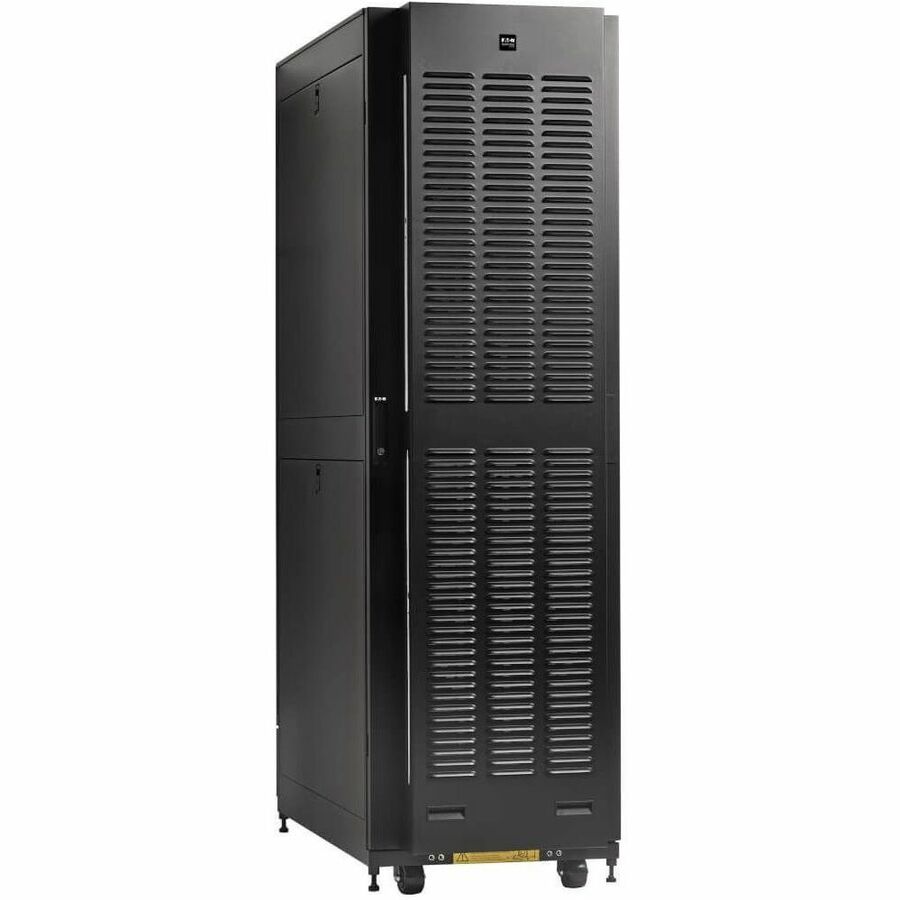

The Eaton Tripp Lite SmartRack SR42UBEIS is a 42U standard-depth rack enclosure cabinet purpose-built for harsh environments. Designed to protect critical IT equipment from dust, dirt, drips, splashes, and physical contact, this rugged enclosure is ideal for industrial spaces like factories, utility plants, warehouses, and construction zones.

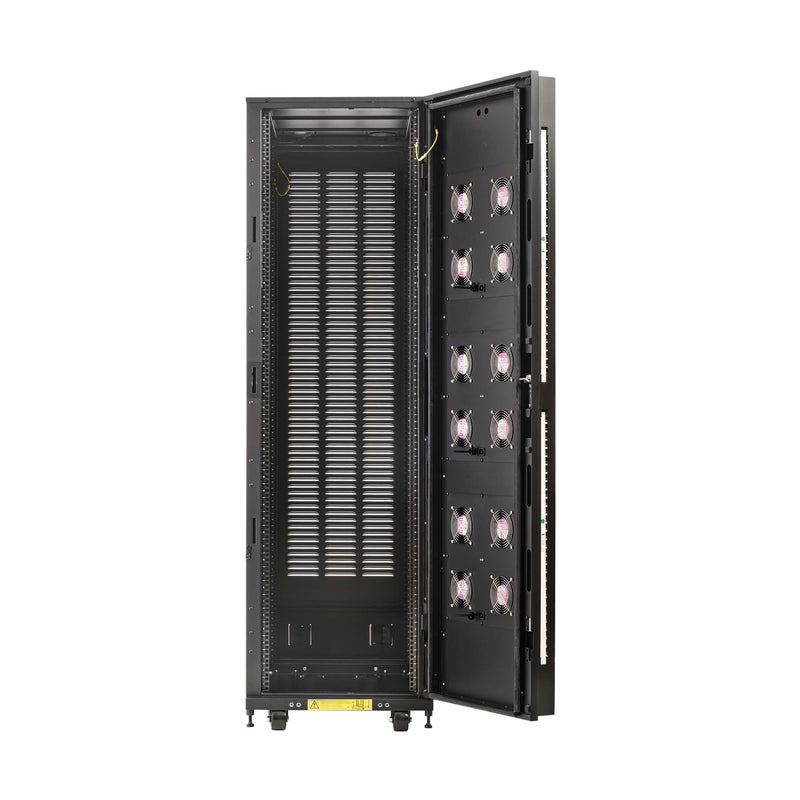

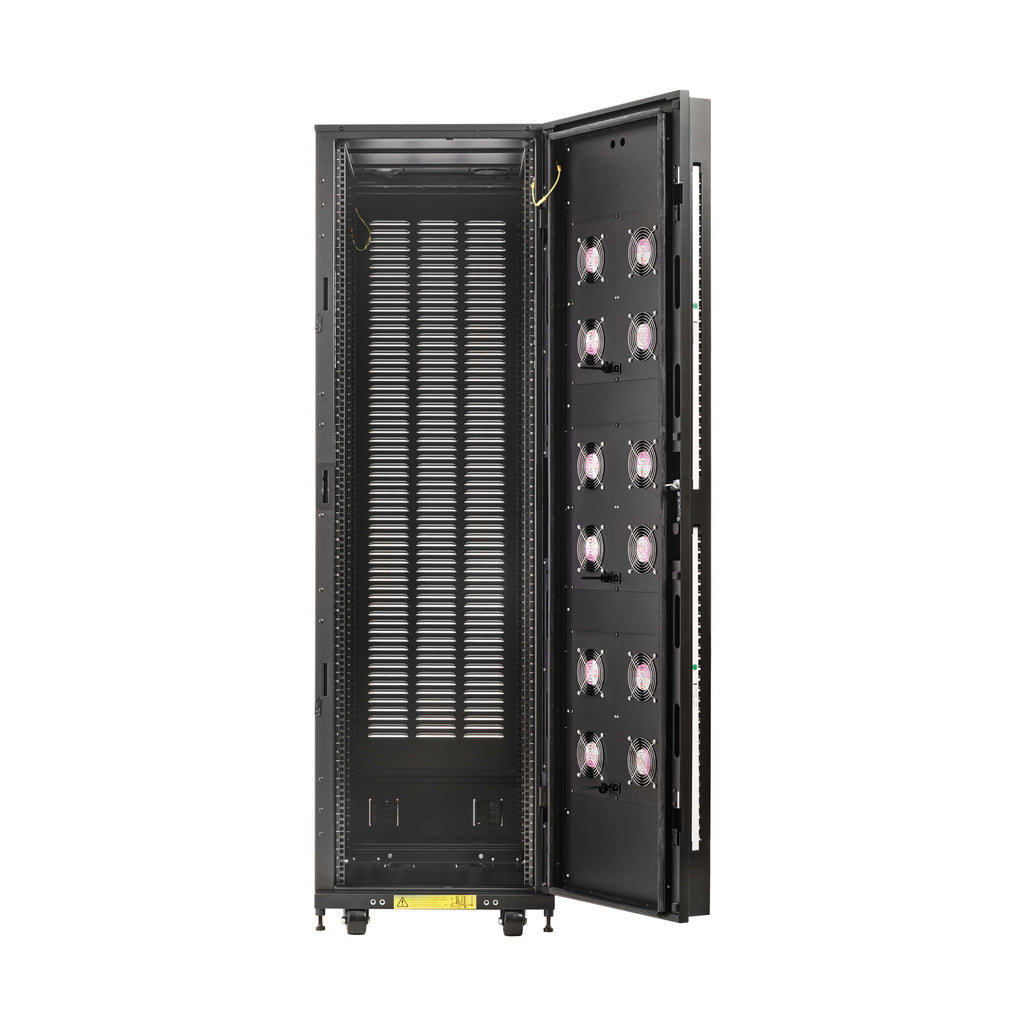

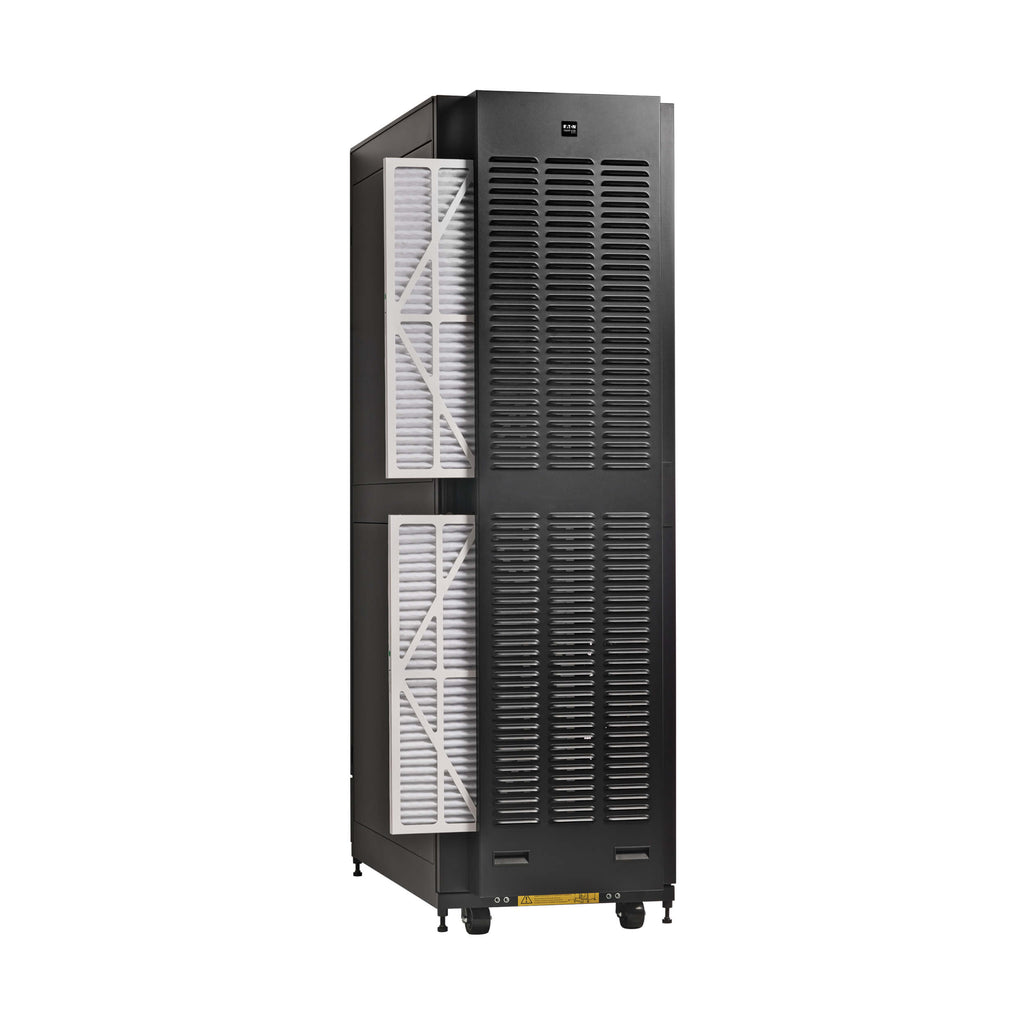

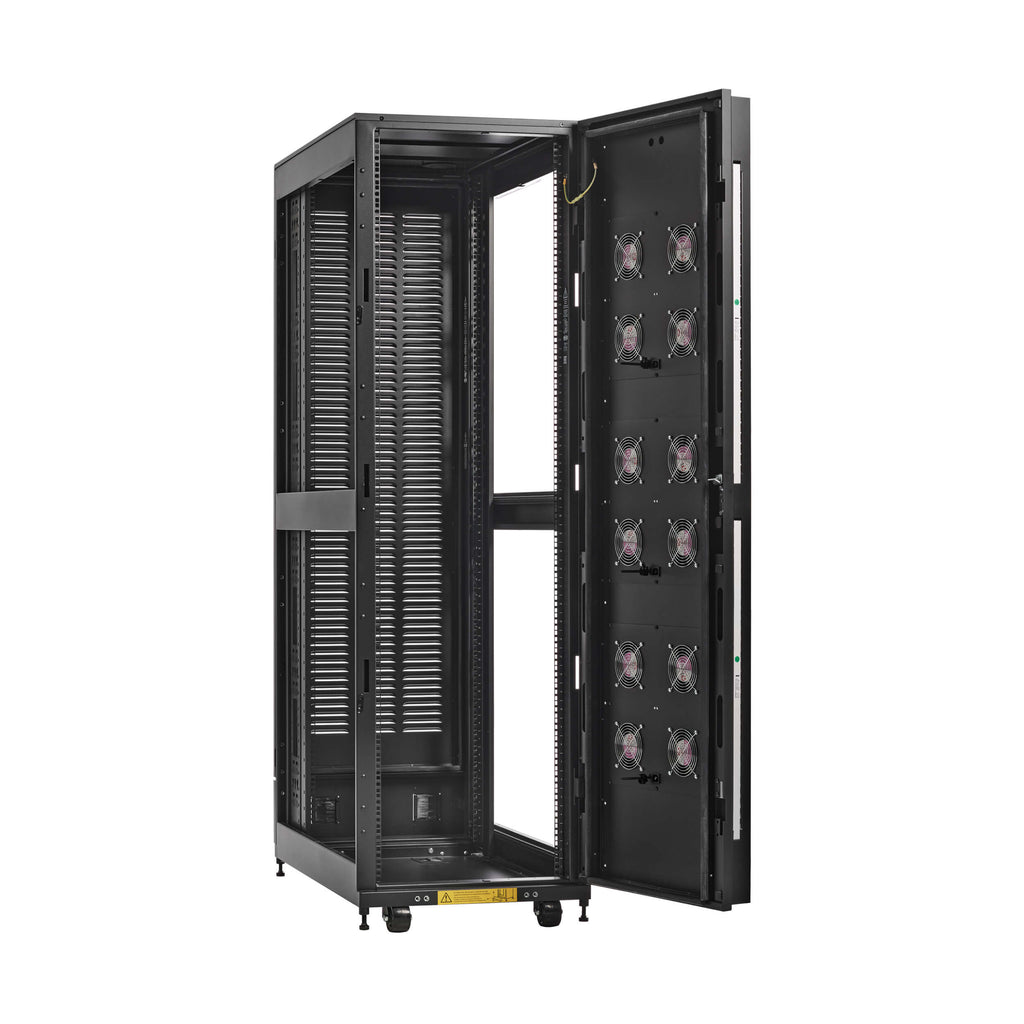

Featuring a sealed steel frame, built-in replaceable filters, and 12 high-performance fans, the SR42UBEIS maintains positive air pressure to prevent debris ingress, mimicking cleanroom conditions. With an IP54 protection rating, this cabinet supports up to 3500 lbs of stationary load and rolls on heavy-duty casters for flexible deployment. Pre-installed cable ports and included mounting hardware ensure fast setup and sustained performance in demanding environments.
| Specification | Details |
|---|---|
| Model Number | SR42UBEIS |
| Rack Units | 42U |
| Rack Depth | Standard (27.75 in preset) |
| Max Device Depth | 37 in (94 cm) |
| Min Device Depth | 4 in (10.2 cm) |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Construction Material | Heavy-duty steel |
| Ventilation | 12 high-performance fans with dust filters |
| Front/Rear Door Type | Louvered with gasket seals |
| Protection Rating | IP54 |
| Cooling Method | Positive pressure, filtered fan system |
| Cable Access | 6 sealed cable ports |
| Color | Black |
| Dimensions (H x W x D) | 79.82 x 23.63 x 47.25 in |
| Shipping Dimensions | 86.5 x 26 x 49 in |
| Unit Weight | 390 lbs (176.9 kg) |
| Shipping Weight | 451.94 lbs (205 kg) |
| Pre-Installed Casters | Yes |
| Standards Compliance | RoHS, EIA/ECA-310-E, PCI DSS compliant |
| Nominal Input Voltage | 120V 50/60 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 6 ft (1.83 m) |
| Vertical Mounting Rails | 4 |
| Warranty | 2-Year Limited Warranty |
