Description
The Eaton Tripp Lite SR42UB SmartRack 42U Rack Enclosure provides a robust and secure housing solution for standard 19-inch rack-mount IT equipment in edge micro data centers, IT closets, and enterprise environments. Built from heavy-duty, powder-coated steel, it supports up to 3500 lb (1588 kg) stationary and 2250 lb (1022 kg) rolling load capacity.

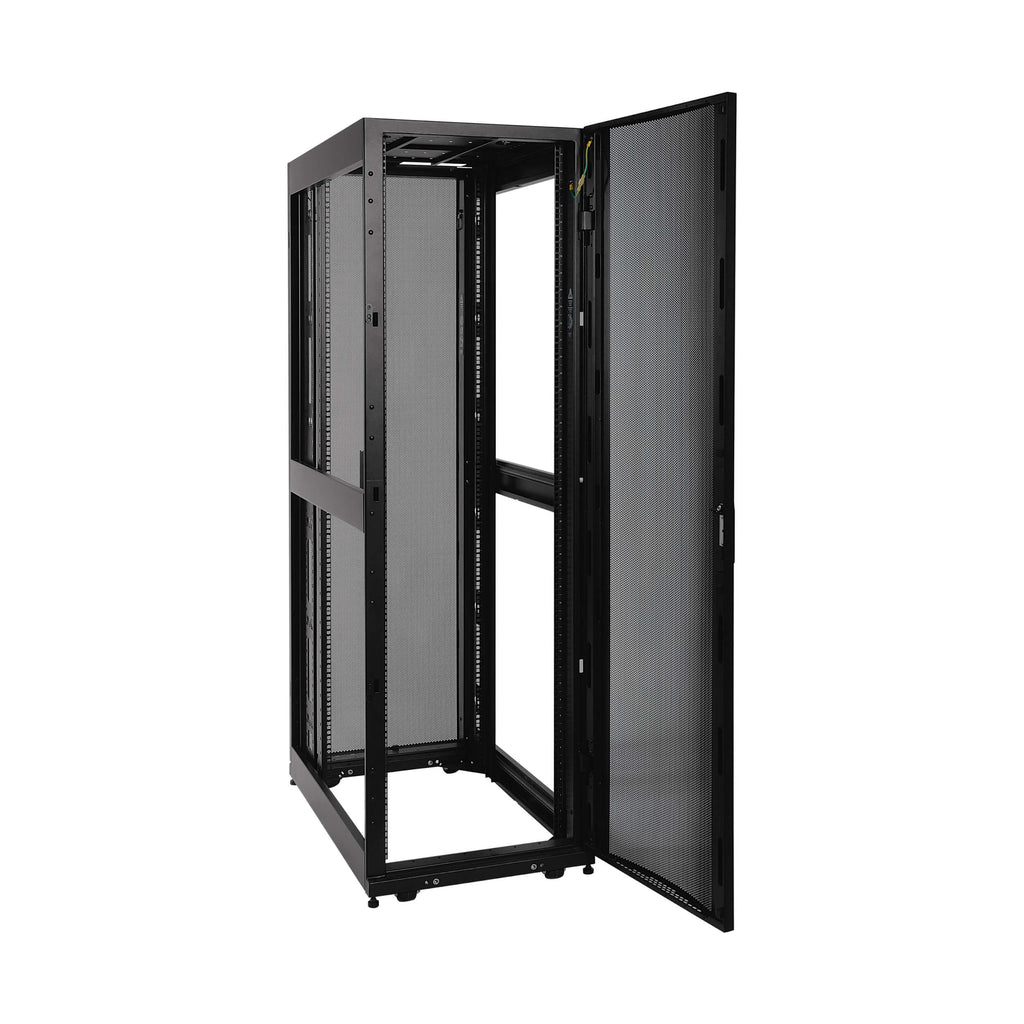

This fully assembled 42U cabinet features locking front and rear doors with removable side panels for secure yet easy access. Designed for efficient airflow, the vented doors promote front-to-rear ventilation, while top access ports and open bottom simplify cable management. Pre-installed casters and levelers allow easy deployment and stabilization, and baying brackets enable seamless expansion with additional enclosures.
The SR42UB is PCI DSS compliant, ensuring physical equipment and media security for environments handling sensitive data. With EIA/ECA-310-E compatibility, tool-less PDU mounting, and UL 60950-1 certification, this rack delivers the strength, flexibility, and reliability essential for mission-critical IT infrastructure.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | SR42UB |
| Rack Type | Enclosure |
| Rack Height | 42U |
| Rack Depth | Standard |
| Device Compatibility | Patch Panels, Network Switches, UPS, Servers |
| Material | Heavy-duty steel with black powder-coated finish |
| Unit Dimensions (H x W x D) | 78.5 x 23.63 x 43.00 in (199.39 x 60.02 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 79.10 x 32.00 x 45.50 in (200.91 x 81.28 x 115.57 cm) |
| Unit Weight | 281 lb (127.46 kg) |
| Shipping Weight | 336 lb (152.41 kg) |
| Stationary Load Capacity | 3500 lb (1588 kg) |
| Rolling Load Capacity | 2250 lb (1022 kg) |
| Maximum Device Depth | 37 in (940 mm) |
| Minimum Device Depth | 4 in (102 mm) |
| Number of Mounting Rails | 4 (front and rear) |
| Cable Management | Built-in |
| Casters | Pre-installed, removable |
| Locking Doors/Panels | Yes, with keys included |
| Cooling | Front-to-rear vented airflow |
| Baying Support | Yes, 24 in (600 mm) center-to-center alignment |
| Compliance Standards | CE (Europe), EIA/ECA-310-E, RoHS |
| Certification | UL 60950-1 |
| Warranty | 5-year limited warranty |
