Description

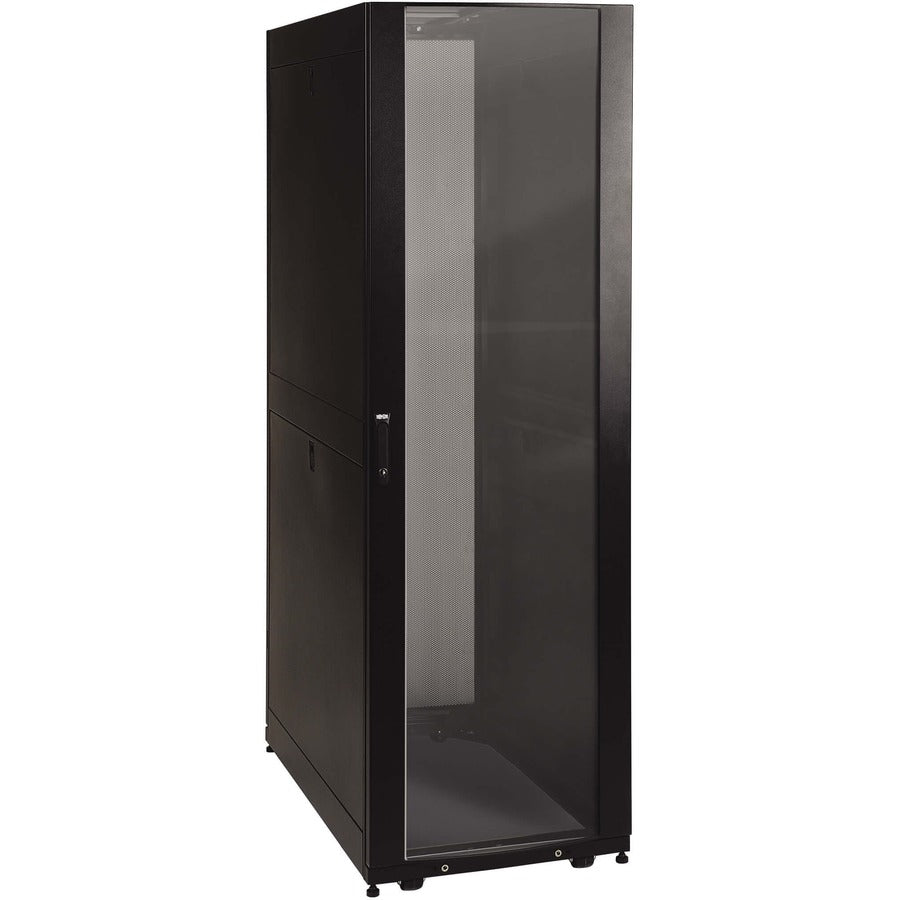

The Eaton Tripp Lite SmartRack SR42UBG is a 42U standard-depth rack enclosure cabinet designed to secure, organize, and monitor 19-inch rack-mount equipment in server rooms, data centers, and network closets. With a durable steel construction and a lockable clear acrylic front door, this cabinet provides visibility without compromising security.
Its shatter-resistant front window reduces acoustic noise, deters tampering, and enhances the professional appearance of your IT installation. Vented top and rear panels support optimal airflow, while removable side panels and split rear doors allow quick access for maintenance. Adjustable vertical mounting rails, preinstalled casters, and cable management features make deployment and operation seamless.
Ships partially assembled with accessories and supports up to 3500 lbs of stationary load capacity—ideal for servers, UPS systems, switches, and more.
| Specification | Details |
|---|---|
| Model Number | SR42UBG |
| Rack Height | 42U |
| Rack Depth | Standard |
| Max Device Depth | 37 in. (94 cm) |
| Min Device Depth | 4 in. (10.16 cm) |
| Max Stationary Load Capacity | 3500 lbs (1588 kg) |
| Max Rolling Load Capacity | 2250 lbs (1021 kg) |
| Front Door | Lockable with shatter-resistant acrylic window |
| Side Panels | Lockable and removable |
| Rear Door | Split, lockable, vented |
| Top Panel | Vented and removable (tool-less) |
| Cable Access | Top ports and open bottom |
| Casters & Levelers | Preinstalled casters; adjustable levelers |
| Mounting Rails | Adjustable, square-hole, numbered |
| Vertical Mounting Rails | 4 |
| Dimensions (H x W x D) | 78.5 x 23.63 x 43 in. (199.39 x 60.02 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 85 x 26 x 45.5 in. (215.9 x 66.04 x 115.57 cm) |
| Unit Weight | 286 lbs (129.73 kg) |
| Shipping Weight | 336 lbs (152.41 kg) |
| Grounding Details | Front and rear door frames |
| Built-in Cable Management | Yes |
| Certifications | UL 60950-1, CE (Europe), RoHS |
| Warranty | 5-year limited |
| UPC Code | 037332148711 |
| Device Compatibility | Servers, UPS, Patch Panels, Network Switches |
