Description

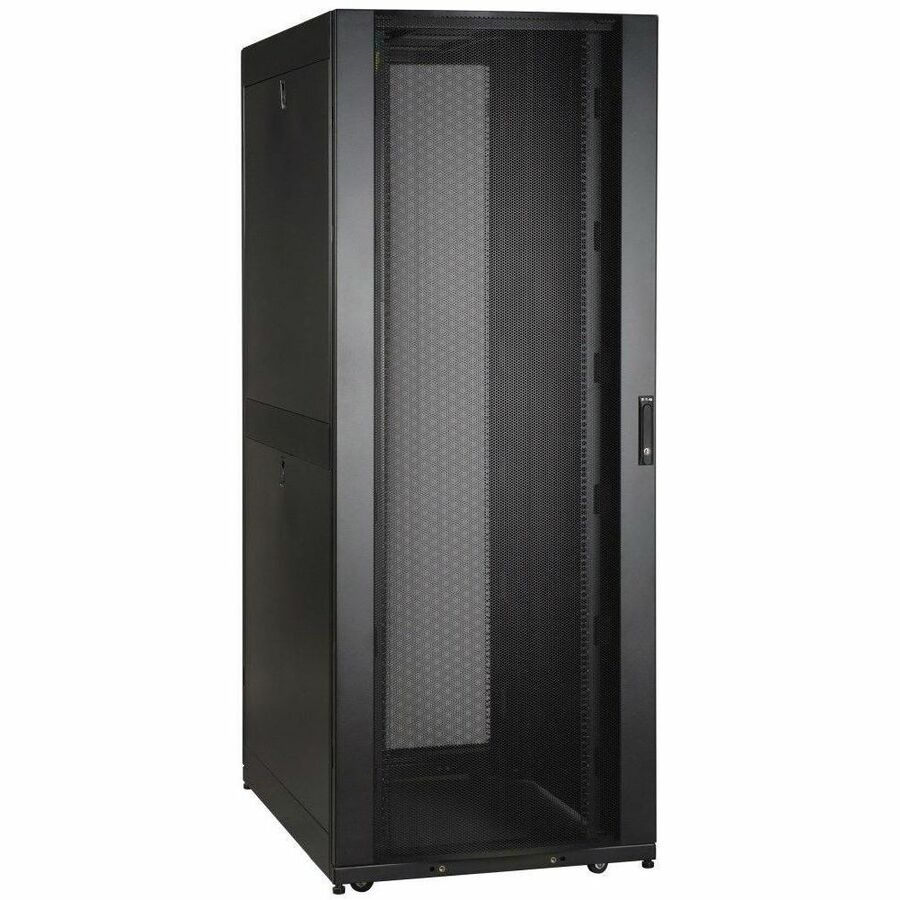

The Eaton Tripp Lite SmartRack SR45UBWDSP1 is a 45U wide standard-depth rack enclosure cabinet designed for high-density IT environments such as network wiring closets, server rooms, and data centers. Its extra-wide 750mm design allows ample space for side-mounted cable management and PDUs, ensuring optimal front-to-rear airflow.

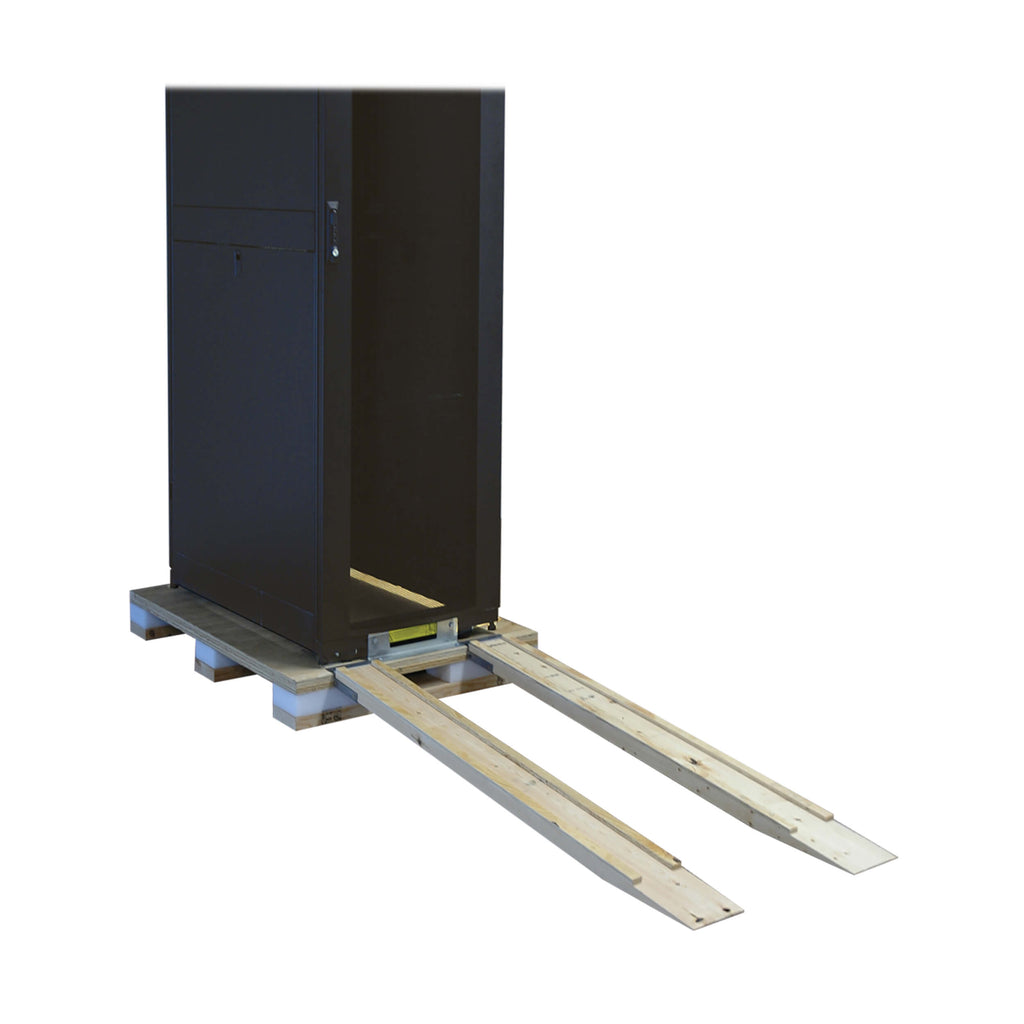

Built from heavy-duty steel, it supports up to 3,500 lbs (stationary) and 2,250 lbs (rolling). The enclosure ships on a shock-absorbing reinforced pallet, offering superior protection and reusability during transit. Locking doors and side panels provide essential physical security and support PCI DSS compliance.
Quick-release doors, tool-less vertical mounting rails, adjustable rack depth, and integrated cable access ports simplify installation and maintenance. Casters and levelers come preinstalled for easy relocation and positioning.
| Specification | Details |
|---|---|
| Model Number | SR45UBWDSP1 |
| Rack Height | 45U |
| Rack Depth | Standard |
| Width | 750 mm (29.53 in) |
| Depth | 1092.2 mm (43.00 in) |
| Height | 2127.25 mm (83.75 in) |
| Weight (Net) | 154.22 kg (340 lbs) |
| Shipping Weight | 176.90 kg (390 lbs) |
| Max Stationary Load Capacity | 1588 kg (3500 lbs) |
| Max Rolling Load Capacity | 1021 kg (2250 lbs) |
| Device Depth (Min/Max) | 4 in (102 mm) / 37 in (940 mm) |
| Material | Heavy-duty steel, black powder-coated finish |
| Doors and Panels | Locking front (reversible), split rear doors, half-size side panels |
| Casters & Levelers | Preinstalled removable casters and adjustable levelers |
| Cable Management | Integrated vertical cable management; top/bottom cable access |
| Mounting Rails | Adjustable front/rear vertical rails with tool-less PDU mounting |
| Certifications | UL 60950-1, RoHS, CE (Europe), UKCA |
| Warranty | 5-year limited warranty |
| Compliance | PCI DSS physical security requirements |
| Included Accessories | (4) Side Panels, (4) Locks, (2) Keys, (50) M6 Screws, Washers & Cage Nuts |
