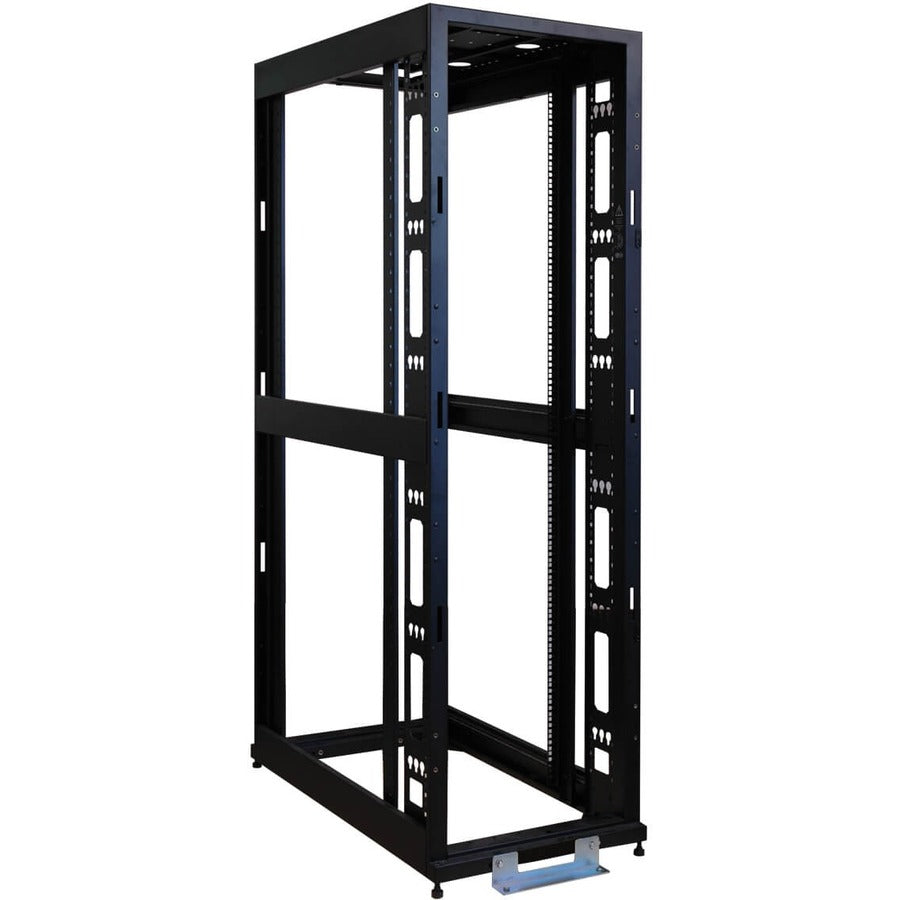

Eaton Tripp Lite Series SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors

Eaton Tripp Lite Series SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors

This SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack has NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR48UBEXPND houses 3000 lbs (1360.8 kgs) of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR48UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR48UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR48UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

• Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)


• Preinstalled casters and leveling feet


• 3000 lb stationary / 2250 lb rolling load capacity


• Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space


• Ships fully assembled


• 4 interior vertical posts with unthreaded square hole openings


• 48U SmartRack Premium open frame rack
