Description

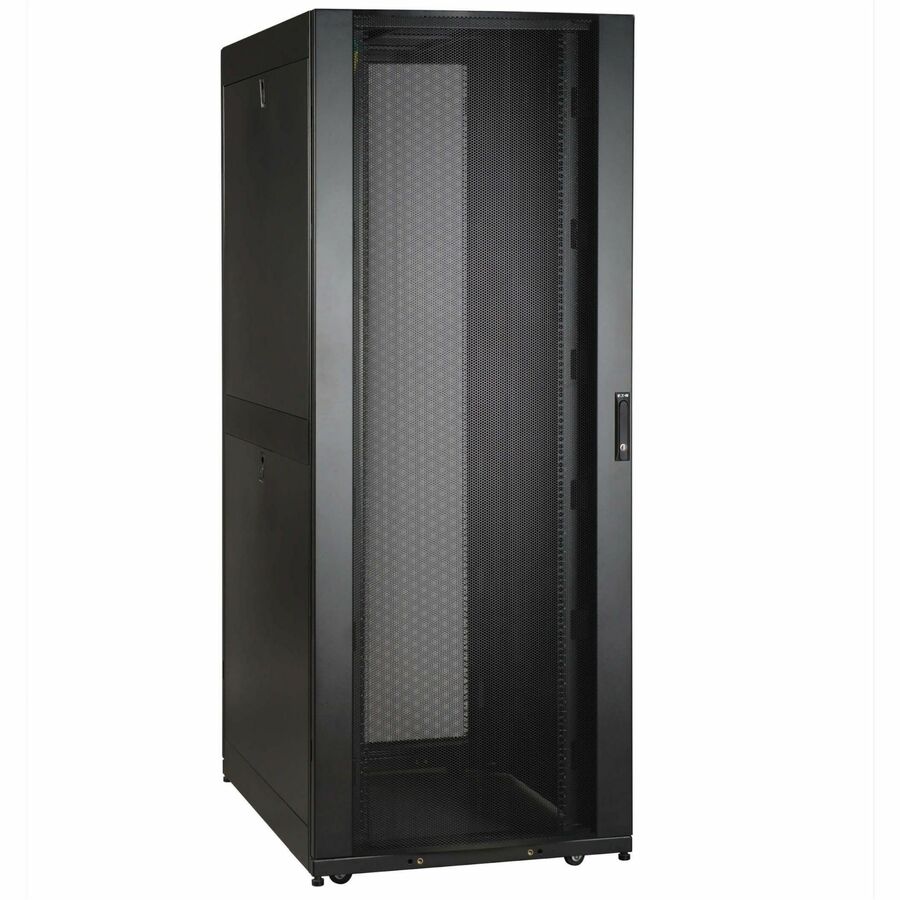

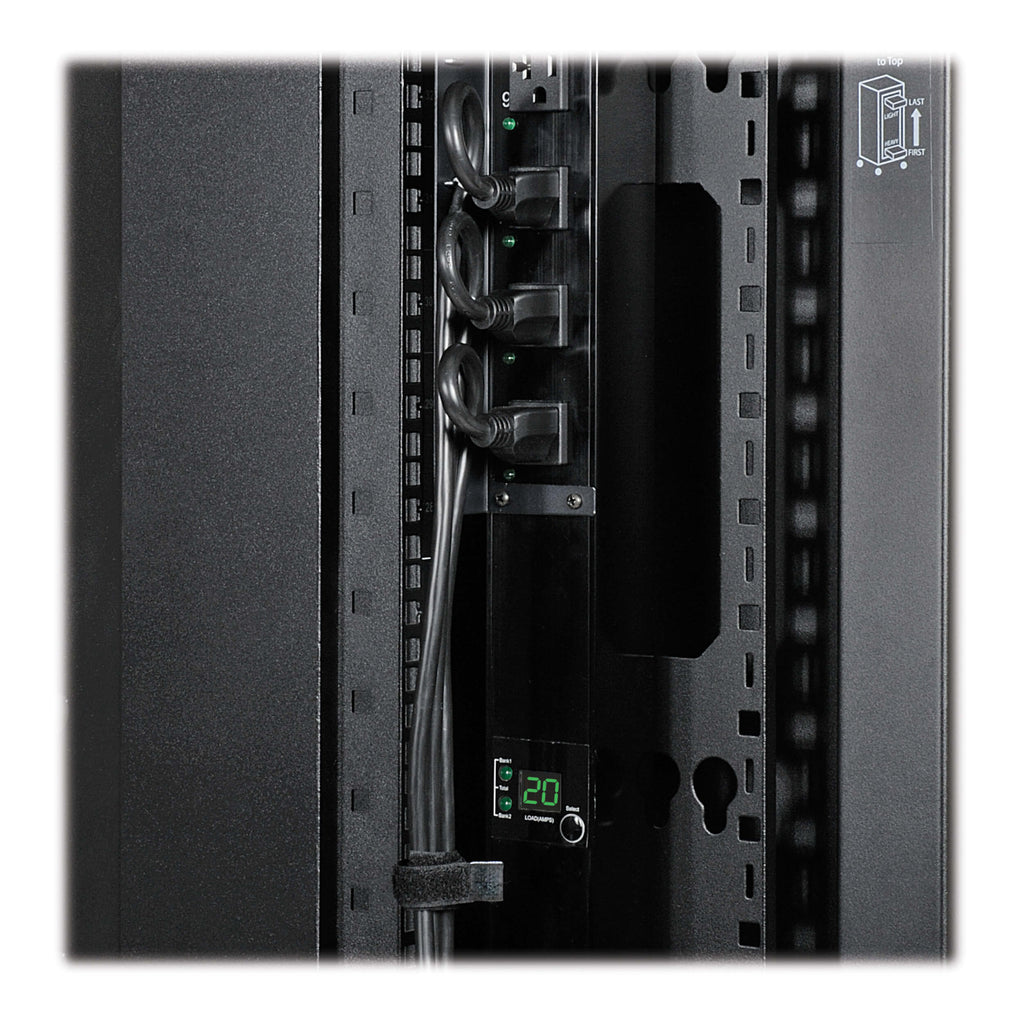

The Eaton Tripp Lite SmartRack SR48UBWD8 is a 48U extra-wide, standard-depth rack enclosure designed for high-density IT environments. Built from cold-rolled steel with a black powder-coated finish, it offers 31.5 inches of width for advanced cable routing and vertical PDU mounting, allowing unobstructed front-to-rear airflow.

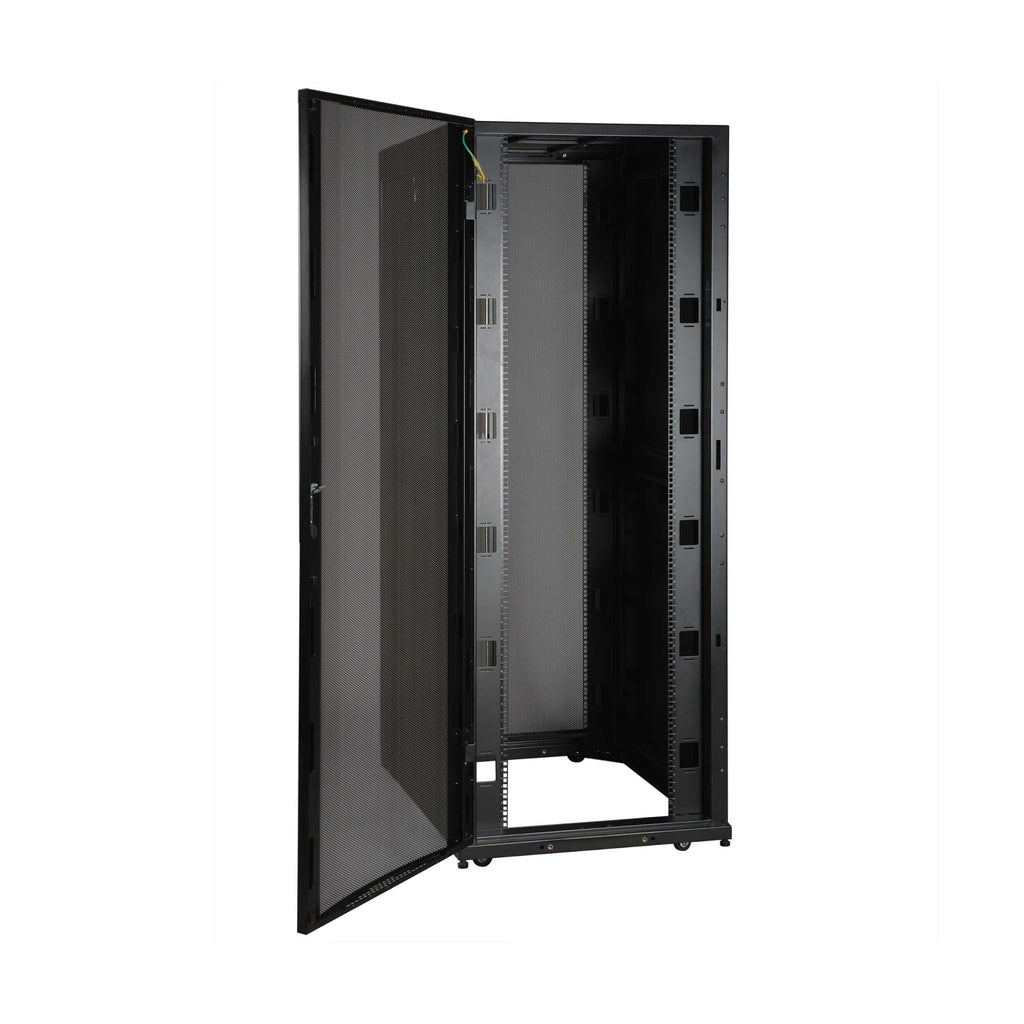

This rugged enclosure supports up to 3500 lbs (stationary) and 2250 lbs (rolling) and includes locking reversible front and rear doors, half-size side panels, and built-in baying brackets for seamless expansion. It ships fully assembled with casters and levelers for quick deployment in data centers, classrooms, or wiring closets. PCI DSS compliant, the SR48UBWD8 meets rigorous physical security standards required for environments processing sensitive data.
| Specification | Details |
|---|---|
| Model Number | SR48UBWD8 |
| Rack Type | Enclosure |
| Rack Height | 48U |
| Rack Depth | Standard |
| Rack Width | 800 mm (31.5 in) – Extra-Wide |
| Device Compatibility | Network Switch, Patch Panel, Server, UPS |
| Material | Cold-rolled steel with black powder-coated finish |
| Unit Dimensions (H x W x D) | 89 x 31.5 x 43 in (226.06 x 80.01 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 95 x 33.46 x 45.5 in (241.3 x 85 x 115.57 cm) |
| Unit Weight | 393.7 lbs (178.58 kg) |
| Shipping Weight | 460.04 lbs (208.67 kg) |
| Max Device Depth | 37 in (94 cm) |
| Min Device Depth | 4 in (10.2 cm) |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Number of Mounting Rails | 4 |
| Cable Access | Roof cable pass-throughs and open bottom |
| Locking Mechanism | Yes (doors and side panels, includes 2 keys) |
| Casters & Levelers | Pre-installed removable casters and adjustable levelers |
| Compliance & Certifications | UL 62368-1, CAN/CSA, CE, RoHS, UKCA |
| Warranty | 5-year limited warranty |
