Description

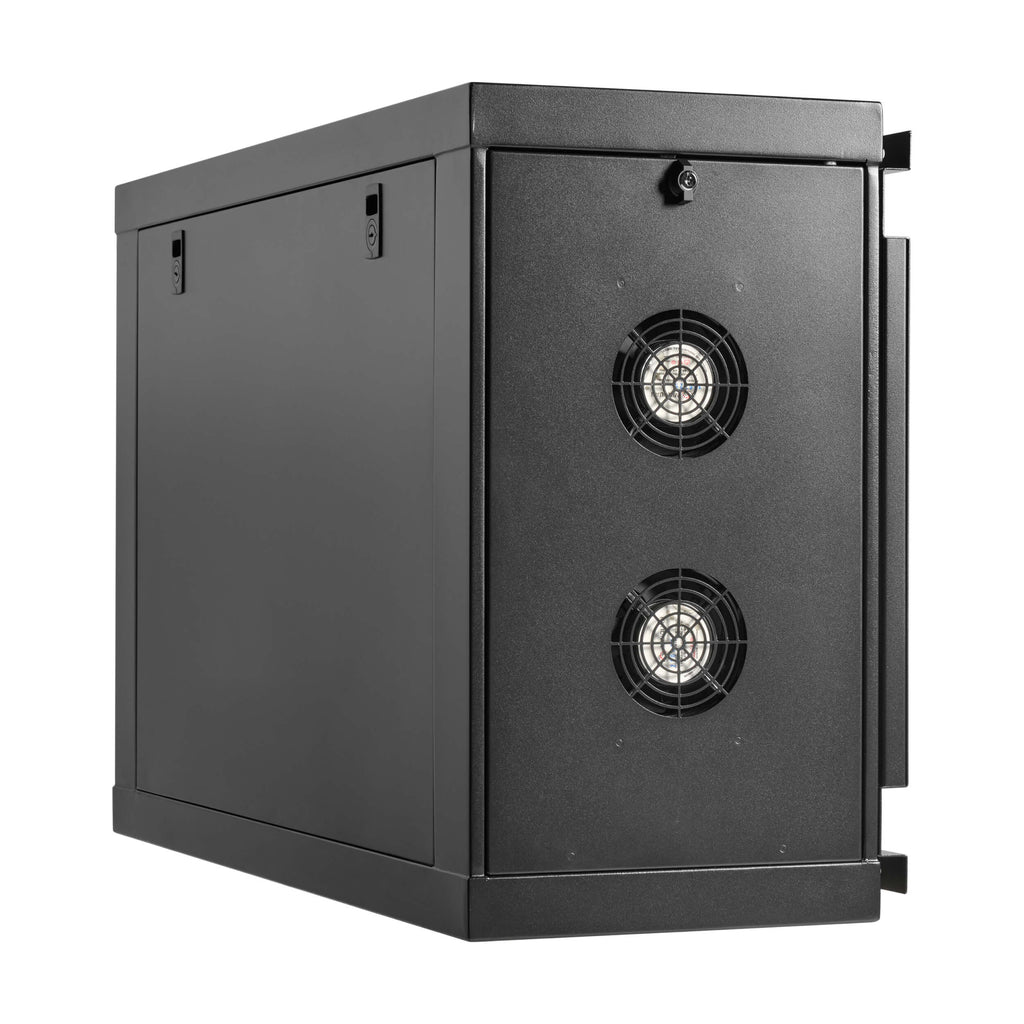

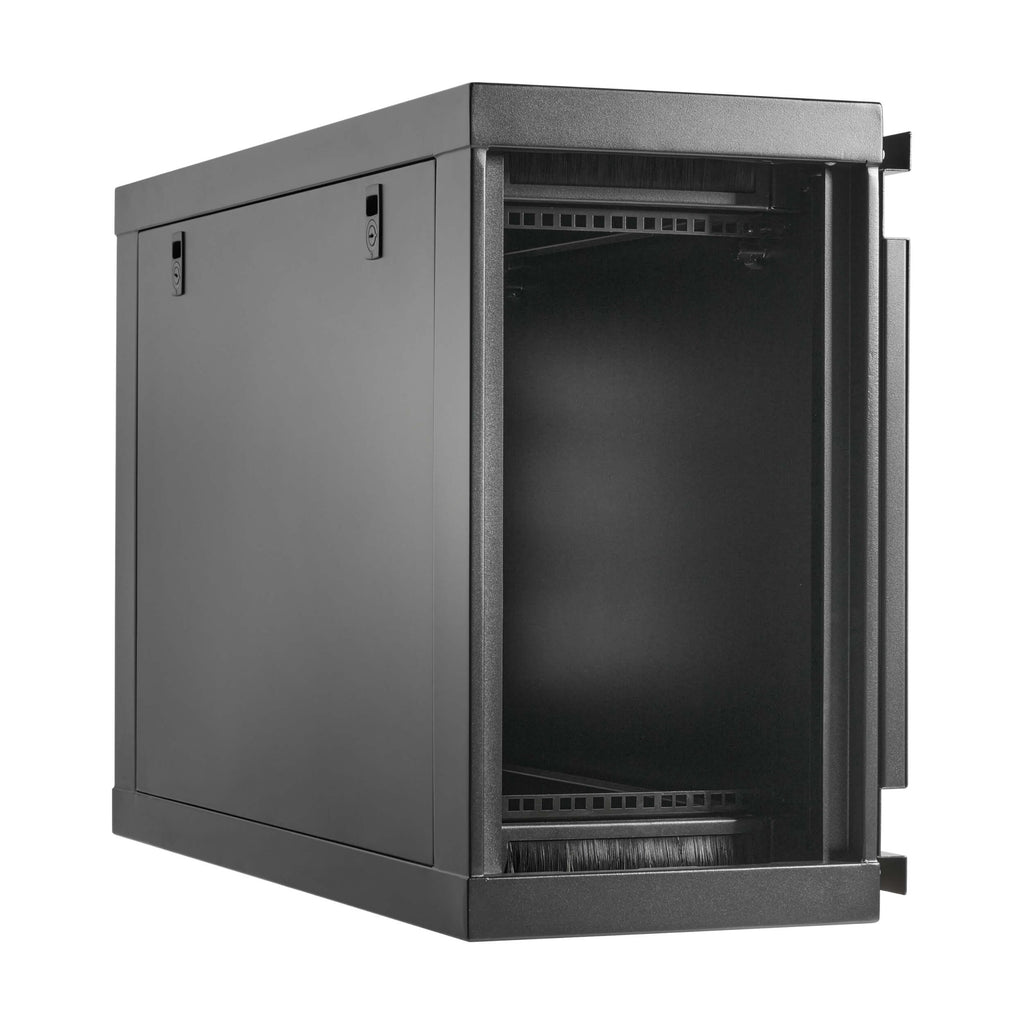

The Eaton Tripp Lite SmartRack SRW6USM is a compact, low-profile 6U wall-mount rack enclosure designed for secure equipment deployment in space-constrained environments. Its innovative side-mount design allows standard 19-inch rack equipment to be installed sideways, making it ideal for network closets, classrooms, retail locations, and back offices where floor space is limited.

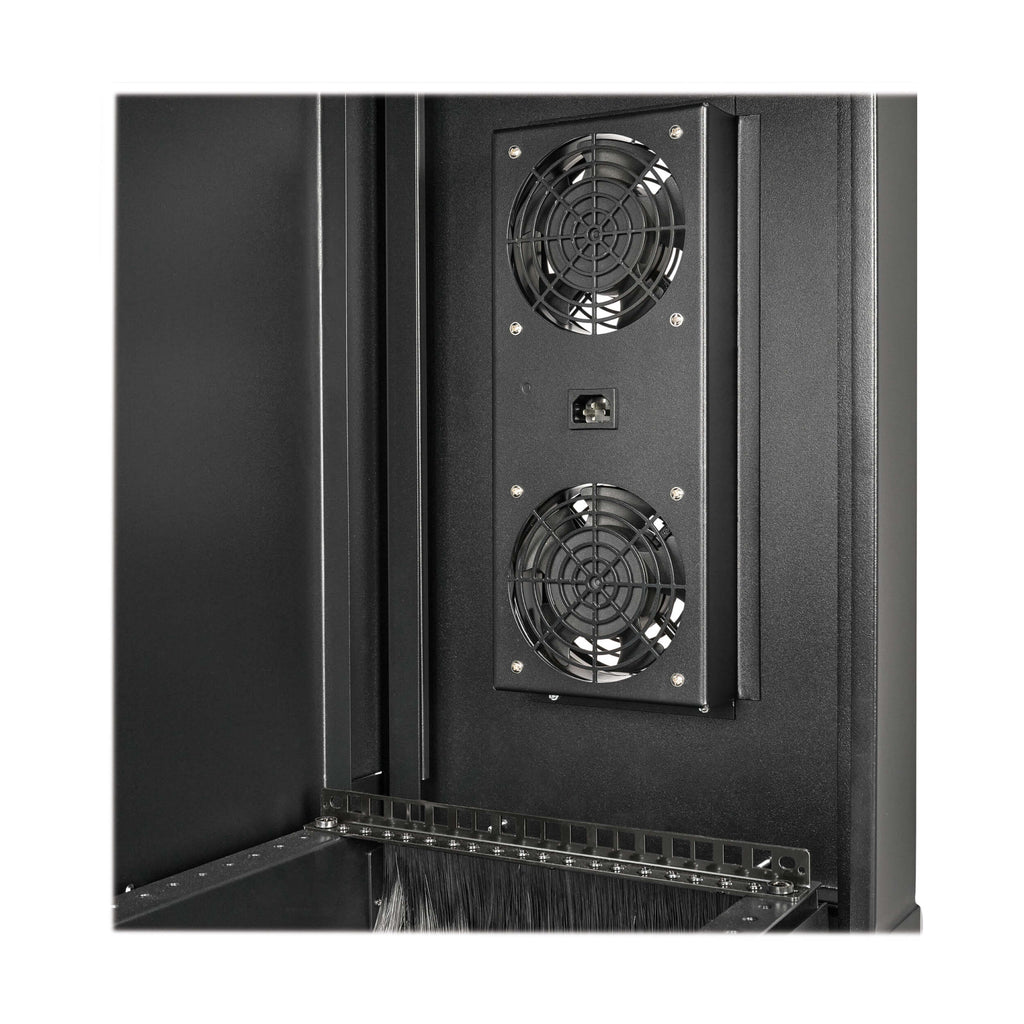

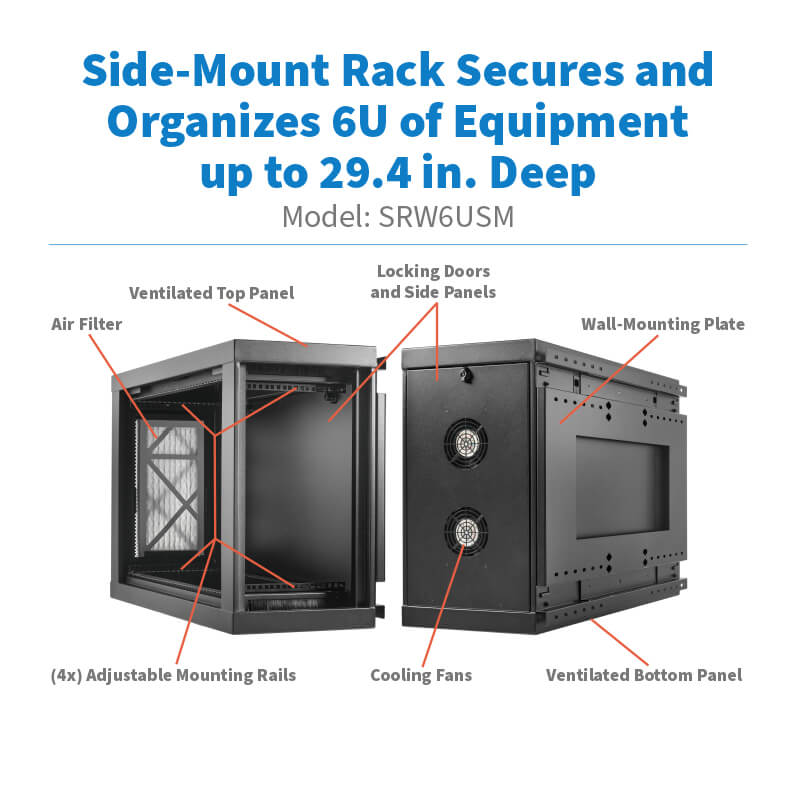

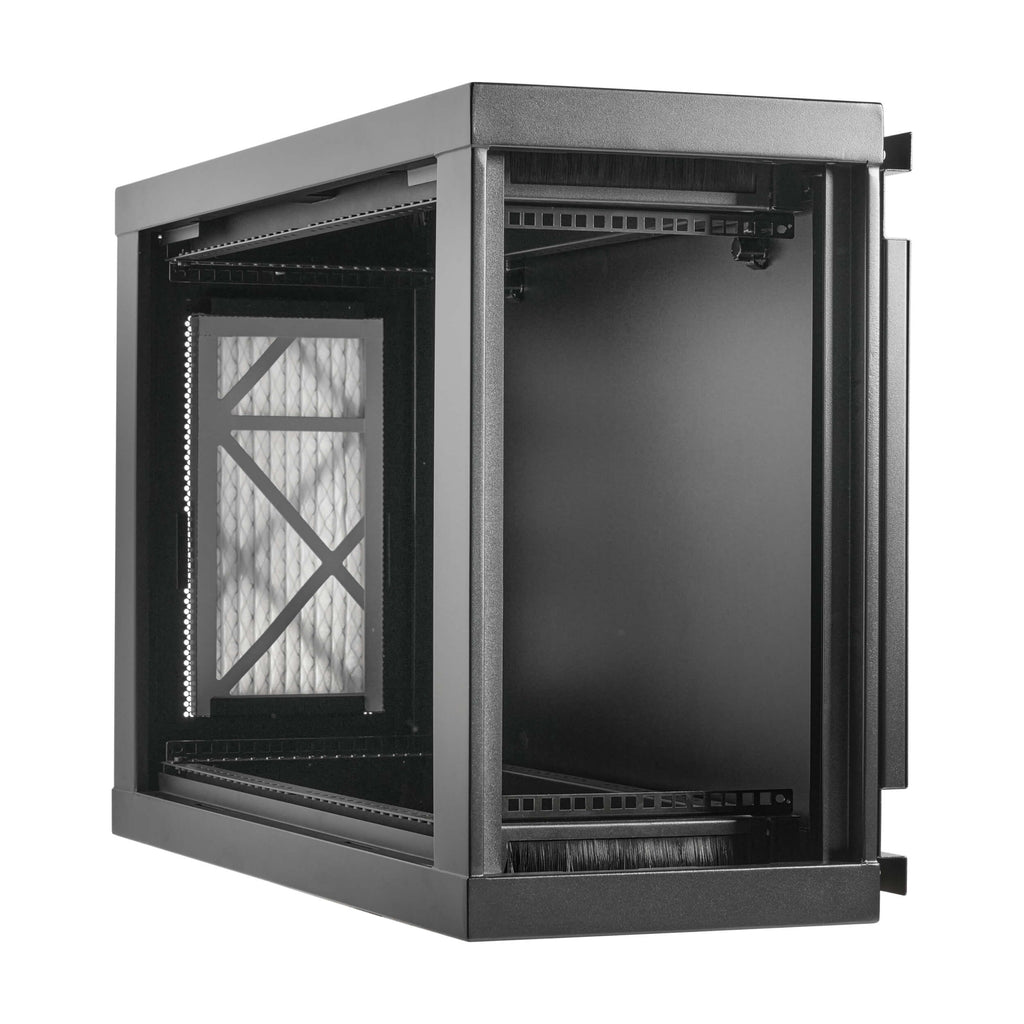

Constructed from heavy-duty steel with a durable black powder-coated finish, the enclosure supports up to 250 lb of equipment. Lockable front door and removable side panels help protect critical hardware from unauthorized access, while vented panels and built-in airflow support efficient heat dissipation. The enclosure ships fully assembled for fast installation and includes adjustable mounting rails to accommodate equipment up to 29.4 inches deep.
Designed with security and compliance in mind, the SRW6USM supports physical equipment protection requirements for PCI DSS environments and offers flexible cable routing through top and bottom access ports.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model Number | SRW6USM |
| Rack Height | 6U |
| Rack Type | Low-Profile Side-Mount Wall-Mount Enclosure |
| Rack Width | 19 in. Standard |
| Maximum Equipment Depth | 29.4 in. (74.7 cm) |
| Minimum Equipment Depth | 3 in. (7.6 cm) |
| Mounting Orientation | Sideways (space-saving design) |
| Load Capacity | 250 lb (113 kg), stationary |
| Construction | Heavy-duty steel |
| Finish | Black powder coat |
| Cooling | Vented panels with airflow support |
| Security | Lockable front door and side panels |
| Cable Access | Top and bottom cable ports |
| Mounting Rails | 4 adjustable vertical rails |
| Assembly Required | No (ships fully assembled) |
| Wall Mounting | Yes |
| Optional Mobility | Compatible with optional caster kit (sold separately) |
| Compliance | EIA/ECA-310-E, RoHS, PCI DSS physical security support |
| Warranty | 5-Year Limited Warranty |
