Description

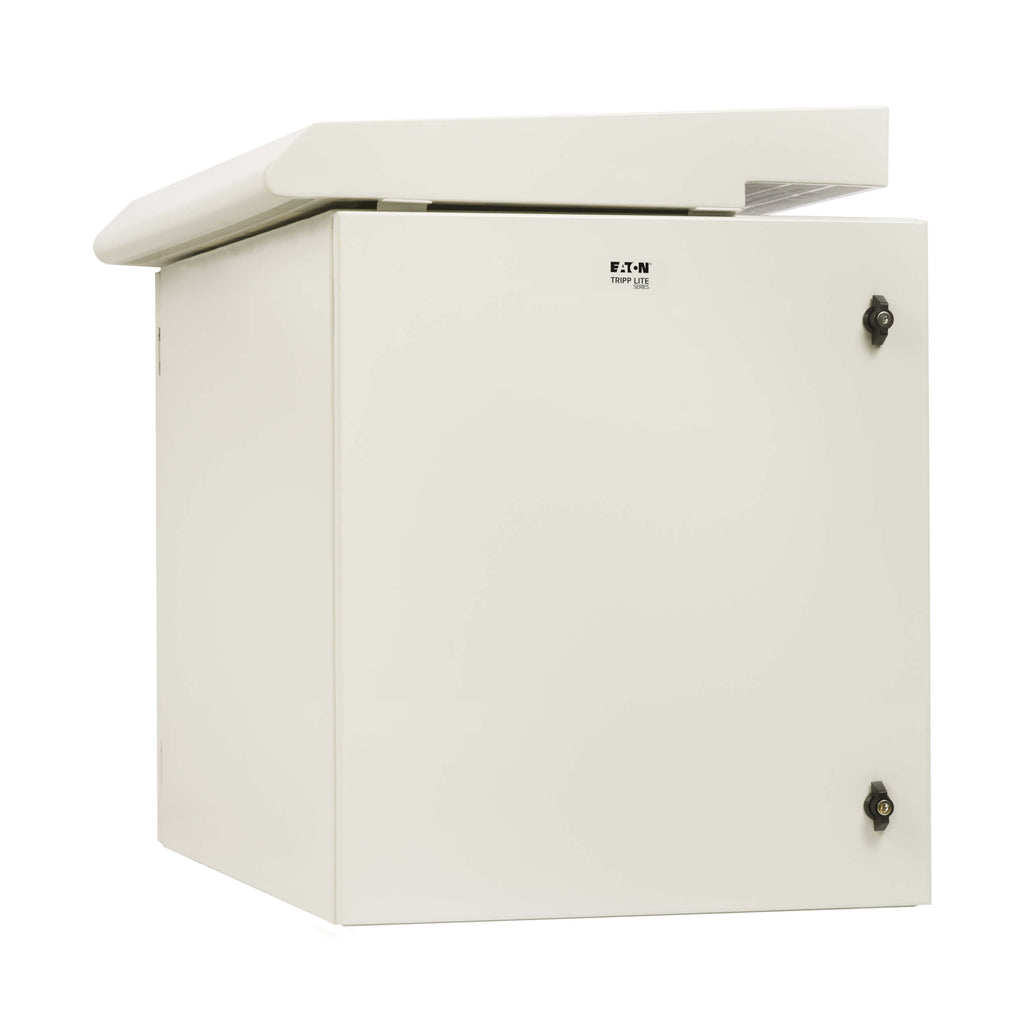

The Eaton SmartRack SRN3RG12UHD is a heavy-duty, NEMA 3R-rated industrial wall-mount enclosure designed to protect sensitive rack-mount equipment from harsh environmental elements such as moisture, dust, and debris. Ideal for indoor or outdoor applications, it provides 12U of rack space and supports devices up to 32.5 inches deep—including UPS systems, battery packs, PDUs, network switches, and servers.
Constructed from powder-coated steel for superior durability, the SRN3RG12UHD features a locking gasketed door for secure access, built-in fans with a thermal switch to maintain optimal temperature, and adjustable mounting rails to accommodate varying equipment depths. Fully assembled and ready for installation, it’s an excellent solution for factories, utility sites, warehouses, and distribution hubs requiring reliable protection for mission-critical hardware.
| Category | Details |
|---|---|
| Model | SRN3RG12UHD |
| Brand | Eaton |
| Product Series | SmartRack Industrial Enclosure |
| Rack Units | 12U |
| Mounting Type | Wall-Mount |
| Rack Depth | Up to 32.5 in (82.6 cm) |
| Material | Heavy-Duty Powder-Coated Steel |
| Color | Gray |
| Protection Rating | NEMA 3R (Rain, Sleet, Snow, Ice) |
| Weight Capacity | 200 lbs (90.7 kg) |

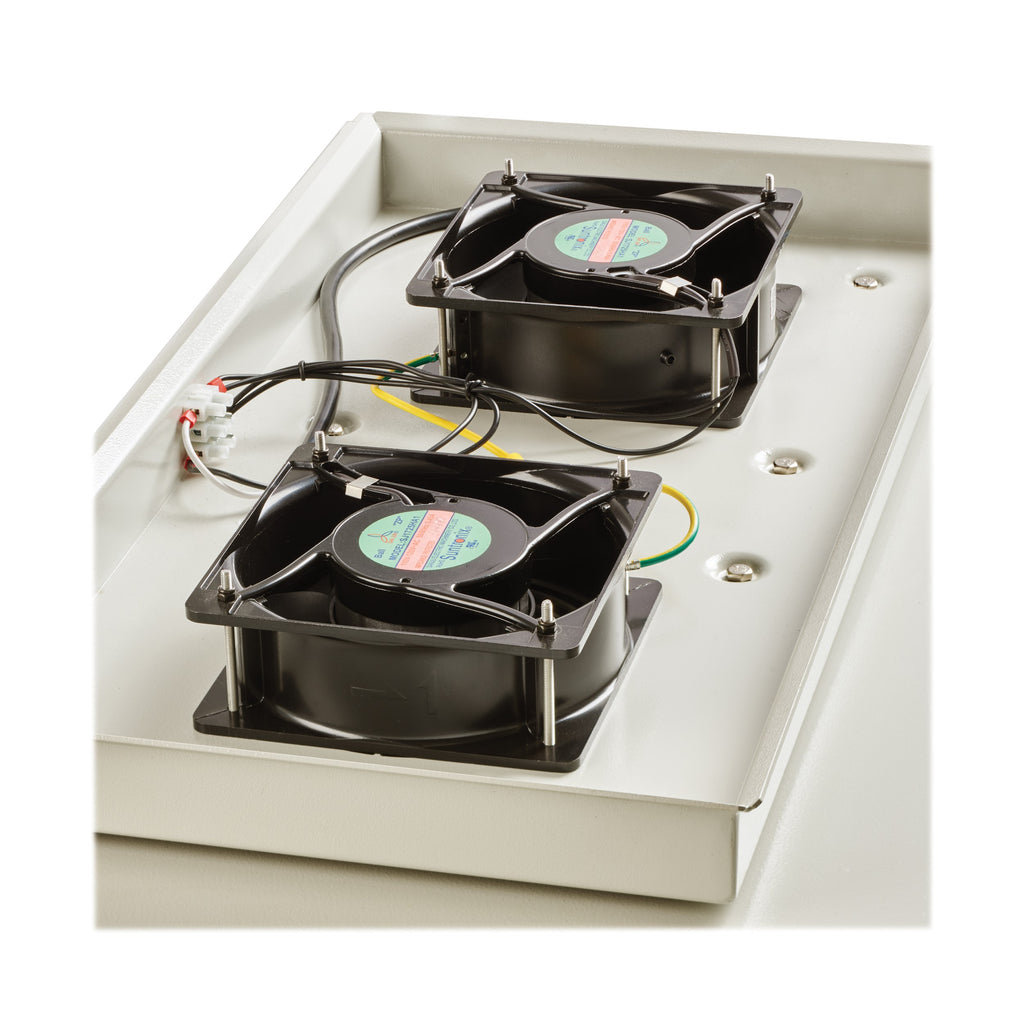

| Ventilation | 3 × 150 mm Fans with Thermal Switch (activates at 86°F / 30°C) |
| Cooling Airflow | 190–210 CFM |
| Locking Mechanism | Key Lock with Weather-Sealed Door |
| Cable Entry | Sealed Bottom Cutout, Gland Plate Compatible |

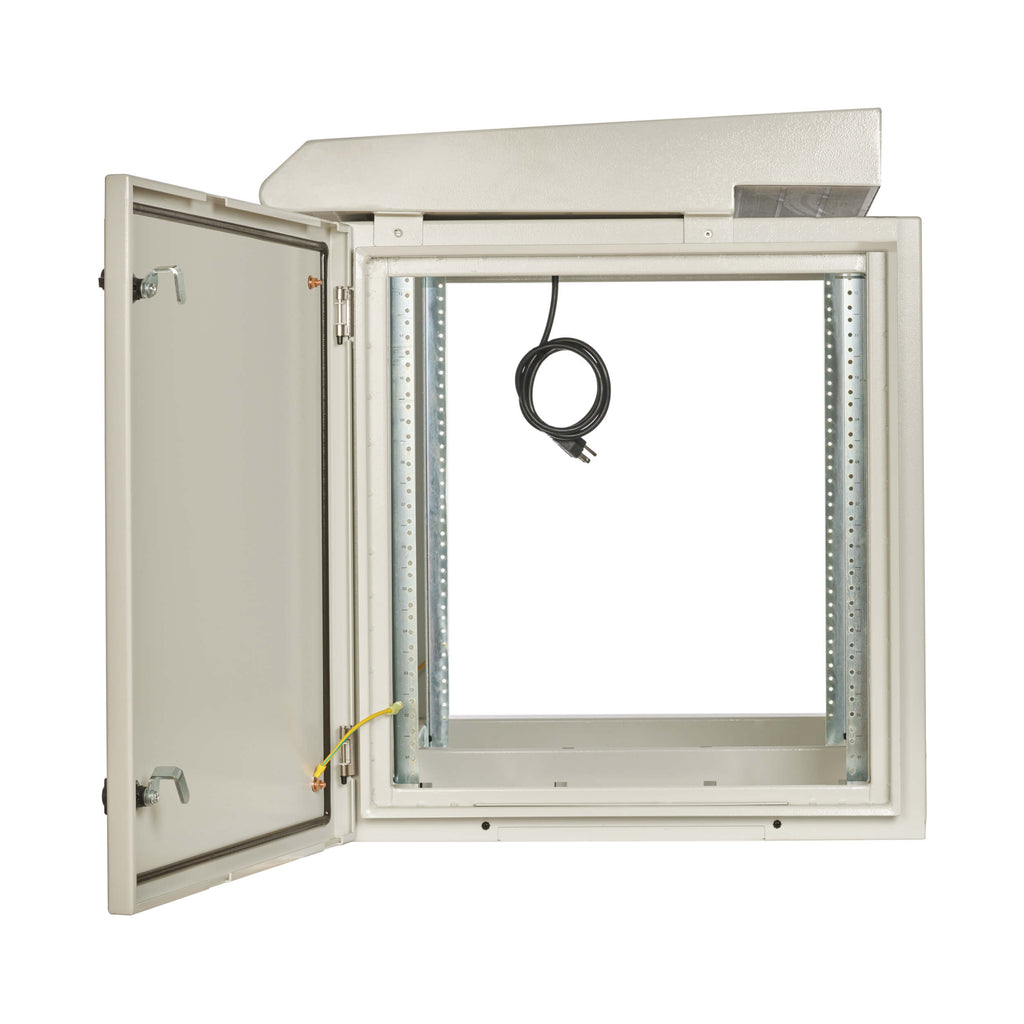

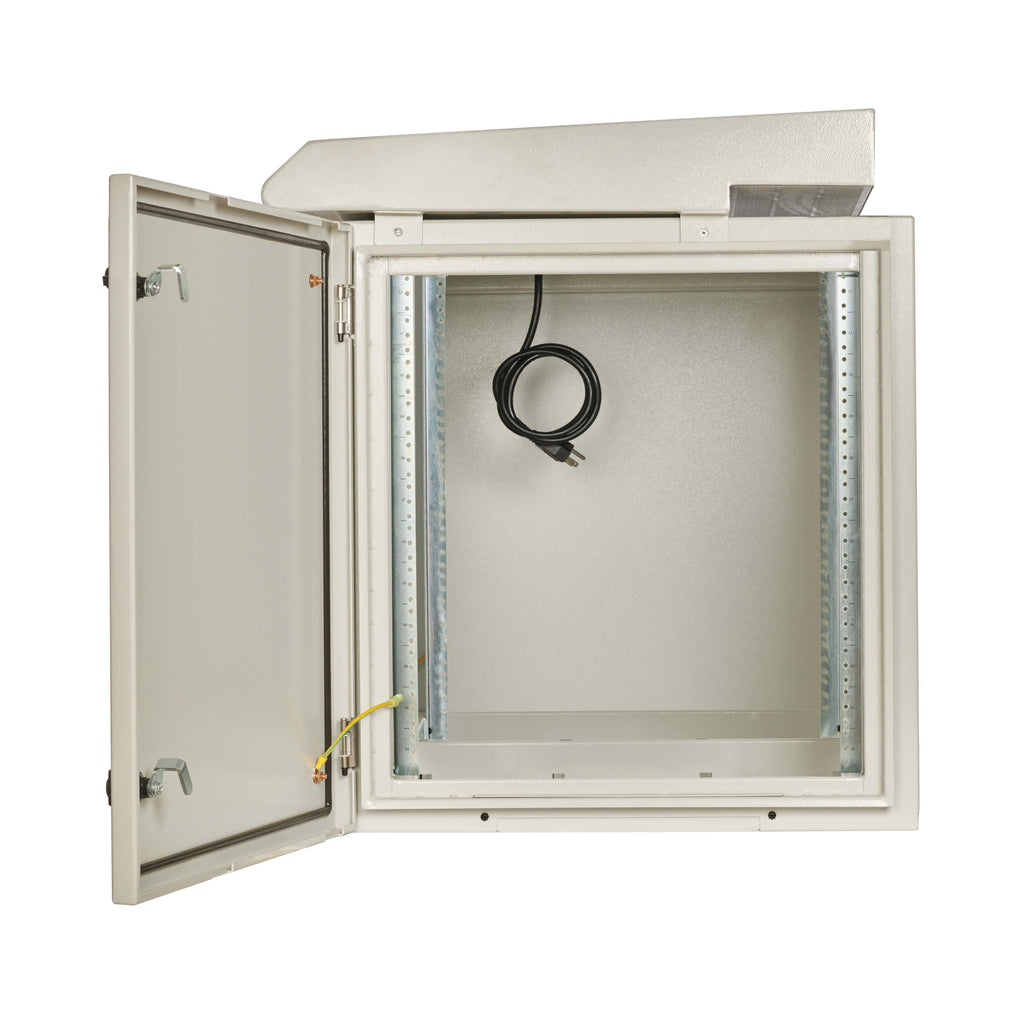

| Mounting Rails | Adjustable Front and Rear, 10-32 Screws |
| Unit Dimensions (H × W × D) | 28.65 × 26.06 × 36.16 in (75.74 × 68.35 × 91.82 cm) |
| Unit Weight | 216.84 lbs (98.36 kg) |
| Shipping Dimensions (H × W × D) | 34.5 × 30 × 40.5 in (87.63 × 76.20 × 102.87 cm) |
| Shipping Weight | 280 lbs (127.01 kg) |
| Certifications | UL 508A, CAN/CSA-C22.2 No. 286 |
| Compliance | RoHS, REACH, EIA/ECA-310-E |
| Outdoor Use | Yes |
| Warranty | 5-Year Limited Warranty |
