Description

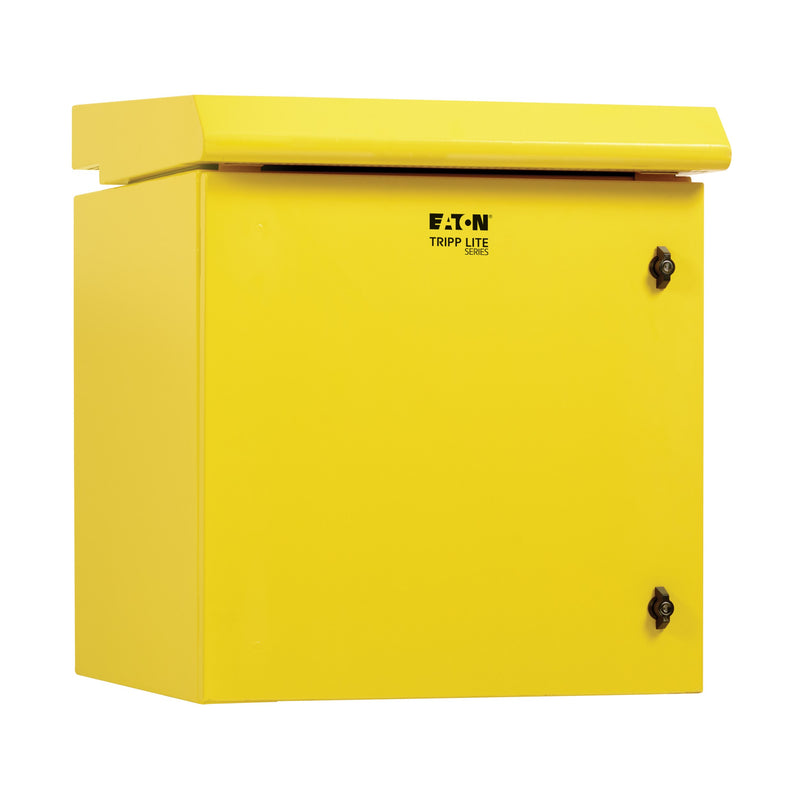

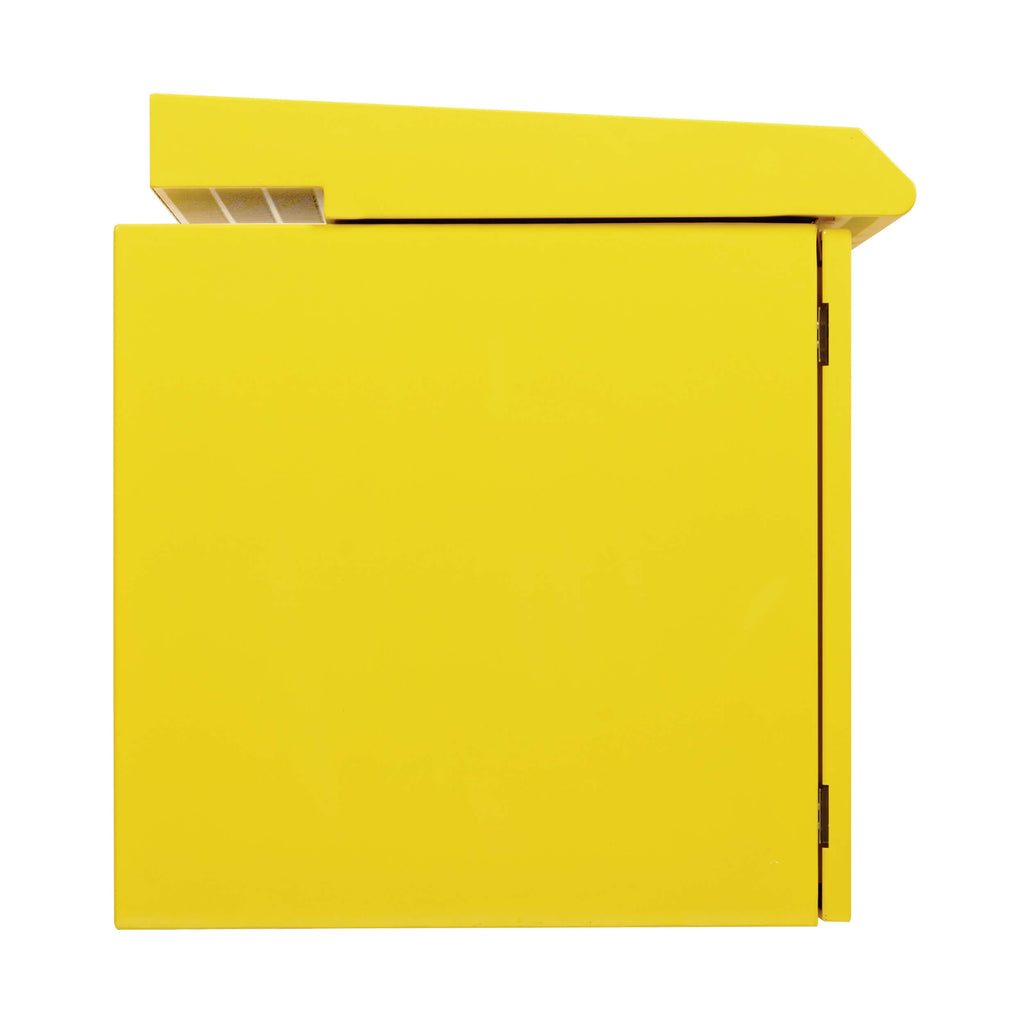

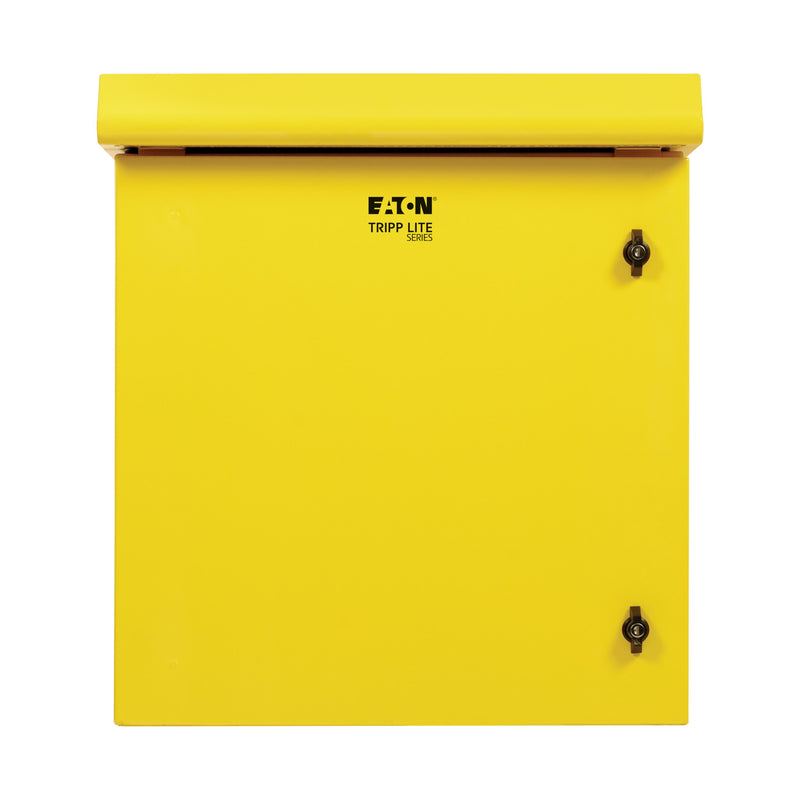

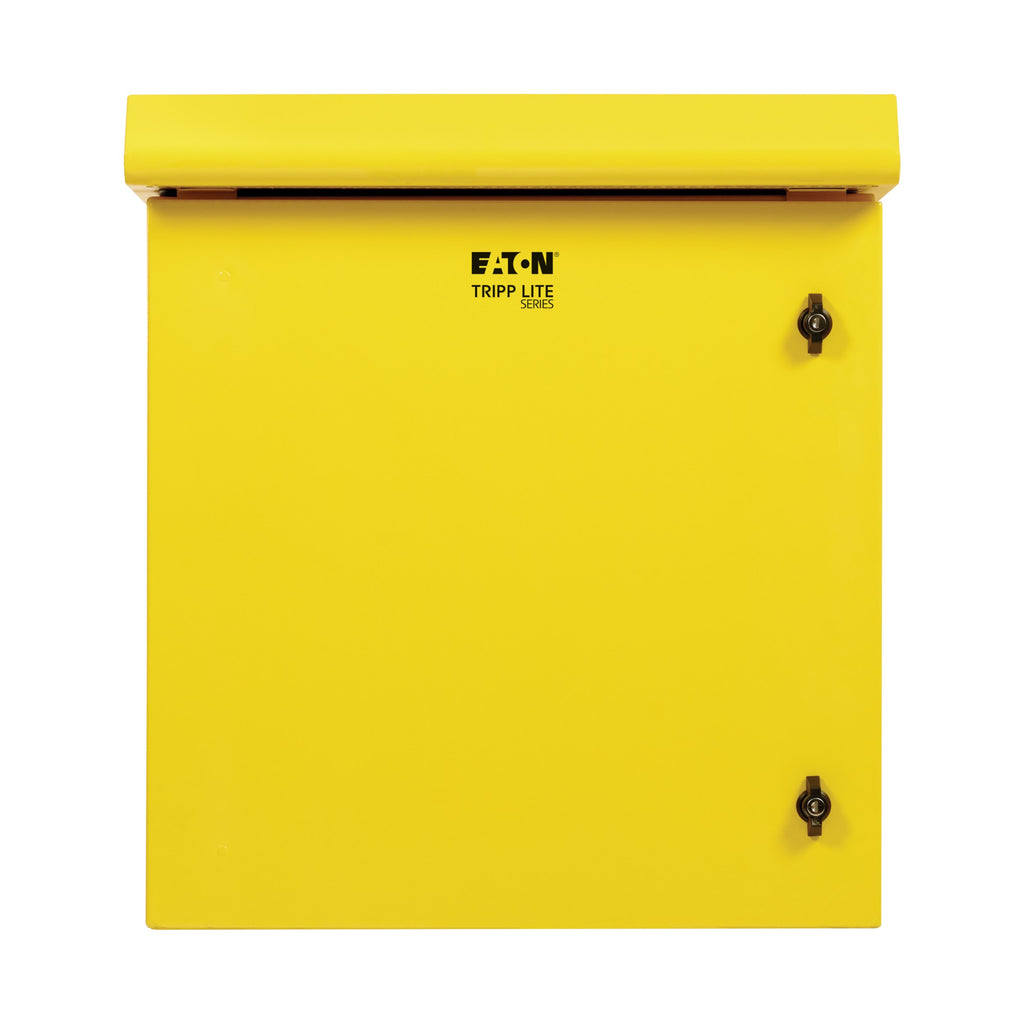

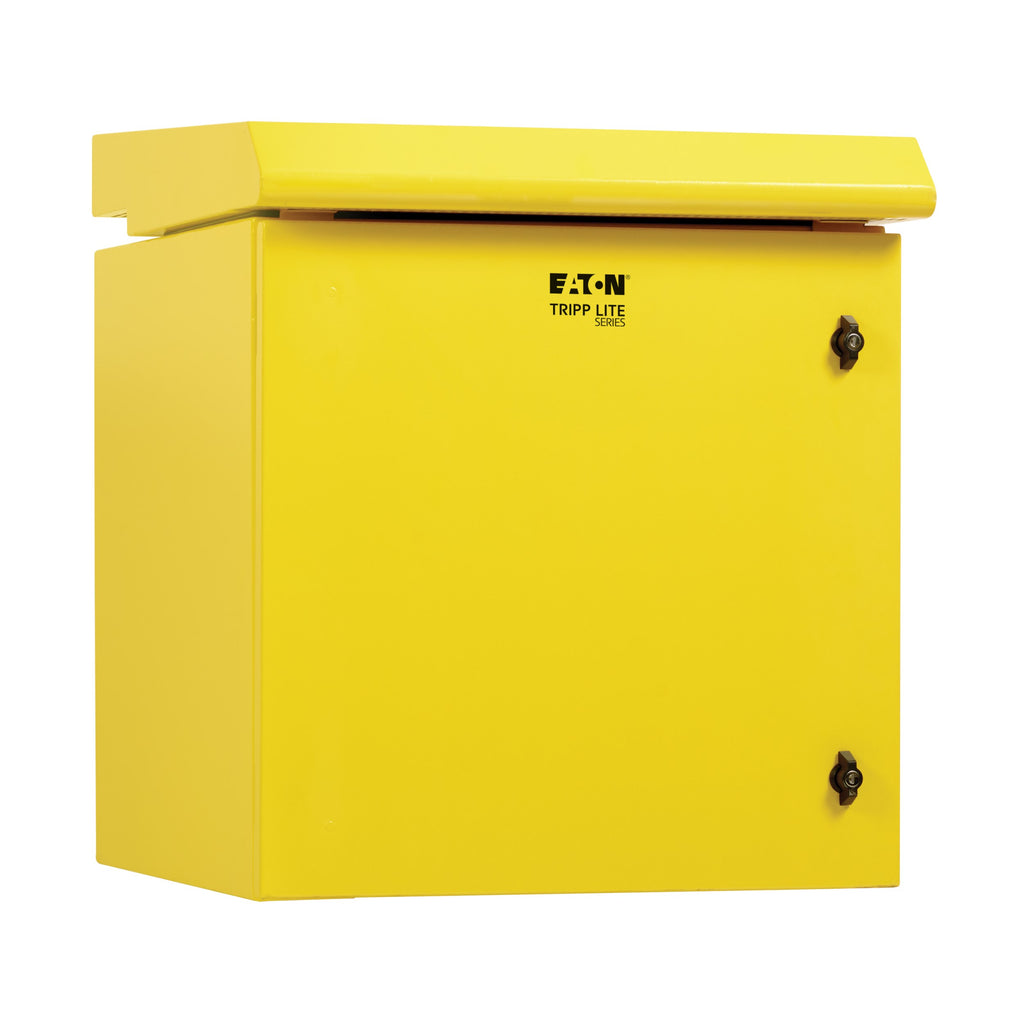

The Eaton Tripp Lite SmartRack SRN3RY12U is a 12U NEMA 3R-rated industrial wall-mount enclosure designed to protect critical rack-mounted equipment from moisture, dust, and unauthorized access. Built from durable powder-coated steel with a bright yellow finish, it’s ideal for indoor or outdoor use in industrial, utility, or emergency-response environments.
Engineered for reliability, it supports equipment up to 23 inches deep and features a 200 lb (90.7 kg) load capacity. The lockable, gasket-sealed door provides secure protection, while dual top-mounted fans with an integrated thermal switch automatically activate above 86°F (30°C) to maintain optimal airflow.
The SRN3RY12U ships fully assembled, allowing for quick wall installation with adjustable rails and convenient cable routing through a sealed conduit cutout. Compliant with UL 508A, CSA, RoHS, REACH, and EIA/ECA-310-E standards, this rugged SmartRack enclosure ensures long-lasting performance and protection for your essential network, power, and server equipment.
| Category | Specification |
|---|---|
| Model Number | SRN3RY12U |
| Brand | Eaton Tripp Lite Series |
| Rack Type | Wall-Mount Industrial Enclosure |
| Rack Height | 12U |
| Material | Powder-Coated Steel |
| Color | Yellow |
| Protection Rating | NEMA 3R |
| Cooling System | 2 × Top-Mounted Fans with Thermal Switch (activates at 86°F / 30°C) |
| Maximum Equipment Depth | 23 in. (58.4 cm) |

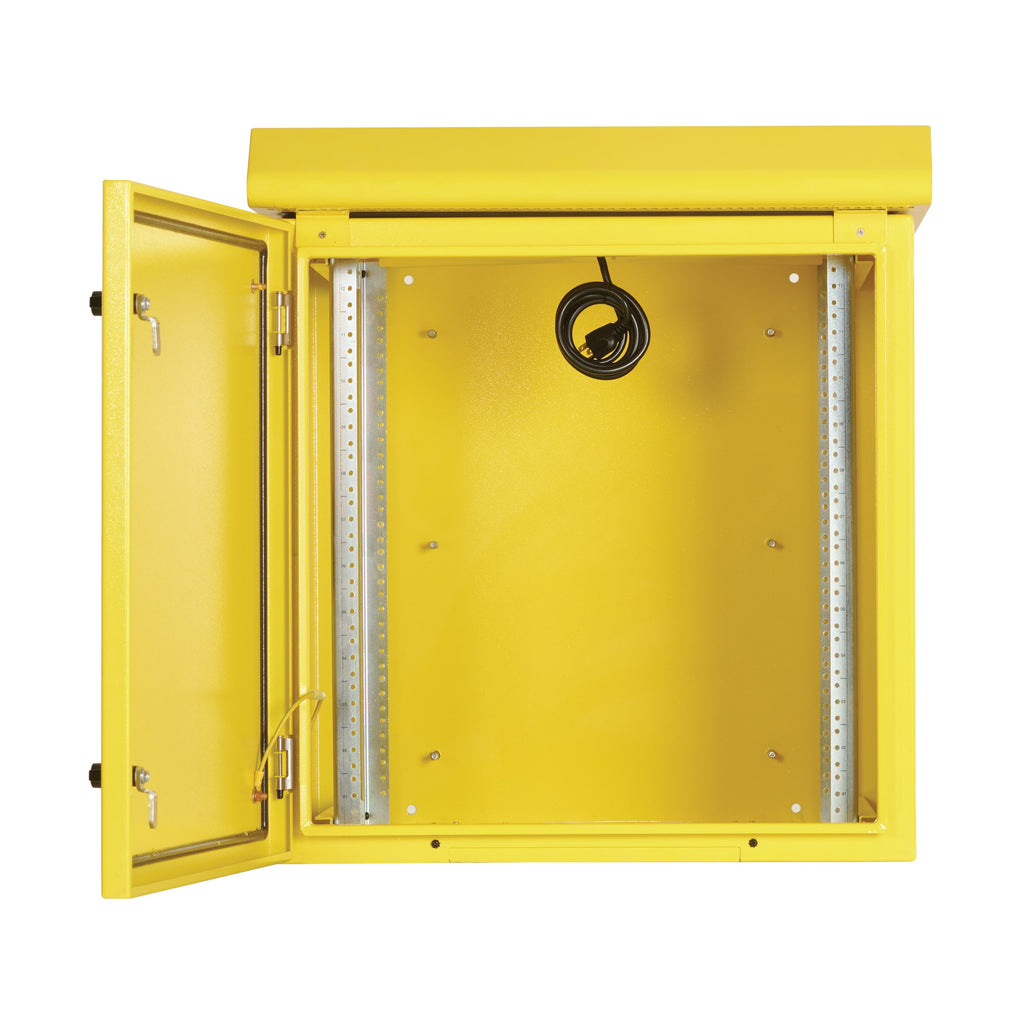

| Adjustable Mounting Rails | Yes (front and rear) |
| Locking Mechanism | Keyed, weather-sealed door |
| Cable Access | Sealed bottom conduit cutout (compatible with gland plates) |
| Weight Capacity (Stationary) | 200 lbs (91 kg) |
| Unit Dimensions (H × W × D) | 28.49 × 25.17 × 27.73 in. (72.36 × 63.93 × 70.43 cm) |
| Unit Weight | 96.28 lbs (43.67 kg) |
| Shipping Dimensions (H × W × D) | 34.53 × 28.00 × 31.00 in. (87.71 × 71.12 × 78.74 cm) |
| Shipping Weight | 175 lbs (79.38 kg) |
| Device Compatibility | Servers, PDUs, Network Switches, Patch Panels, DVRs |
| Grounding | Cabinet body |
| Certifications | UL 508A, CAN/CSA-C22.2 No. 286 |
| Compliance | RoHS, REACH, EIA/ECA-310-E |
| Warranty | 5-Year Limited Warranty |
