Description

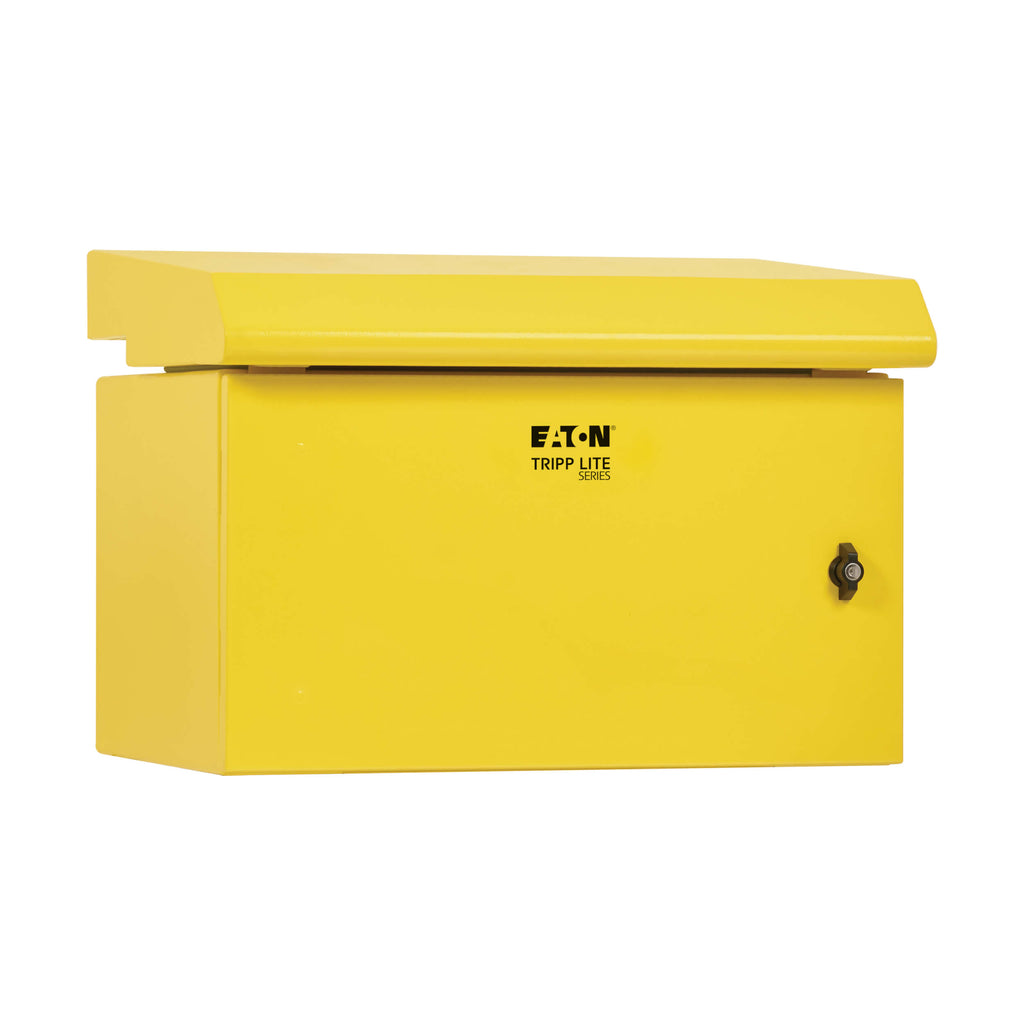

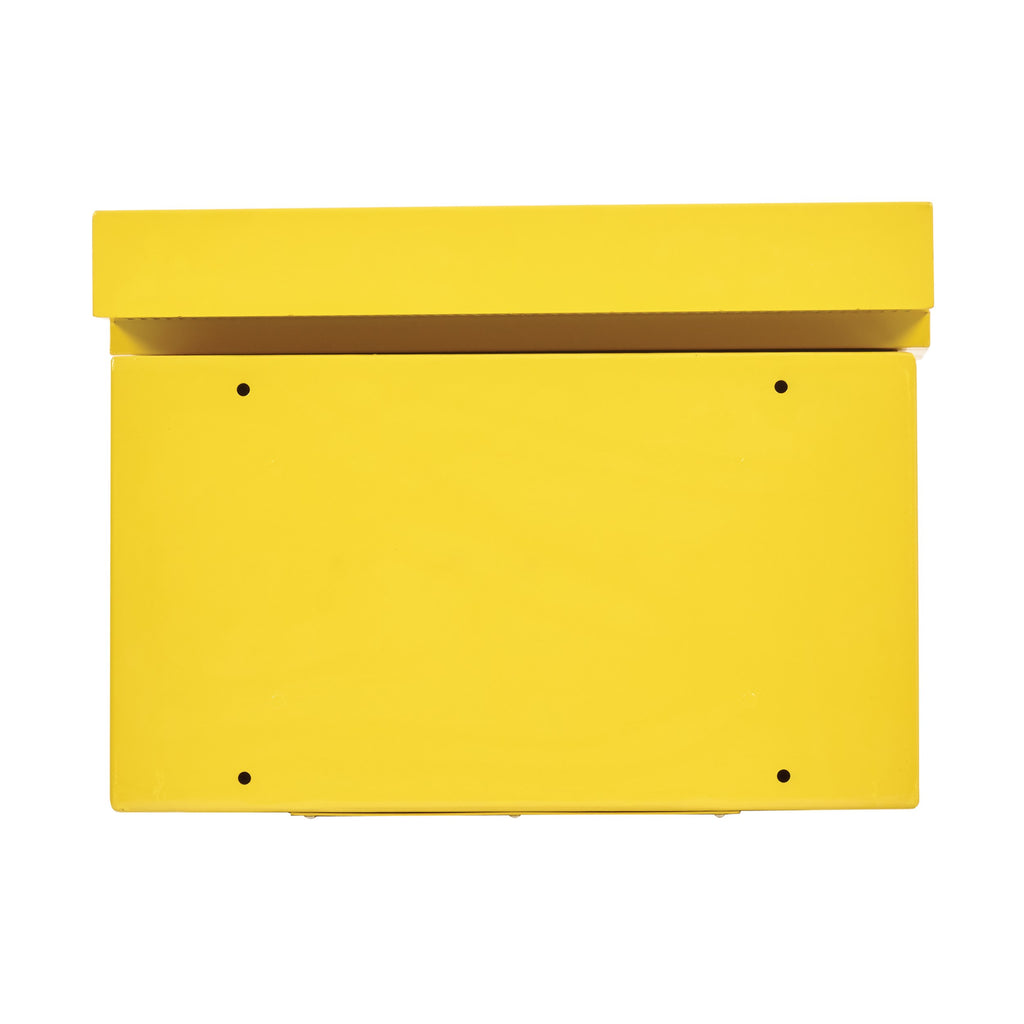

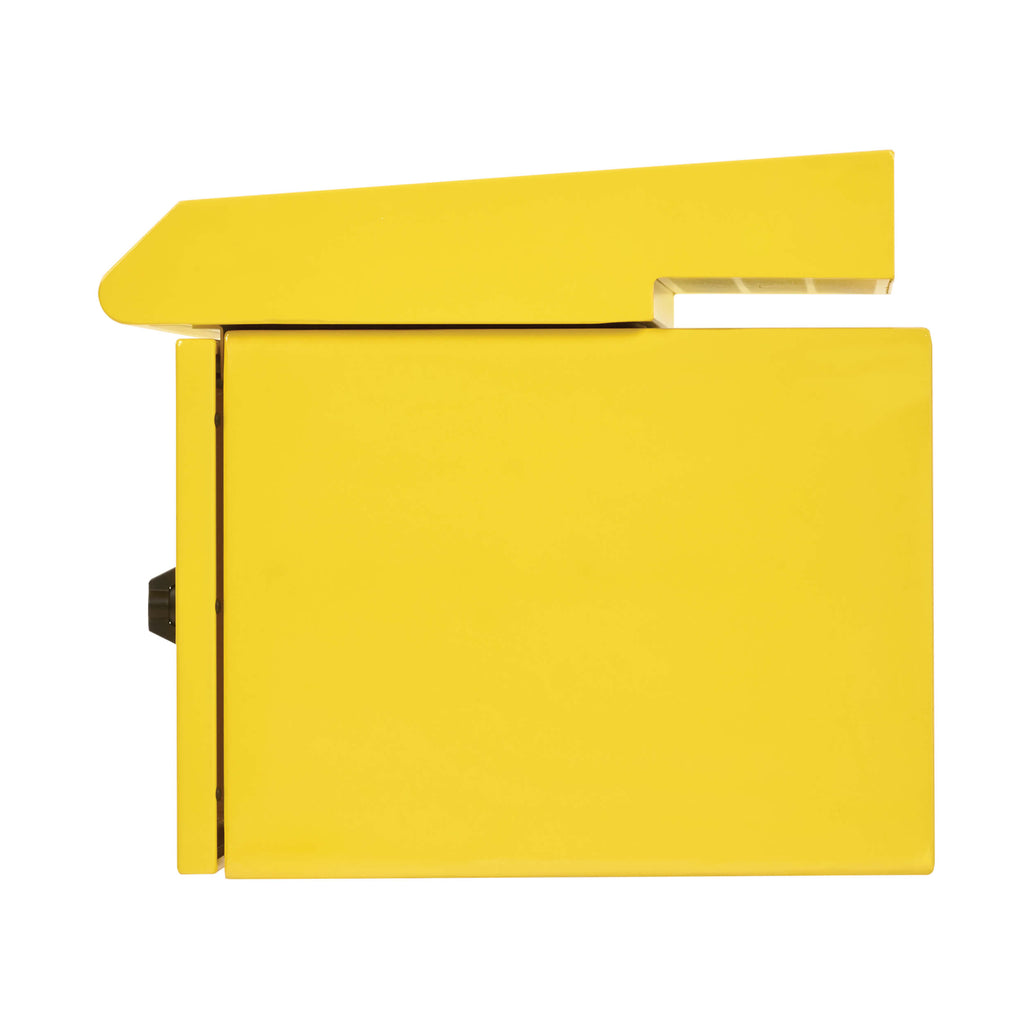

The Eaton Tripp Lite SmartRack SRN3RY6U is a rugged 6U wall-mount industrial enclosure designed to protect critical rack-mount equipment in demanding indoor or outdoor environments. Built from heavy-duty powder-coated steel, this enclosure provides secure housing for network switches, patch panels, PDUs, and other 19-inch rack equipment up to 16.5 inches deep.
Rated NEMA 3R, the enclosure protects equipment from rain, sleet, snow, falling debris, and ice formation, making it ideal for industrial sites, utilities, transportation facilities, warehouses, and first-responder installations. A locking, gasketed door helps prevent unauthorized access, tampering, and theft.
To support reliable operation, the SRN3RY6U includes top-mounted cooling fans with an integrated thermal switch that automatically activates airflow when internal temperatures rise. Adjustable front and rear mounting rails simplify installation, while sealed cable entry points allow organized and protected routing of power and data cables.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model Number | SRN3RY6U |
| Rack Height | 6U |
| Rack Width | 19 in |
| Mount Type | Wall-Mount |
| Enclosure Rating | NEMA 3R |
| Maximum Equipment Depth | 16.5 in (18 in max adjustable) |
| Weight Capacity | 200 lb (91 kg) |
| Material | Powder-Coated Steel |
| Color | Yellow |
| Door Type | Locking, Gasketed |
| Cooling | Dual top-mounted fans with thermal switch |
| Fan Activation | Automatic at 86°F (30°C) |
| Mounting Rails | Adjustable front and rear rails |
| Cable Entry | Sealed cut-out (gland plates optional) |
| Indoor / Outdoor Use | Yes |
| Certifications | UL 508A, CSA |
| Compliance | RoHS, REACH |
| Unit Dimensions (H × W × D) | 17.99 × 25.17 × 20.76 in |
| Unit Weight | 73.5 lb |
| Warranty | 5-Year Limited Warranty |
