Description
The Eaton Tripp Lite SmartRack SRN3RG6UDP is a rugged 6U wall-mount industrial enclosure designed to protect critical rack-mounted equipment in demanding indoor and outdoor environments. Built from heavy-duty powder-coated steel, this NEMA 3R-rated enclosure safeguards network switches, patch panels, PDUs, servers, and UPS systems from rain, sleet, snow, dust, and unauthorized access.

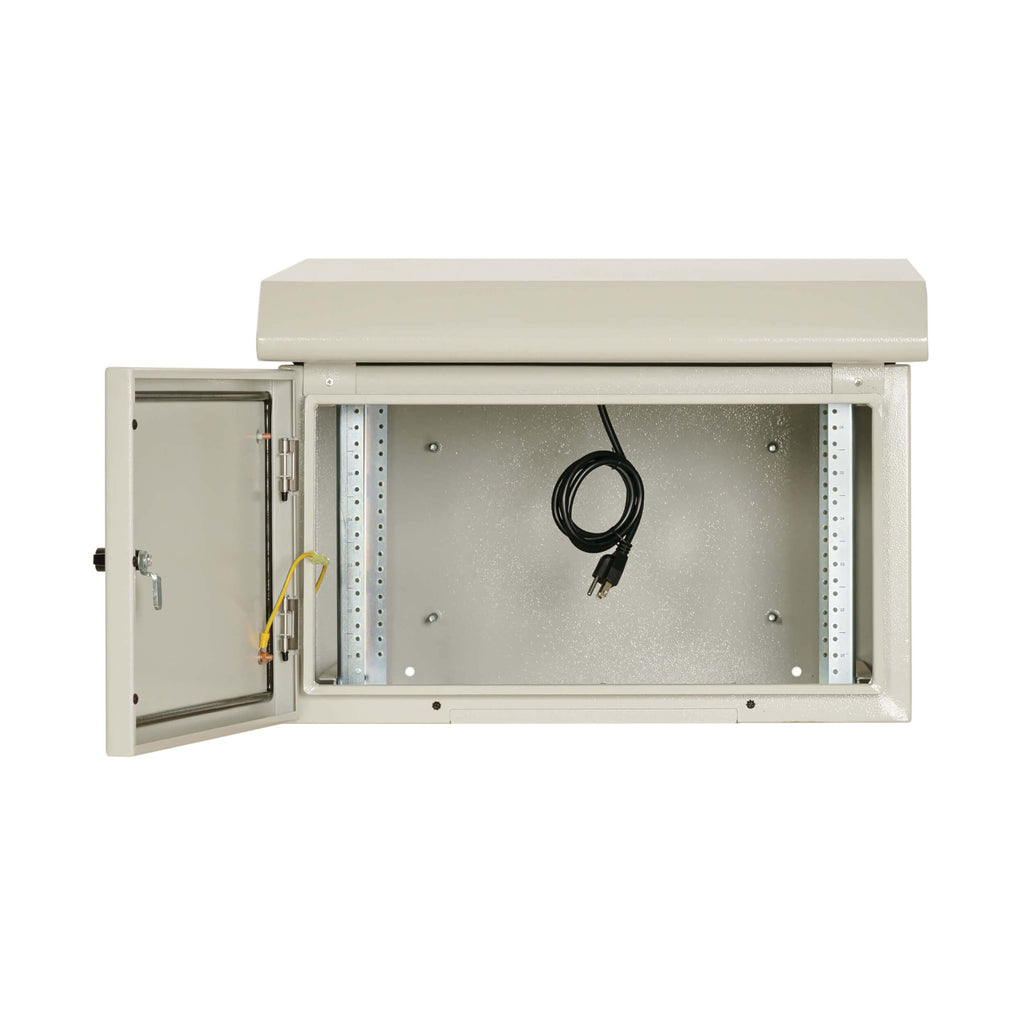

With adjustable front and rear mounting rails supporting equipment up to 20.5 inches deep, the enclosure offers flexible installation for a wide range of 19-inch rack devices. Integrated top-mounted cooling fans with an automatic thermal switch activate at elevated temperatures to maintain optimal airflow and extend equipment lifespan. A locking, gasketed door and sealed cable entry ensure secure, weather-resistant operation in industrial sites, utilities, warehouses, transportation hubs, and other harsh locations.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Product Line | SmartRack |
| Model | SRN3RG6UDP |
| Rack Height | 6U |
| Rack Width | 19-inch standard |
| Mount Type | Wall-mount |
| Enclosure Rating | NEMA 3R |
| Material | Powder-coated steel |
| Color | Gray |
| Maximum Load Capacity | 200 lb (91 kg) |
| Maximum Equipment Depth | 20.5 in (adjustable rails) |
| Minimum Equipment Depth | 3 in |
| Cooling | Dual top-mounted fans with thermal switch |
| Fan Activation | Automatic at 86°F (30°C) |
| Door Type | Locking, gasketed metal door |
| Lock Type | Keyed |
| Cable Entry | Sealed bottom cut-out |
| Grounding | Cabinet body grounding |
| Outdoor Rated | Yes |
| Assembly | Ships fully assembled |
| Certifications | UL 508A, CSA |
| Environmental Compliance | RoHS, REACH |
| Warranty | 5-year limited |
