Description

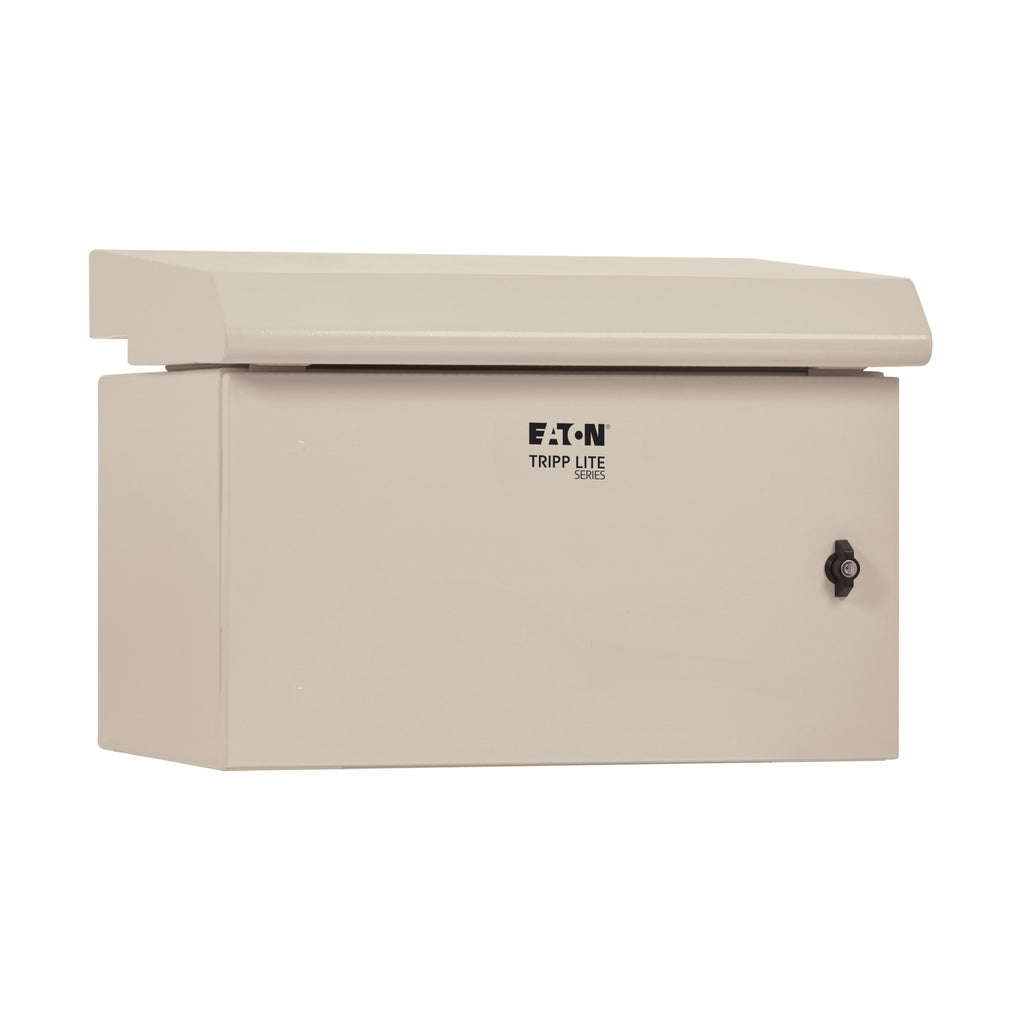

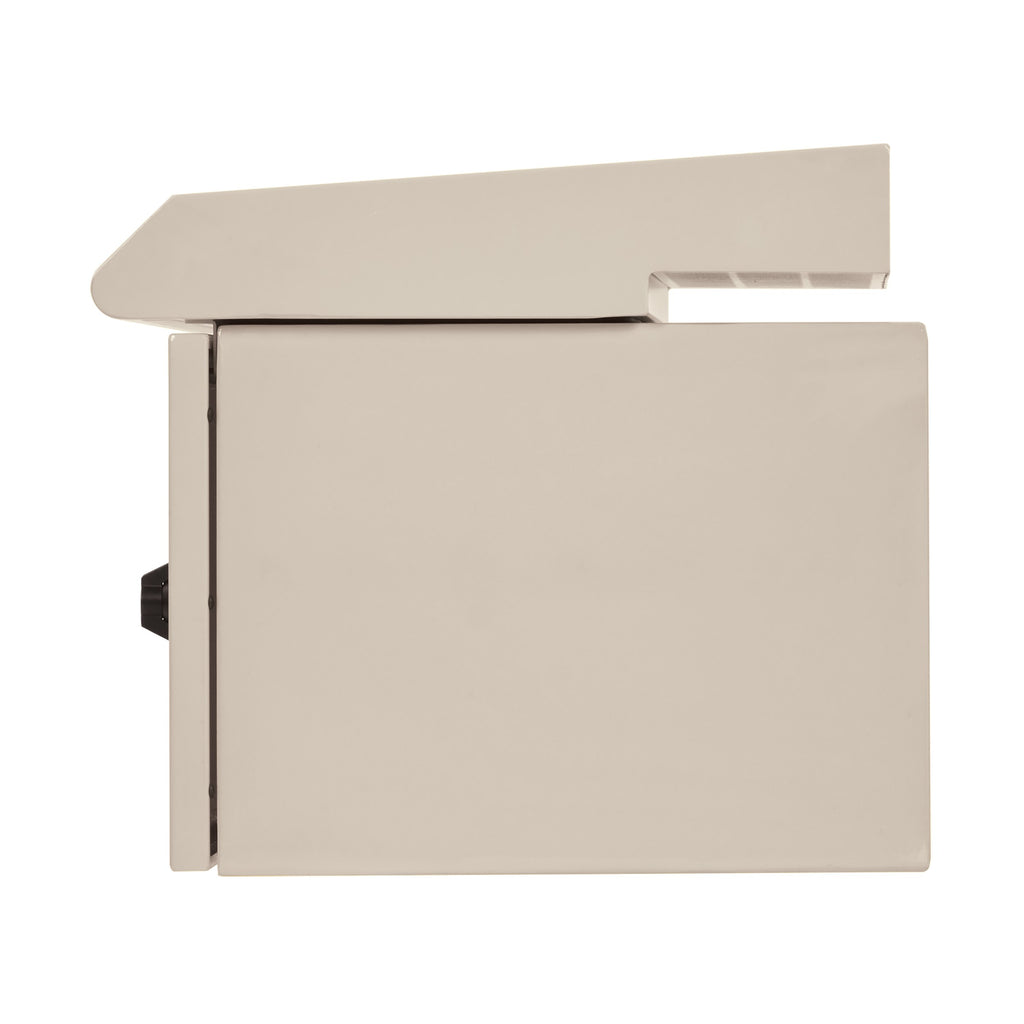

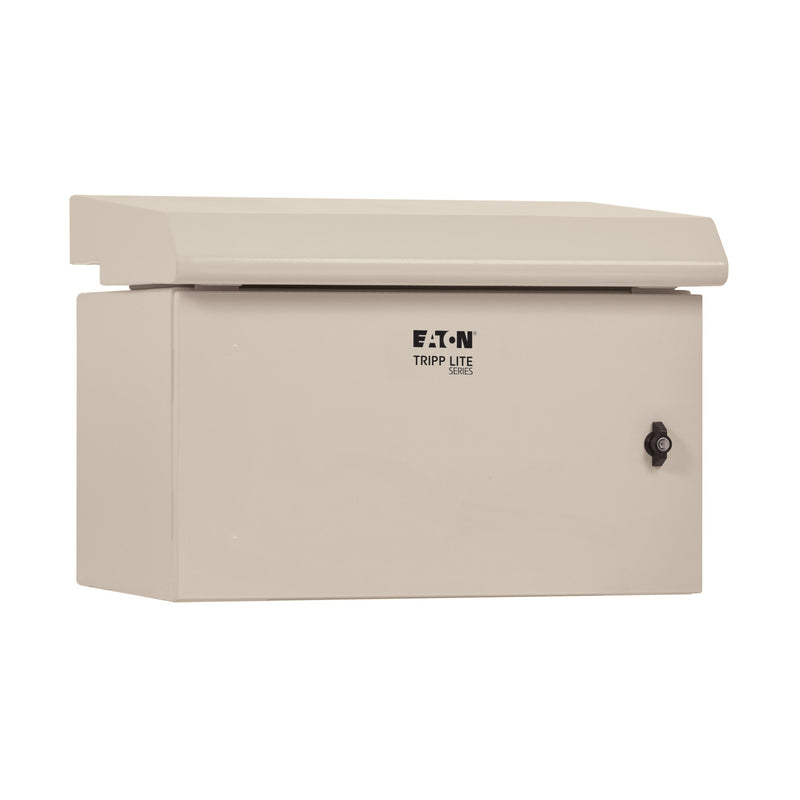

The Eaton SmartRack SRN3RG6US is a rugged 6U wall-mount industrial enclosure engineered to protect sensitive rack-mount equipment in demanding indoor and outdoor environments. Designed with a NEMA 3R protection rating, it safeguards components against rain, sleet, snow, dust, and ice formation—making it ideal for use in factories, power stations, warehouses, and transportation hubs.

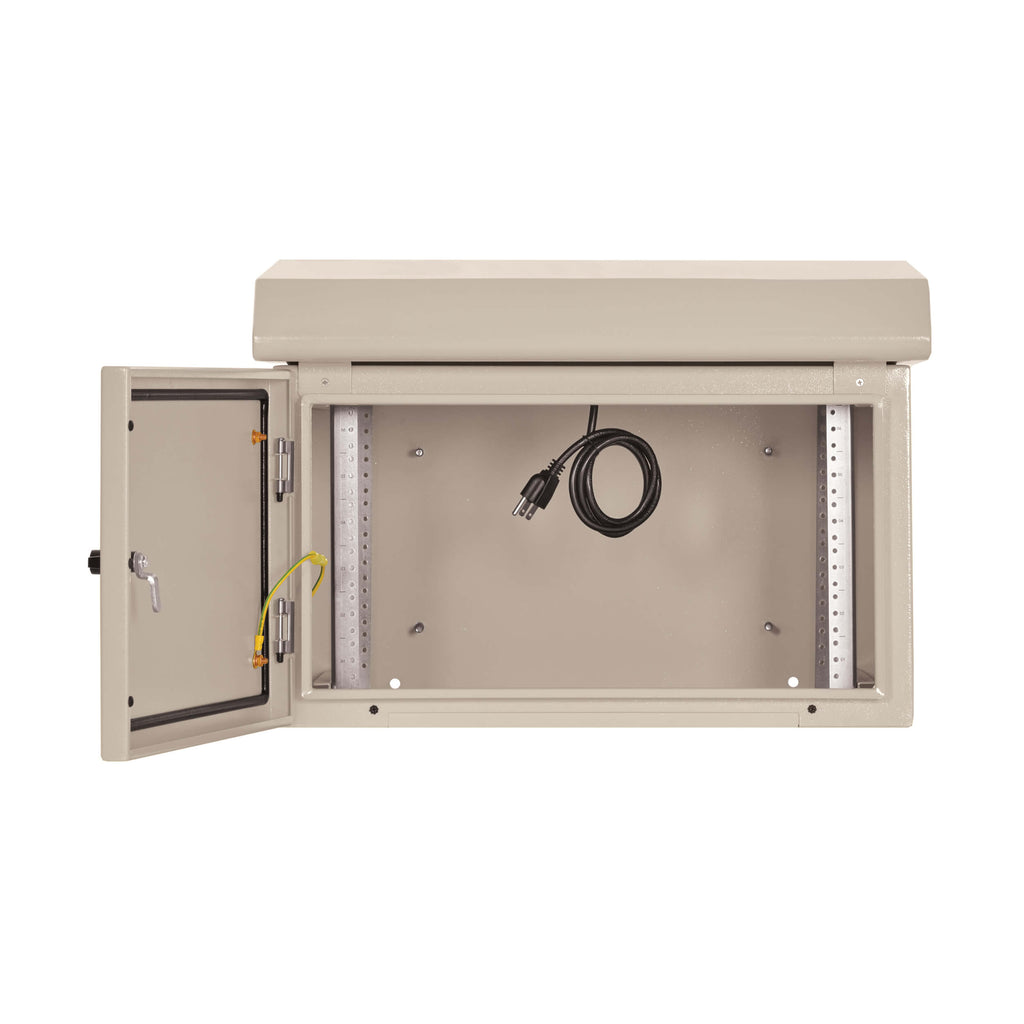

Built from powder-coated steel with a lockable door and a hinged back, this enclosure ensures secure yet convenient access for authorized personnel. Adjustable front and rear rails support equipment up to 28 inches deep and 200 lb (90.7 kg) in weight. Integrated dual 150 mm top-mounted fans with a thermal switch activate automatically at 86°F (30°C) to maintain optimal airflow and prevent overheating.
With its sealed cable entry points, fully welded frame, and pre-assembled design, the SRN3RG6US offers a reliable, space-saving solution for industrial network and power equipment installations.
| Category | Specification |
|---|---|
| Model Number | SRN3RG6US |
| Rack Units | 6U |
| Rack Type | Wall-mount, small enclosure |
| Protection Rating | NEMA 3R |
| Material | Powder-coated steel |
| Color | Gray |
| Mounting Location | Wall |
| Maximum Equipment Depth | 30 in (762 mm) |
| Factory Preset Depth | 20 in (508 mm) |
| Load Capacity | 200 lb (90.7 kg) |
| Cooling System | (2) 150 mm top-mounted fans with thermal switch (86°F / 30°C) |
| Lock Type | Keyed locking door |
| Access Design | Hinged back for easy rear access |
| Cable Entry | Sealed cut-out (compatible with gland plates) |
| Outdoor Use | Yes |
| Grounding | Cabinet body grounding |
| Certifications | UL 508A; CAN/CSA-C22.2 No. 286 |
| Compliance | RoHS; REACH; EIA/ECA-310-E |
| Dimensions (H × W × D) | 17.99 × 25.17 × 32.13 in (45.7 × 63.9 × 81.6 cm) |
| Weight | 116.2 lb (52.7 kg) |
| Shipping Weight | 165 lb (74.8 kg) |
| Warranty | 5-year limited warranty |
| Included Accessories | (24) 10-32 screws, (24) M6 washers, (4) LDPE plugs, (4) foam washers, (2) keys, owner’s manual |
