Description

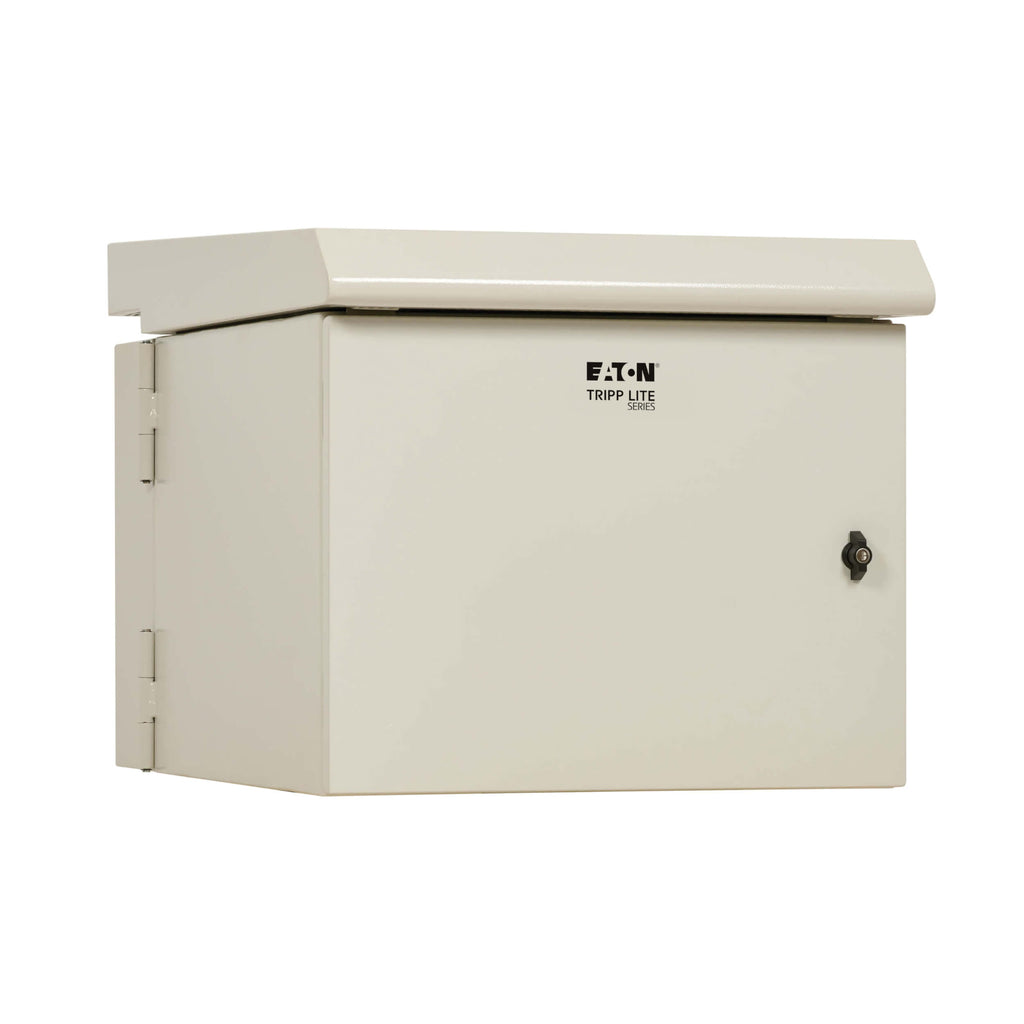

The Eaton Tripp Lite SRN3RG9USDP SmartRack Industrial Enclosure provides secure, weather-resistant housing for up to 9U of 19-inch rack-mount equipment in harsh indoor or outdoor environments. Built from durable, powder-coated steel with a NEMA 3R-rated enclosure, it safeguards critical IT, AV, and networking hardware against water, dust, ice, and physical tampering.

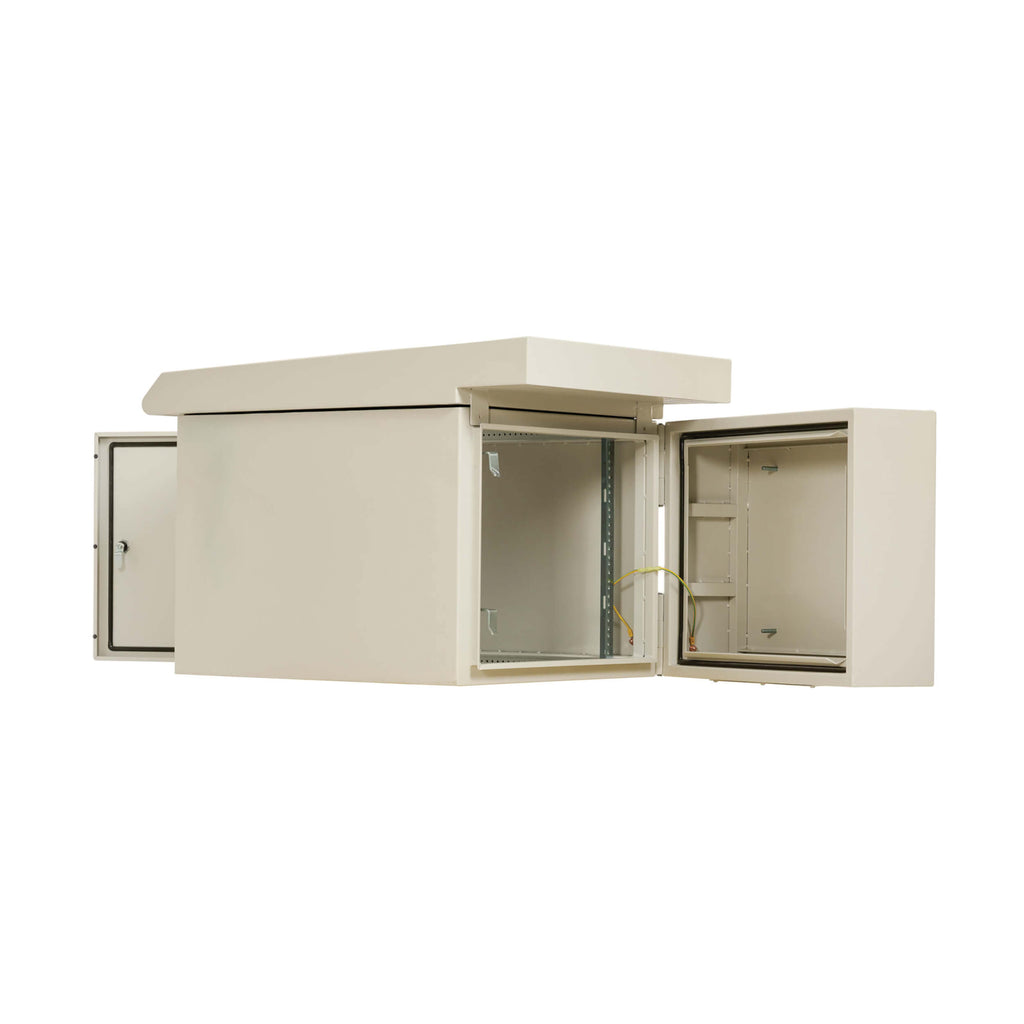

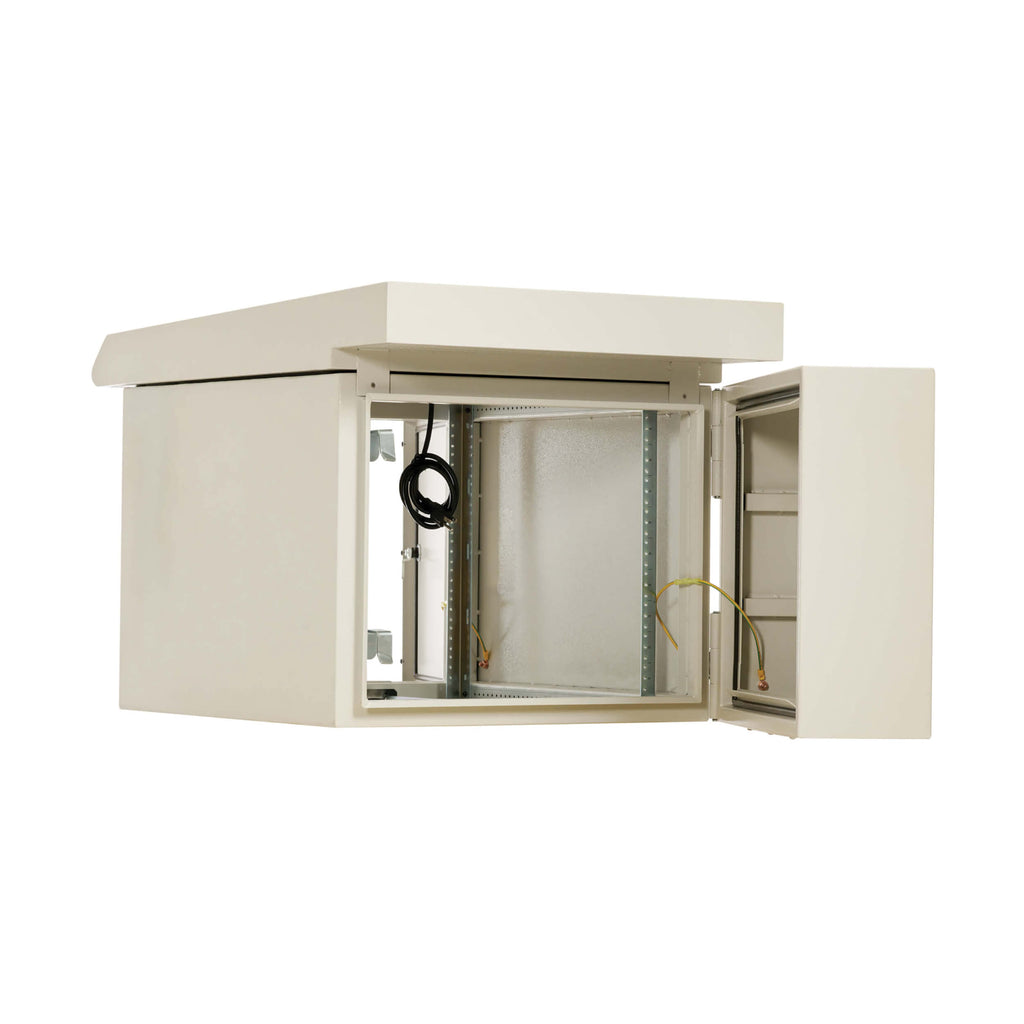

Ideal for factories, power plants, utility sites, and transportation terminals, this wall-mounted cabinet supports equipment up to 32 inches deep with a maximum load capacity of 200 lbs. The locking door and hinged back provide convenient, secure access to internal components and cabling, while dual top-mounted fans with a thermal switch automatically activate above 86°F (30°C) to maintain optimal operating temperature.

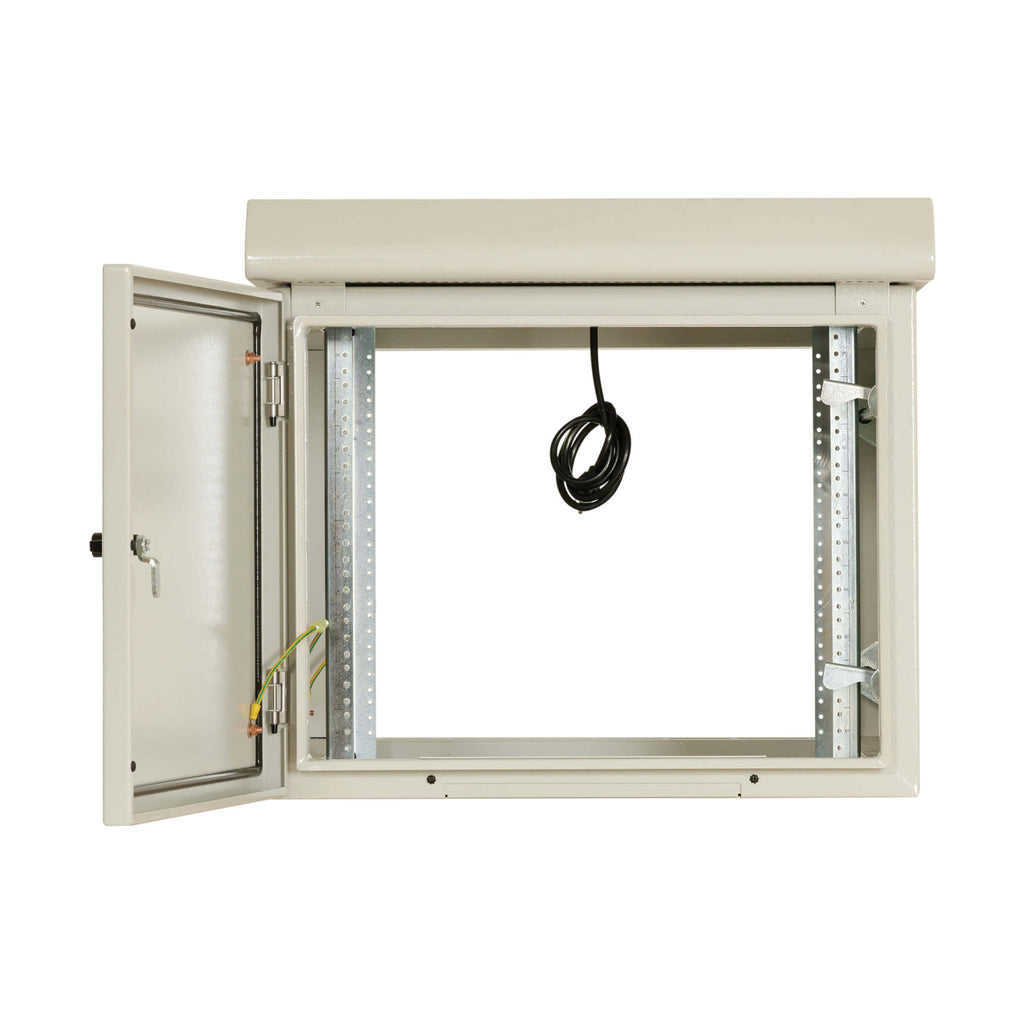

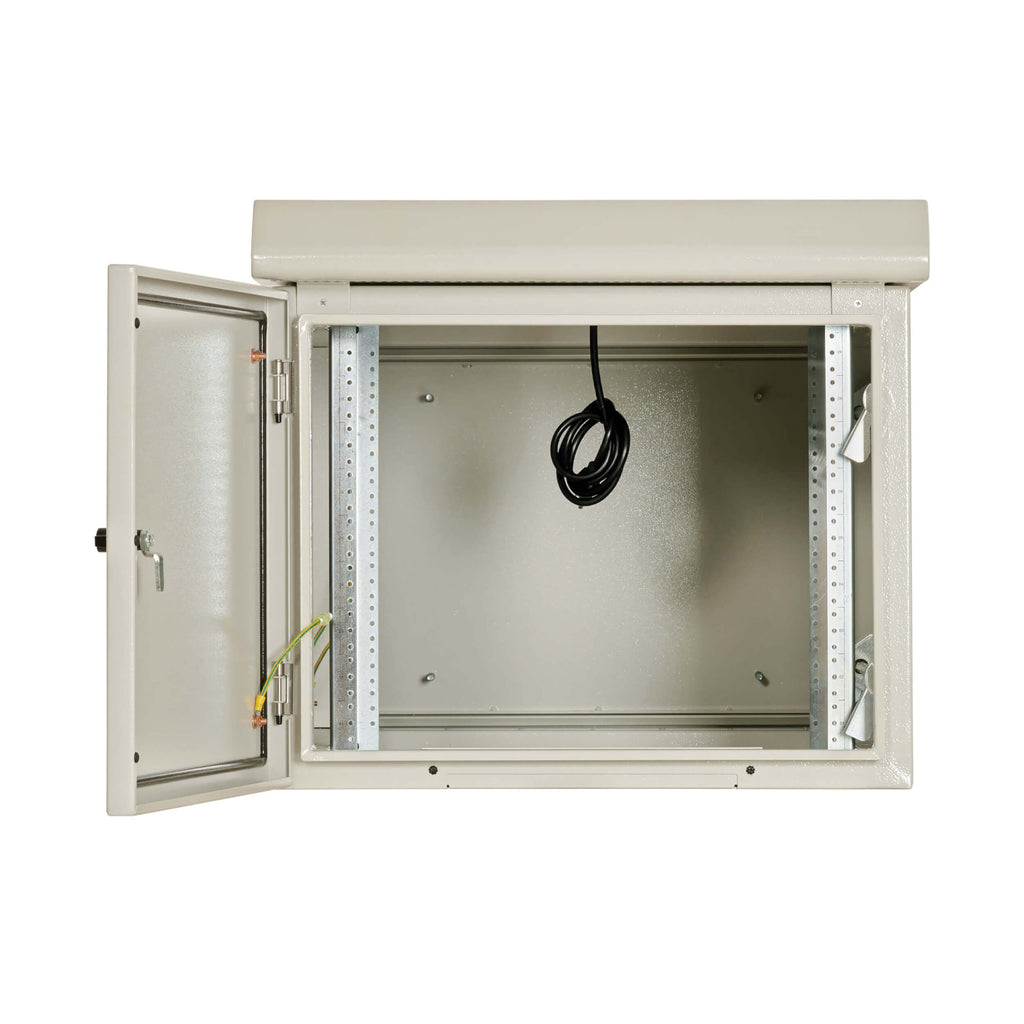

The SRN3RG9USDP ships fully assembled for quick installation and includes adjustable mounting rails, fan assembly, and mounting hardware—ensuring long-term reliability and efficient thermal management for industrial-grade applications.
| Category | Specification |
|---|---|
| Model Number | SRN3RG9USDP |
| Brand | Eaton Tripp Lite Series |
| Form Factor | Wall-Mount, Industrial Enclosure |
| Rack Height | 9U |
| Rack Depth | Up to 32 in (81.28 cm) |
| Material | Powder-Coated Steel |
| Color | Gray |

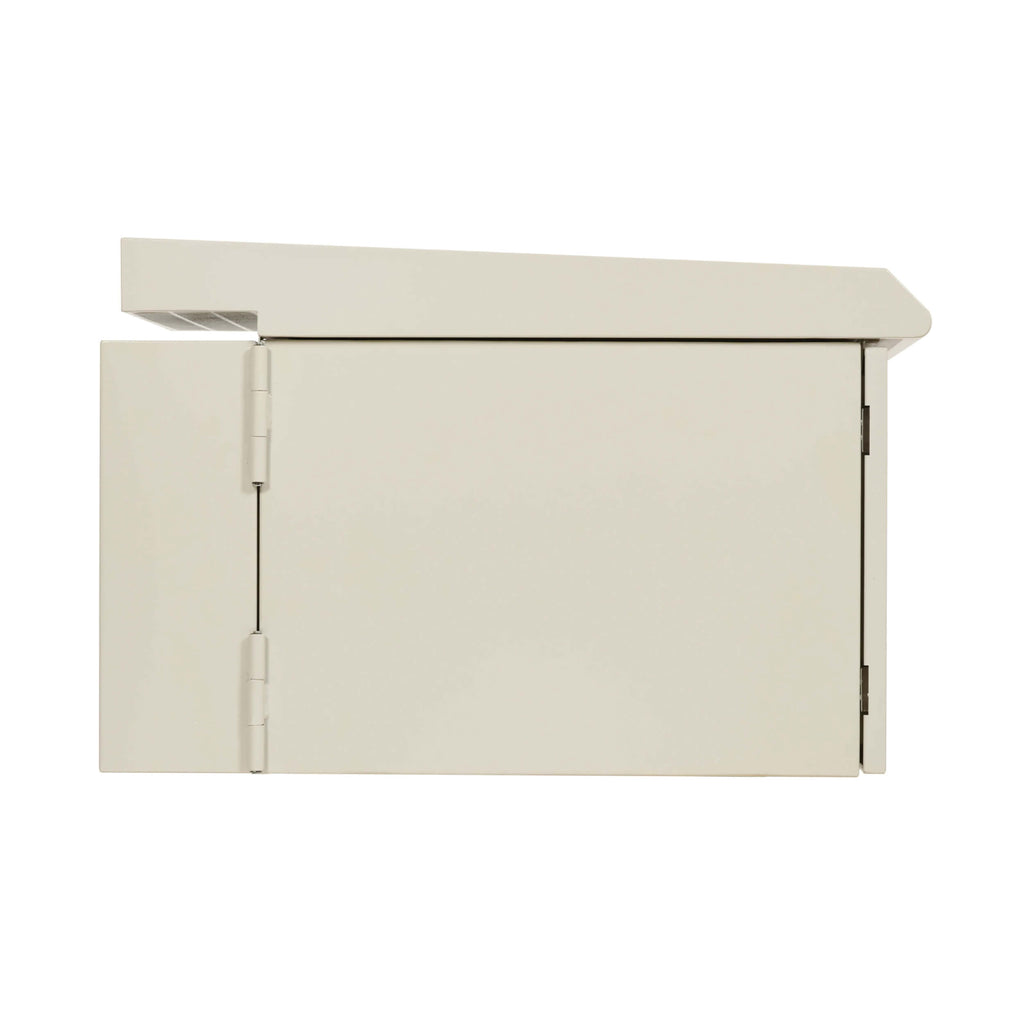

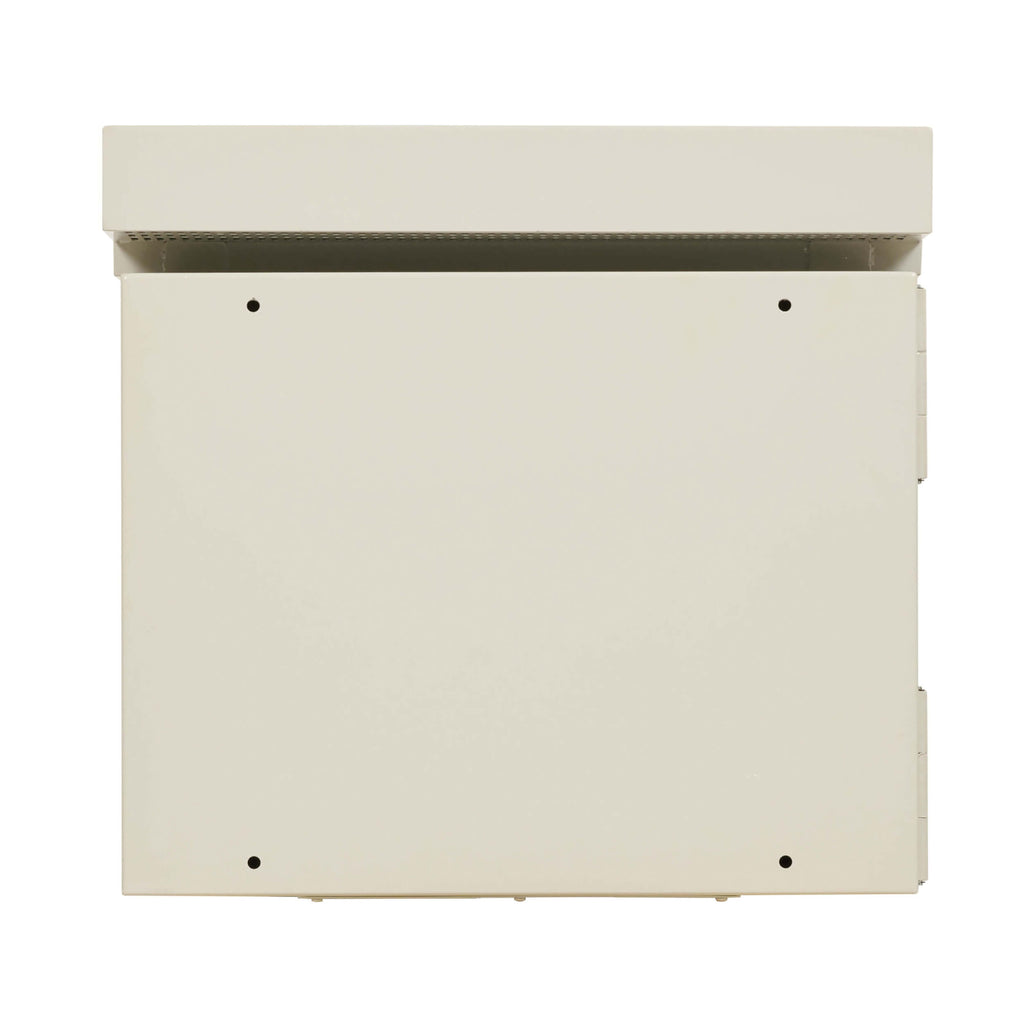

| Mounting Type | Wall-Mount, Hinged Back |
| Maximum Load Capacity | 200 lbs (90.7 kg) |
| Cooling System | (2) 150 mm Fans with Thermal Switch (Activates > 86°F / 30°C) |
| Fan Airflow | 190–210 CFM |
| Input Voltage | 120V AC (80–140V, 50/60Hz) |
| Input Plug Type | NEMA 5-15P |
| Input Cord Length | 6 ft (1.83 m) |
| Device Compatibility | Network Switch, Server, PDU, Patch Panel, UPS, DVR |
| Protection Rating | NEMA 3R |
| Locking Mechanism | Key Lock (2 Keys Included) |
| Grounding | Cabinet Body |
| Cable Entry | Sealed Cutout, Compatible with Gland Plates |
| Outdoor Use | Yes |
| Door Type | Gasketed, Locking, Hinged |
| Dimensions (H x W x D) | 23.24 x 25.17 x 36.13 in (59.03 x 63.93 x 91.77 cm) |
| Unit Weight | 143.27 lbs (64.99 kg) |
| Shipping Weight | 205 lbs (92.99 kg) |
| Certifications | UL 508A, CAN/CSA-C22.2 No. 286, RoHS, REACH, EIA/ECA-310-E |
| Warranty | 5-Year Limited Warranty |
