Description
The Eaton Tripp Lite SRN4G12USDP SmartRack® Industrial Enclosure provides secure, weather-resistant housing for sensitive IT and AV equipment in challenging environments. Designed to accommodate 12U of 19-inch rack-mount equipment up to 32 inches deep, it’s ideal for industrial, utility, or transportation applications requiring reliable protection from dust, moisture, and tampering.

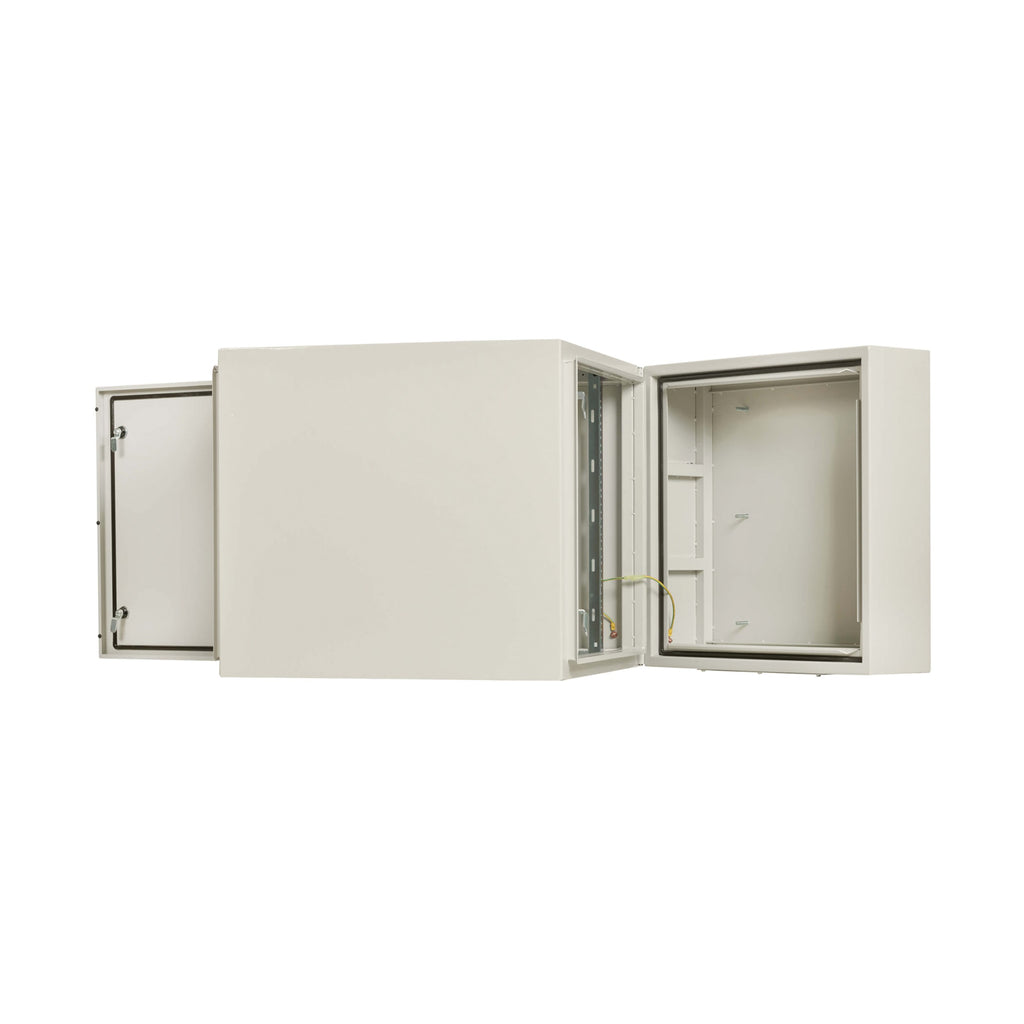

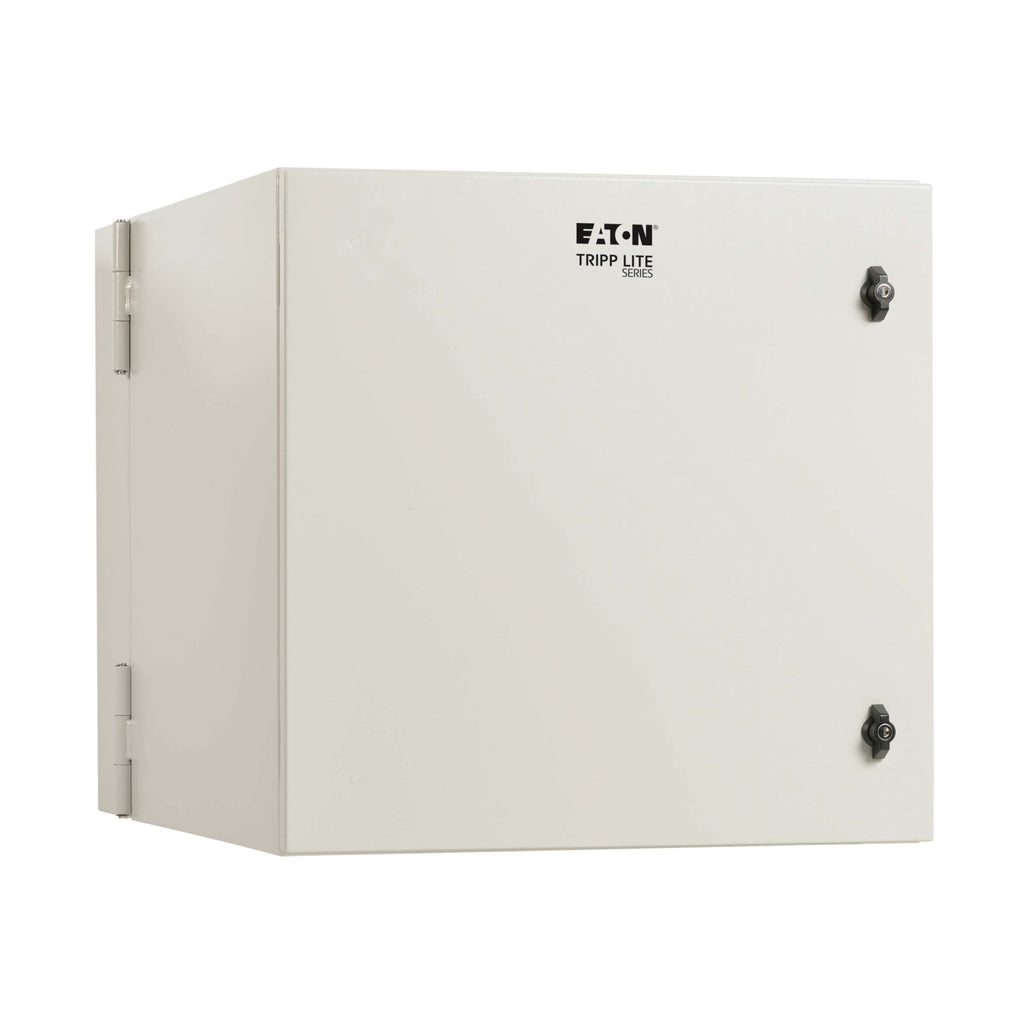

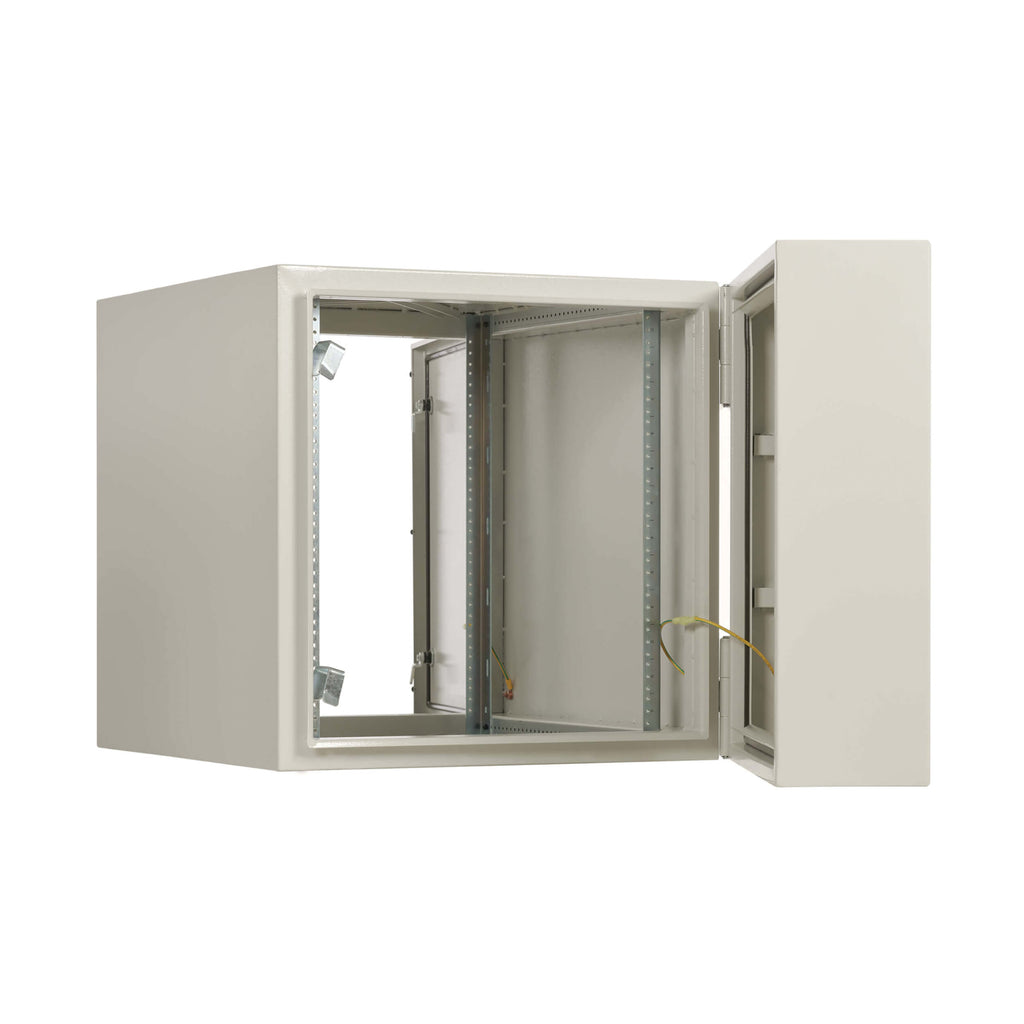

Constructed from powder-coated steel with a NEMA 4 protection rating, this wall-mount enclosure shields your equipment against water, ice, windblown dust, and debris. Its locking gasketed door ensures security while maintaining a tight seal, and the hinged design allows easy rear access for installation and maintenance. The SRN4G12USDP ships fully assembled with adjustable front and rear rails, providing a load capacity of 200 lbs (90.7 kg) for robust, dependable support in any industrial setting.
| Category | Specification |
|---|---|
| Model | SRN4G12USDP |
| Rack Type | Wall-Mount Industrial Enclosure |
| Rack Height | 12U |
| Maximum Equipment Depth | 32 in. (81.28 cm) |
| Material | Powder-Coated Steel |
| Color | Gray |
| Protection Rating | NEMA 4 (Water, Ice, Dust, and Debris Protection) |
| Load Capacity | 200 lbs (90.7 kg) |
| Mounting Location | Wall |

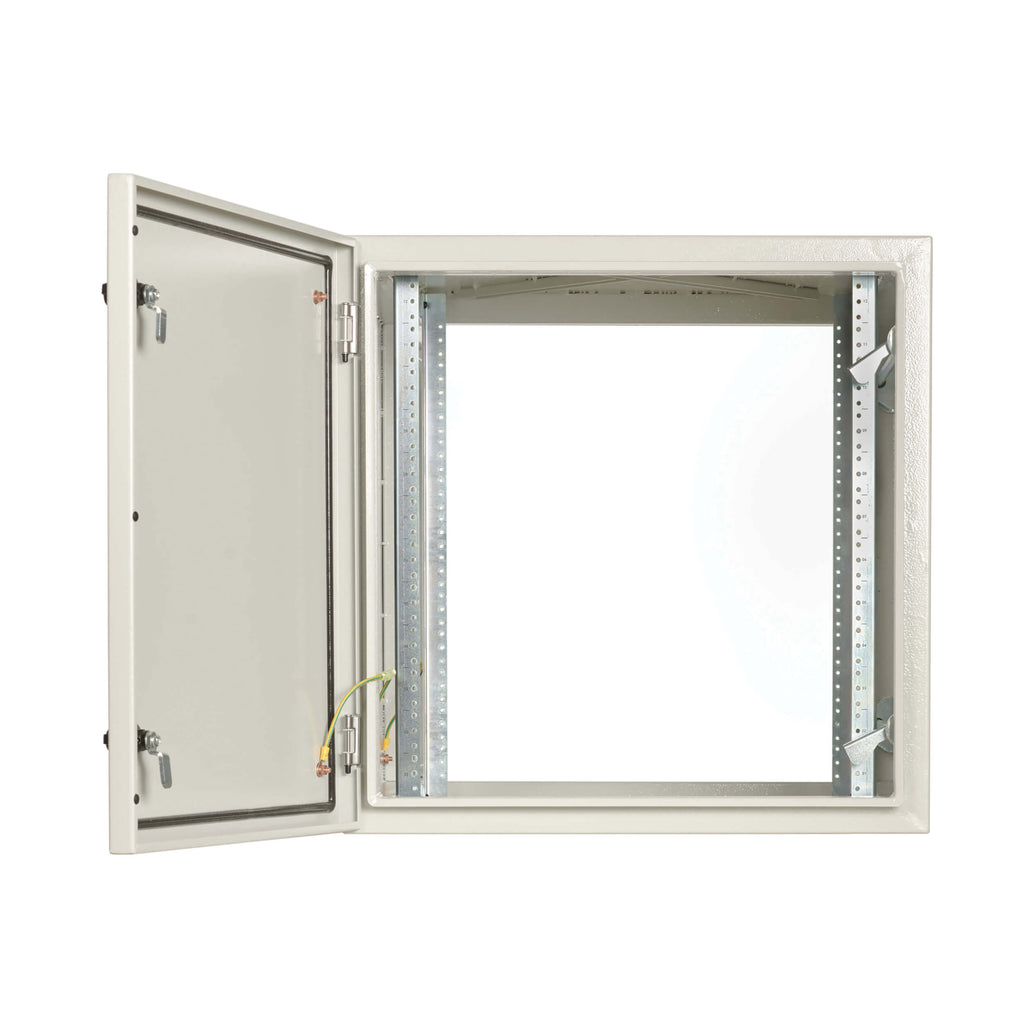

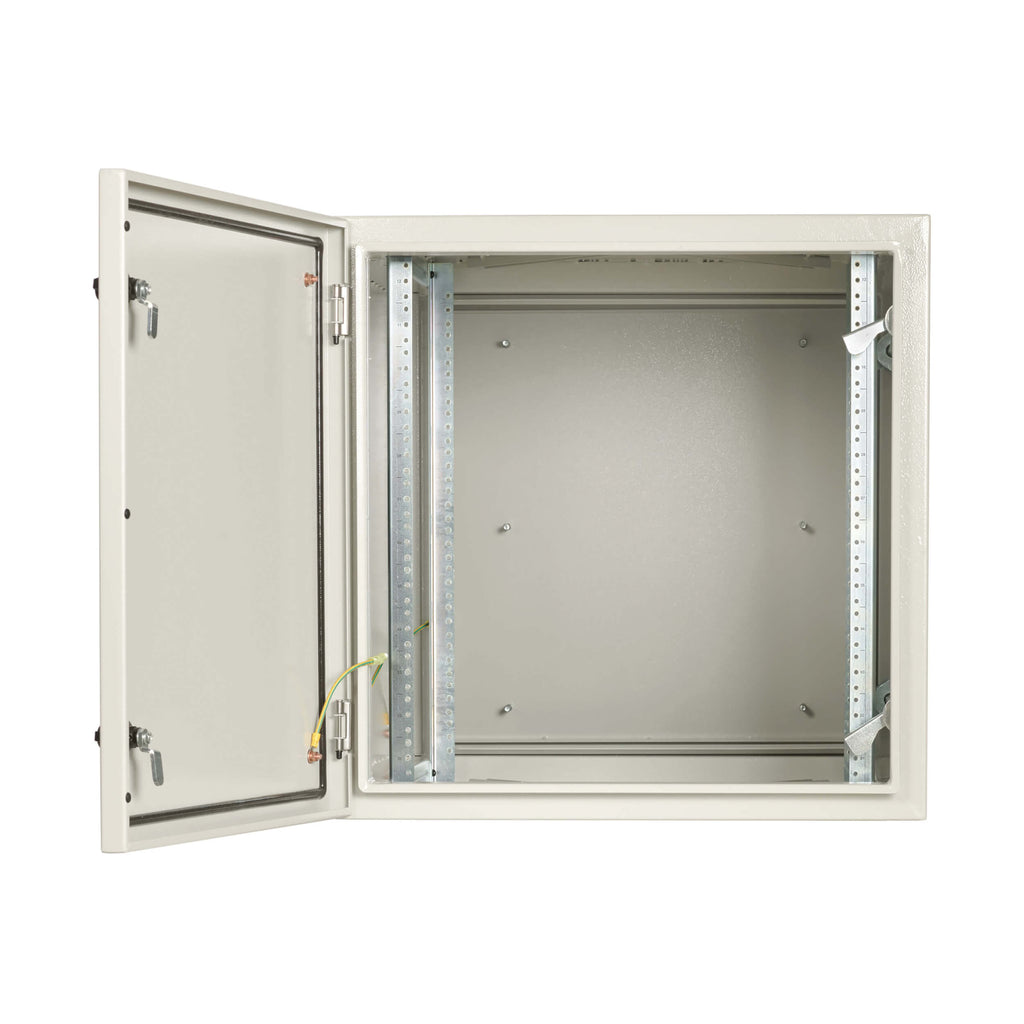

| Mounting Rails | 4 adjustable 10-32 equipment rails |
| Door Type | Lockable, Gasketed Front Door with Hinged Back Access |
| Cable Entry/Exit | Sealed bottom cutout (compatible gland plates sold separately) |
| Outdoor Use | Yes |
| Unit Dimensions (H x W x D) | 24.08 x 24.00 x 34.05 in. (61.16 x 60.96 x 86.49 cm) |
| Unit Weight | 131.72 lbs (59.75 kg) |
| Shipping Dimensions (H x W x D) | 29.33 x 28.00 x 38.00 in. (74.50 x 71.12 x 96.52 cm) |
| Shipping Weight | 200 lbs (90.72 kg) |
| Device Compatibility | DVR, Network Switch, PDU, Patch Panel, UPS |
| Compliance Standards | EIA/ECA-310-E, NEMA 4, RoHS, REACH |
| Certifications | UL 508A, CAN/CSA-C22.2 No. 286 |
| Warranty | 5-Year Limited Warranty |
