Description

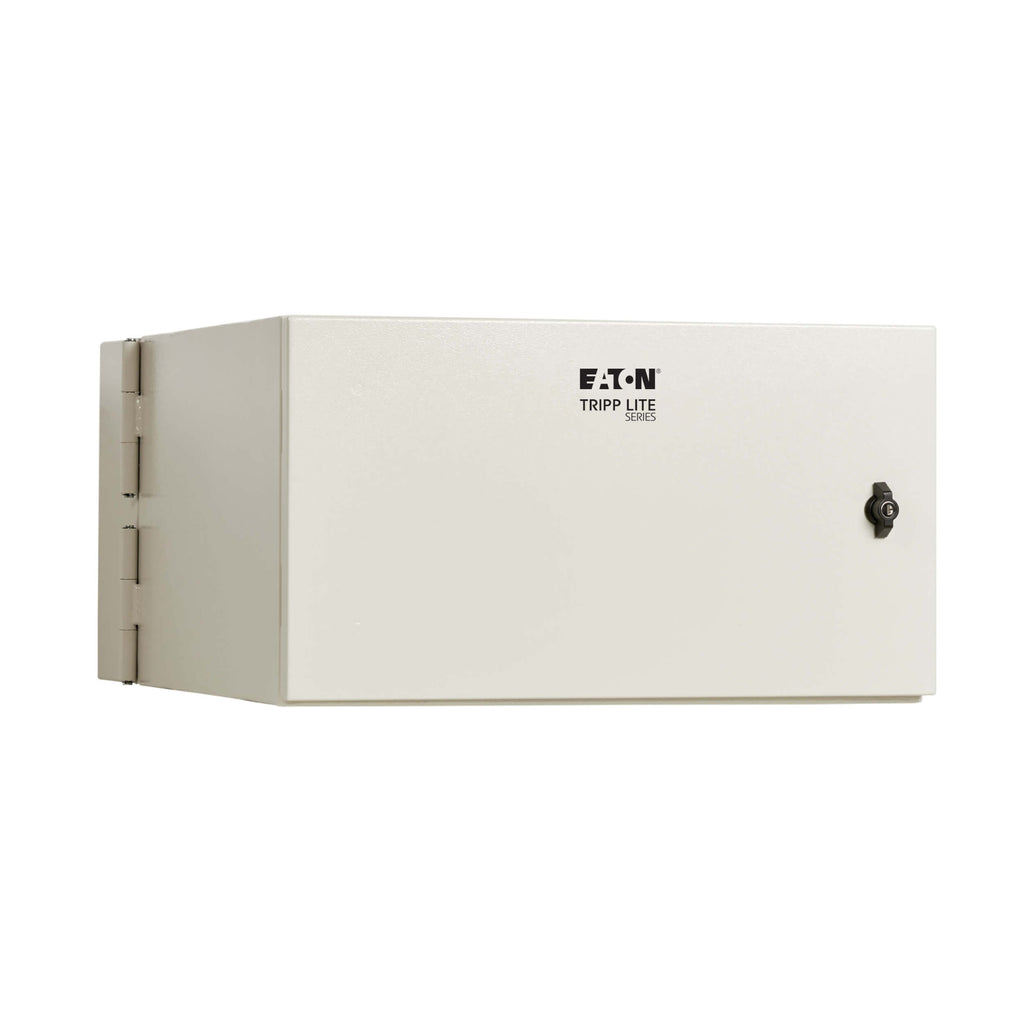

The Eaton Tripp Lite SmartRack SRN4G6US is a rugged, space-saving 6U wall-mount enclosure designed to protect critical rack-mount equipment in harsh indoor or outdoor environments. Built from powder-coated steel and rated NEMA 4, it safeguards network, power, and control hardware against water, dust, debris, and tampering.

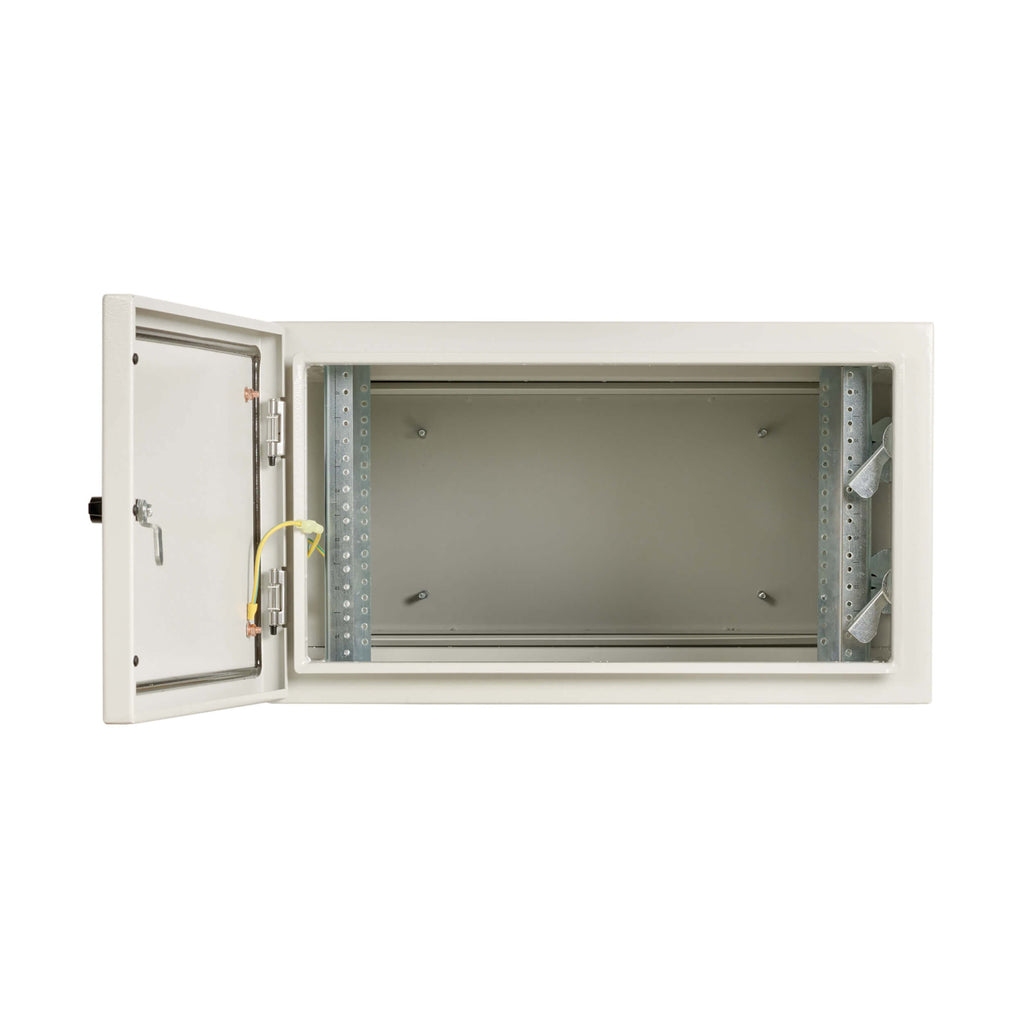

This industrial enclosure supports standard 19-inch rack equipment up to 28 inches deep and features adjustable front and rear mounting rails for flexible installation. A secure, lockable door with included keys helps prevent unauthorized access, while the hinged swing-away design allows convenient rear access for cabling, installation, and maintenance. Ideal for factories, warehouses, utility sites, transportation hubs, and other demanding locations where equipment protection and reliability are critical.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite Series |
| Model | SRN4G6US |
| Rack Height | 6U |
| Rack Width | 19 in. standard |
| Maximum Equipment Depth | 28 in. (711 mm) |
| Minimum Equipment Depth | 3 in. (76 mm) |
| Mounting Type | Wall Mount |
| Enclosure Rating | NEMA 4 |
| Material | Powder-Coated Steel |
| Color | Gray |
| Load Capacity | 200 lb (91 kg) |
| Door Type | Locking, gasketed |

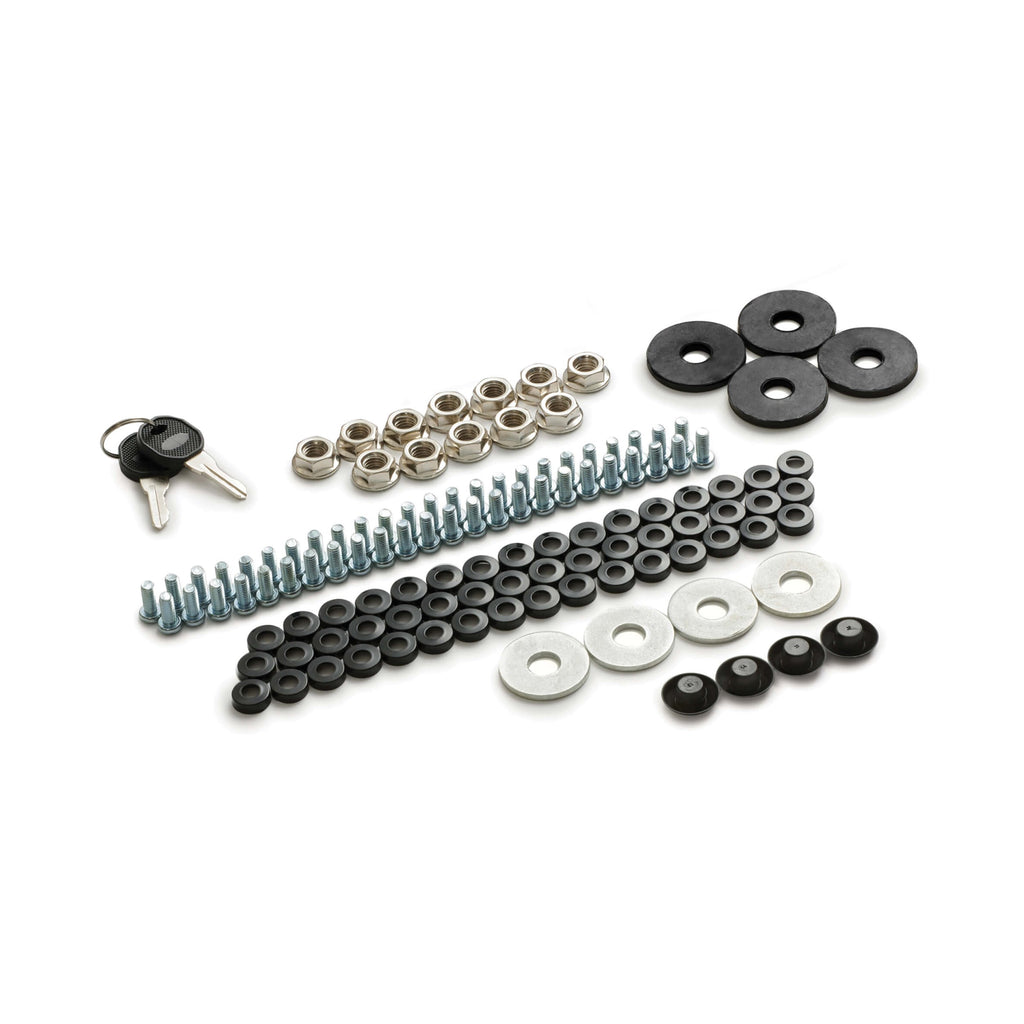

| Lock Type | Keyed lock (keys included) |

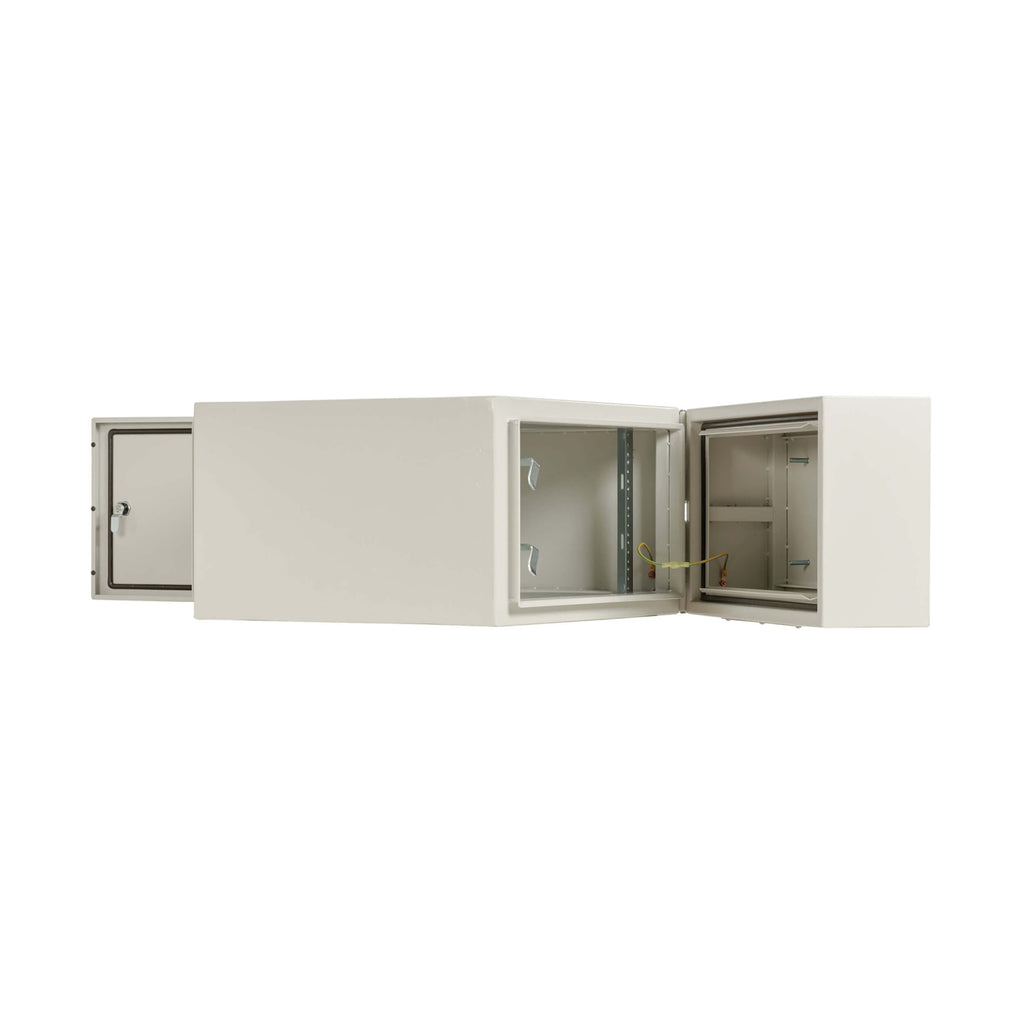

| Access | Swing-away hinged enclosure |
| Mounting Rails | Adjustable front and rear (10-32) |
| Cable Entry | Sealed cut-out (gland plates sold separately) |
| Grounding | Cabinet body grounding |
| Indoor / Outdoor Use | Yes |
| Certifications | UL, CSA, RoHS compliant |
| Assembly | Fully assembled |
