Description
The Eaton Tripp Lite SmartRack SRN4G9USDP is a rugged, wall-mount industrial enclosure engineered to protect critical rack-mount equipment in harsh indoor and outdoor environments. Designed to house up to 9U of standard 19-inch equipment, this NEMA 4-rated enclosure safeguards against water, dust, debris, and ice while maintaining secure, organized access.

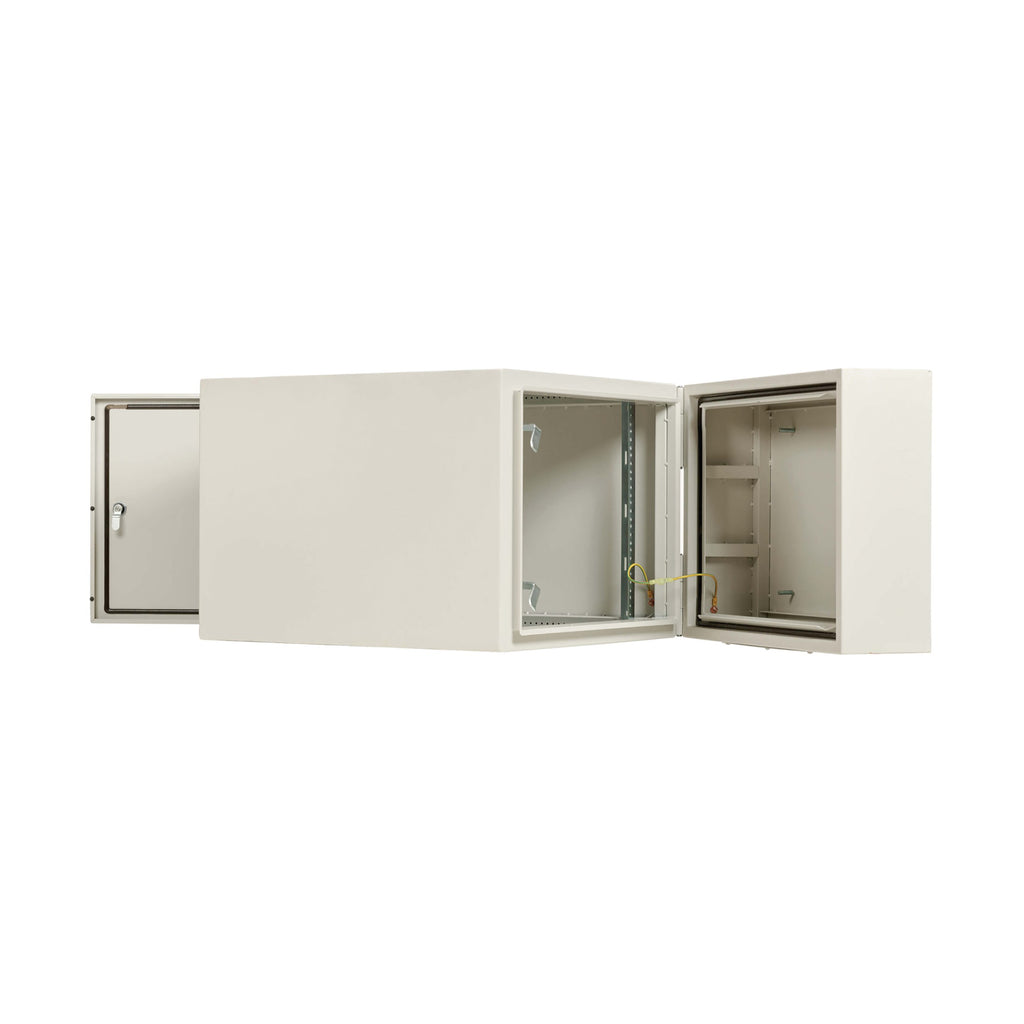

Constructed from heavy-duty powder-coated steel, the enclosure supports equipment up to 32 inches deep with a load capacity of up to 200 pounds. A lockable, gasketed door and fully welded housing help prevent unauthorized access, tampering, and environmental exposure. The hinged swing-away design provides convenient rear access for installation and maintenance, while sealed cable entry points support clean and protected cable routing.
Ideal for industrial facilities, utility rooms, warehouses, transportation hubs, and outdoor network deployments, the SRN4G9USDP delivers dependable protection for switches, patch panels, PDUs, DVRs, and UPS systems where durability and security are essential.
| Specification | Details |
|---|---|
| Manufacturer | Eaton Tripp Lite |
| Model Number | SRN4G9USDP |
| Rack Height | 9U |
| Rack Width | 19 in (EIA standard) |
| Maximum Device Depth | 32 in (813 mm) |
| Minimum Device Depth | 3 in (76 mm) |
| Enclosure Rating | NEMA 4 |
| Mounting Type | Wall Mount |
| Construction Material | Powder-Coated Steel |
| Color | Gray |
| Weight Capacity | 200 lb (91 kg) |
| Access Design | Swing-Away Hinged Enclosure |
| Locking Mechanism | Keyed Lock (keys included) |
| Cable Entry | Sealed cut-out (gland plates optional) |
| Grounding | Cabinet body grounding |
| Indoor / Outdoor Use | Yes |
| Certifications | UL 508A, CSA, RoHS, REACH |
| Warranty | 5-Year Limited Warranty |
