Description

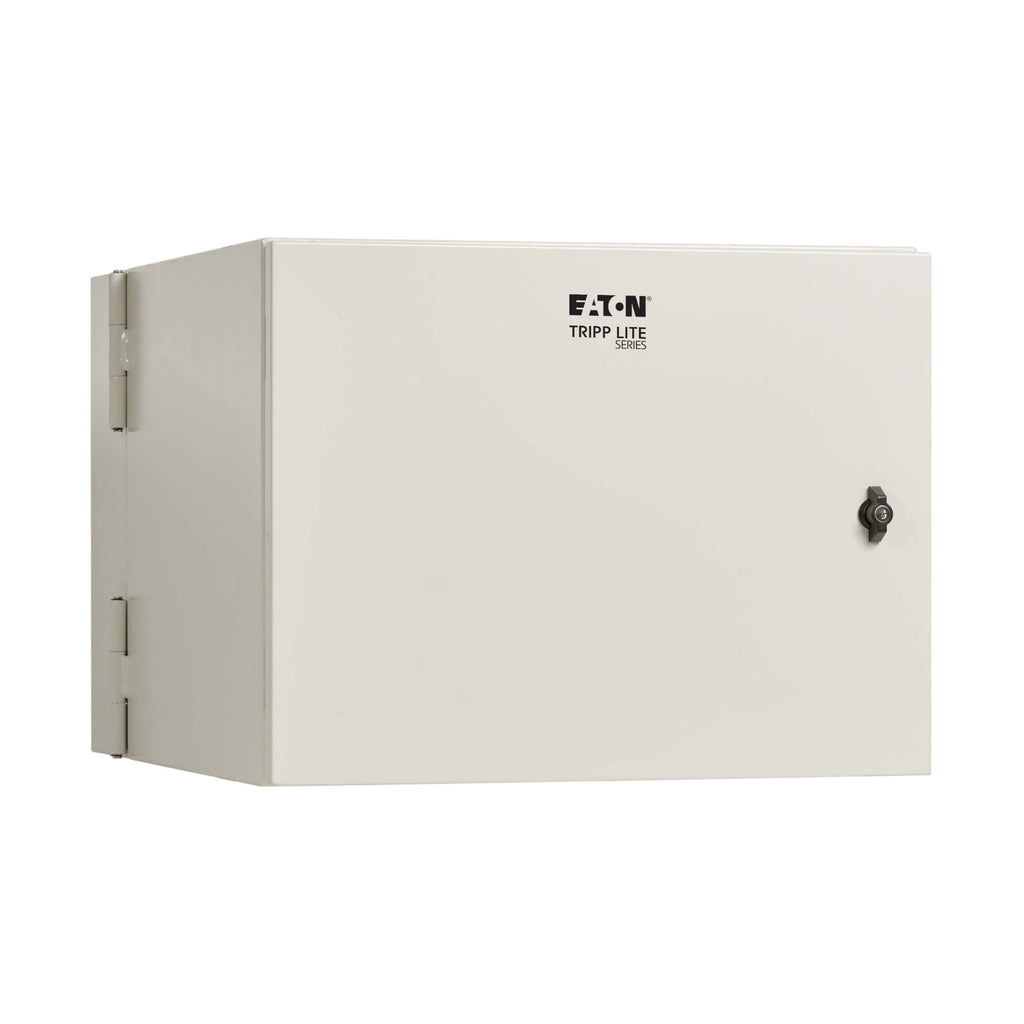

The Eaton Tripp Lite SmartRack SRN4G9US is a rugged 9U wall-mount industrial enclosure engineered to protect critical rack-mount equipment in demanding indoor or outdoor environments. Built from heavy-duty, powder-coated steel, this NEMA 4–rated enclosure safeguards sensitive hardware against water, dust, ice, tampering, and unauthorized access.

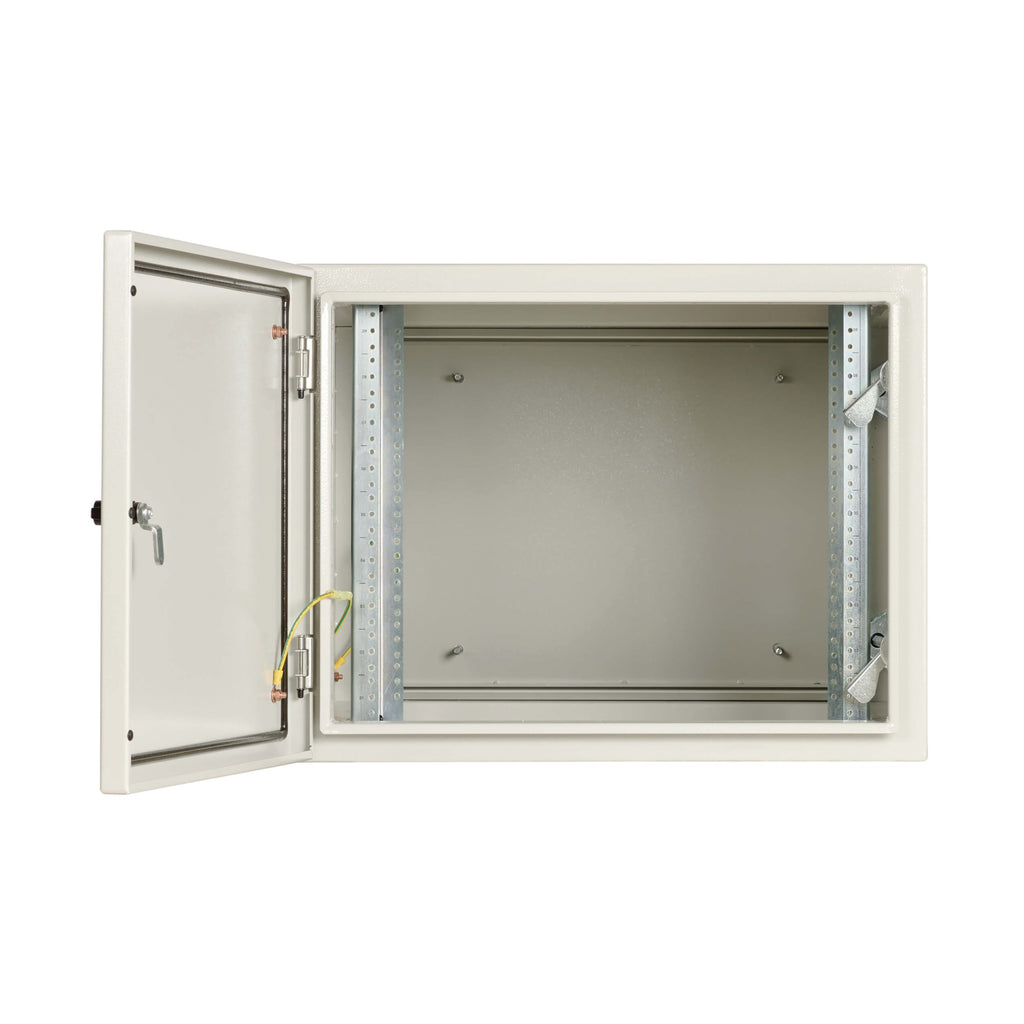

Designed to support 19-inch rack equipment up to 28 inches deep, the SRN4G9US features adjustable front and rear mounting rails and a sturdy swing-away hinged design for convenient rear access during installation and maintenance. A secure, key-locking door helps prevent theft while maintaining a clean, organized installation. Ideal for factories, warehouses, utilities, transportation hubs, and other industrial settings, this enclosure delivers reliable protection without sacrificing accessibility.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Series | SmartRack |
| Model | SRN4G9US |
| Rack Height | 9U |
| Rack Width | 19 in. standard |
| Maximum Equipment Depth | 28 in. (711 mm) |
| Minimum Equipment Depth | 3 in. (76 mm) |
| Enclosure Depth | 28 in. class |
| Load Capacity | 200 lb (90.7 kg) |
| Mounting Type | Wall mount |
| Construction Material | Powder-coated steel |
| Color | Gray |
| Door Type | Gasketed, locking door |

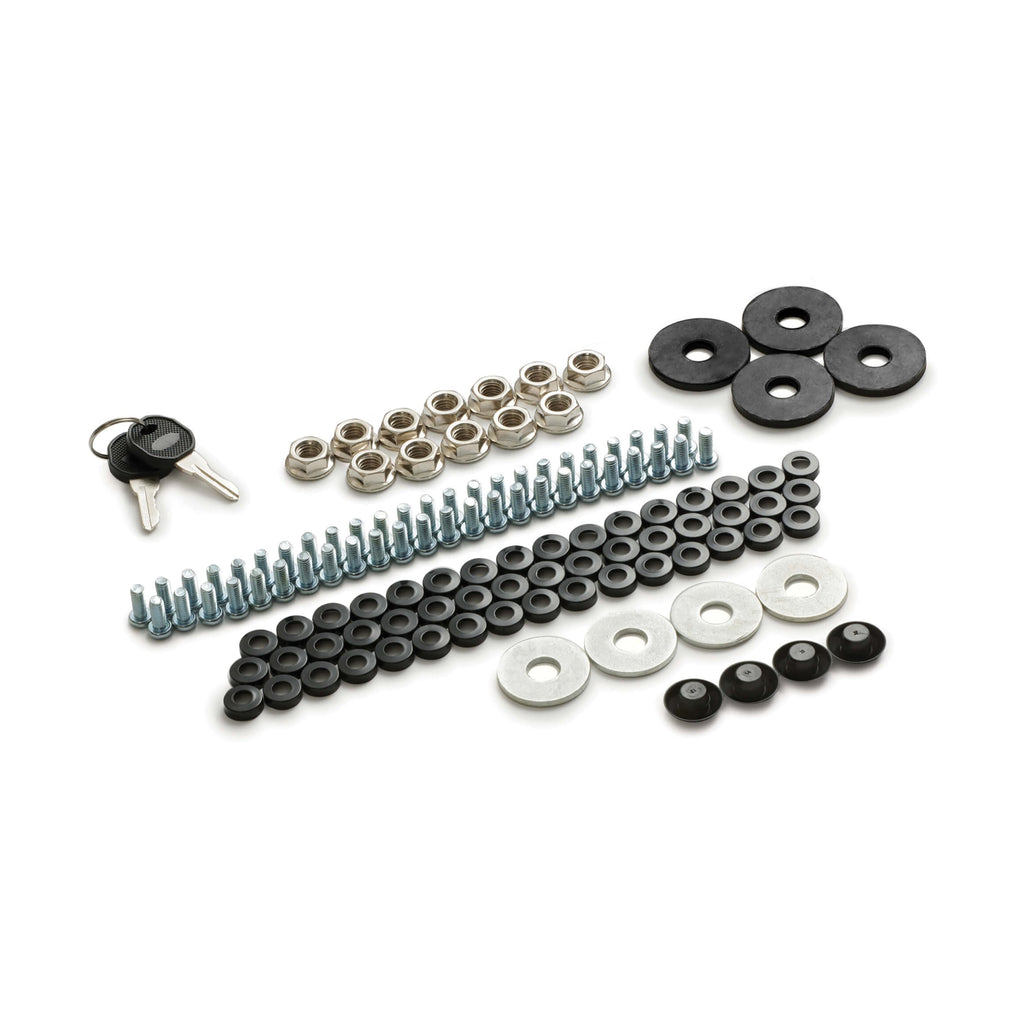

| Lock Type | Key lock (keys included) |

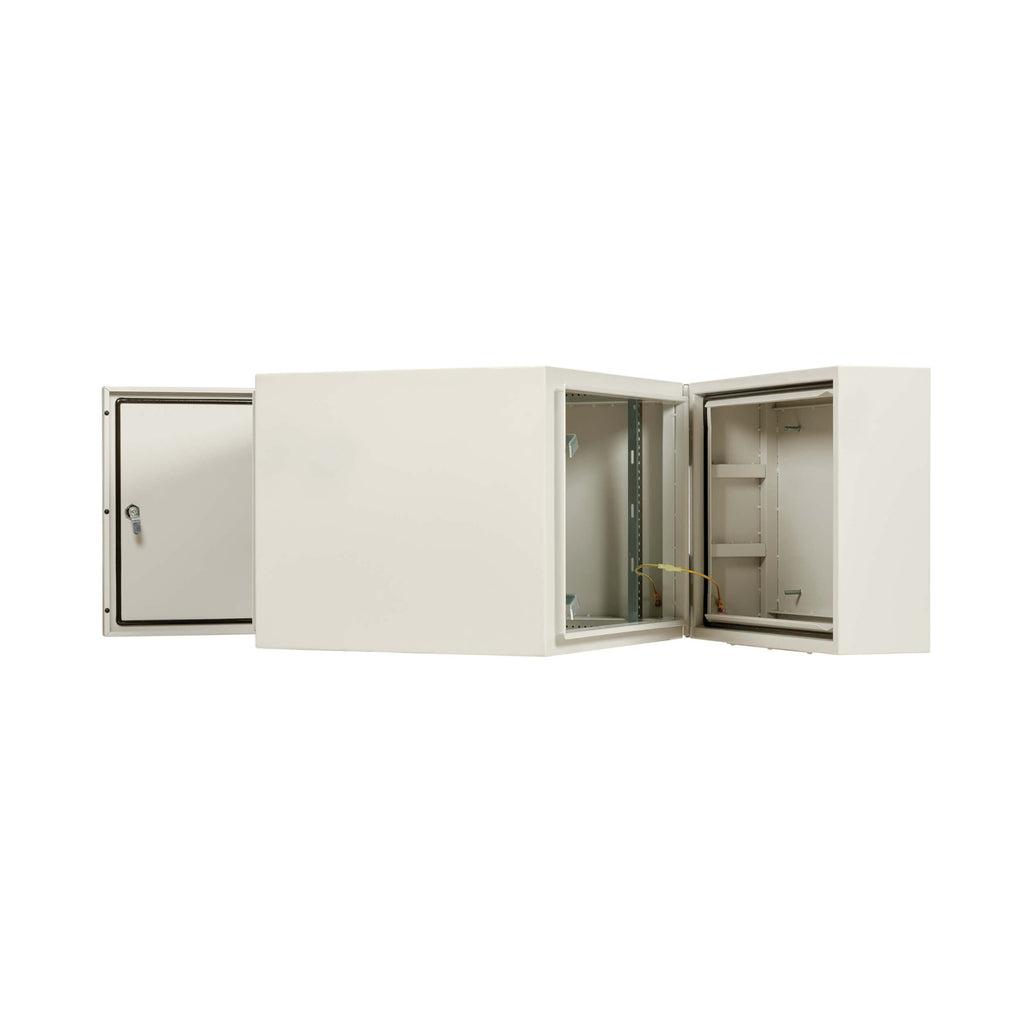

| Access Design | Swing-away hinged enclosure |
| Cable Entry | Sealed cut-out (gland plates optional) |
| Number of Mounting Rails | 4 adjustable rails |
| Protection Rating | NEMA 4 |
| Indoor / Outdoor Use | Yes |
| Compliance | UL, CSA, RoHS, REACH |
| Warranty | 5-year limited warranty |
