Description

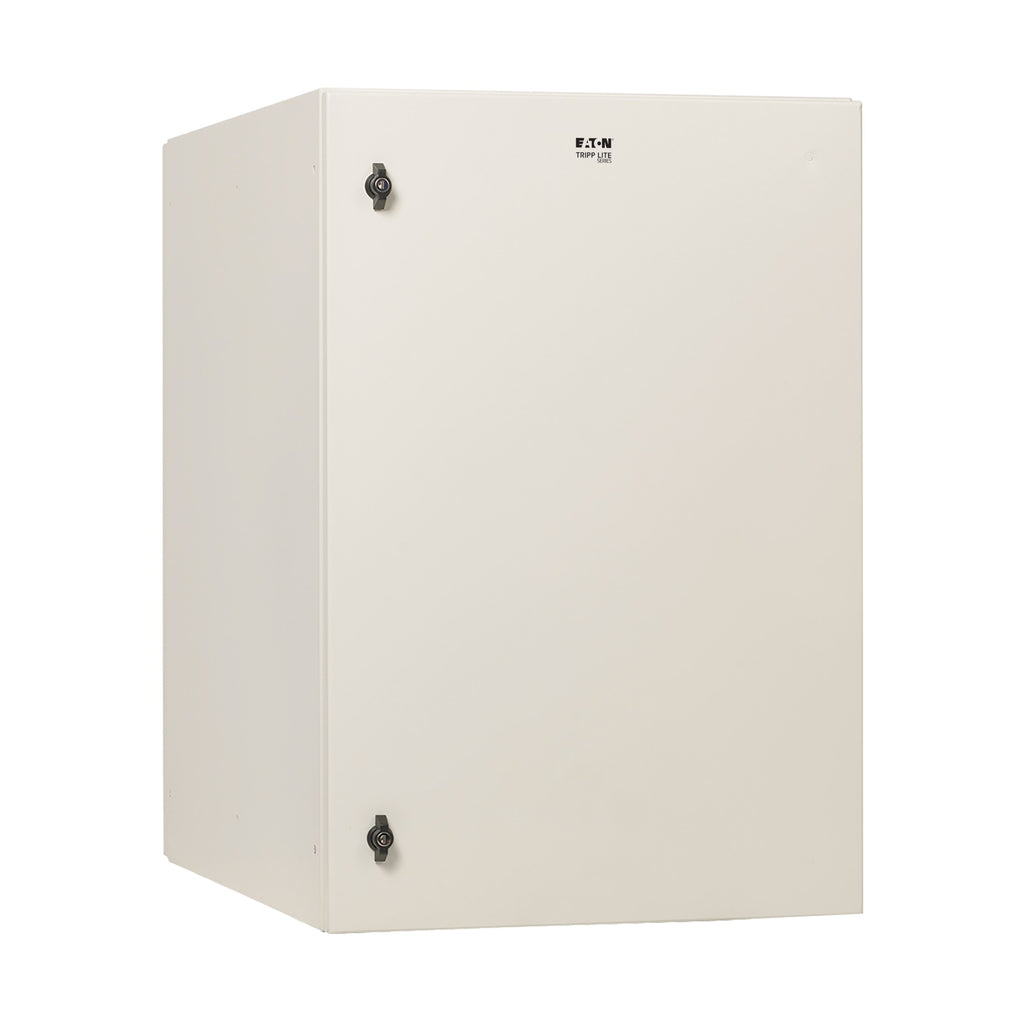

The Eaton Tripp Lite SRN4G18UHD SmartRack® Industrial Enclosure provides reliable protection and organization for rack-mounted equipment in demanding environments. Built with heavy-duty, powder-coated steel, this 18U wall-mount cabinet safeguards sensitive devices such as servers, PDUs, UPS systems, and switches against moisture, dust, and physical damage. Rated NEMA 4, it ensures superior resistance to rain, sleet, snow, and hose-directed water, making it ideal for use in factories, power plants, construction sites, and other rugged indoor or outdoor locations.

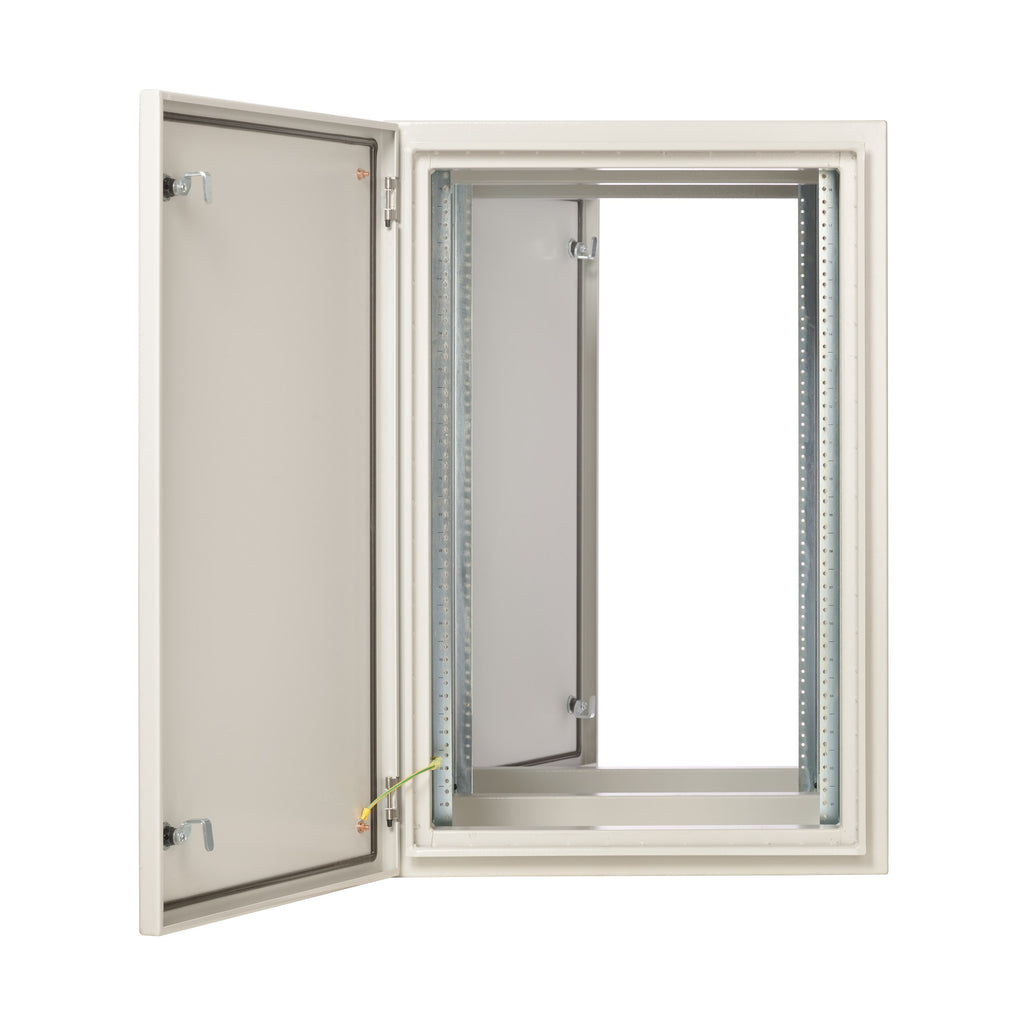

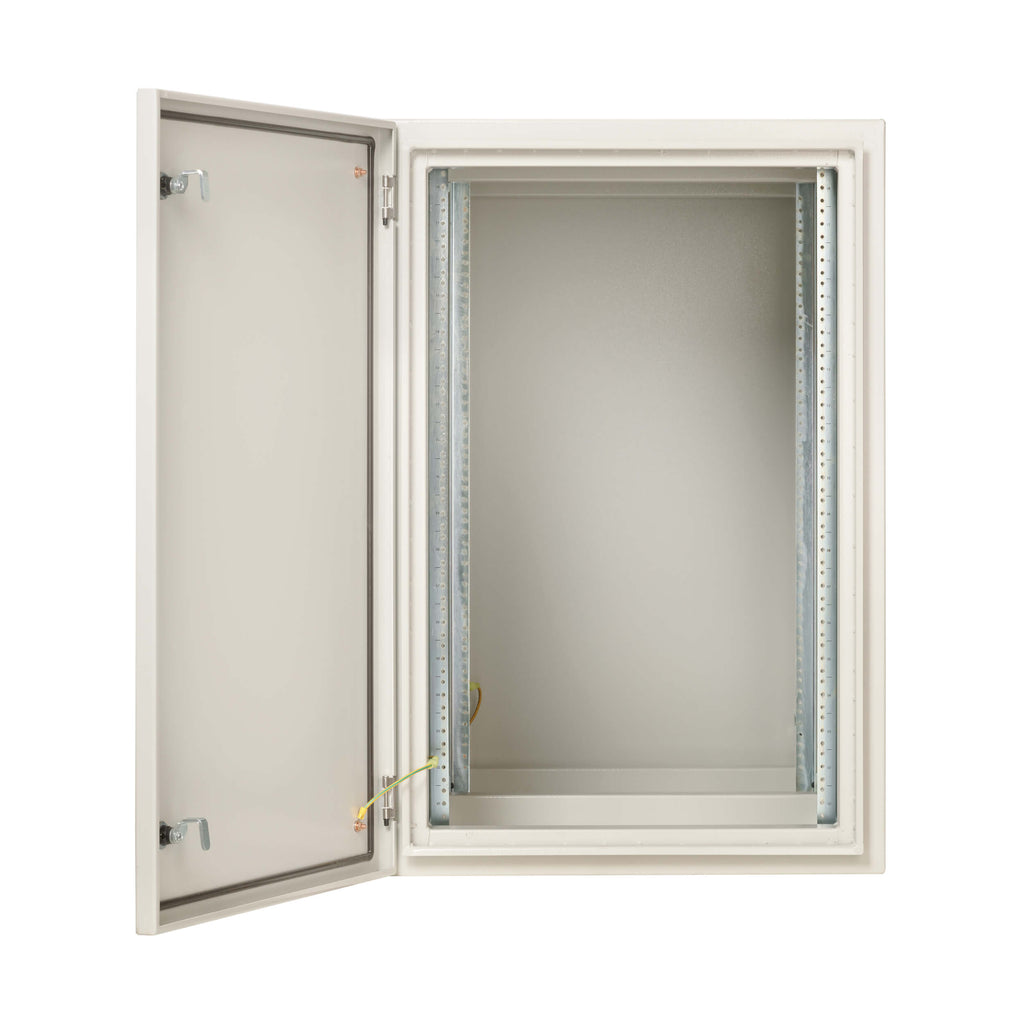

The enclosure comes fully assembled, featuring lockable, gasket-sealed doors and independently adjustable front and rear rails to fit equipment up to 32.5 inches deep. With a 200 lb load capacity and a 5-year limited warranty, the SRN4G18UHD delivers dependable, industrial-grade protection for your mission-critical systems.
| Category | Details |
|---|---|
| Model Number | SRN4G18UHD |
| Brand | Eaton Tripp Lite Series |
| Rack Type | Wall-Mount Industrial Enclosure |
| Rack Height | 18U |
| Maximum Equipment Depth | 32.5 in (826 mm) |
| Material | Heavy-Duty Powder-Coated Steel |
| Color | Gray |
| Protection Rating | NEMA 4 (Water, Dust, and Ice Resistant) |
| Mounting Location | Wall |
| Maximum Load Capacity | 200 lbs (90.7 kg) |
| Doors | Lockable, Weather-Sealed with Gasket |
| Vertical Mounting Rails | 4 (Adjustable, 10-32) |
| Cable Access | Sealed bottom conduit cut-out (compatible with gland plates) |
| Outdoor Use | Yes |
| Grounding | Cabinet Body Grounding Point |
| Shipping Dimensions (H x W x D) | 42 x 28 x 41 in (106.68 x 71.12 x 104.14 cm) |
| Unit Dimensions (H x W x D) | 35.9 x 24 x 36.16 in (91.19 x 60.96 x 91.85 cm) |
| Unit Weight | 222.79 lbs (101.06 kg) |
| Compliance Standards | UL 508A, EIA/ECA-310-E, NEMA 4, CAN/CSA-C22.2 No. 286 & No. 94, RoHS, REACH |
| Included Accessories | (48) 10-32 Screws, (48) M6 Washers, (6) LDPE Sheet Plugs, (6) Foam Washers, (2) Keys, Owner’s Manual |
| Warranty | 5-Year Limited Warranty |
