Description

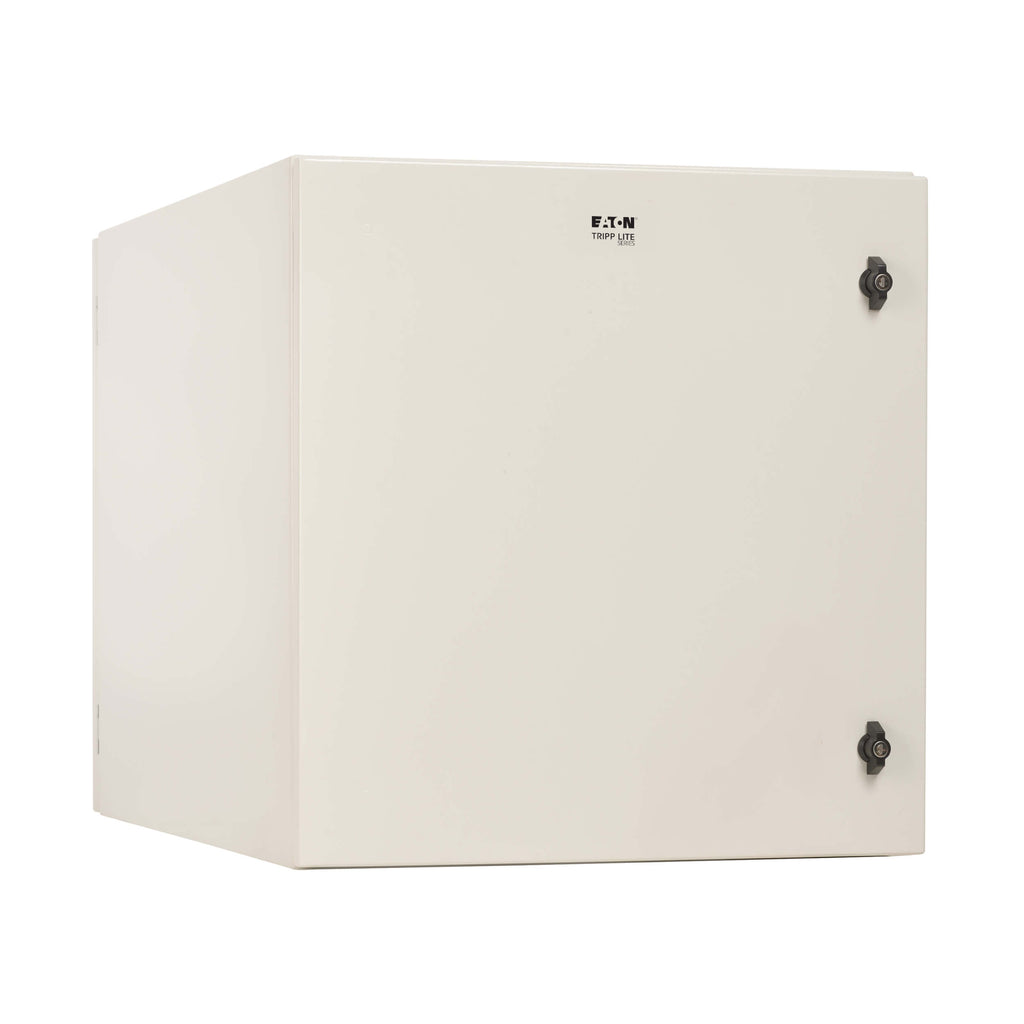

The Eaton Tripp Lite SmartRack SRN4G12UHD is a heavy-duty 12U wall-mount industrial enclosure engineered to protect mission-critical rack equipment in harsh environments. Built from welded, powder-coated steel, this enclosure delivers reliable physical security and environmental protection for servers, UPS systems, network switches, and other 19-inch rack-mount equipment.
Rated NEMA 4, the enclosure safeguards equipment from water, dust, dirt, ice, and tampering, making it ideal for industrial floors, warehouses, utilities, transportation hubs, and outdoor or semi-outdoor installations. Locking, gasketed doors provide controlled access, while adjustable front and rear mounting rails support equipment up to 32.5 inches deep.
Shipped fully assembled for fast deployment, the SRN4G12UHD offers a space-saving wall-mount solution with professional-grade durability, security, and compliance.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite |
| Product Line | SmartRack |
| Model | SRN4G12UHD |
| Rack Height | 12U |
| Rack Type | Industrial Wall-Mount Enclosure |
| Protection Rating | NEMA 4 |
| Material | Powder-Coated Steel |
| Color | Gray |
| Mounting Location | Wall |
| Maximum Equipment Depth | Up to 32.5 in (82.6 cm) |
| Weight Capacity | 200 lb (90.7 kg) |
| Number of Mounting Rails | 4 adjustable rails |
| Door Type | Gasketed, locking |
| Lock Type | Keyed (keys included) |
| Cable Entry | Sealed bottom conduit cutout |
| Outdoor Rated | Yes |
| Shipping Form | Fully assembled |
| Unit Dimensions (H x W x D) | 25.4 x 24.0 x 36.16 in |
| Unit Weight | 180 lb |
| Compliance | EIA/ECA-310-E, NEMA 4, UL, RoHS, REACH |
| Warranty | 5-Year Limited Warranty |
