Description

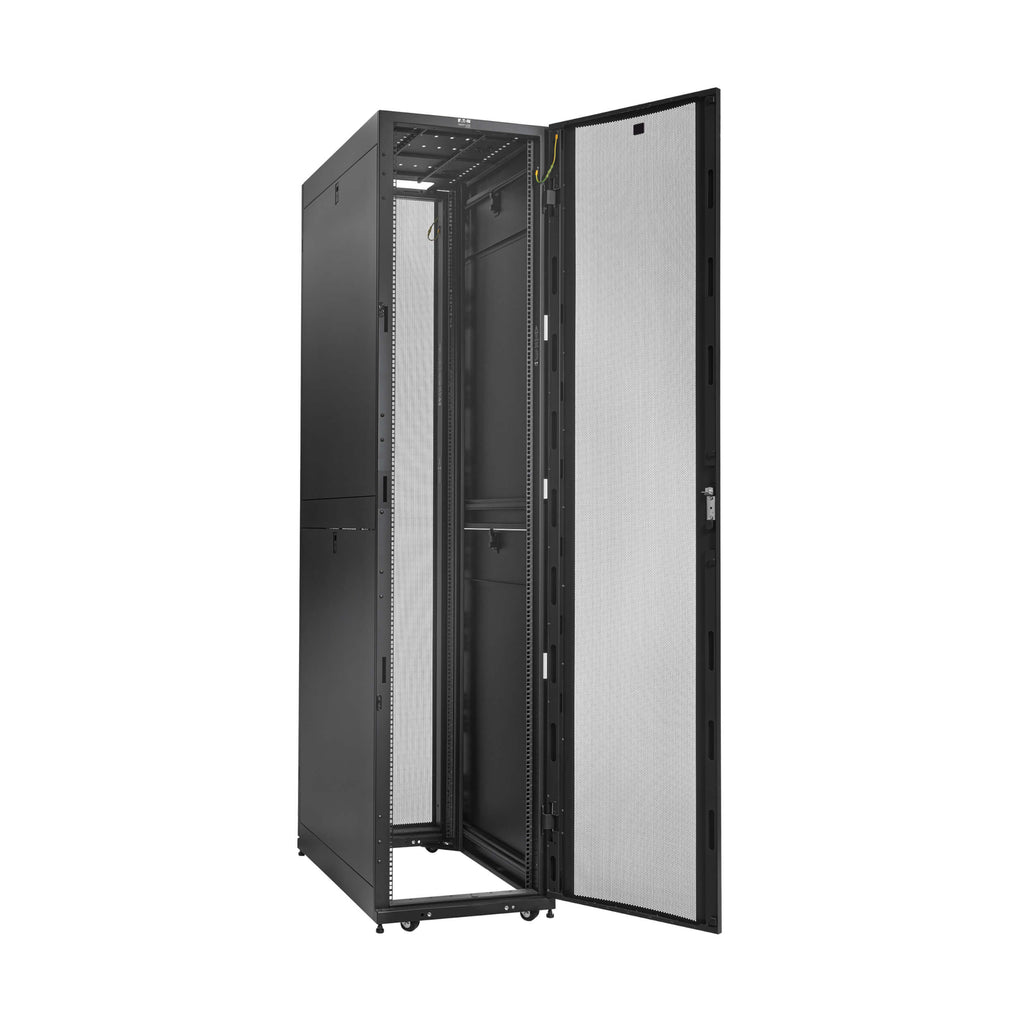

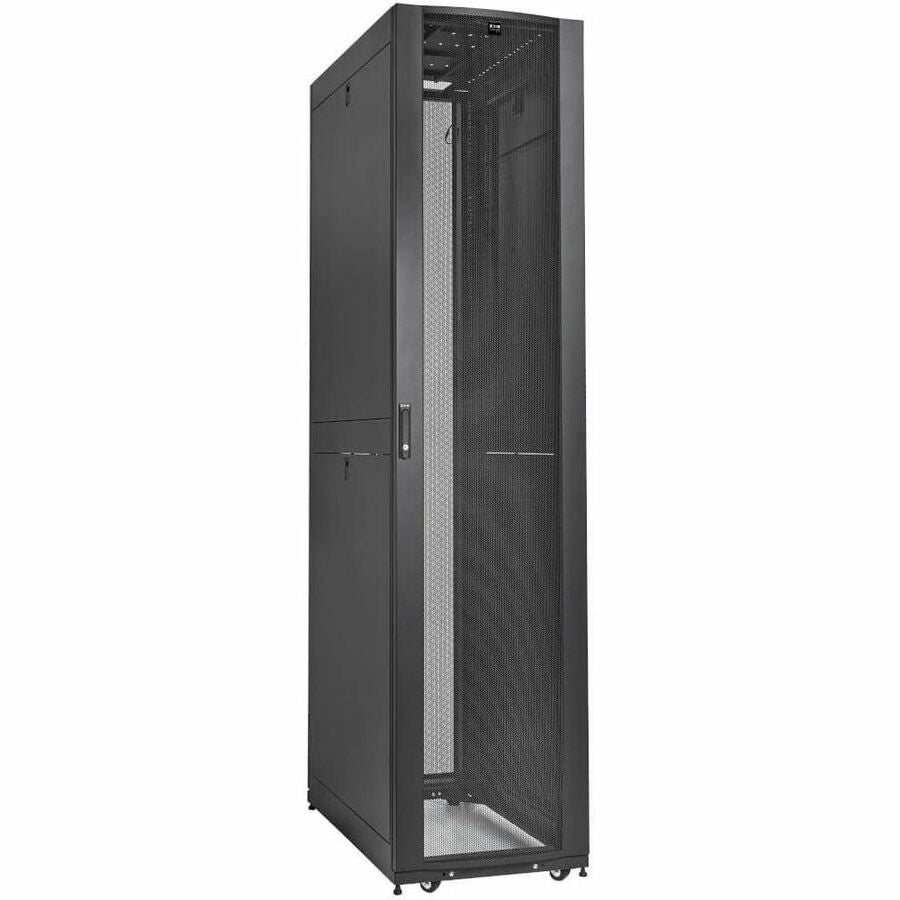

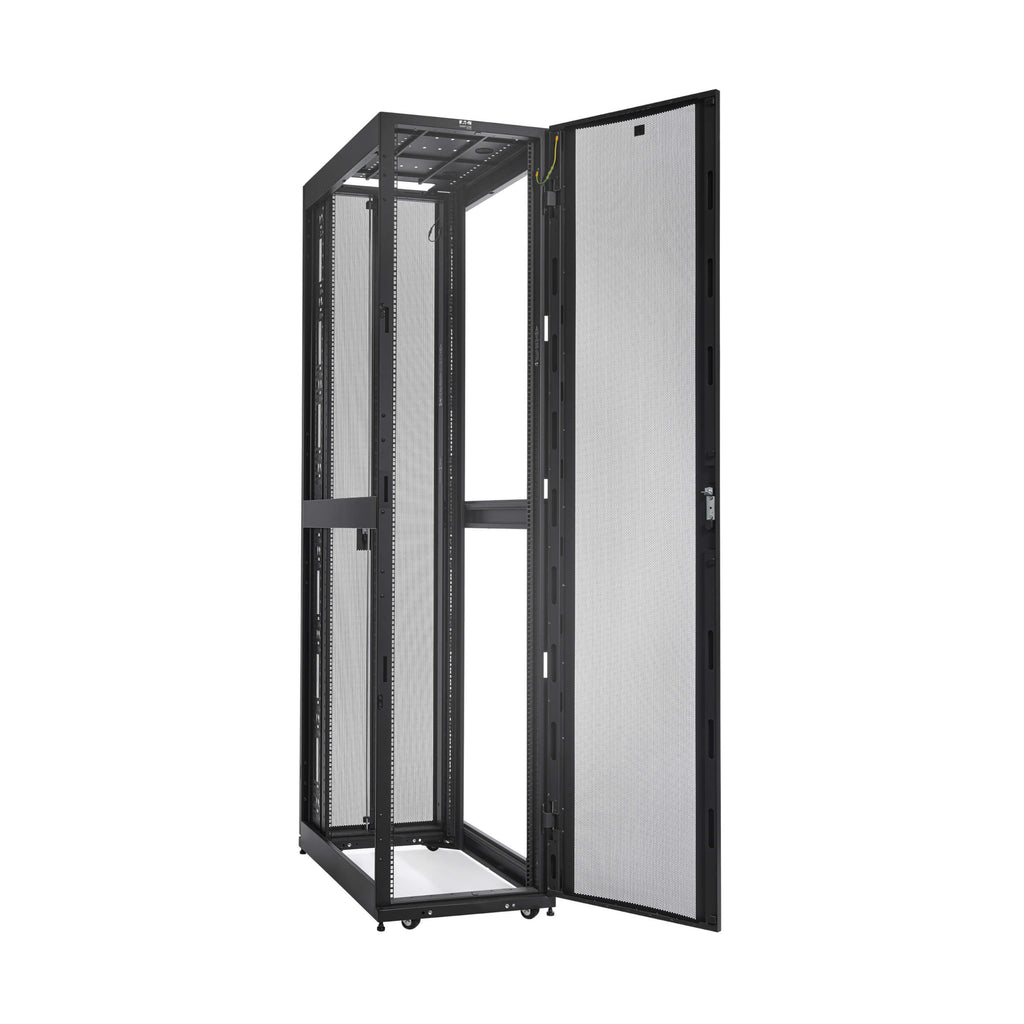

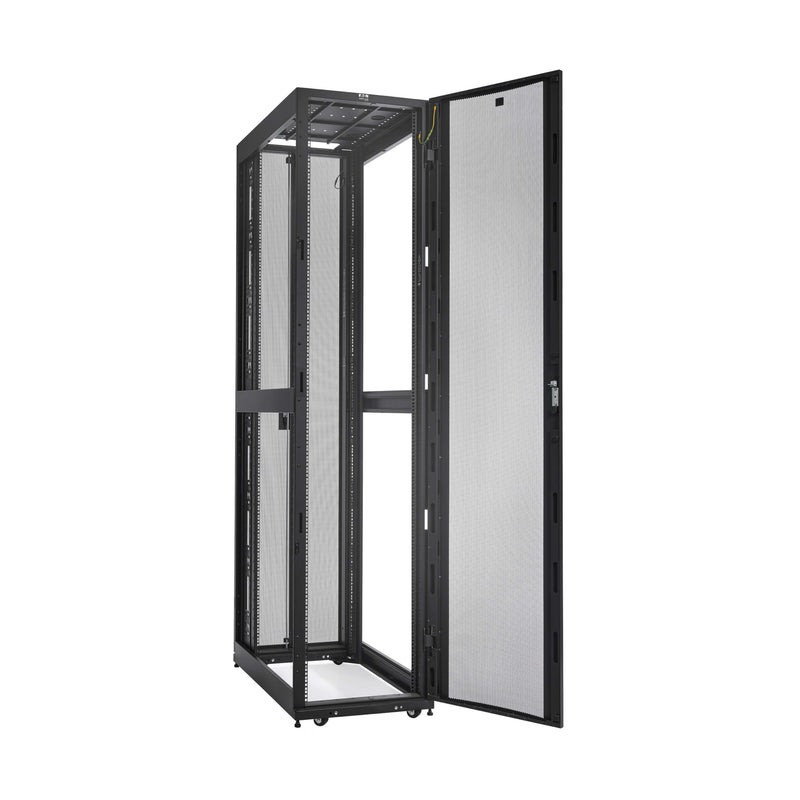

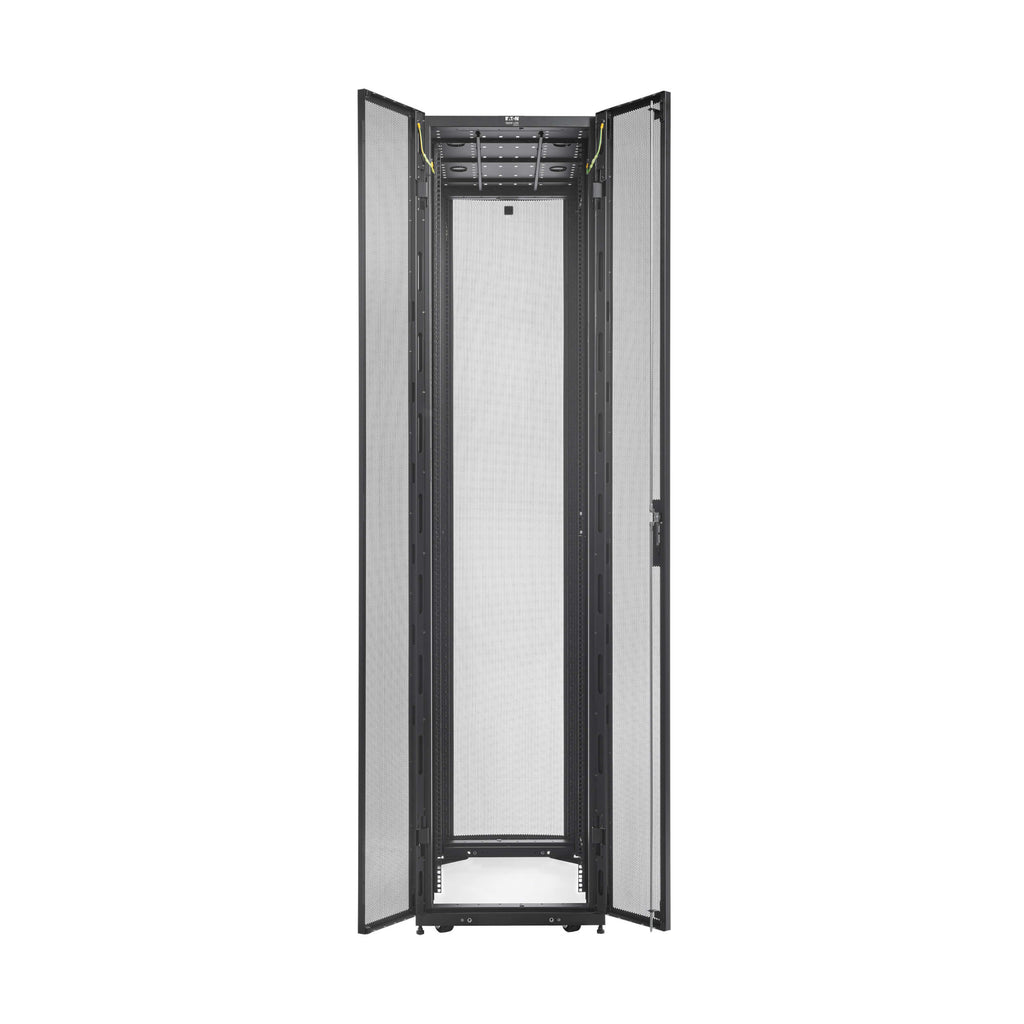

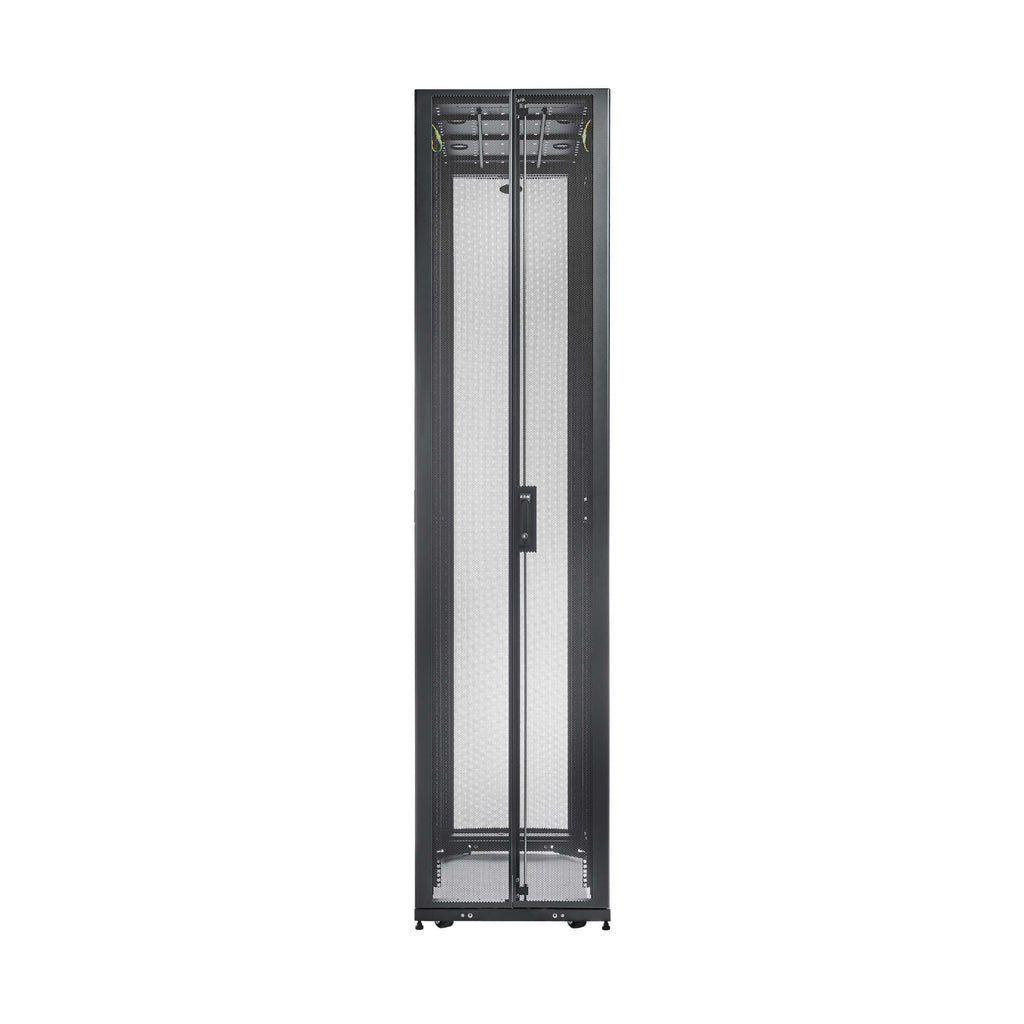

The Eaton Tripp Lite SmartRack SR50UB is a premium 50U standard-depth server rack enclosure cabinet designed for high-density IT environments such as data centers, network closets, and telecom rooms. Built from heavy-duty steel with a sleek black powder-coated finish, it supports up to 3500 lb stationary and 2250 lb rolling loads.
This extra-tall cabinet maximizes vertical equipment space while maintaining a compact 24 in. x 43 in. footprint. Fully assembled with removable casters and locking doors/panels, the SR50UB ensures fast deployment and enhanced physical security. It includes built-in cable management, vented doors for superior airflow, toolless PDU mounting, and compliance with PCI DSS standards.
| Specification | Details |
|---|---|
| Model Number | SR50UB |
| Brand | Eaton Tripp Lite |
| Rack Height | 50U |
| Rack Depth | Standard |
| Unit Dimensions (H x W x D) | 92.42 x 23.62 x 43.00 in (234.75 x 60 x 109.22 cm) |
| Shipping Dimensions (H x W x D) | 97.70 x 25.75 x 45.50 in |
| Unit Weight | 347.2 lb (157.49 kg) |
| Shipping Weight | 401 lb (181.85 kg) |
| Stationary Load Capacity | 3500 lb (1588 kg) |
| Rolling Load Capacity | 2250 lb (1022 kg) |
| Factory Preset Rack Depth | 27.75 in (705 mm) |
| Device Depth (Min/Max) | 4 in / 37 in (102 mm / 940 mm) |
| Vertical Mounting Rails | 4 |
| Color | Black |
| Cable Management | Built-in |
| Casters | Pre-installed (removable) |
| Security | Locking doors and side panels |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-Year Limited Warranty |
| Compliance | PCI DSS |
| Included Accessories | Side panels, locks, keys, M6 hardware, owner’s manual |
