Description

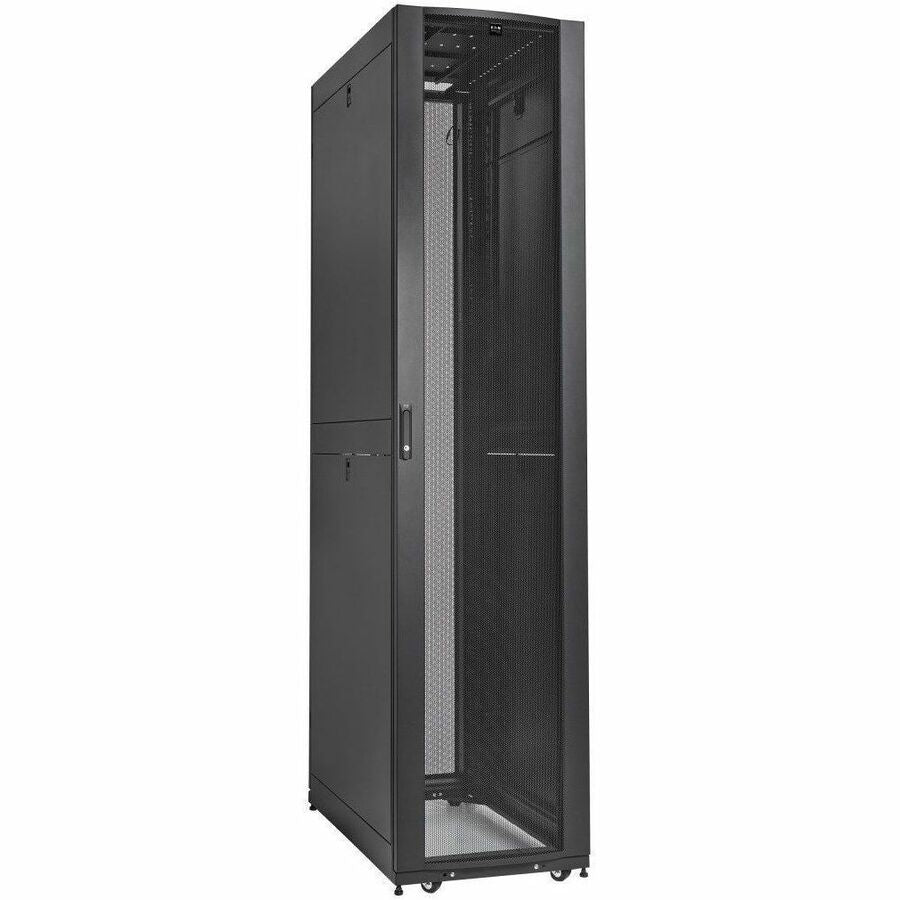

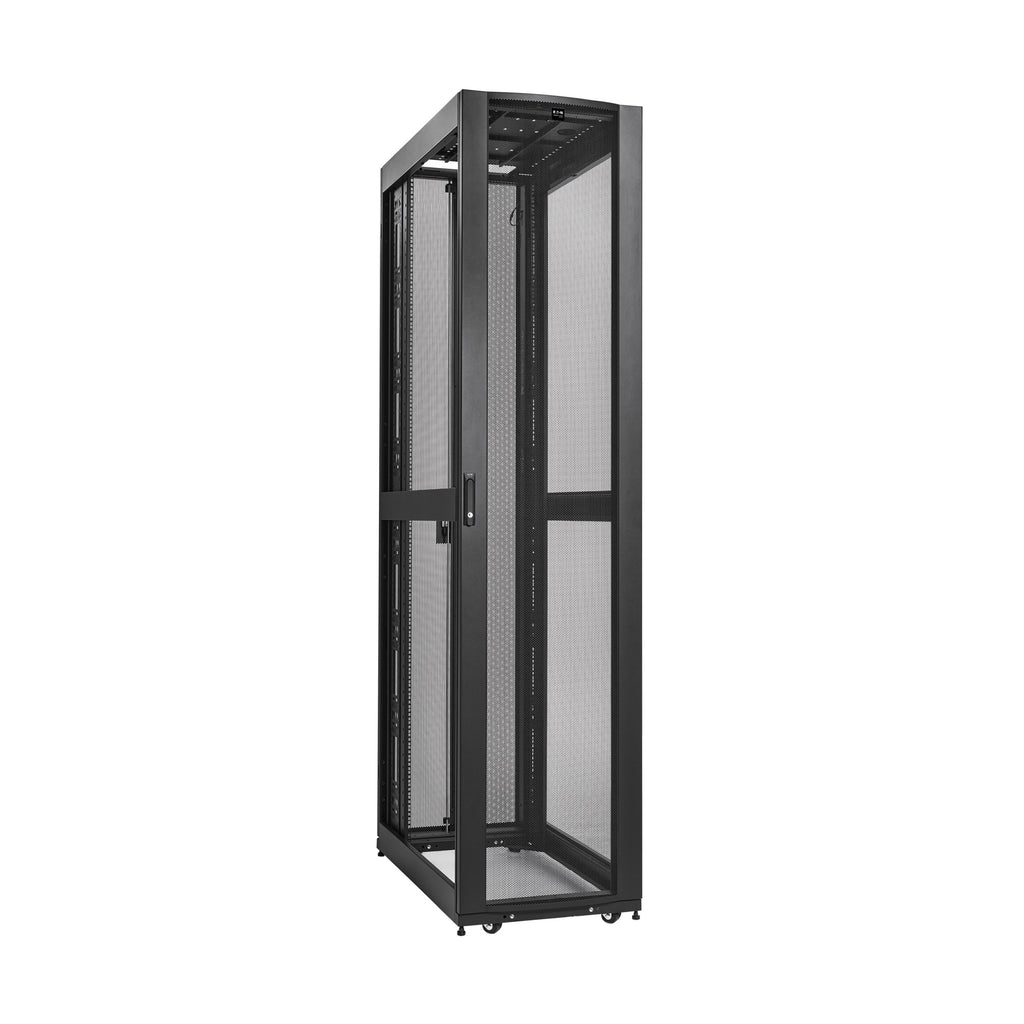

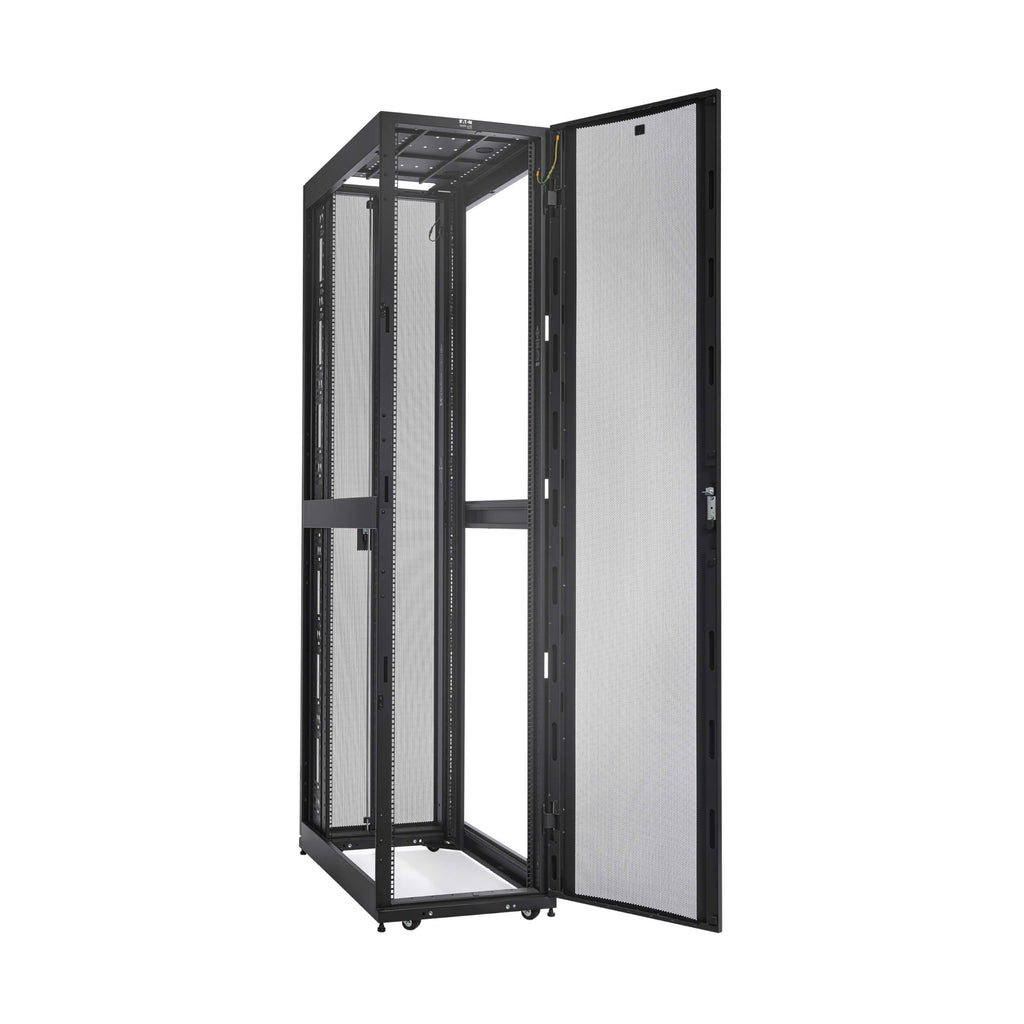

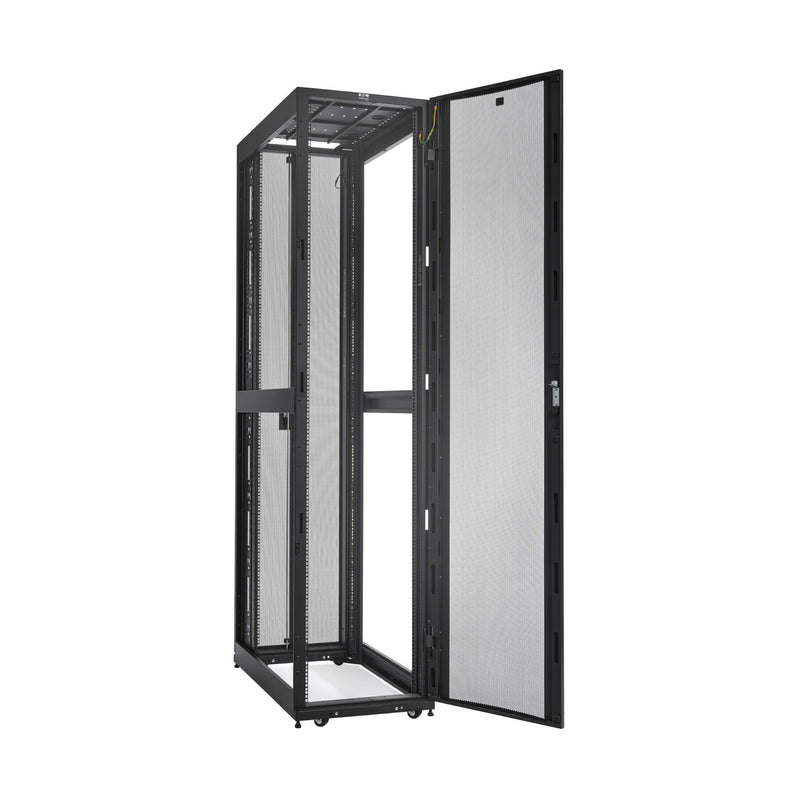

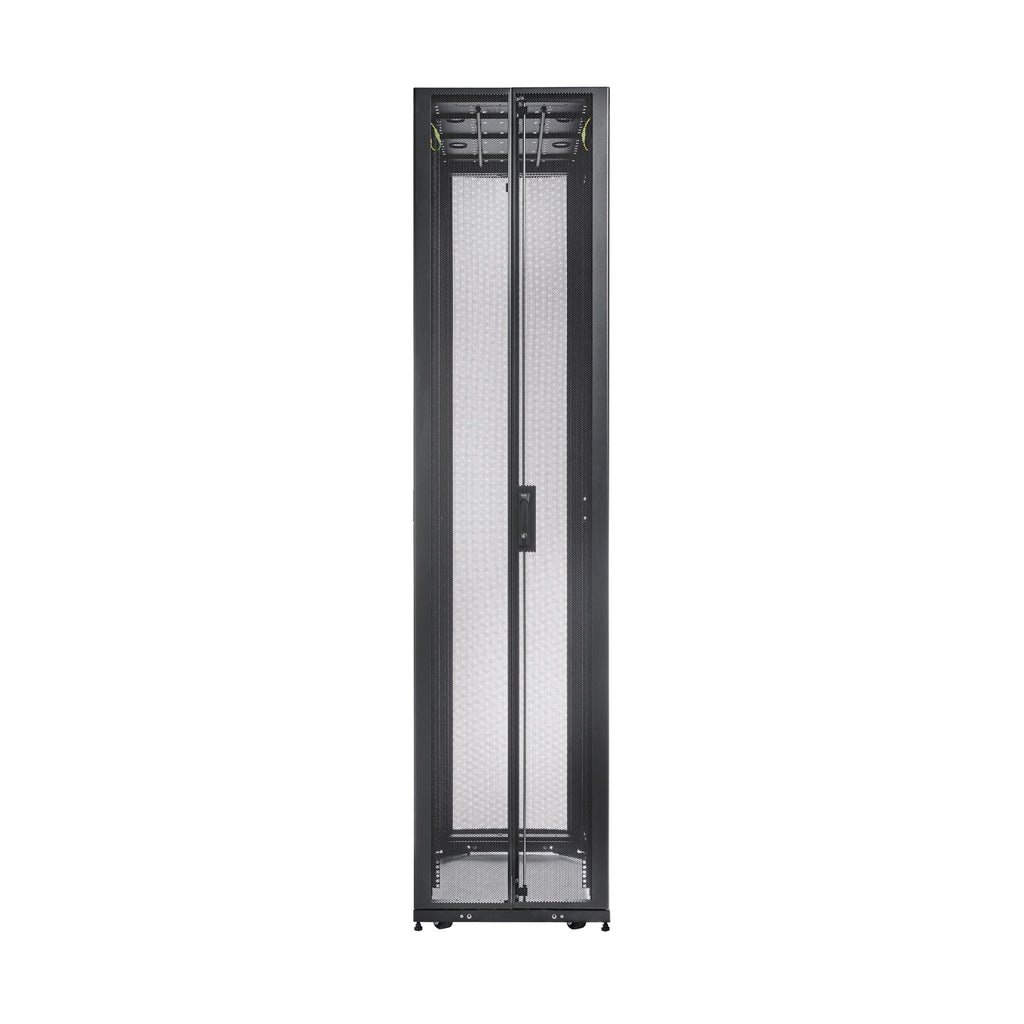

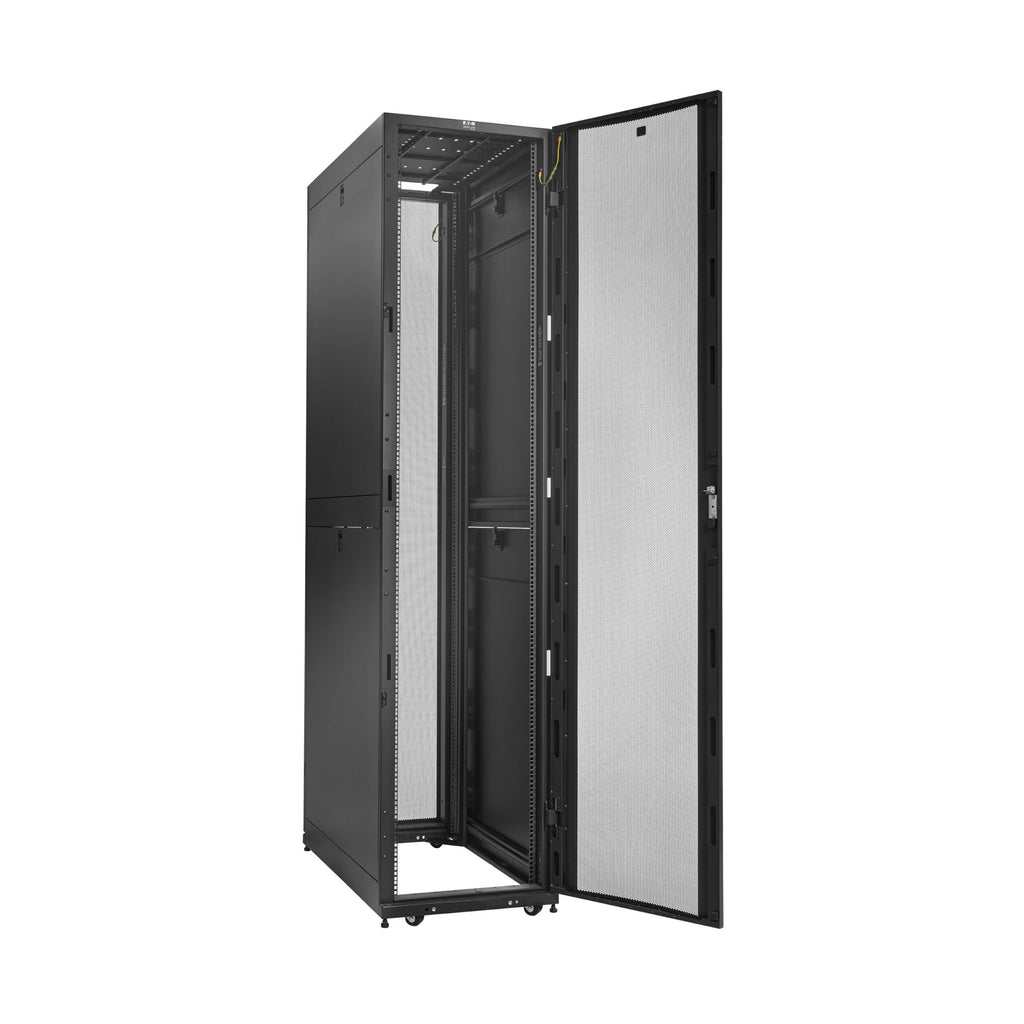

The Eaton Tripp Lite SmartRack SR52UB is a premium 52U standard-depth rack enclosure designed for high-density IT environments such as network closets, data centers, and server rooms. With an extra-tall height and standard 19-inch rack width, it supports servers, UPS systems, PDUs, switches, and more. Engineered for maximum airflow and secure equipment housing, it features lockable split rear doors, side panels, and a reversible front door with over 65% open space ventilation.
Constructed from heavy-duty steel with a black powder-coated finish, this cabinet supports a stationary load of up to 3500 lbs and rolling load of 2250 lbs. It ships fully assembled with removable casters and leveling feet, making installation seamless. Toolless mounting rails and built-in cable management simplify deployment. The SR52UB meets PCI DSS compliance standards and includes baying tabs for scalable expansion in row-based configurations.
Package Includes:
-
SR52UB Rack Enclosure Cabinet
-
(4) Side Panels
-
(4) Side Panel Locks
-
(2) Keys
-
(50) M6 Screws, Washers, and Cage Nuts
-
Owner’s Manual
| Specification | Details |
|---|---|
| Model Number | SR52UB |
| Rack Type | Enclosure |
| Rack Height | 52U |
| Rack Depth | Standard |
| Device Compatibility | Servers, Switches, PDUs, Patch Panels, Routers, UPS |
| Material | Heavy-duty Steel, Black Powder-Coated Finish |
| Maximum Stationary Load Capacity | 3500 lbs (1588 kg) |
| Maximum Rolling Load Capacity | 2250 lbs (1021 kg) |
| Unit Dimensions (HxWxD) | 95.92 x 23.62 x 43.00 in (243.64 x 60 x 109.22 cm) |
| Shipping Dimensions (HxWxD) | 101.19 x 25.75 x 45.50 in (257.04 x 65.4 x 115.57 cm) |
| Unit Weight | 358.5 lbs (162.61 kg) |
| Shipping Weight | 412.93 lbs (187.3 kg) |
| Mounting Rail Depth Range | 4 – 37 in (102 – 940 mm) |
| Vertical Mounting Rails | 4 (with square holes) |
| Pre-Installed Casters | Yes (Removable) |
| Built-in Cable Management | Yes |
| Compliance | RoHS, CE, UL 60950-1, PCI DSS |
| Warranty | 5-Year Limited Warranty |
