Description

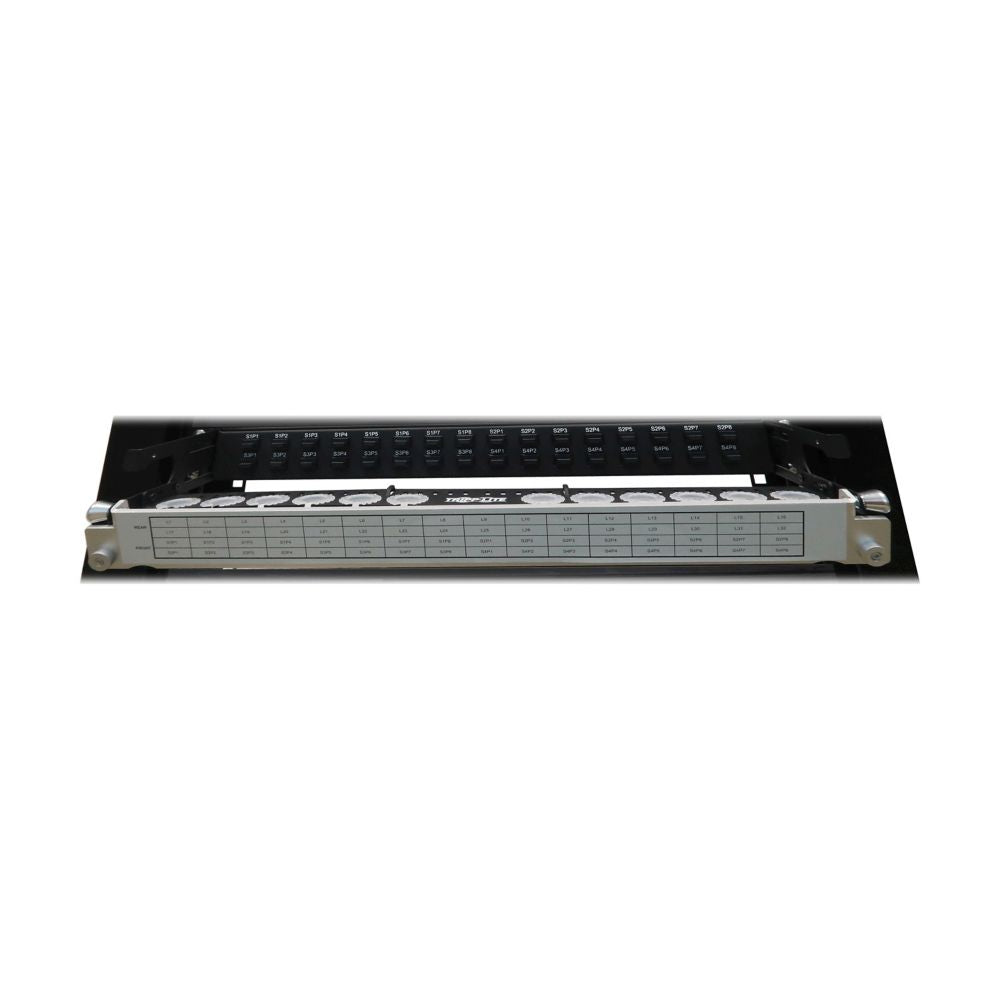

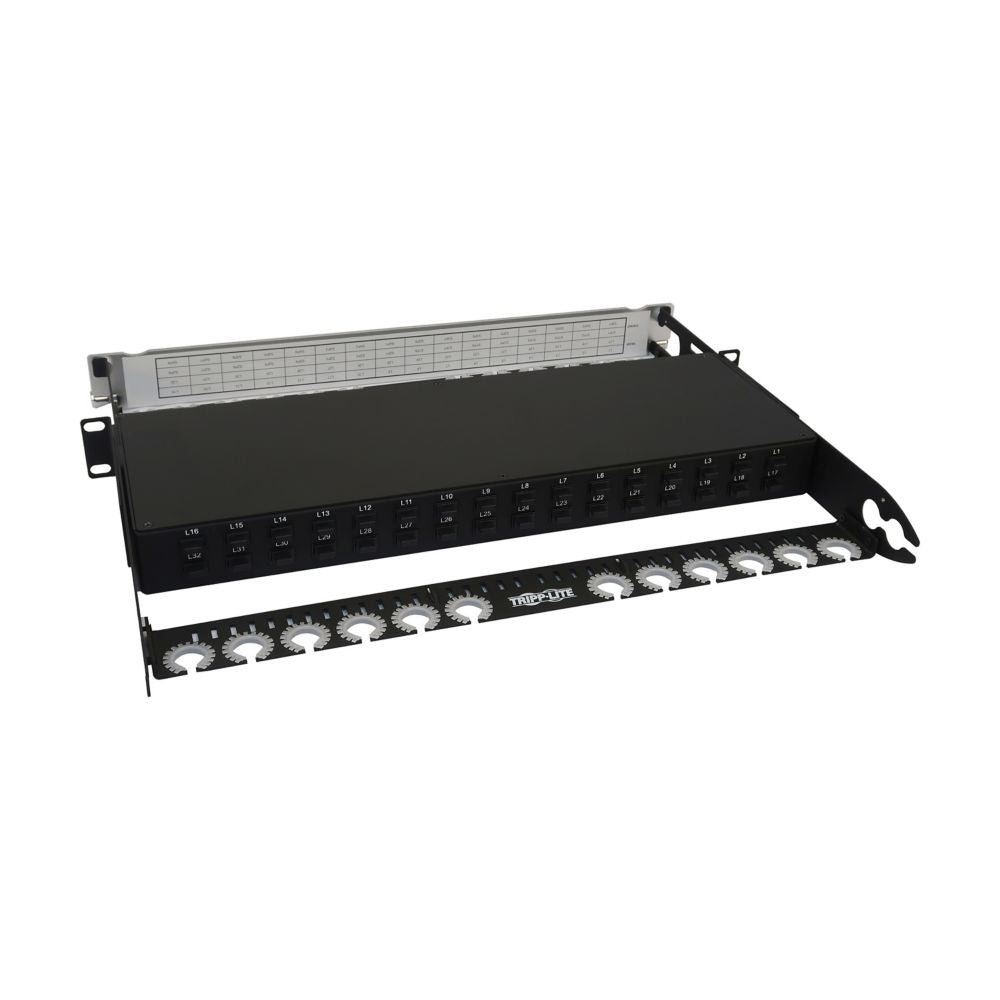

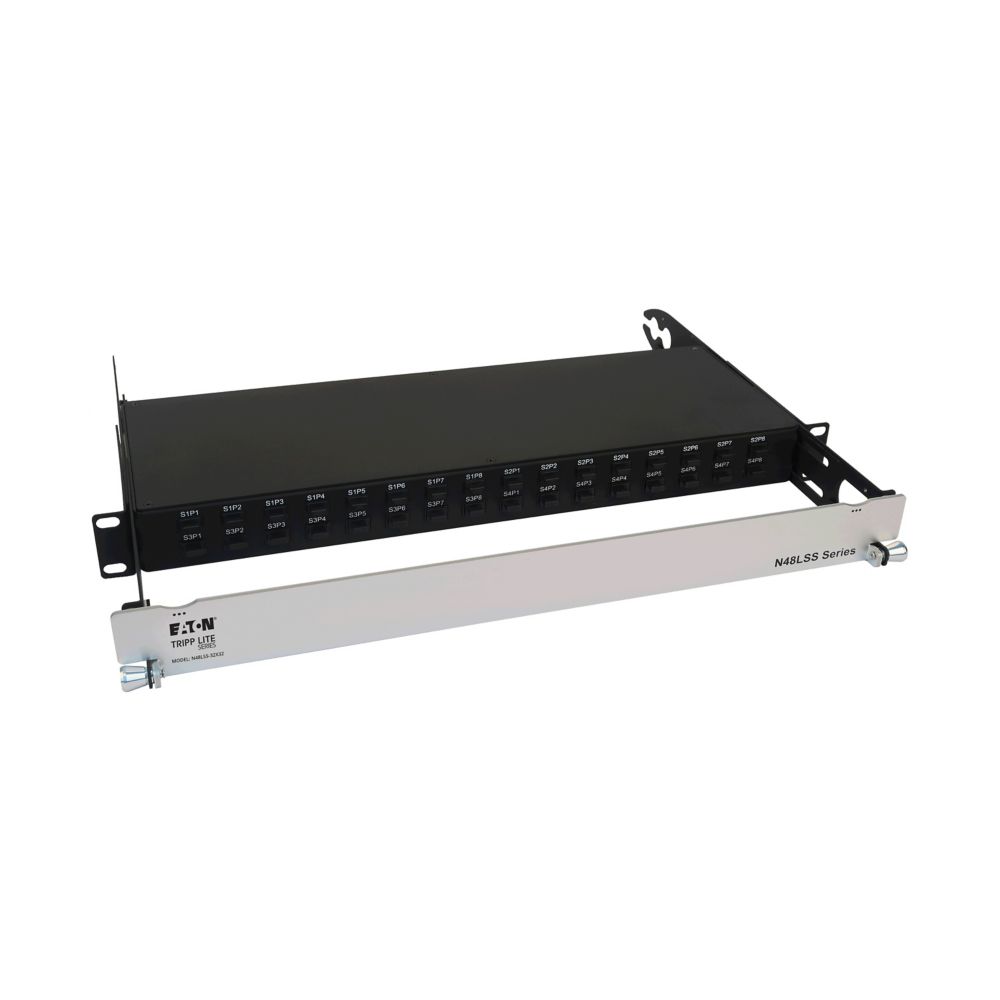

The Eaton Tripp Lite N48LSS-32X32 is a high-density 1U preloaded fiber optic patch panel designed for Spine-Leaf network architectures in modern data centers. Featuring 32 front and 32 rear MPO/MTP ports with OS2 singlemode fiber, it supports 40G, 100G, and 400G Ethernet deployments while simplifying cable management and reducing installation time.
Its all-in-one design includes built-in cabling, labeled and numbered ports, and integrated front and rear cable managers for a clean, organized rack installation. The panel replaces traditional MPO-to-LC cross-connects, helping reduce complexity, troubleshooting, and labor costs in high-performance fiber networks.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | N48LSS-32X32 |
| Product Type | Preloaded Fiber Optic Patch Panel |
| Panel Style | Spine-Leaf |
| Rack Height | 1U |
| Form Factor | Rackmount |
| Total Ports | 64 (32 Front x 32 Rear) |
| Connector Type | 12F MTP/MPO (Male) |
| Endface Polish | APC |
| Optical Mode | OS2 Singlemode |
| Fiber Type | 9/125 µm |
| Number of Fibers | 8 |
| Optical Port | MPO/MTP |
| Network Speed Support | 40GbE, 100GbE, 400GbE |
| Wavelength | 1310 nm, 1550 nm |
| Maximum Insertion Loss | ≤0.70 dB |
| Attenuation @ 1310 nm | 0.36 dB/km |
| Attenuation @ 1550 nm | 0.22 dB/km |
| Color | Black |
| Features | Built-in cables, labeled ports, numbered ports, integrated cable management |
| Dimensions | 17.56 × 14.76 × 1.73 in |
| Product Weight | 6.17 lb |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5–85% RH, non-condensing |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Humidity | 5–85% RH, non-condensing |
| Compliance | CE, RoHS, REACH |
