Description

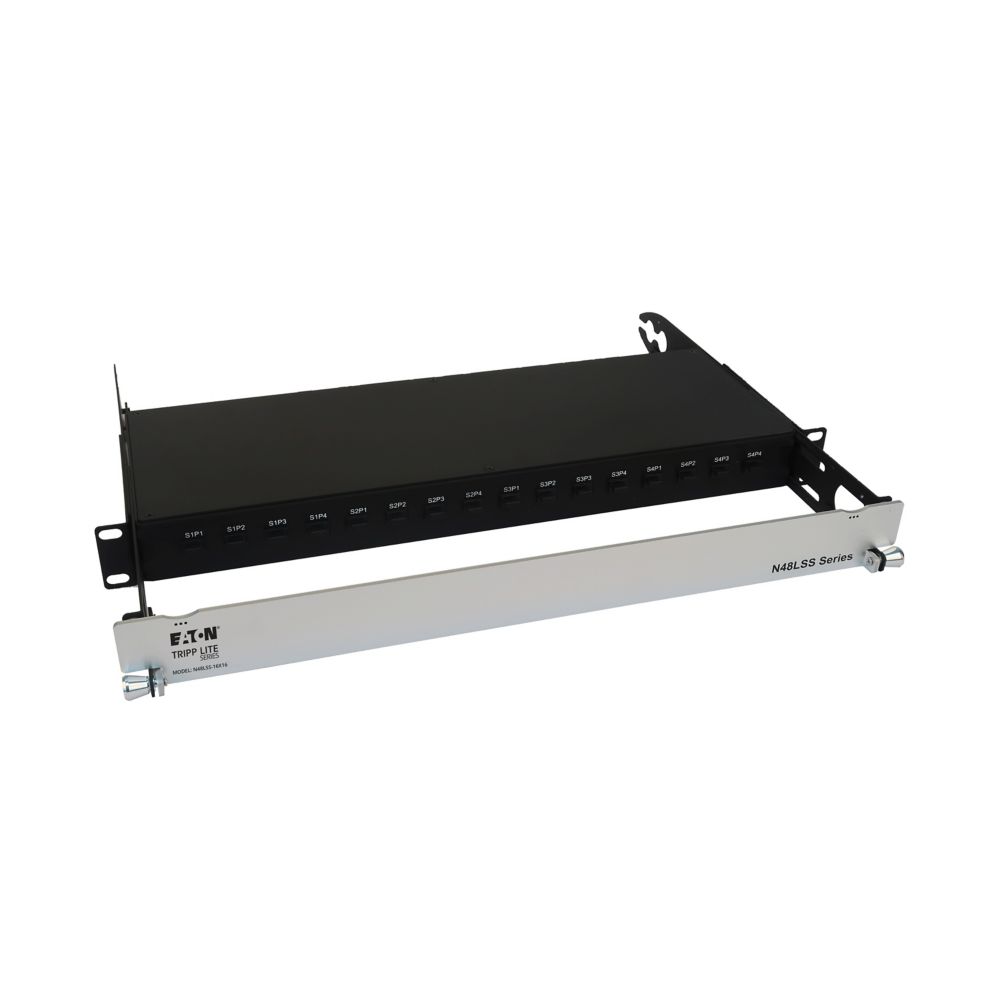

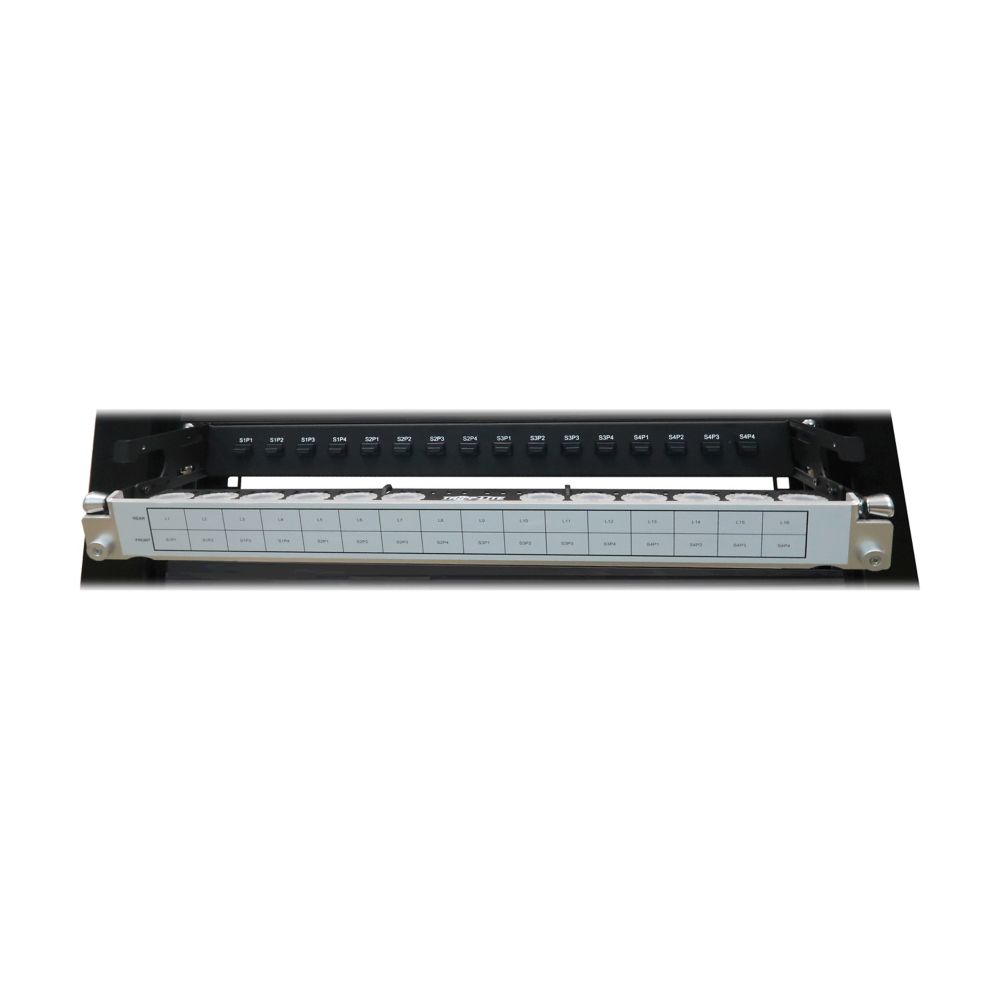

The Eaton Tripp Lite N48LSS-16X16 is a preloaded 1U spine-leaf MPO fiber patch panel designed for high-density data center and enterprise network deployments. Featuring a 16 x 16 port configuration with 12-fiber MTP/MPO APC male connectors and OS2 singlemode fiber, it simplifies structured cabling while supporting 40GbE, 100GbE, and 400GbE network environments.

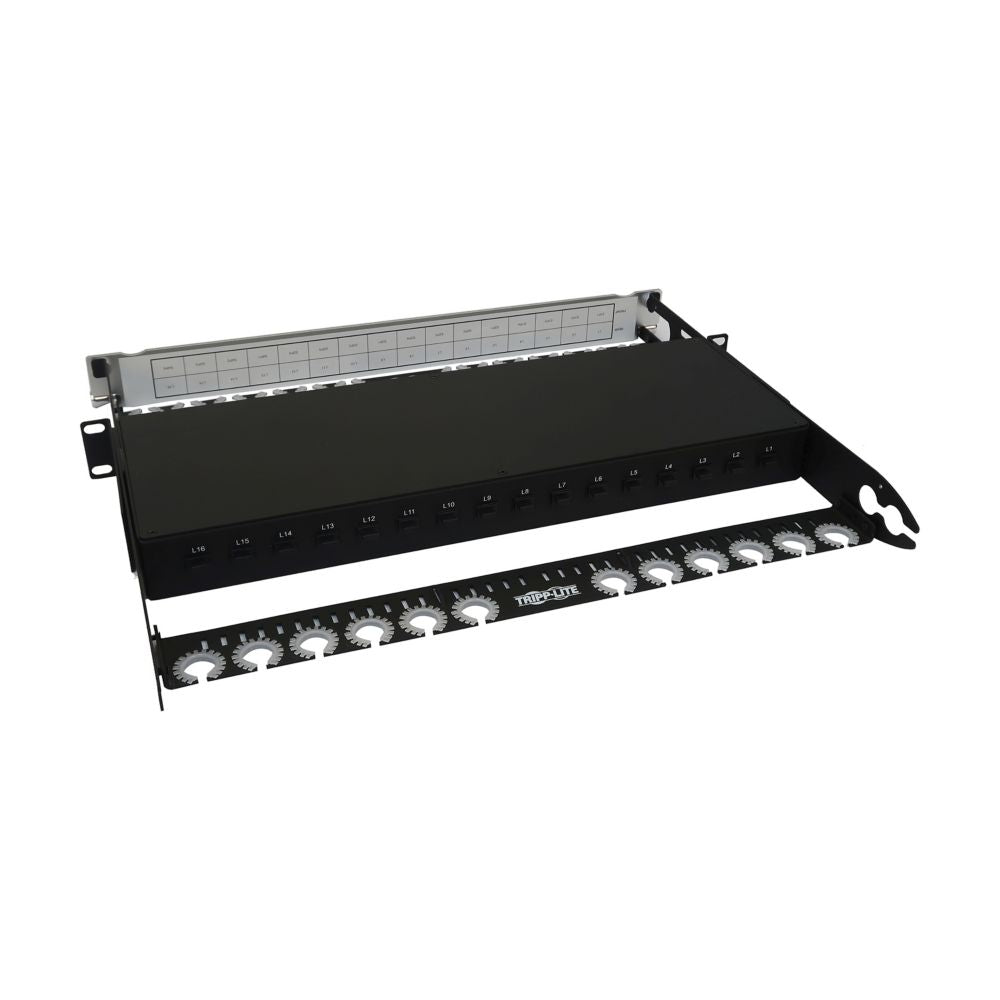

Its all-in-one design includes built-in cabling, labeled and numbered ports, and integrated cable management to reduce installation time and simplify maintenance. The rackmount panel replaces traditional MPO-to-LC cross-connects, helping improve organization, reduce troubleshooting, and optimize fiber infrastructure for modern spine-leaf architectures.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| SKU | N48LSS-16X16 |
| Product Type | Spine-Leaf MPO Fiber Patch Panel |
| Rack Height | 1U |
| Mounting | 19-inch Rackmount |
| Panel Style | Spine-Leaf |
| Port Configuration | 16 x 16 Ports |
| Total Ports | 32 |
| Connector Type | 12F MTP/MPO (Male) |
| Connector Endface | APC |
| Optical Mode | OS2 Singlemode |
| Fiber Type | 9/125 µm |
| Number of Fibers | 8 |
| Network Speeds Supported | 40 Gbps, 100 Gbps, 400 Gbps |
| Optical Port | MPO/MTP |
| Insertion Loss | ≤ 0.70 dB |
| Wavelength | 1310 nm, 1550 nm |
| Attenuation @ 1310 nm | 0.36 dB/km |
| Attenuation @ 1550 nm | 0.22 dB/km |
| Dimensions | 17.56 × 1.73 × 14.76 in |
| Product Weight | 5.73 lb |
| Color | Black |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5%–85% RH, Non-Condensing |
| Storage Humidity | 5%–85% RH, Non-Condensing |
| Features | Built-in Cables, Numbered Ports, Labeled Ports, Integrated Cable Management |
| Compliance | REACH, RoHS, CE |
