Description

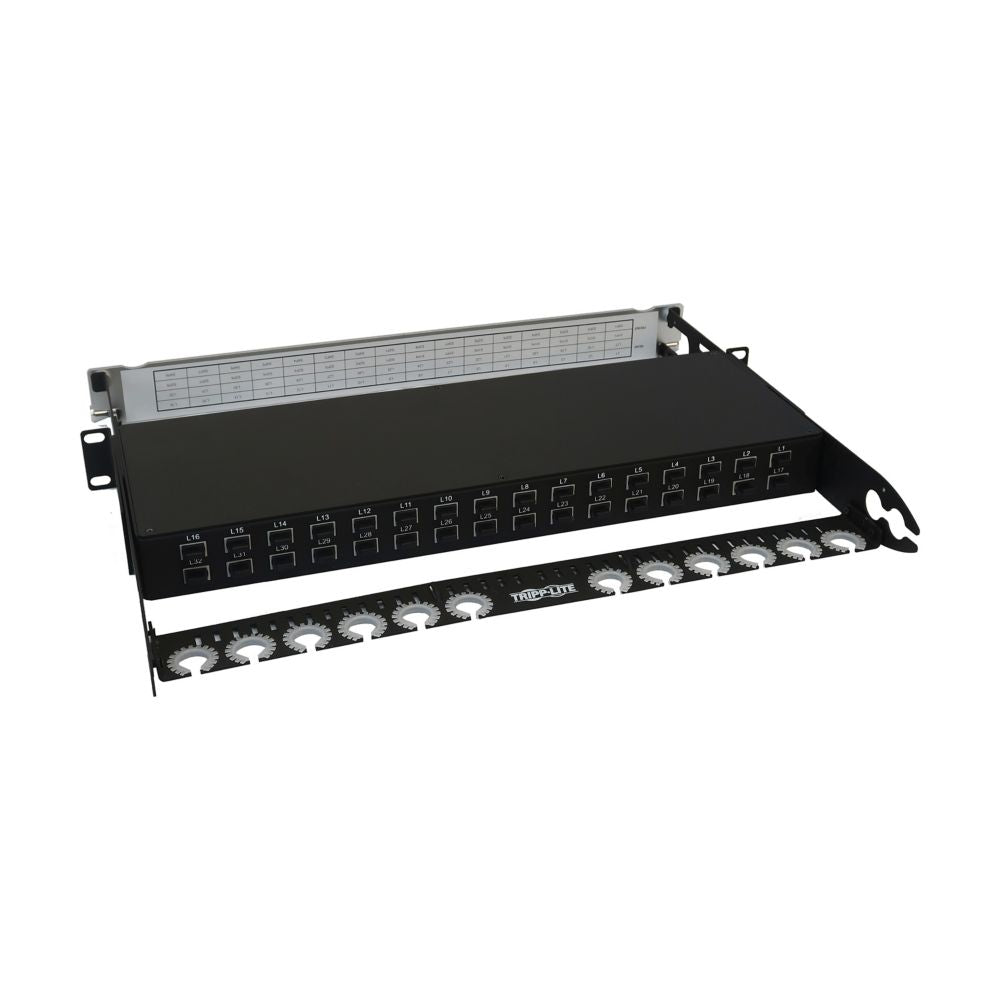

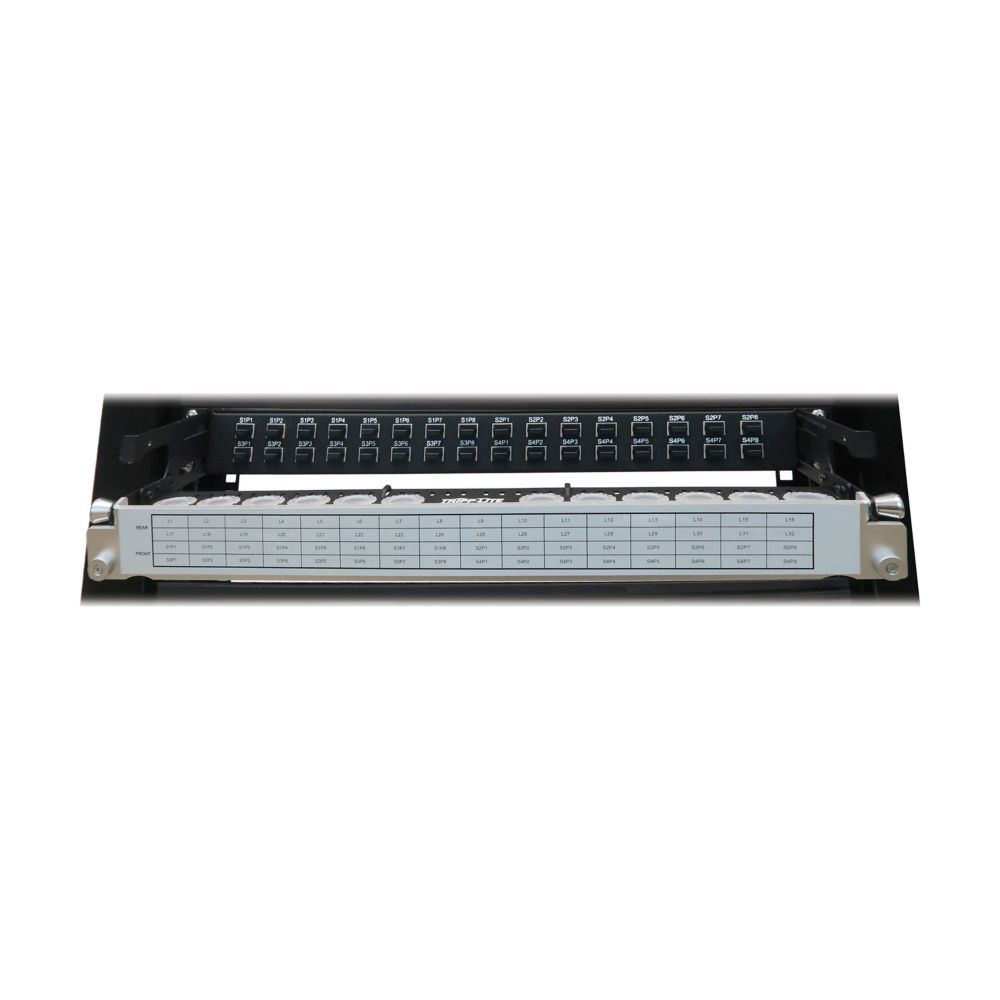

The Eaton Tripp Lite N48LSM-32X32 is a high-density 1U preloaded fiber optic patch panel designed for spine-leaf network architectures in modern data centers. Featuring 32 x 32 MPO/MTP ports, pre-installed OM4 multimode fiber cabling, and key-up to key-up 12-fiber MPO/MTP adapters, it simplifies deployment while reducing installation time, troubleshooting, and cable management complexity.
Supporting 40GbE, 100GbE, and 400GbE network speeds, this all-in-one rackmount panel includes numbered and labeled ports, built-in cables, and integrated front and rear cable managers for clean, organized installations. Its compact 1U design makes it ideal for high-density enterprise and hyperscale environments requiring scalable, high-performance fiber connectivity.
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Series | Tripp Lite |
| Model | N48LSM-32X32 |
| Product Type | Preloaded Fiber Optic Patch Panel |
| Panel Style | Spine-Leaf |
| Rack Height | 1U |
| Form Factor | Rackmount |
| Port Configuration | 32 x 32 MPO/MTP |
| Total Ports | 64 |
| Connector Type | 12F MTP/MPO (Male) |
| Connector Orientation | Key-Up to Key-Up |
| Fiber Type | 50/125 OM4 Multimode |
| Optical Mode | OM4 Multimode |
| Number of Fibers | 8 |
| Endface Polish | PC |
| Network Speed Support | 40GbE, 100GbE, 400GbE |
| Optical Port | MPO/MTP |
| Wavelength | 850 nm, 1300 nm |
| Insertion Loss | ≤0.35 dB |
| Attenuation @ 850 nm | 3.0 dB/km |
| Attenuation @ 1300 nm | 1.0 dB/km |
| Color | Black |
| Adapter Color | Gray |
| Product Features | All-in-One Kit, Numbered Ports, Labeled Ports, Built-in Cables |
| Cable Management | Front and Rear Wire Managers |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 5%–85% RH, Non-Condensing |
| Storage Humidity | 5%–85% RH, Non-Condensing |
| Dimensions (L × W × H) | 18.97 × 14.76 × 1.73 in |
| Panel Dimensions | 17.56 × 14.76 × 1.73 in |
| Weight | 6.172 lb |
| Compliance | CE, REACH, RoHS |
