Description

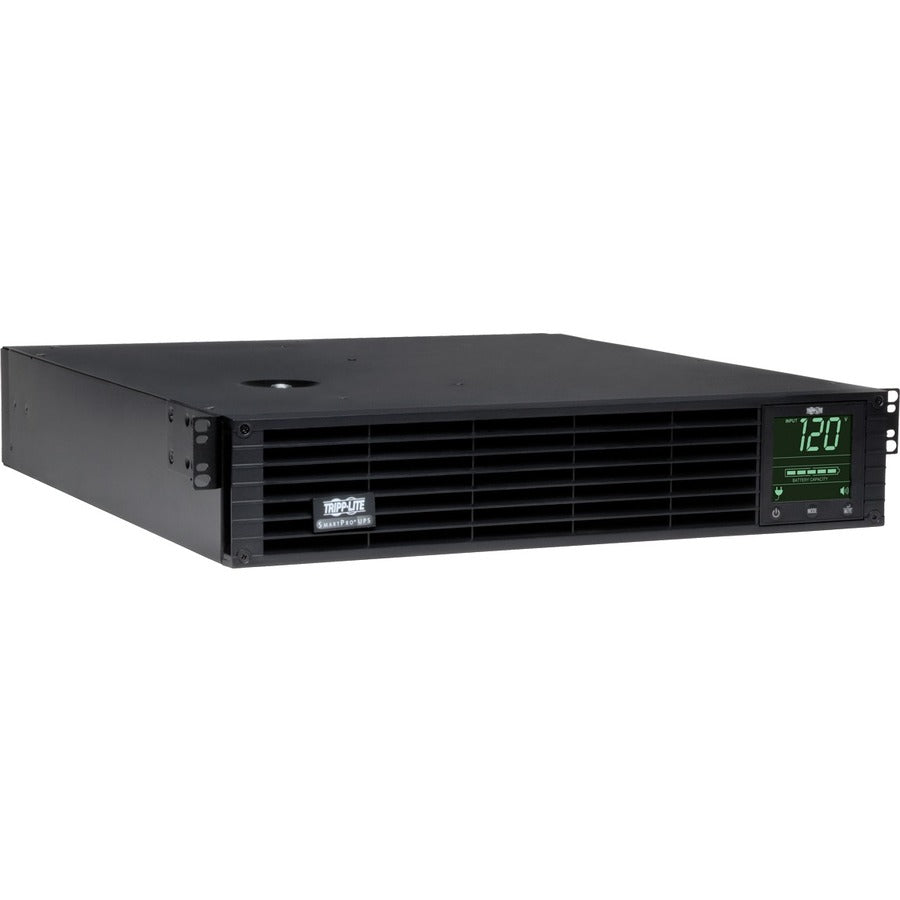

The Eaton Tripp Lite SmartPro SM3000RM2UNTAA UPS delivers advanced power protection for high-demand IT equipment in network, server, and telecom environments. With a 3kVA/2.25kW capacity and 120V line-interactive design, it corrects brownouts and overvoltages from 83V to 145V using automatic voltage regulation (AVR). This 2U rack/tower unit features hot-swappable batteries, dual switchable load banks, and pre-installed WEBCARDLX for remote monitoring via HTML5 interface (SNMP, SSH, HTTPS).
This TAA-compliant UPS includes a rotatable LCD screen, USB and DB9 ports, and extended runtime compatibility with external battery packs. Ideal for federal, enterprise, and high-availability environments.
| Category | Details |
|---|---|
| Model Number | SM3000RM2UNTAA |
| UPS Type | Line-Interactive |
| Form Factor | 2U Rack/Tower |
| Input Voltage | 120V AC (83–145V operating range) |

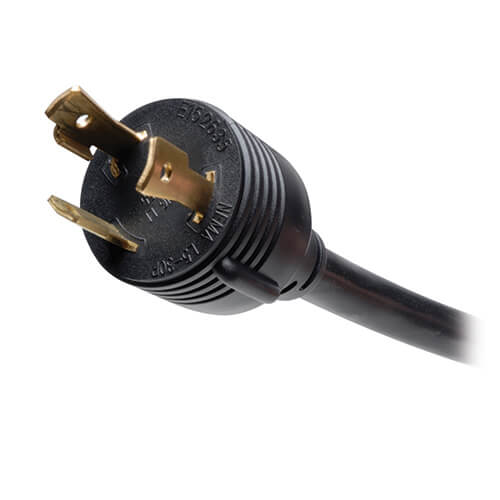

| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 10 ft (3.1 m) |
| Output Voltage | 120V AC (Pure Sine Wave) |
| Output Capacity | 3000VA / 2250W |

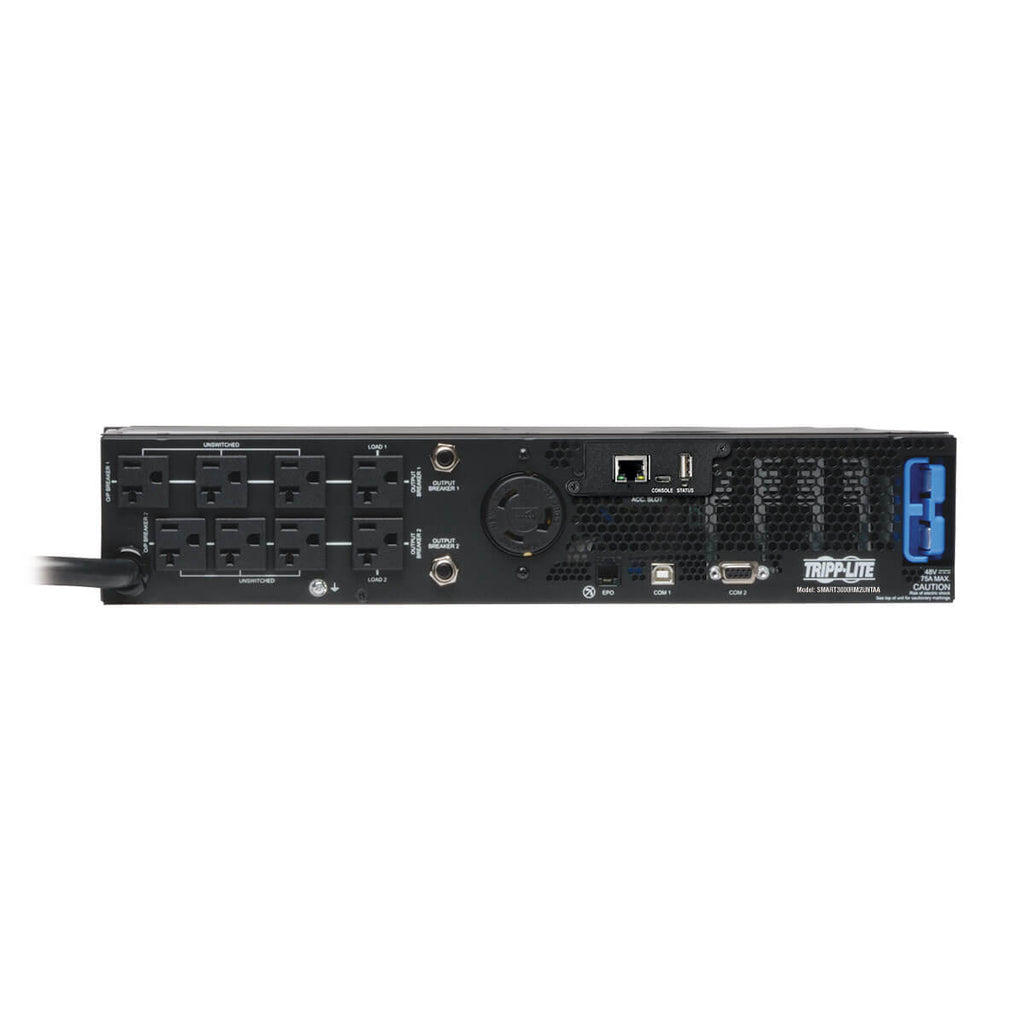

| Output Receptacles | 8 x NEMA 5-15/20R, 1 x NEMA L5-30R |
| Load Banks | 2 Individually Controllable |
| Efficiency (Line Mode) | 98% |
| Battery Runtime | 10 min @ half load (1125W), 3.5 min @ full load (2250W) |
| Expandable Runtime | Yes (Supports BP48V24-2U, BP48V60RT-3U, BP48V27-2US, etc.) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |

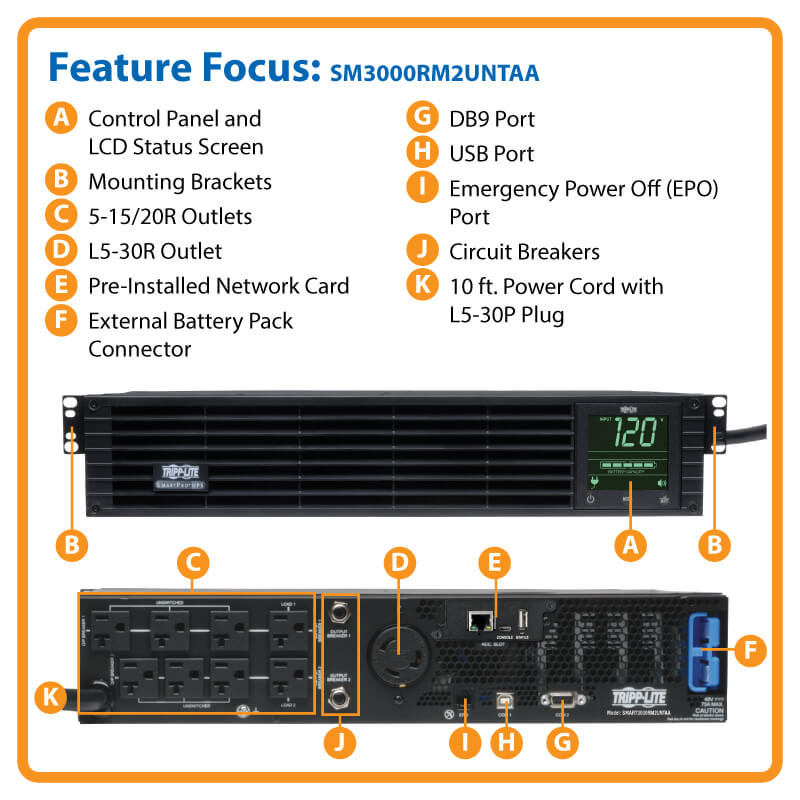

| Communication Interfaces | USB, DB9 Serial, EPO, RJ45, Pre-installed WEBCARDLX |
| Network Management | SNMP v1/v2/v3, Telnet, SSH, HTTPS, HTTP, PowerAlert |

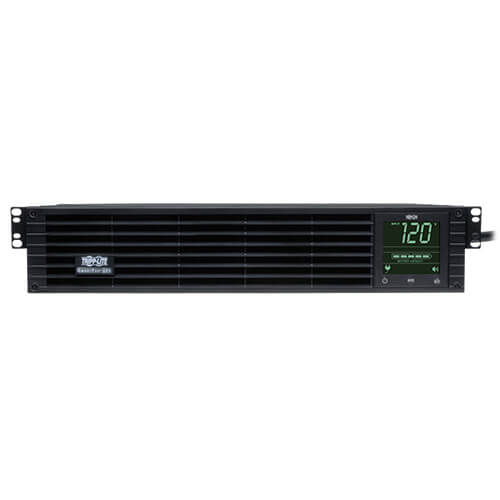

| Display | Rotatable LCD w/ 7 detailed screens |
| Surge Protection | 570 Joules, EMI/RFI suppression |

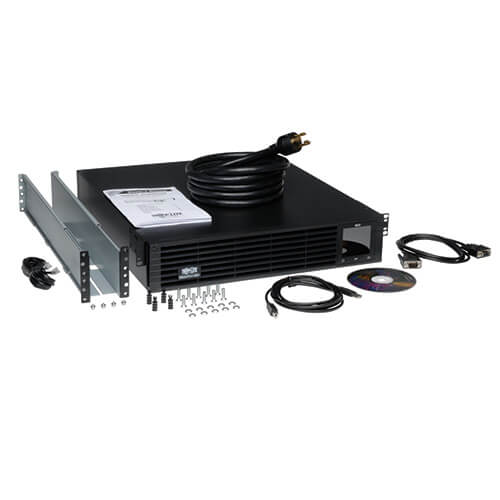

| Mounting Options | 4-post (included), 2-post/wallmount/tower (optional kits) |
| Dimensions (H x W x D) | 3.46 x 17.32 x 19.46 in (88 x 440 x 494 mm) |
| Weight | 62.8 lbs (28.49 kg) |
| Certifications | UL 1778, CSA, FCC Class A, TAA Compliant, RoHS |
| Warranty | 2-Year Limited Warranty; $250,000 Equipment Insurance (U.S., CA, PR) |
