Description

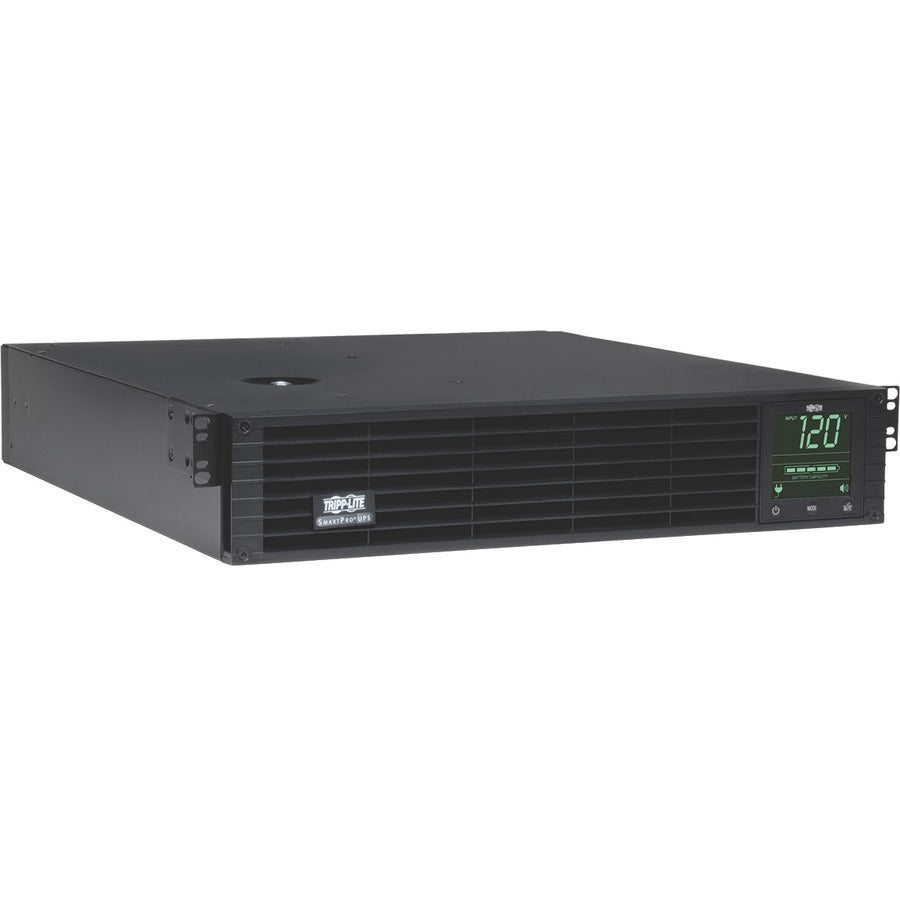

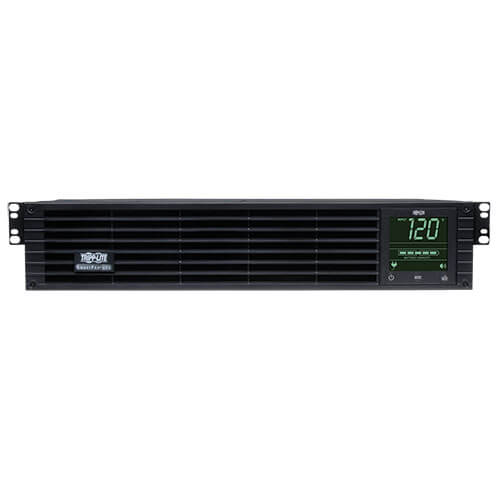

The Eaton Tripp Lite SmartPro® SM3000RMXLNTAA is a TAA-compliant, line-interactive sine wave UPS system designed for mission-critical network, server, and telecom applications. Featuring a high 2.88kW capacity in a compact 2U rack/tower form factor, it includes automatic voltage regulation (AVR), hot-swappable batteries, and extended runtime capability. Its pre-installed WEBCARDLX network interface offers secure, Java-free remote monitoring and management, while the interactive LCD provides real-time system diagnostics. With a 96% efficiency rating and multiple communications options, this UPS is ideal for high-availability IT environments.

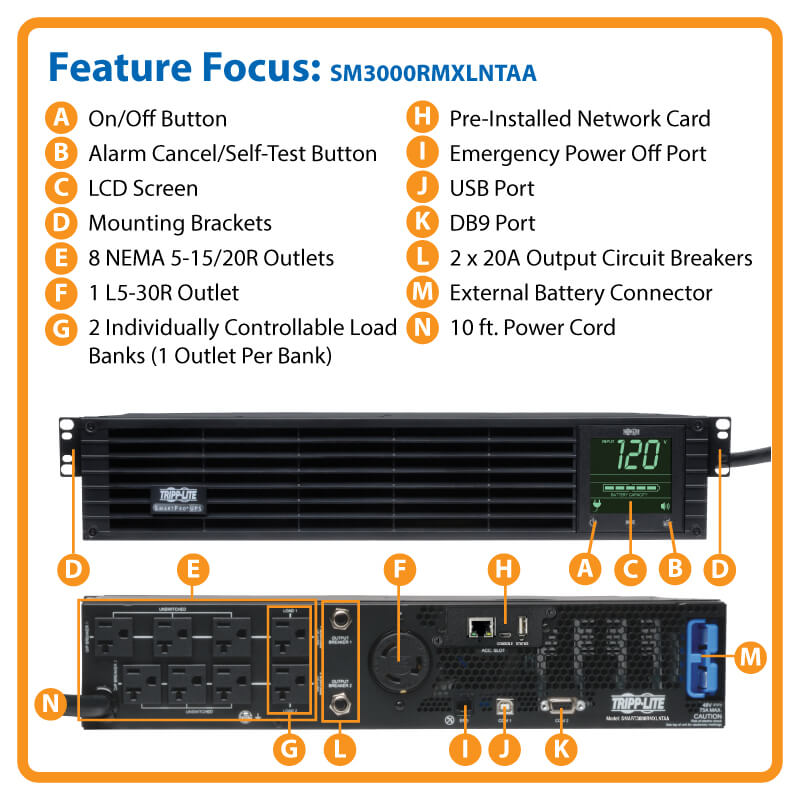

| Feature | Details |
|---|---|
| Model Number | SM3000RMXLNTAA |
| UPS Type | Line-Interactive, Sine Wave |
| Capacity | 3000VA / 2.88kW |
| Input Voltage | 120V (NEMA L5-30P plug) |
| Output Voltage | 120V (NEMA 5-15/20R x8, L5-30R x1) |
| Form Factor | 2U Rack/Tower |
| Runtime @ Half Load | 10 minutes (1440W) |
| Runtime @ Full Load | 3 minutes (2880W) |
| External Battery Support | Yes – Compatible with BP48V24-2U, BP48V60RT-3U, BP48V27-2US |
| Hot-Swappable Batteries | Yes |
| Battery Type | Valve-Regulated Lead-Acid (VRLA) |
| Voltage Regulation | AVR corrects input from 83–145V |
| LCD Interface | Interactive LCD with mode/configuration display |
| Network Interface | Pre-installed WEBCARDLX (SNMP, Telnet, SSH, HTTP/S) |
| Additional Ports | USB (HID-compliant), DB9 Serial, EPO |
| Efficiency (Line Mode) | 96% |
| Noise Suppression | 570 Joules, EMI/RFI filtered |

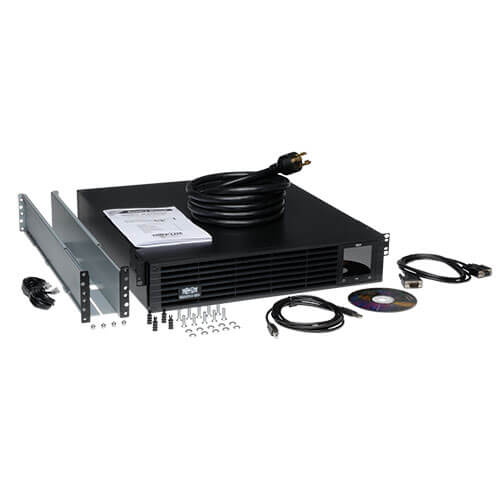

| Mounting Kit | 4-post rackmount kit included |
| Certifications | UL 1778, CSA, FCC Class A, RoHS, TAA Compliant |
| Dimensions (HxWxD) | 3.5 x 17.5 x 19 in (2U) |
| Weight | 73 lbs (UPS only); 100 lbs (with packaging) |
| Warranty | 2-Year Limited Warranty + $250,000 Connected Equipment Insurance (US/CA/PR) |
