Description

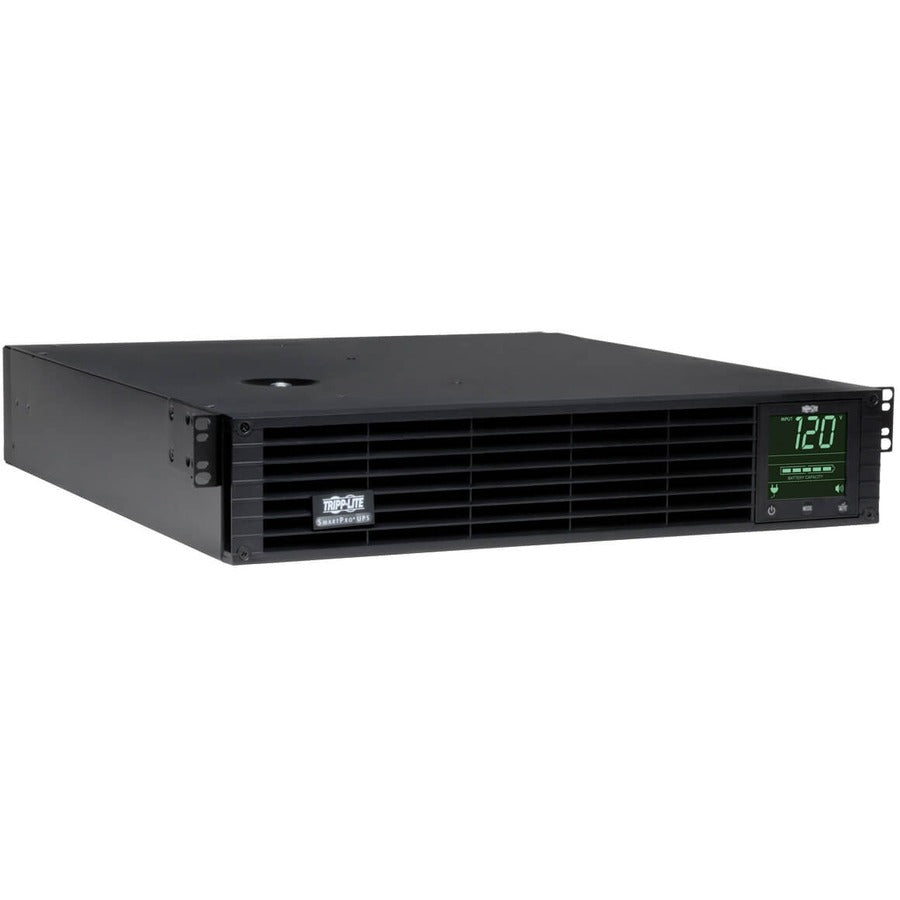

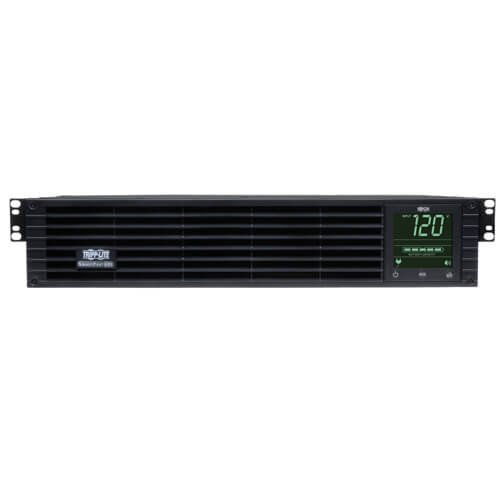

The Eaton Tripp Lite SmartPro SM2200RMXL2UTAA is a TAA-compliant, line-interactive sine wave UPS designed for critical networking, telecom, and server equipment. With a 2200VA/1920W capacity, it provides reliable power backup, automatic voltage regulation (AVR), and hot-swappable batteries. The unit supports extended runtime via optional battery packs and features a high-efficiency design with a 96% line mode rating, reducing heat and energy costs.
Its interactive LCD provides real-time diagnostics, while its multiple communication ports (USB, DB9, EPO, and network card slot) ensure seamless monitoring and management. With independently controllable load banks, advanced remote reboot, and a versatile 2U rack/tower form factor, this UPS is built for enterprise-grade protection and flexibility.
| Specification | Details |
|---|---|
| Model Number | SM2200RMXL2UTAA |
| Type | Line-Interactive UPS |
| TAA Compliance | Yes (suitable for GSA Schedule) |
| Capacity | 2200VA / 1.92kW |
| Input Voltage | 120V AC (NEMA 5-20P plug, 10 ft cord) |
| Output Voltage | 120V AC (4 × 5-15R, 4 × 5-15/20R) |
| Waveform (Line/Battery Mode) | Sine wave / Pure sine wave |
| Runtime (Full/Half Load) | 4.5 mins (1920W) / 12 mins (960W) |
| Expandable Runtime | Yes – with external battery packs (max 1600W output with packs) |
| Battery Type | Valve Regulated Lead Acid (VRLA), hot-swappable |
| Display | Front-panel LCD, rotatable |

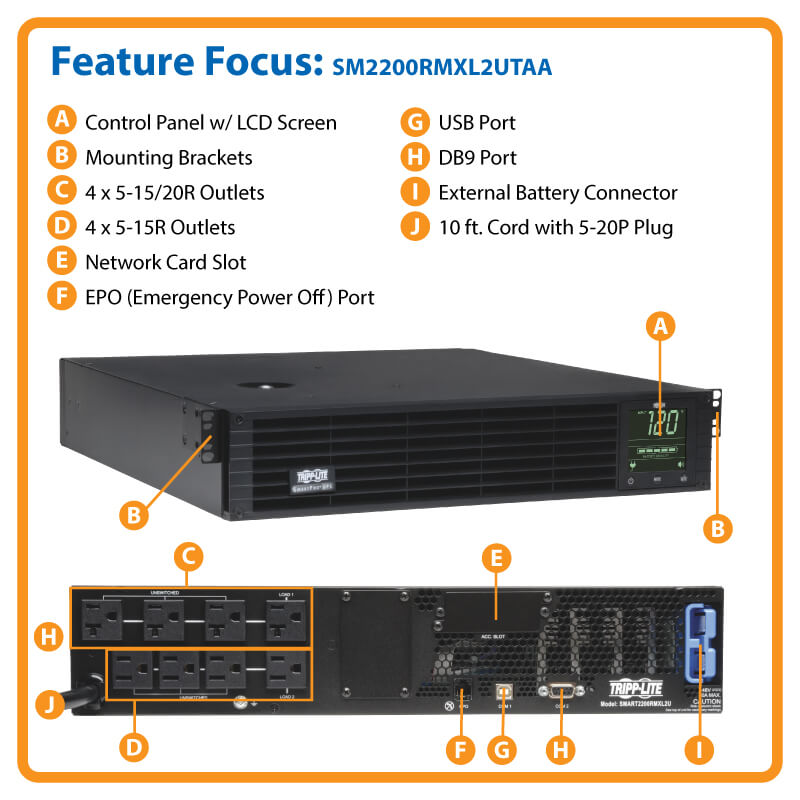

| Communications | USB (HID), DB9 Serial, EPO, Network card slot (TLNETCARD, WEBCARDLX, etc.) |
| Efficiency (Line Mode) | 96% |

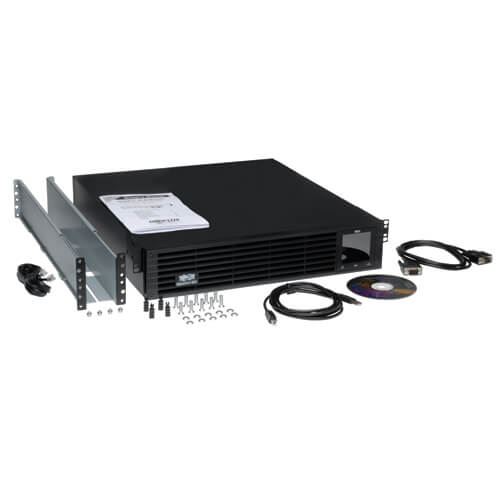

| Mounting Options | 2U Rackmount or Tower (includes 4-post kit) |
| Surge Protection | 570 Joules, EMI/RFI filtering |
| Certifications | UL 1778, CSA, RoHS, FCC Part 15 Class A |
| Warranty | 2-year limited + $250,000 Connected Equipment Insurance |
| Dimensions (H x W x D) | 3.46 x 17.32 x 19.29 in (88 x 440 x 490 mm) |
| Weight | 57.6 lbs (26.13 kg) |
