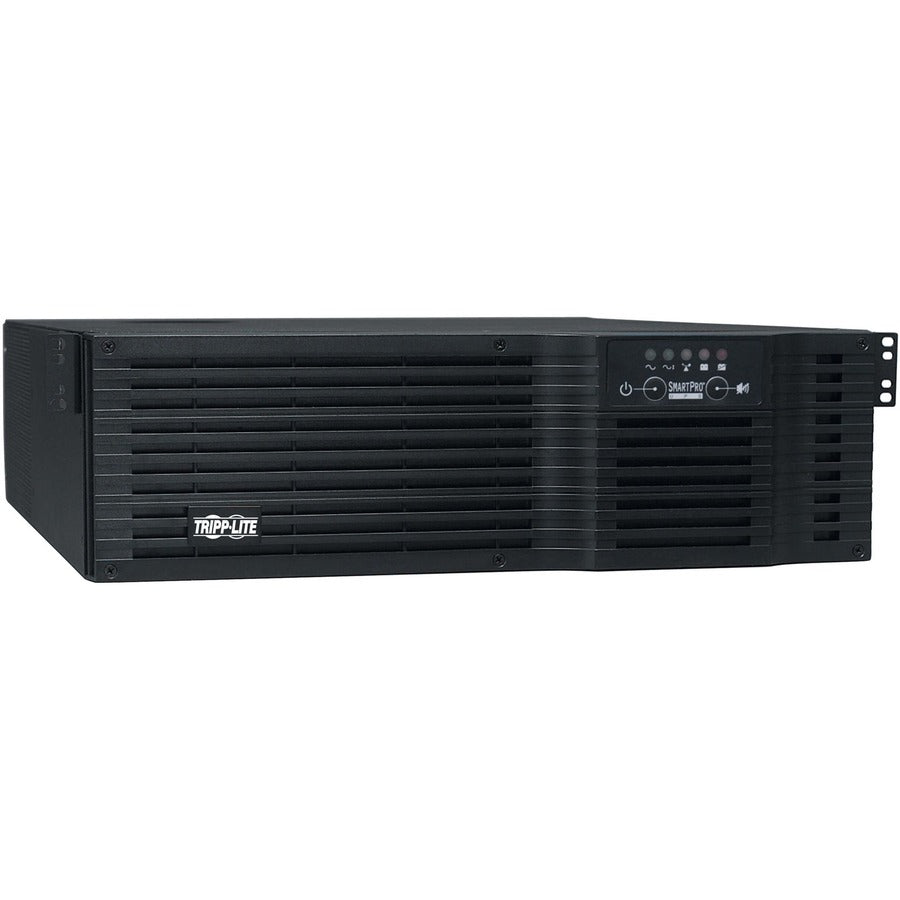

The Eaton Tripp Lite SM2200RMDVTAA is a TAA-compliant, line-interactive UPS system with 2.2kVA (1920W) capacity designed for global IT environments. Supporting both 120V and 230V inputs, it maintains a pure sine wave 120V output, protecting critical electronics from blackouts, surges, and brownouts. This 3U rack/tower UPS offers dual bank PDU switching for remote reboot, extended battery options for longer runtimes, and multiple communication interfaces including USB, DB9, and optional network cards.

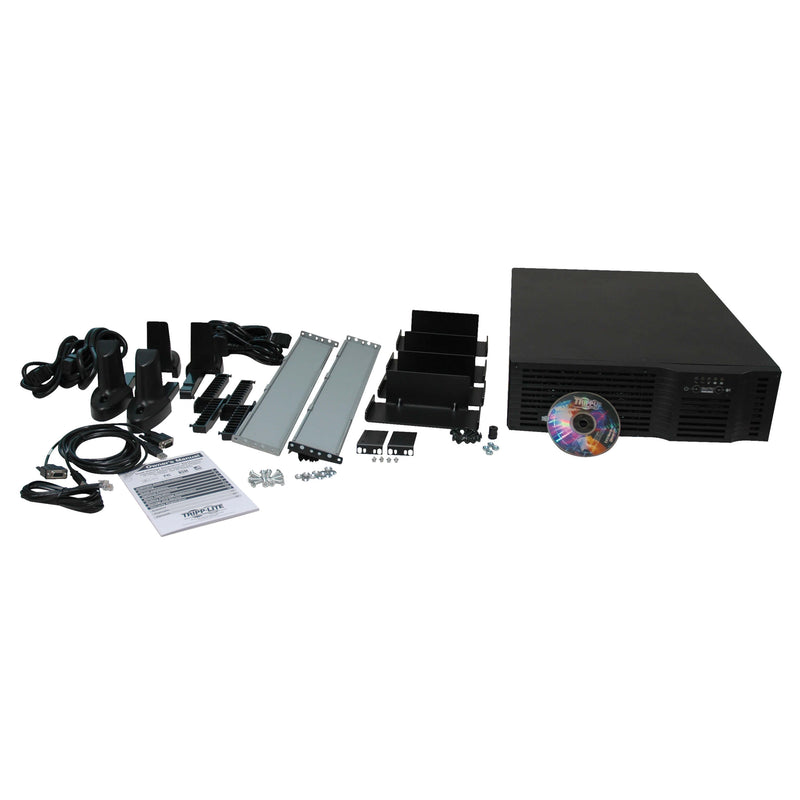

Equipped with AVR, it ensures voltage regulation from 89–148V or 212–286V input without battery usage. Efficiency reaches up to 95% in line mode, reducing heat and energy consumption. The UPS includes international power cables, robust surge suppression, EPO interface, and HID-compliant USB support for seamless integration with Windows/macOS power management. Field-replaceable batteries and full accessory kits for rack/tower installation are included.
| Category | Details |
|---|---|
| Model Number | SM2200RMDVTAA |
| UPS Type | Line-Interactive, Sine Wave Output |
| Form Factor | 3U Rack/Tower |
| Power Capacity | 2200VA / 1920W |
| Input Voltage | 120V or 230V AC (auto-sensing) |
| Input Plug Type | C20 inlet, includes 5 plug sets (NEMA 5-20P, Schuko, BS1363, CEI 23-16, etc.) |
| Input Cord Length | 6 ft (1.8 m) |
| Output Voltage | 120V (regulated) |
| Output Receptacles | (4) 5-15R and (4) 5-15/20R |
| Waveform | Pure Sine Wave (Battery Mode) |
| Runtime (Full Load) | 12 min (1920W) |
| Runtime (Half Load) | 30 min (960W) |
| Battery Type | Valve Regulated Lead Acid (VRLA), Hot-swappable |
| Battery Expandability | Yes, supports BP48V24-2U / BP48V60RT3U external packs |
| Recharge Time | < 4.5 hours (from 10% to 90%) |

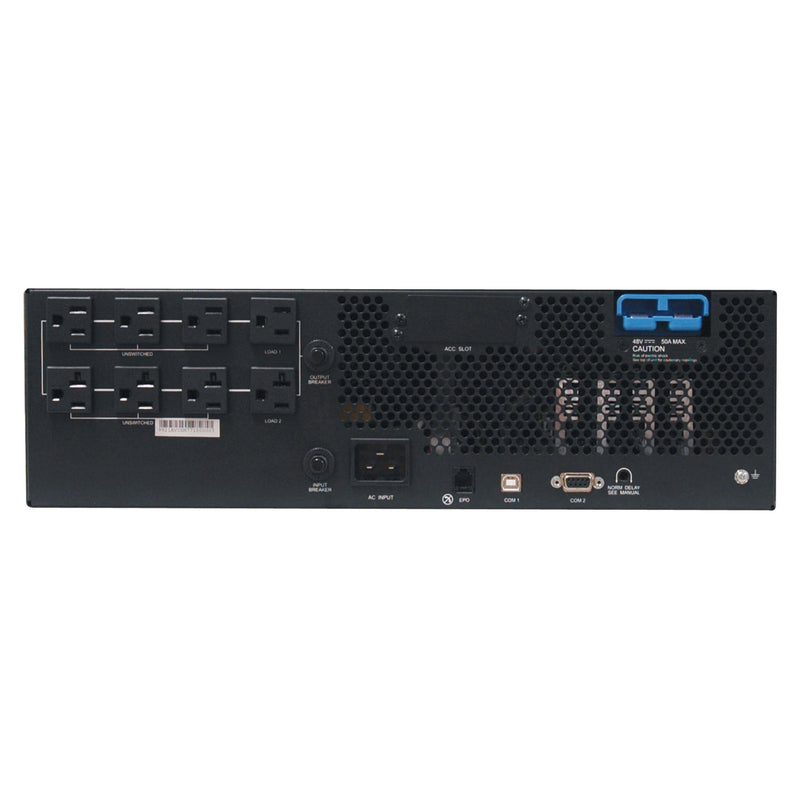

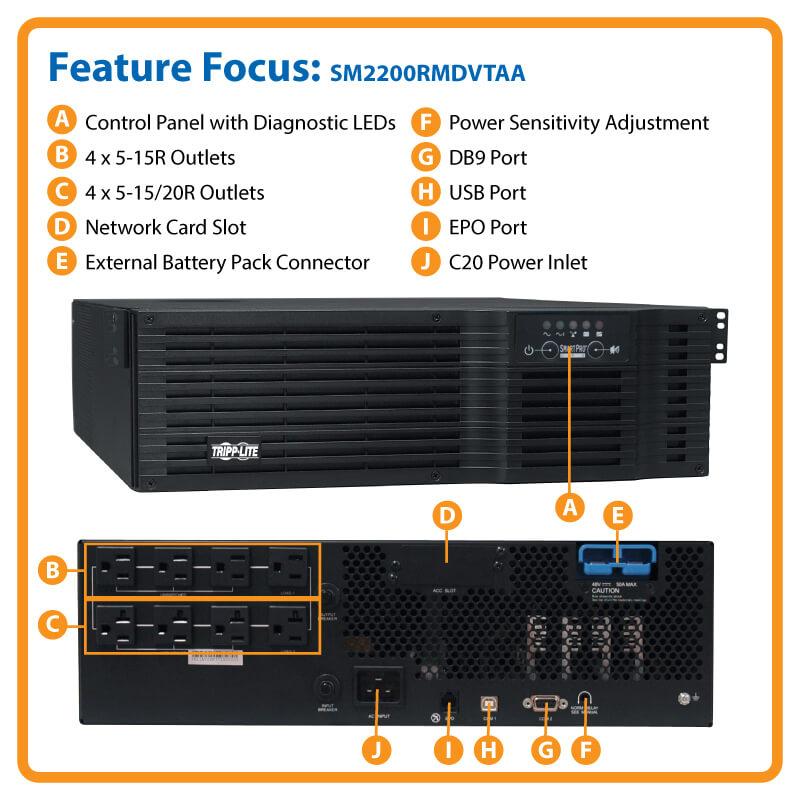

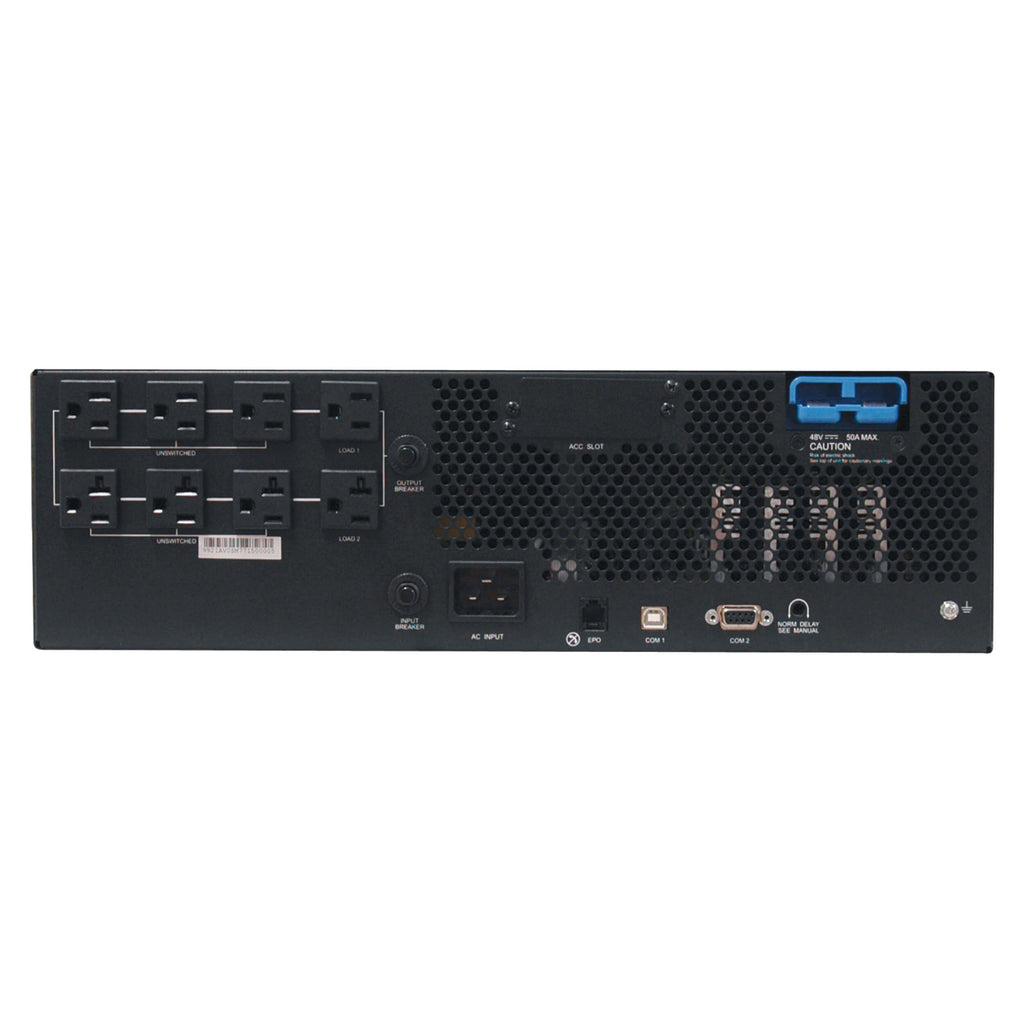

| Interfaces | USB (HID), DB9 Serial, EPO, Slot for SNMP/WEBCARDLX |
| Surge Protection | 340 Joules, EMI/RFI suppression |
| Efficiency | 95% (line mode) |
| Cooling | Fan-cooled |

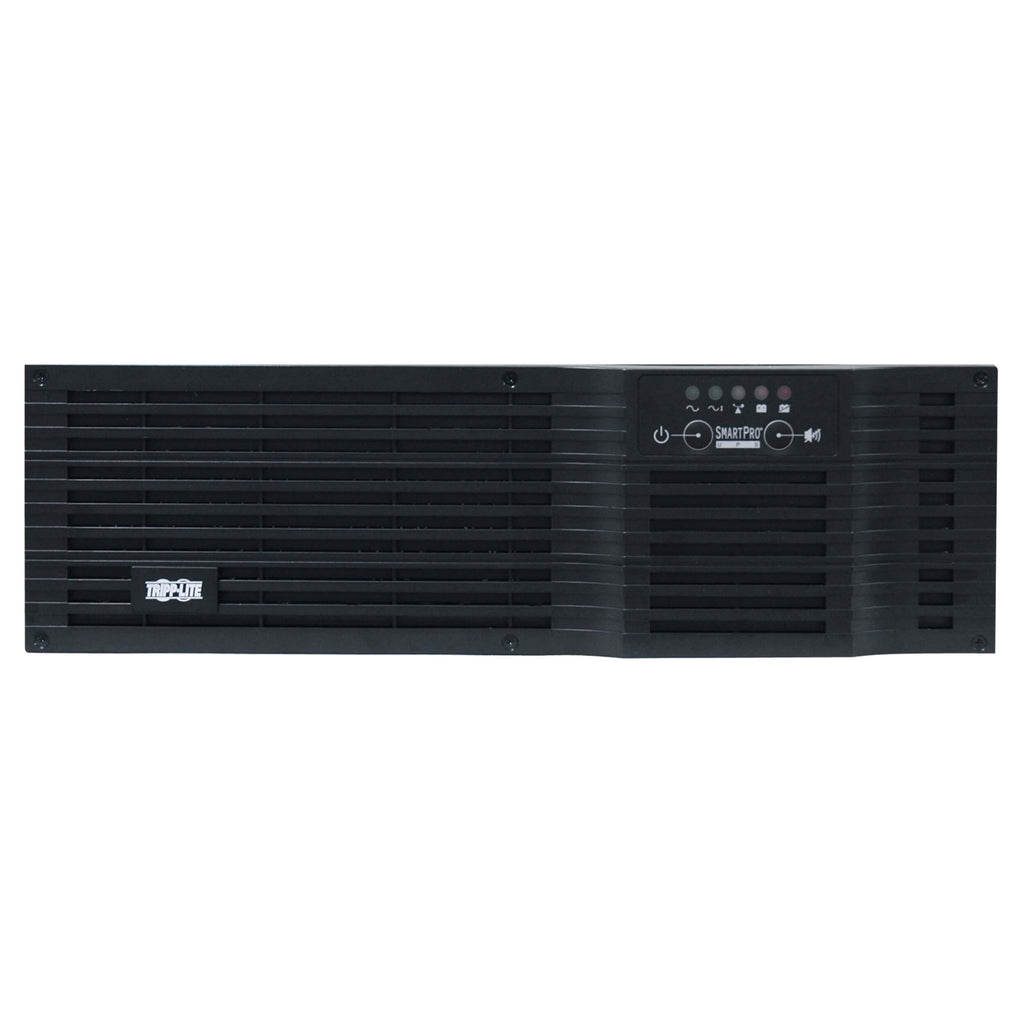

| Alarms & Indicators | Audible alarm, 5 status LEDs |
| Mounting Accessories | Included: 2-post kit, 4-post rails, tower stands |
| Dimensions (WxDxH) | 17.75 x 25.25 x 5.25 in (45.1 x 64.1 x 13.3 cm) |
| Weight | 104.25 lbs (47.29 kg) |
| Certifications | UL 1778, CSA, FCC Class A, TAA Compliant, RoHS |
| Warranty | 2-year limited warranty |
