Description

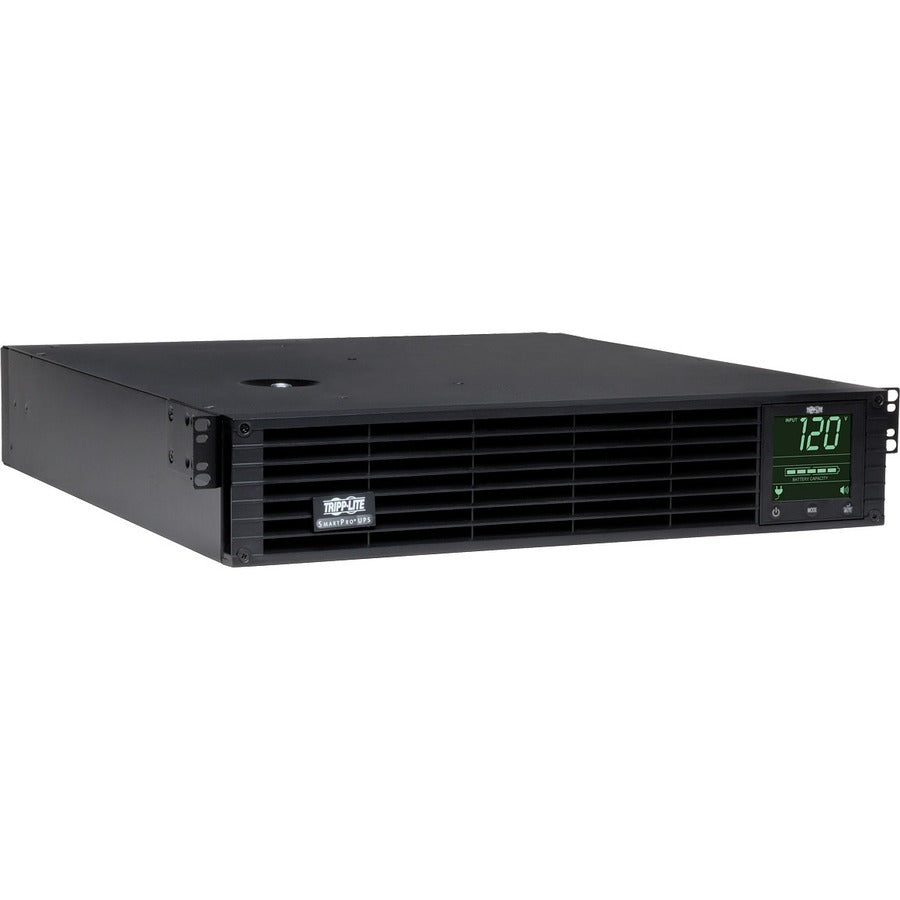

The Eaton Tripp Lite SM3000RM2UTAA is a TAA-compliant 3kVA/2.25kW Line-Interactive Sine Wave UPS designed for demanding IT environments. Housed in a compact 2U rack/tower form factor, this UPS delivers reliable power protection with automatic voltage regulation (AVR), pure sine wave output, and extended runtime options. An intuitive LCD interface provides real-time monitoring and control. Ideal for government, enterprise, and critical infrastructure applications, it features hot-swappable batteries, USB/DB9 ports, EPO, and support for optional SNMP/Web management cards. Compatible with PowerAlert® software and extended battery packs, this high-efficiency UPS ensures minimal downtime and optimal energy savings.
| Category | Details |
|---|---|
| Model Number | SM3000RM2UTAA |
| UPS Type | Line-Interactive |
| Form Factor | 2U Rack/Tower |
| Input Voltage | 120V AC (NEMA L5-30P, 10 ft cord) |
| Input Frequency | 60 Hz |
| Input Phase | Single-Phase |
| Output Power Capacity | 3000VA / 2250W (1600W max with external battery packs) |
| Output Voltage | 110V, 115V, 120V AC |

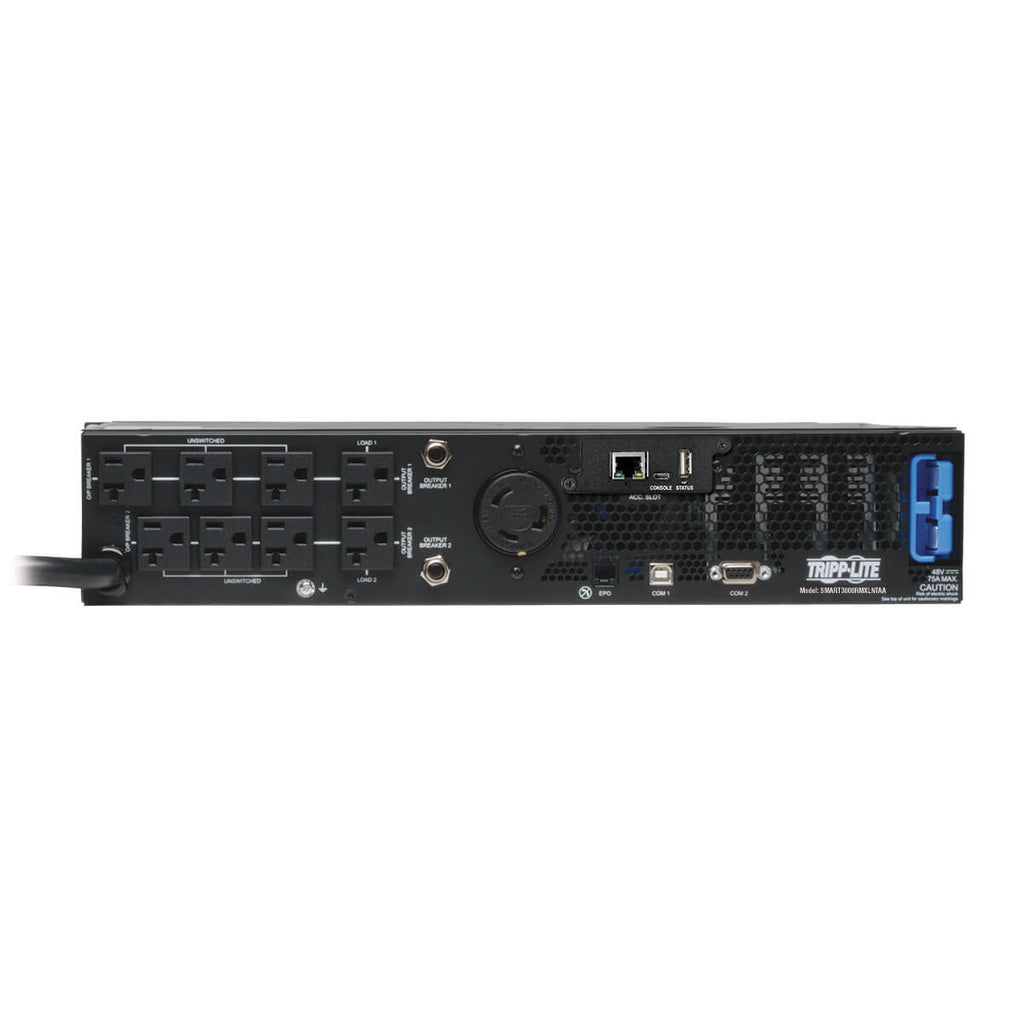

| Output Receptacles | 8 × NEMA 5-15/20R, 1 × NEMA L5-30R |
| Waveform (Line/Battery) | Pure Sine Wave |
| Voltage Regulation | AVR: Corrects from 83–145V |
| Battery Type | VRLA, Hot-swappable, User-replaceable |
| Runtime (50%/100% Load) | 10 min @ 1125W / 3.5 min @ 2250W |
| Extended Runtime Options | BP48V24-2U, BP48V242UTAA, BP48V60RT-3U, BP48V60RT3UTAA, BP48V27-2US |

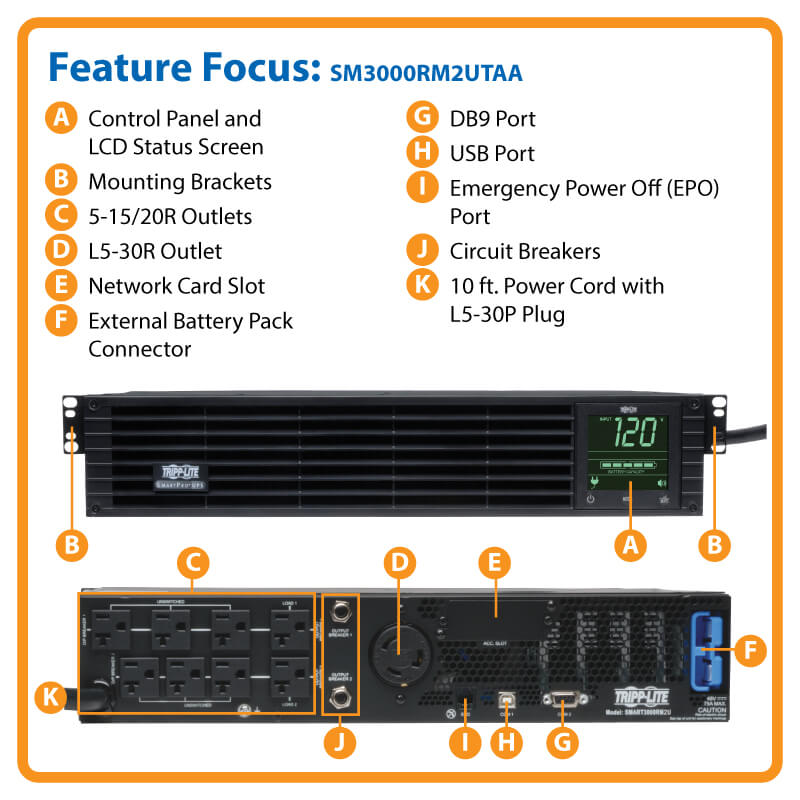

| Interfaces | USB (HID), DB9 Serial, EPO, SNMP Slot |
| LCD Display | Interactive, 7 selectable screens, rotatable for rack/tower |
| Efficiency (AC Mode) | 98% |
| Mounting Options | 4-post rackmount (included), 2-post/wall/tower (optional kits available) |
| Dimensions (H × W × D) | 3.46 × 17.32 × 19.46 in (88 × 440 × 494 mm) |
| Weight | 62.8 lbs (28.49 kg) |
| Certifications | UL 1778, CSA, FCC Class A, RoHS, TAA Compliant |
| Operating Temp | 32–104°F (0–40°C) |
| Warranty | 2-Year Limited Warranty |
